Lost Spark in Rear Cylinder

Old 06-29-2011, 10:06 AM
  #1
Member
Squid
Thread Starter

motogomojo's Avatar

Join Date: Aug 2009
Location: Utah
Posts: 35
motogomojo is on a distinguished road
Lost Spark in Rear Cylinder

There is no spark coming from the rear plug.(Checked with more than one plug)

Is this most likely a coil issue? Also is it just a coincedence that the alarm stopped woking at the same time?

If it is most likely a coil, should I replace the front as well?, and where is the best place to buy a replacement?

02 Bike has 22k miles.


Sorry for all the ???'s


Little online time at work = quick post


Thanks in advance.
motogomojo is offline
Old 06-29-2011, 10:12 AM
  #2
Senior Member
MotoGP

7moore7's Avatar

Join Date: Jul 2010
Location: Phoenix, AZ
Posts: 3,867
7moore7 is on a distinguished road
For a little extra work, you can replace them with CBR stick coils, save some weight and get possibly a little performance from it.

I know it doesn't answer your question, but if you go that direction:

https://www.superhawkforum.com/forum...k-coils-22773/
7moore7 is offline
Old 06-29-2011, 10:15 AM
  #3
Banned
MotoGP

Join Date: Aug 2007
Location: Lake View Terrace, CA
Posts: 5,942
8541Hawk will become famous soon enough
If you want to go with the stock set up here is the info:
Honda, ATV Parts, Scooter Parts, Motorcycle Parts,CRF,CR,MX Parts, Goldwing parts

Pos. #6 and you don't have to but you might also want to replace pos. #8 at the same time.

I would replace them both as the plug wires are 9 yrs old. So either way you choose to go, it would be a good time to look into swapping them out.

As for the alarm, I do not believe that the 2 issues are related.
8541Hawk is offline
Old 06-29-2011, 11:52 AM
  #4
Senior Member
Superstock

kmm996's Avatar

Join Date: Jul 2005
Location: North Central Indiana
Posts: 416
kmm996
Mine did the same thing way back when... Rear coil failure. No issues since.
kmm996 is offline
Old 07-12-2011, 05:39 PM
  #5
Member
Squid
Thread Starter

motogomojo's Avatar

Join Date: Aug 2009
Location: Utah
Posts: 35
motogomojo is on a distinguished road
OK fellas......

New coil, plug and wires....still no spark.

Where do I go next




Alarm fixed.(fuse)

Sidestand switch has never worked ...would this cut spark to just one side?

14 days of no riding .........I need this resolved!
motogomojo is offline
Old 07-12-2011, 10:00 PM
  #6
Member
Squid
Thread Starter

motogomojo's Avatar

Join Date: Aug 2009
Location: Utah
Posts: 35
motogomojo is on a distinguished road
Effin Co-worker!!!!



Thinking back on what changed from my bike running great on the way to work,to running like **** on the way home,I remembered someone telling me that a co-worker kept kicking the underside of my rear fender with his steel toe boot to trip the alarm.

I will confront him about this tomorrow.

He rides a Harley and there has been some minor joking between both of us about our taste in bikes,but I never touch a bike that is not mine ....let alone kick it!! WTF!


So while cranking the ignition I tapped on what I think is the ICM with a screwdriver, which happens to be right at the rear fender where the douche bag was kicking, and lo and behold I get intermittent spark.

So i think I need a new ICM as I do not see any loose connections or solder joints. I bet a relay or something is toast now!

Question#1 Do I make him pay for the new part?

Question #2 Can someone tell me the actual part name/number?
The manual is a little confusing as the picture shows nothing for a 2002 where this part is located (right under the seat locking mechanism)

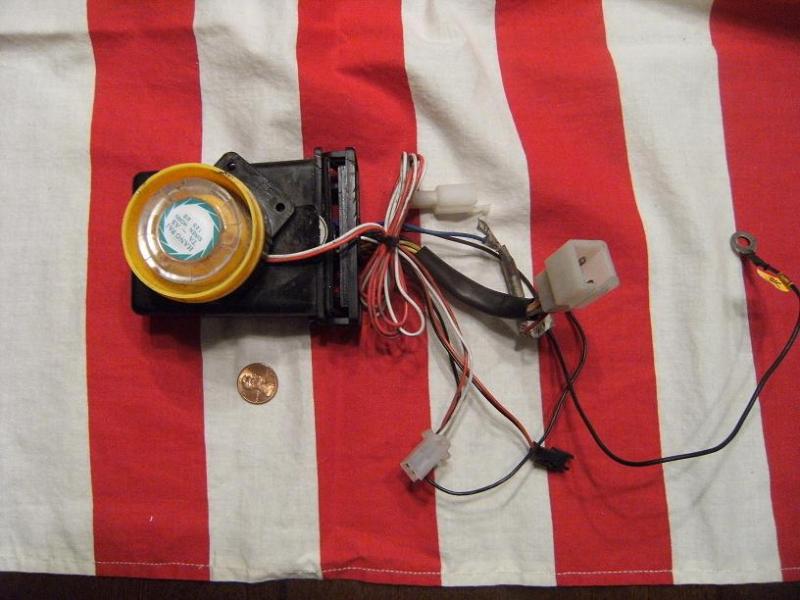

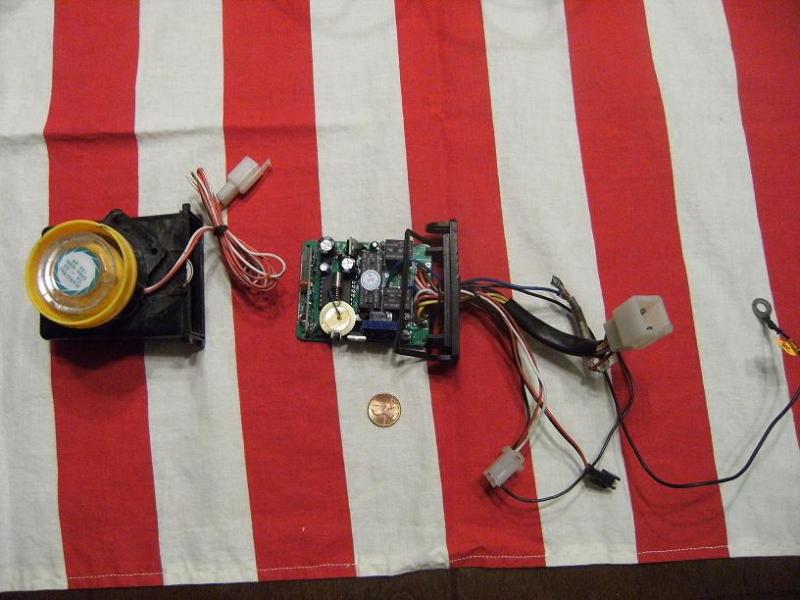

Attached Thumbnails Lost Spark in Rear Cylinder-dscf2833.jpg   Lost Spark in Rear Cylinder-dscf2834.jpg
