Driving lights

As the weather warms up here night riding is very much on the agenda.

Does anyone have any suggestions for a good set up.

I am not looking to upgrade the headlight, more for some discreet driving lights that give good vision on the open road at night.

Thanks.
kenmoore is offline
Old 11-26-2015, 05:31 AM
  #2
Moderator
MotoGP

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 4,215
E.Marquez is on a distinguished road
Originally Posted by kenmoore View Post
As the weather warms up here night riding is very much on the agenda.

Does anyone have any suggestions for a good set up.

I am not looking to upgrade the headlight, more for some discreet driving lights that give good vision on the open road at night.

Thanks.
I use Clearwater lights https://www.clearwaterlights.com/ on the Adventure Bike and some of the Sport bike owners I work with like them as well. Just installed a set of Darla's on a 2013 Street Triple R last month...
, same guy has a 2010 Tiger 1050 with Krista 2 lights .. Loves them both

Pricy ...but very high quality.
Ive also tried the cheap ebay LED lights..on a DRZ440 SM build, They are what they are, low quality but they do put out light....I spent an hour modifying the designed mount to get something that was steady ...the way the cheap light was designed to mount wiggled from the get go, and would have fallen apart in sort order

Last edited by E.Marquez; 11-26-2015 at 09:24 AM.
E.Marquez is offline
Old 11-26-2015, 09:22 AM
  #3
Senior Member
SuperBike
Thread Starter

kenmoore's Avatar

Join Date: Mar 2012
Location: New South Wales Australia
Posts: 1,524
kenmoore is on a distinguished road
Thanks Mr M.
kenmoore is offline
Old 11-30-2015, 05:09 PM
  #4
Senior Member
SuperBike

skokievtr's Avatar

Join Date: Jan 2007
Posts: 1,933
skokievtr is on a distinguished road
Driving Light Mounting Design

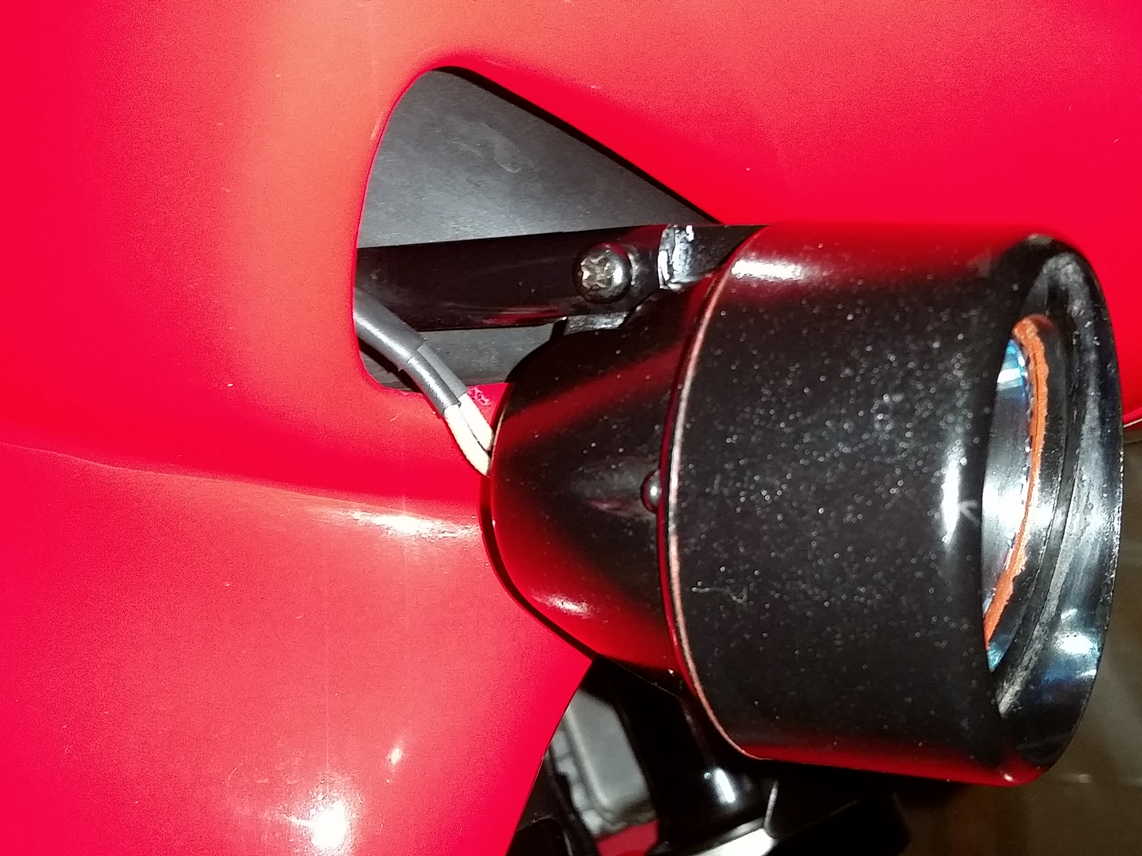

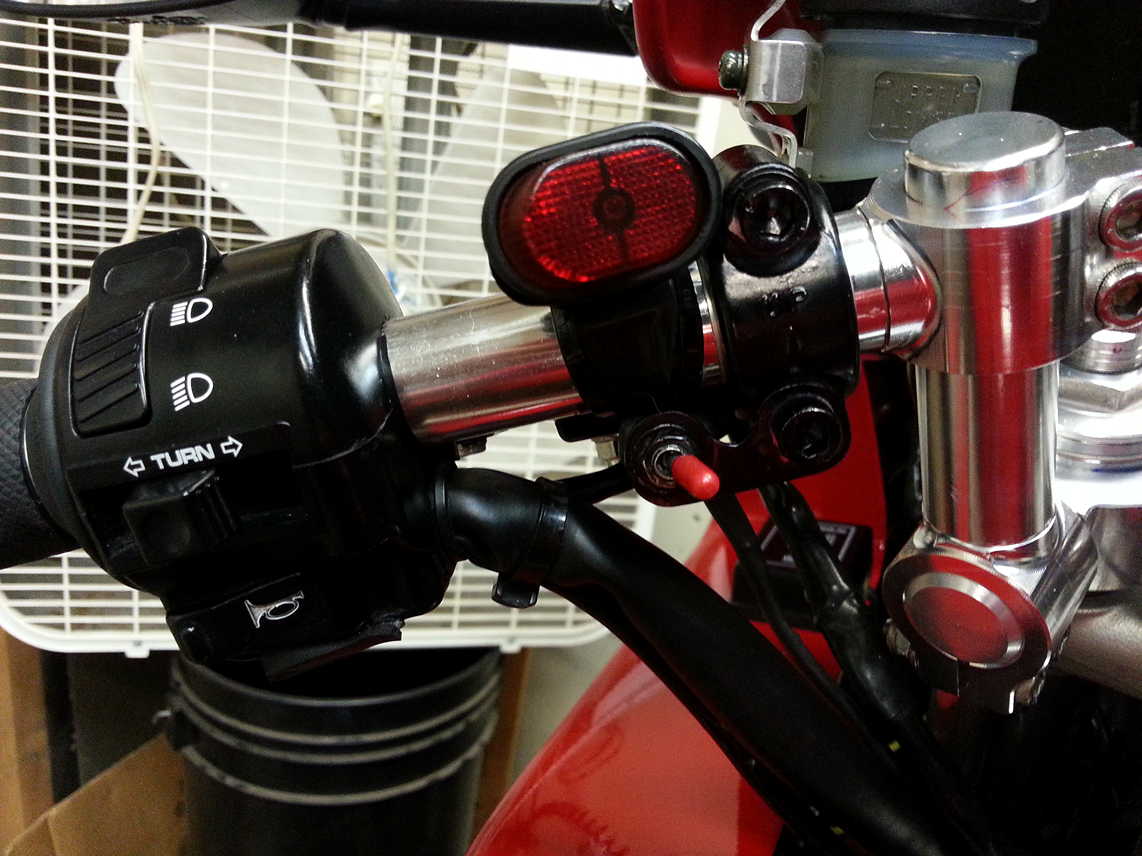

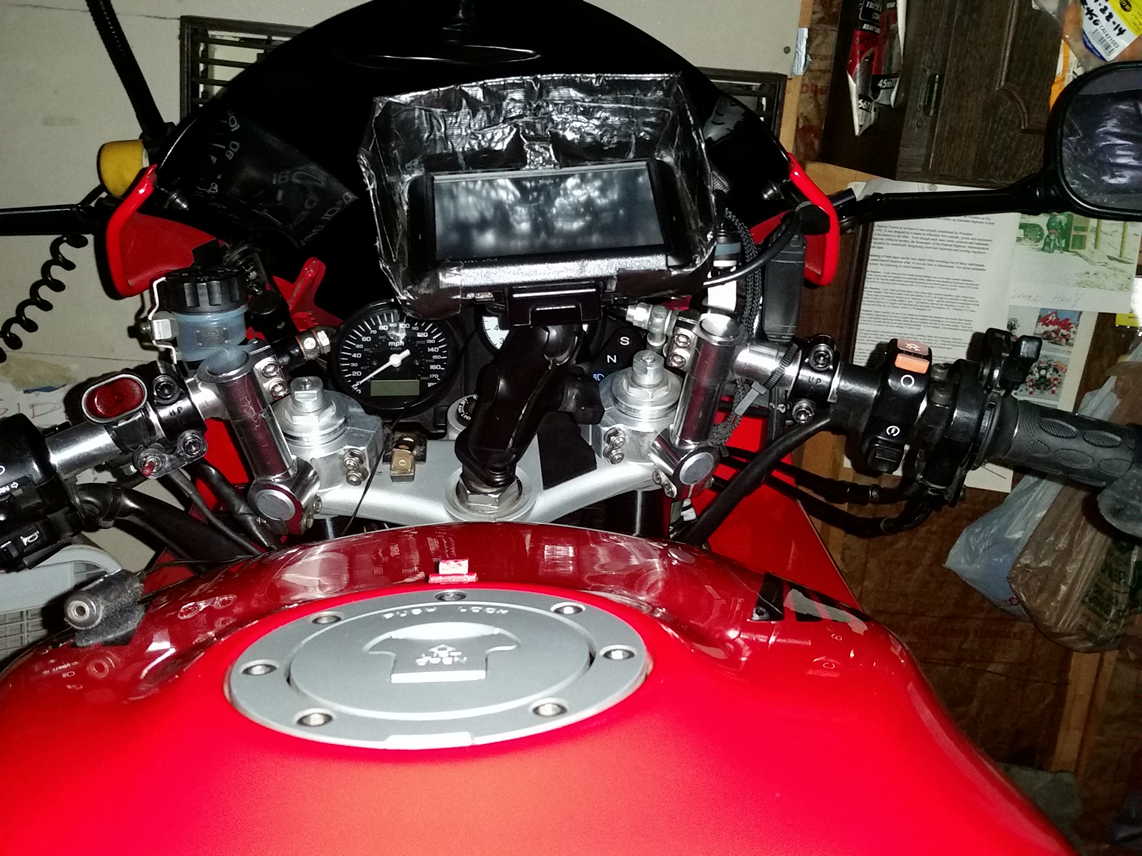

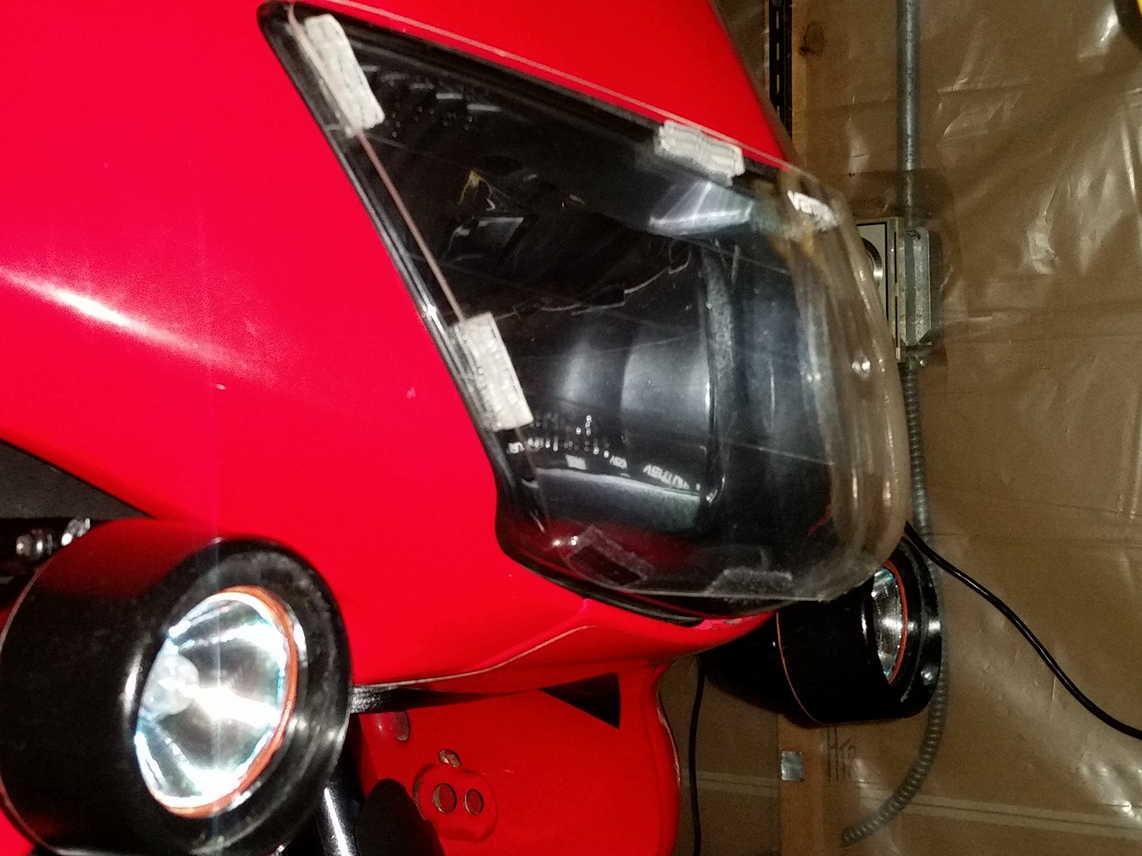

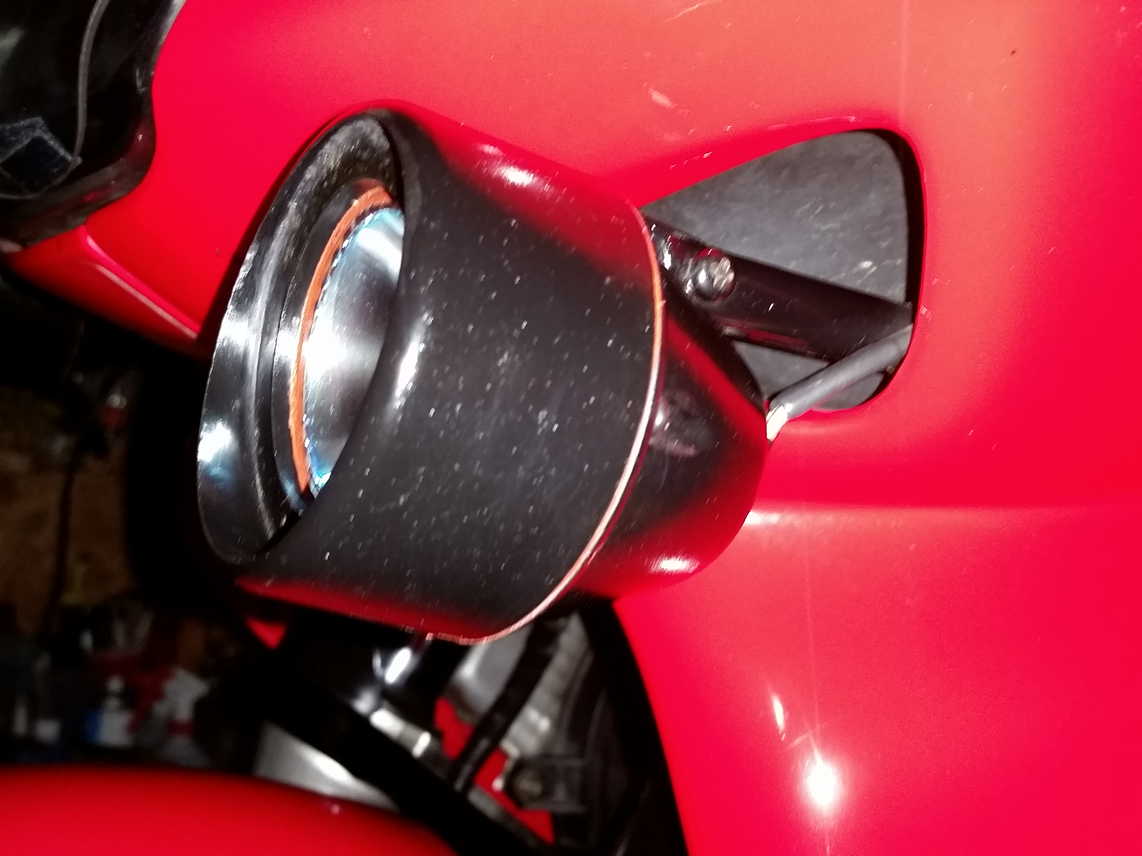

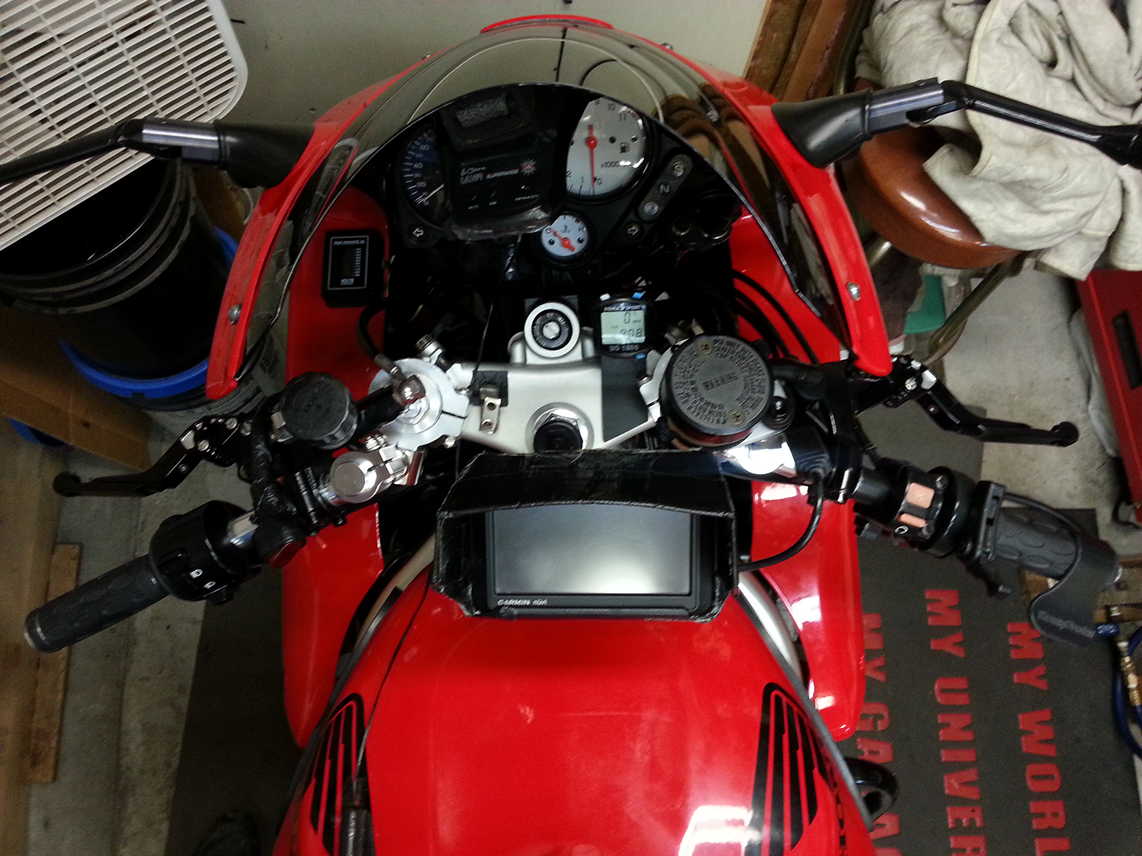

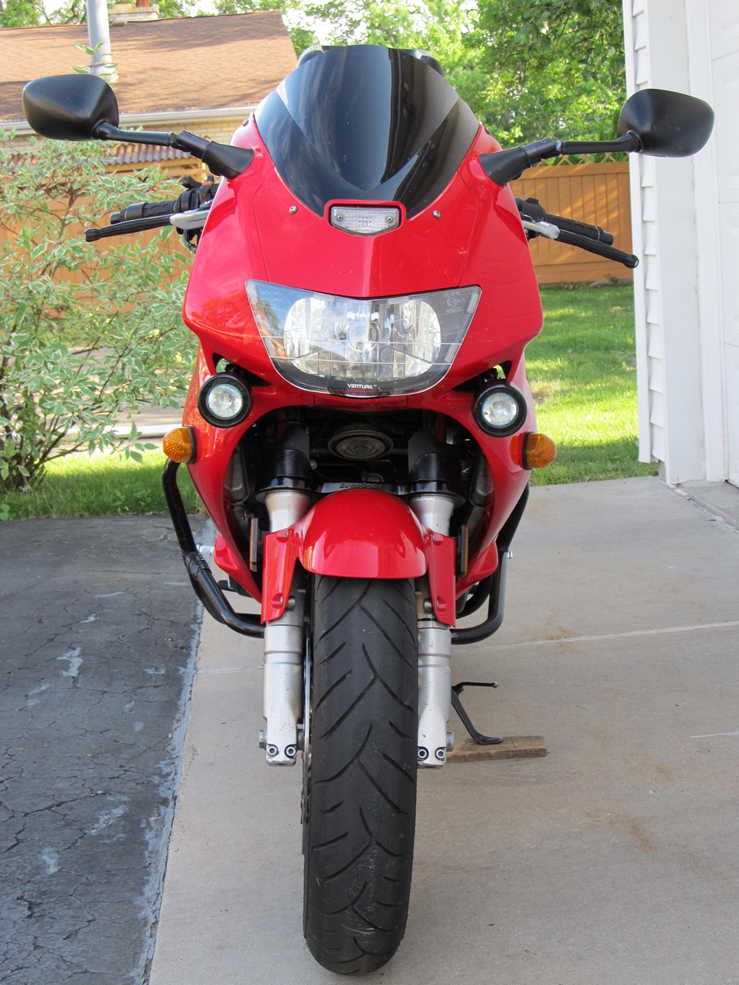

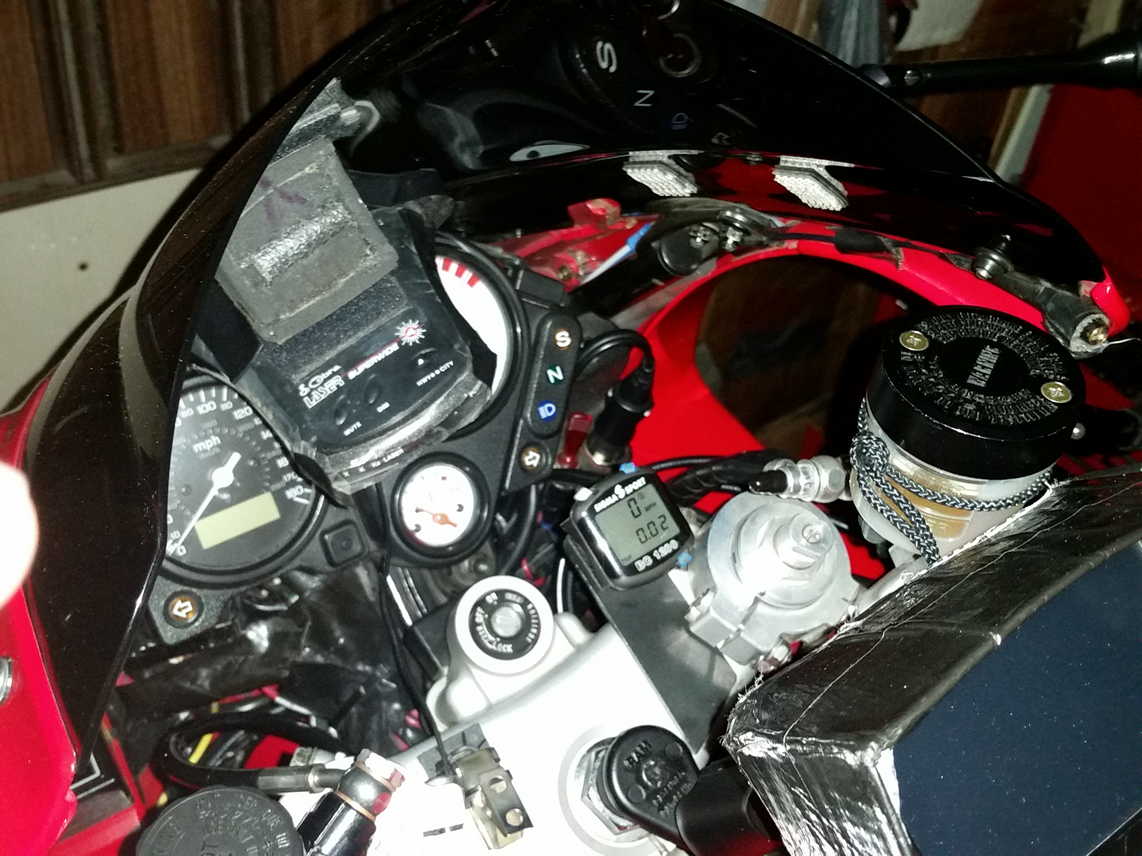

I installed twin 50w halogens a dozen or more years ago but the way I mounted them is what I'm sharing. I want to replace the lights themselves with LED units but have not found any as small, light weight or with a beam comparable to the halogens that will adapt easily to my mounting tubes, and have evaluated many including the Clearwater offerings and am still searching.
Attached Thumbnails Driving lights-image00001.jpg   Driving lights-image00002.jpg   Driving lights-image00003.jpg   Driving lights-image00004.jpg   Driving lights-image00005.jpg

Driving lights-image00006.jpg   Driving lights-image00007.jpg   Driving lights-image00008.jpg   Driving lights-image00009.jpg   Driving lights-image00010.jpg

skokievtr is offline
Old 11-30-2015, 05:57 PM
  #5
Moderator
MotoGP

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 4,215
E.Marquez is on a distinguished road
Originally Posted by skokievtr View Post
I installed twin 50w halogens a dozen or more years ago but the way I mounted them is what I'm sharing. I want to replace the lights themselves with LED units but have not found any as small, light weight or with a beam comparable to the halogens that will adapt easily to my mounting tubes, and have evaluated many including the Clearwater offerings and am still searching.
Im not seeing the issue?? Most any of the lights I have installed (more than a dozen brands or models) would install using the mount you have, or a slight adaptation.
Waiting for a Direct bolt replacement light onto a custom mount you made for what is a non industry standard fitment...might be a long wait.
E.Marquez is offline
Old 11-30-2015, 07:20 PM
  #6
Senior Member
SuperBike

skokievtr's Avatar

Join Date: Jan 2007
Posts: 1,933
skokievtr is on a distinguished road
Originally Posted by E.Marquez View Post
Im not seeing the issue?? Most any of the lights I have installed (more than a dozen brands or models) would install using the mount you have, or a slight adaptation.
Waiting for a Direct bolt replacement light onto a custom mount you made for what is a non industry standard fitment...might be a long wait.
Every light I found was either too big and/or too heavy and Clevis system they used was not adaptable to the very compact slotted tube with a single through-bolt that I have which is right into the nostril of the fairing everything else hangs down too far or projects out too far and was not adaptable to date
skokievtr is offline
Old 12-07-2015, 11:18 PM
  #7
Senior Member
SuperBike
Thread Starter

kenmoore's Avatar

Join Date: Mar 2012
Location: New South Wales Australia
Posts: 1,524
kenmoore is on a distinguished road
Hey Skokievtr,

Thanks a bunch mate.

The way you have mounted the lights is what I was thinking.

I have nothing against halogen lights.

I wonder if LEDs are really that much better.

Thanks once again. Your pictures have been a great help in so far as I now know that I can mount them through the air inlets.

The pictures of your bracket schematics is a bit blurry but I get the idea.

Great stuff! Now all I have to do is source the lights, switch gear and relay.
kenmoore is offline
Old 12-08-2015, 11:51 AM
  #8
Senior Member
SuperBike

skokievtr's Avatar

Join Date: Jan 2007
Posts: 1,933
skokievtr is on a distinguished road
Maybe you can see these sketches better

Check out these incandescent DL which use a standard H2 bulb but IMO are too heavy to cantilever out the fairing nostrils without a secondary support for the strut...

HELLA INC 88157 OPTILUX 962 SPOT HID LOOK

LED draw much less amps which the VTR with only 280 watt output is amperage challenged (see my other posts regarding what can be run simultaneously) are smaller, lighter and depending on the diode put out an incredible amount of white light.

These are 2 I'm considering

https://www.superbrightleds.com/more...Specifications

2" Round 10 Watt LED Mini Auxiliary Work Light
Part Number: AUX-10W-Rx
$49.95

https://www.superbrightleds.com/more...Specifications

10W Mini-Aux, 2" Modular LED Off-Road Work Light
Part Number: AUX-10W-Sx
$34.95


I'm considering several but it's how the attach / mount that to me is critical.




Originally Posted by kenmoore View Post
Hey Skokievtr,

Thanks a bunch mate.

The way you have mounted the lights is what I was thinking.

I have nothing against halogen lights.

I wonder if LEDs are really that much better.

Thanks once again. Your pictures have been a great help in so far as I now know that I can mount them through the air inlets.

The pictures of your bracket schematics is a bit blurry but I get the idea.

Great stuff! Now all I have to do is source the lights, switch gear and relay.
Attached Thumbnails Driving lights-vtr-dl-instl-1c.jpg   Driving lights-vtr-dl-instl-2c.jpg
