Show me your lights, tail lights, turn signals. What works what doesn't. - SuperHawk Forum


Modifications - Cosmetic Discuss aftermarket and DIY cosmetic modifications

Like Tree8Likes
Reply



LinkBack Thread Tools Search this Thread
Old 07-26-2011, 03:35 PM   #1
Junior Member
Squid
Thread Starter

Join Date: Jan 2010
Location: Riverside, CA.
Posts: 8
rafbo is on a distinguished road
Question Show me your lights, tail lights, turn signals. What works what doesn't.

I want to update my lights and wanted to see what is out there, and especially what looks good on a SH. Can your lights be seen in bright day light. If you changed your lights please post here specifically just regarding the lights.
Please include photos and, if you have it, a link to the store where it can be purchased.

Thanks.
rafbo is offline   Reply With Quote
Old 07-26-2011, 04:30 PM   #2
Senior Member
SuperBike

Gregw's Avatar

Join Date: Jun 2007
Location: Los Angeles ish
Posts: 1,031
Gregw is on a distinguished road
These turn signals are standard bulb style from Cycle Gear. I yanked the innards out and replaced with 3 watt LEDs. The brake light has the same LED treatment.
Attached Thumbnails
Show me your lights, tail lights, turn signals. What works what doesn't.-cimg3496.jpg
Gregw is offline   Reply With Quote
Old 08-14-2011, 10:00 PM   #3
Junior Member
Squid
Thread Starter

Join Date: Jan 2010
Location: Riverside, CA.
Posts: 8
rafbo is on a distinguished road
Unhappy I'm on my 2nd set, still not happy.

I shopped Amazon and then Ebay and there are some good prices. Unfortunately, you do get what you pay for. I spent $20-30 for a set of 4 turn signals. China made and very poor quality. 1 out of 4 lights has had a major defect. I'm pretty handy with a soldering iron so I fixed it myself.
Set #1 from Amazon had a small incandescent lamp and could not be seen at all in daylight. Set #2 from eBay is LED but the PC board inside each unit is not mounted at a consistent angle for optimum brightness so I had to play around with mounting angle position.
One of my friends bought a flashing HyperLight brake light LED and it is awesome - really bright. Similar to police bike flashers. So, my next set will be HyperLights. They don't look stylish but they are really bright, which is really what I'm interested in.


Attached Thumbnails
Show me your lights, tail lights, turn signals. What works what doesn't.-signals_front.jpg   Show me your lights, tail lights, turn signals. What works what doesn't.-signals_rear.jpg

Last edited by rafbo; 08-16-2011 at 10:23 PM. Reason: Inserted photos.
rafbo is offline   Reply With Quote
Old 08-15-2011, 07:35 PM   #4
Moderator
MotoGP

Wolverine's Avatar

Join Date: Jul 2007
Location: Gettysburg, Pa
Posts: 4,243
Wolverine is on a distinguished road
Name:  DSC04024.jpg
Views: 396
Size:  191.3 KB

Name:  DSC04025.jpg
Views: 394
Size:  158.4 KB

Name:  DSC04026.jpg
Views: 392
Size:  104.2 KB

Name:  DSC04027.jpg
Views: 403
Size:  181.4 KB

Name:  DSC04029.jpg
Views: 403
Size:  122.0 KB

Name:  DSC04030.jpg
Views: 392
Size:  56.8 KB

Motrax signals. VERY bright but still not as day-time visible as a bigger light. Looks are perfect IMO.
Wolverine is offline   Reply With Quote
Old 08-15-2011, 07:53 PM   #5
Senior Member
MotoGP

7moore7's Avatar

Join Date: Jul 2010
Location: Phoenix, AZ
Posts: 3,863
7moore7 is on a distinguished road
I love the way those poke through the fairings, Wolverine. Looks very high-tec without being overbearing.
7moore7 is offline   Reply With Quote
Old 08-15-2011, 08:50 PM   #6
K30
Member
Squid

K30's Avatar

Join Date: Apr 2011
Location: Washington State
Posts: 84
K30 is on a distinguished road
I have a Volar Integrated LED Taillight($20!) and generic LED turn signals on the rear.

Blinkers



My front signals are some sort of flush mount that I'd like to replace. They're running lights as well, but that isn't plugged in right now due to issues with the taillight.

K30 is offline   Reply With Quote
Old 08-15-2011, 09:46 PM   #7
Member
Squid

ProfChaos's Avatar

Join Date: Mar 2010
Location: Tampa Bay Area, USA
Posts: 57
ProfChaos is on a distinguished road
Cat-Eye Front and Rear Turn Signals

I have the following cat-eye flush-mount front turn signals:

Cat-Eye Flush-Mount Front Turn Signals

They are plenty bright, and the standard amber lamps are very affordable and are easy to get at any local motorcycle shop. Also, they are easy to install and are fairly low-maintenance: I bought mine six years ago, and did not need to replace the lamps until this year, at a cost of $1.34 per lamp.


My rear turn signals are as follows:

Mini-Cat-Eye LED Rear Signals

Mine have amber lenses, but they are still the same basic turn signal assembly. They look elegant in proportion to the trimmed rear mud-fender of the bike, and they were fairly easy to install. (I just spliced-in the ball-and-socket connectors from the Crap-Co OEM signals.)

cheers,
Professor Chaos

Last edited by ProfChaos; 08-15-2011 at 09:52 PM.
ProfChaos is offline   Reply With Quote
Old 08-16-2011, 10:48 PM   #8
Junior Member
Squid
Thread Starter

Join Date: Jan 2010
Location: Riverside, CA.
Posts: 8
rafbo is on a distinguished road
This is my brake tail light.

The tail light I got on eBay and it's not LED, it uses the stock bulbs and stock bulb sockets and wiring. Simply unplug the bulbs form the original tail light and into this new tail light. Easy installation. I'm happy how it looks and it's bright.
Attached Thumbnails
Show me your lights, tail lights, turn signals. What works what doesn't.-vtr_brake_light.jpg
rafbo is offline   Reply With Quote
Old 08-17-2011, 11:26 AM   #9
Member
Squid

Join Date: Jul 2011
Posts: 84
MikeMcW is on a distinguished road
[QUOTE=K30;311711]I have a Volar Integrated LED Taillight($20!) and generic LED turn signals on the rear.

Blinkers





How do you like your tail light? I think I want to pick on up.
MikeMcW is offline   Reply With Quote
Old 08-17-2011, 12:04 PM   #10
Senior Member
Superstock

Mattaua's Avatar

Join Date: Jun 2010
Location: South Kakalaki
Posts: 313
Mattaua is on a distinguished road
I also had the volar integrated tail light on my SHawk. It was a biatch to wire up, but once we got it working it's been great. Here's a video of mine.

Superhawk Integrated LED tail light - YouTube

I have some generic fleabay flushmount front signals. I got lucky, they've been working great for about a year and a half.
Mattaua is offline   Reply With Quote
Old 08-17-2011, 07:41 PM   #11
Senior Member
Back Marker

MOONSTER's Avatar

Join Date: Apr 2009
Location: San Antonio, Tx.
Posts: 181
MOONSTER is on a distinguished road
Here's a view of my tail, er, my bikes tail. The tail lights & blinkers were intergated with the undertail. I added the brake strobe. Front blinkers are flush mounts. Not the best for visibility, but i always ride as if no one can see me anyway.
Attached Thumbnails
Show me your lights, tail lights, turn signals. What works what doesn't.-dscn0361.jpg   Show me your lights, tail lights, turn signals. What works what doesn't.-dscn0363.jpg
MOONSTER is offline   Reply With Quote
Old 08-18-2011, 12:08 PM   #12
Member
Squid

Join Date: Jul 2011
Posts: 84
MikeMcW is on a distinguished road
Quote:
Originally Posted by Mattaua View Post
I also had the volar integrated tail light on my SHawk. It was a biatch to wire up, but once we got it working it's been great. Here's a video of mine.

Superhawk Integrated LED tail light - YouTube

I have some generic fleabay flushmount front signals. I got lucky, they've been working great for about a year and a half.
I really like this tail light! Can you explain the wiring issue?
MikeMcW is offline   Reply With Quote
Old 12-06-2011, 09:12 AM   #13
Senior Member
MotoGP

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 4,822
smokinjoe73 is on a distinguished road
I like to be seen

Superhawk lights and speedo - YouTube

It cant be ignored at night and have the eastern beaver high voltage headlight wires & relay
smokinjoe73 is offline   Reply With Quote
Old 12-12-2011, 12:02 AM   #14
Wild Man
Back Marker

Matt_Hawk's Avatar

Join Date: Oct 2011
Location: California Central Coast
Posts: 189
Matt_Hawk is on a distinguished road
Quote:
Originally Posted by smokinjoe73 View Post
I like to be seen

Superhawk lights and speedo - YouTube

It cant be ignored at night and have the eastern beaver high voltage headlight wires & relay

Right...I agree with SmokinJoe.

Cage drivers always say " I just didn't see him" when they clip a bike.

It beats me why the first thing a motorcyclist does is whack the nice bright signals off their bike for some small cheap *** dim ones.

If you want good looking LED's then get these DOT rated ones.
K&S Technologies Universal LED Turn Signals - Street Bike - Motorcycle Superstore
They are expensive but they are the brightest ones out there and can been seen from many angles.
Matt_Hawk is offline   Reply With Quote
Old 12-12-2011, 12:19 AM   #15
Moderator
MotoGP

Wolverine's Avatar

Join Date: Jul 2007
Location: Gettysburg, Pa
Posts: 4,243
Wolverine is on a distinguished road
I took off the oem because in my opinion they are butt ugly. That doesn't mean I simply do not care about safety. My lights are VERY frikin bright, even in daylight. I feel safe w/ 'em. I drove up and down my road w/ my wife watching to see if she could see them and I got her ok, which ain't easy mind you.
$125+ for one pair? Too expensive IMO (and no, you can't put a price on not being seen, just to stop that argument). Do you know how much one super bright LED costs? How do they justify raping you of 125 for 2 signals??
Wolverine is offline   Reply With Quote
Old 12-12-2011, 07:58 AM   #16
Boosted
SuperSport

Syclone's Avatar

Join Date: Aug 2007
Location: Sioux Falls, SD
Posts: 642
Syclone is on a distinguished road
I switched out my front turn signals for some LP Turn 6 units which looked nice, but I have yet to see something brighter than stock that doesn't cost $150+. I went back to OEM signals both front and rear, but did switch out the rear taillight to the Clear Alternatives LED one with integrated signals.
Syclone is offline   Reply With Quote
Old 12-26-2011, 12:40 PM   #17
Senior Member
Back Marker

Revelation's Avatar

Join Date: Jul 2010
Location: Netherlands
Posts: 102
Revelation is on a distinguished road




This is a sexy looking solution?
Revelation is offline   Reply With Quote
Old 12-26-2011, 02:04 PM   #18
Senior Member
SuperBike

skokievtr's Avatar

Join Date: Jan 2007
Posts: 1,921
skokievtr is on a distinguished road

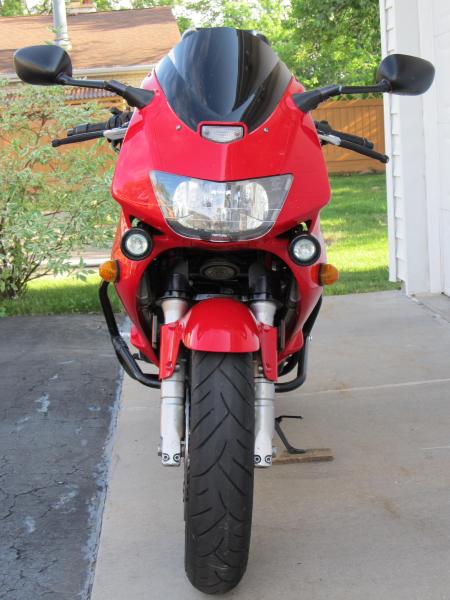

03-1997 75k+ miles

55/75w H4 driven by own headlight harness/relays with high beam on own headlight modulator with infrared daylight-off sensor circuit (H4 plug ceramic)

3rd eye replaced with 12-LED panel

twin 55w halogen driving lights with own wiring/relay

front turn signals/running lights are LP Type 3 3-wire with own QD polarized connections

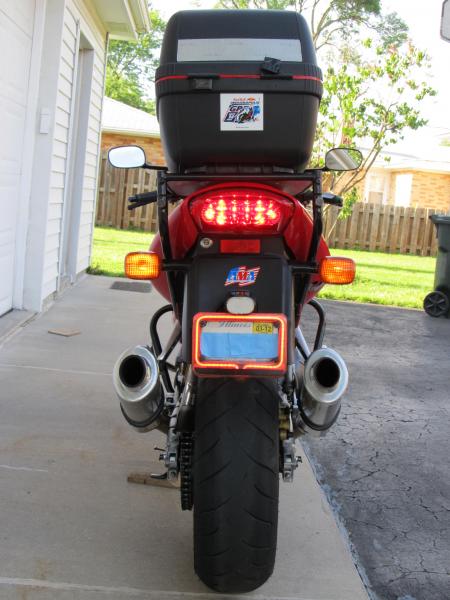

rear turn signals/running lights are front OEM with 3rd wire run for running light circuit

tail light is gutted OEM housing/lens converted to 10 LED panel (per Haknslash); installed Optima STL-88RCB (have trim template available); wired using OEM bulb sockets modified to accept 3-wires

rear auxiliary neon brake light license plate surround powered by own transformer & relay triggered by brake light circuit (may switch to LED auxiliary brake light)

Mosfet VR-R from late-model Kawasaki run direct to battery with OEM VR-R input wires to main fuse used in reverse to feed auxiliary 6-circuit fused power panel

fused polarized "D" coaxial QD plug wired to battery to power heated vest (with digital t-stat), own mini-mini air pump & to connect to Battery Tender

alarm system with remote & hidden kill switch to CPU

heated grips with digital T-stat

cigarette plug power socket (mainly for Garmin Nuvi 765T)

hard-wired Cobra radar detector with mono ear jack plug fitted Bluetooth (BT) dongle to connect to mini BT stereo receiver (Garmin also paired) connected to noise canceling foam ear buds

electrical system monitored with on-board LED voltmeter
Attached Thumbnails
Show me your lights, tail lights, turn signals. What works what doesn't.-ba-98-honda-vtr-ft-vw.jpg   Show me your lights, tail lights, turn signals. What works what doesn't.-ba-98-honda-vtr-rr-vw.jpg   Show me your lights, tail lights, turn signals. What works what doesn't.-ba-98-honda-vtr-rr-vw-2.jpg

Last edited by skokievtr; 12-26-2011 at 03:47 PM.
skokievtr is offline   Reply With Quote
Old 12-26-2011, 02:35 PM   #19
Senior Member
SuperSport

thetophatflash's Avatar

Join Date: Jan 2005
Location: Nooksack WA
Posts: 825
thetophatflash
That seems like a heavy load. Any problem with your stator?
thetophatflash is offline   Reply With Quote
Old 12-26-2011, 03:44 PM   #20
Senior Member
SuperBike

skokievtr's Avatar

Join Date: Jan 2007
Posts: 1,921
skokievtr is on a distinguished road
Quote:
Originally Posted by thetophatflash View Post
That seems like a heavy load. Any problem with your stator?
Low load devices such as the RD & GPS are not an issue but I judiciously select what else I have on depending on priority and monitor the volt meter often. So far, knock on plastic, the stator has been up to the task the last "few" miles LOL

BTW, two "side" questions: Have others found that the starter motor will run with the kill switch off (very handy at times), and that both the high & low beam can be made to go on simultaneously with the high beam switch set between on & off (which I do not recommend doing unless a relay based head light harness is installed, as the high beam switch is not then passing amperage to the bulb)?
skokievtr is offline   Reply With Quote
Old 02-13-2012, 09:14 AM   #21
Senior Member
SuperSport

geekonamotorcycle's Avatar

Join Date: Jan 2011
Location: Tampa Florida
Posts: 521
geekonamotorcycle is on a distinguished road
I have a volar and this is a video on how to install it
04-07-11 Integrated tail light installation and troubleshooting - YouTube
geekonamotorcycle is offline   Reply With Quote
Old 06-05-2012, 06:41 AM   #22
Junior Member
Squid

Join Date: Jun 2012
Posts: 1
Sagi3 is on a distinguished road
Quote:
Originally Posted by Revelation View Post




This is a sexy looking solution?
That is really nice. Are they adhesive strips or individually drilled through?
Sagi3 is offline   Reply With Quote
Old 06-05-2012, 08:12 AM   #23
Senior Member
MotoGP

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 4,822
smokinjoe73 is on a distinguished road
I went the opposite way of the profiling indescrete look. I want everyone to see me and wanted huge headlight power. I guess to me function over fashion. This way I get to ride another day & push toward 300k street miles.

Superhawk lights - YouTube
smokinjoe73 is offline   Reply With Quote
Old 06-05-2012, 11:02 AM   #24
Junior Member
Squid

Join Date: Apr 2011
Posts: 2
Eclectic is on a distinguished road
My mate owns an '08 'blade. He replaced his indo's for little aftermarket units so I offered him a a small price for his stock units. Look much better than the stock ones on the SH and are still bright.
Eclectic is offline   Reply With Quote
Old 06-05-2012, 11:25 AM   #25
Retired- but not tired!
SuperBike

CrankenFine's Avatar

Join Date: Aug 2010
Location: Pittsburgh
Posts: 1,414
CrankenFine is on a distinguished road
Quote:
Originally Posted by smokinjoe73 View Post
I went the opposite way of the profiling indescrete look. I want everyone to see me and wanted huge headlight power. I guess to me function over fashion. This way I get to ride another day & push toward 300k street miles.

Superhawk lights - YouTube

CrankenFine is offline   Reply With Quote
Old 06-09-2012, 05:13 PM   #26
Crash
Superstock

COLE's Avatar

Join Date: Jan 2008
Location: nashville
Posts: 309
COLE is on a distinguished road
homemade fender eliminator, led blinkers with resistors
I added picture to my albums, but I can not get picture on here for some reason!

Last edited by COLE; 06-09-2012 at 05:51 PM.
COLE is offline   Reply With Quote
Old 06-09-2012, 09:21 PM   #27
GTS
Seasoned tech
SuperSport

GTS's Avatar

Join Date: Apr 2012
Location: Issaquah, WA
Posts: 576
GTS is on a distinguished road
I have the integraded tail lights and I'm not a huge fan, though they were on it when I got it. From what my buddy said they aren't super easy to see if you're not straight on during the day but the turn signals are much easier to see at night.

I've also got LED front signals but they aren't dual elements though so the running lights are not on which I'm not real thrilled with either. I'm thinking of running a relay to them so that they are on as running lights then the turn signal flashes them off.
GTS is offline   Reply With Quote
Old 06-10-2012, 05:28 AM   #28
Senior Member
MotoGP

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 4,822
smokinjoe73 is on a distinguished road
I have a thread on here that shows you how to make leds work as running lights. (2 to 3 wire converston) its like $4 of materials.
smokinjoe73 is offline   Reply With Quote
Old 06-10-2012, 05:06 PM   #29
Member
Squid

LuvmyVTR's Avatar

Join Date: Mar 2011
Posts: 70
LuvmyVTR is on a distinguished road
Thought id join the band wagon here. Just purchased the Backoff Wigwag module from Signal dynamics. It pulses your brake lights, stock or LED to get peoples attention.

Signal Dynamics | Signal Dynamics Corporation 1-800-785-1814 | Motorcycle Safety Lights | Break Light Signal Module | Motorcycle LED Lighting | Signal Dynamics - Creator of BackOFF


LuvmyVTR is offline   Reply With Quote
Old 06-10-2012, 06:28 PM   #30
Senior Member
MotoGP

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 4,822
smokinjoe73 is on a distinguished road
So it will do something like this Superhawk lights and speedo - YouTube
smokinjoe73 is offline   Reply With Quote


Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
Stock cans, turn signals, horn and aftermarket turn signals and more... Magnus Classifieds 5 05-29-2014 06:52 PM
Flush mount turn signals / Integrated turn signals in mirrors- question about both johnclopp85 Technical Discussion 5 05-13-2009 07:20 AM
Show me your forward-facing flush mount turn signals... CentralCoaster Modifications - Cosmetic 10 05-06-2009 09:26 AM
Are front turn signals also running lights? cozart02 General Discussion 19 04-12-2007 10:06 PM


Tags
connection, doesnt, eye, flush, honda, led, light, mod, modulator, mount, signal, superhawk, tail, turn, volar, works

Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off



All times are GMT -7. The time now is 08:33 PM.


© 2018 MH Sub I, LLC dba Internet Brands
We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.
