Who Can Tell Me What Jet Kit This Is

Thread Tools

Search this Thread

Old 10-02-2007, 06:37 AM
  #1
Senior Member
SuperSport
Thread Starter

reaper's Avatar

Join Date: Aug 2007
Location: Eagle, ID.
Posts: 599
reaper is on a distinguished road
Who Can Tell Me What Jet Kit This Is
I pulled this kit out of my bike and installed a FP jet kit and I was wondering who the manufacturer is for the kit. Any ideas?

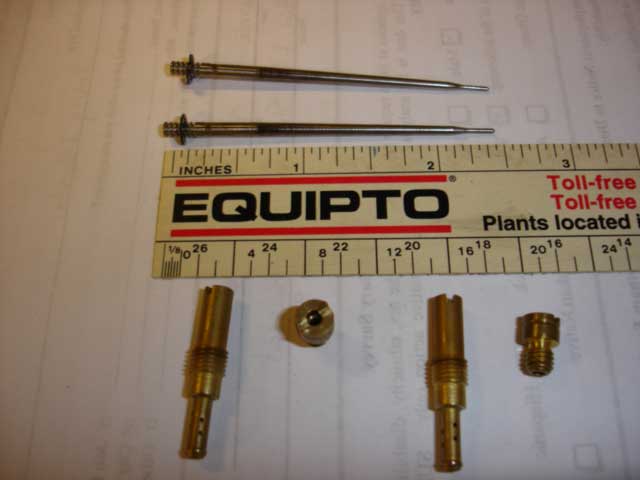

Who Can Tell Me What Jet Kit This Is-photo1.jpg

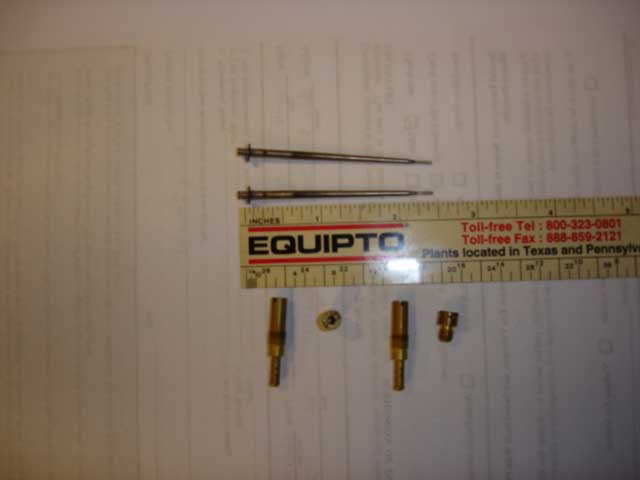

Who Can Tell Me What Jet Kit This Is-photo2.jpg

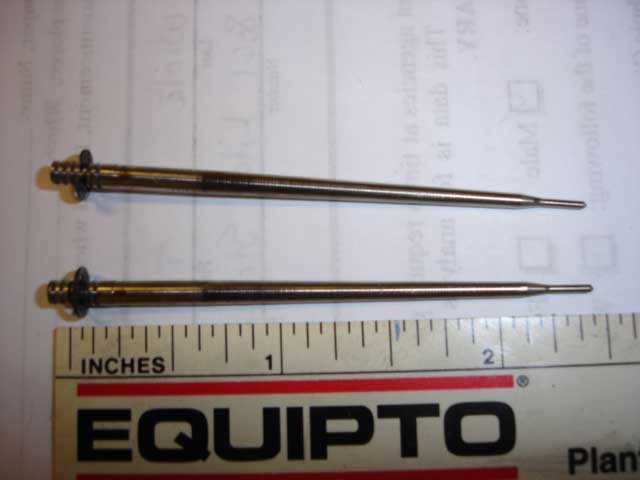

Who Can Tell Me What Jet Kit This Is-photo3.jpg
reaper is offline
Reply
Old 10-02-2007, 07:08 AM
  #2
Senior Member
SuperBike

trinc's Avatar

Join Date: Feb 2007
Location: Portland, Oregon
Posts: 1,051
trinc is on a distinguished road
my understanding is dynojet has 6 grooves & Factory has 5. i don't know what Ivan has ( he may not make any kits for honda )

tim
Last edited by trinc; 10-02-2007 at 07:11 AM.
trinc is offline
Reply
Old 10-02-2007, 11:40 AM
  #3
Banned
MotoGP

8541Hawk's Avatar

Join Date: Aug 2007
Location: Lake View Terrace, CA
Posts: 5,942
8541Hawk will become famous soon enough
For some reason I can't open your pics here at work. Maybe when I get home I can veiw them.
8541Hawk is offline
Reply
Old 10-02-2007, 01:23 PM
  #4
Senior Member
SuperSport
Thread Starter

reaper's Avatar

Join Date: Aug 2007
Location: Eagle, ID.
Posts: 599
reaper is on a distinguished road
The needles have 6 grooves, and if it is a DynoJet kit where would the carbs have been drilled? And what exactly am I looking for?

Thanks.
reaper is offline
Reply
Old 10-02-2007, 01:25 PM
  #5
Banned
MotoGP

8541Hawk's Avatar

Join Date: Aug 2007
Location: Lake View Terrace, CA
Posts: 5,942
8541Hawk will become famous soon enough
were the springs for the piston slides short or the long factory ones??
Are there the same amout of lift holes in the front and rear slides??
8541Hawk is offline
Reply
Old 10-02-2007, 01:27 PM
  #6
Banned
MotoGP

8541Hawk's Avatar

Join Date: Aug 2007
Location: Lake View Terrace, CA
Posts: 5,942
8541Hawk will become famous soon enough
Originally Posted by reaper
The needles have 6 grooves, and if it is a DynoJet kit where would the carbs have been drilled? And what exactly am I looking for?

Thanks.
They would be drilled on the slides (so you would end up with a total of three holes on the end of the slide) where the needle comes out and the springs would be shorter than the stock ones.
8541Hawk is offline
Reply
Old 10-02-2007, 01:28 PM
  #7
Senior Member
Superstock

Anto's Avatar

Join Date: Mar 2007
Location: San Diego
Posts: 268
Anto is on a distinguished road
Look on the slides for 4 holes. Stock is 3 I believe, I pulled the same kit outta my carbs & I have a shortened spring as well.
Anto is offline
Reply
Old 10-02-2007, 01:58 PM
  #8
Senior Member
SuperSport
Thread Starter

reaper's Avatar

Join Date: Aug 2007
Location: Eagle, ID.
Posts: 599
reaper is on a distinguished road
I did not see any holes drilled in the piston slide and the springs looked like they were fairly long. Not having the stock springs to compare, I am not really sure.

The good thing is the bike responds much better than with the other kit in it.
reaper is offline
Reply
Old 10-02-2007, 02:01 PM
  #9
Banned
MotoGP

8541Hawk's Avatar

Join Date: Aug 2007
Location: Lake View Terrace, CA
Posts: 5,942
8541Hawk will become famous soon enough
Do the needles have a "SA" or I believe "SD" on the top by the last c-clip grove??
8541Hawk is offline
Reply
Old 10-02-2007, 04:23 PM
  #10
Administrator
World Champion

Hawkrider's Avatar

Join Date: Dec 2004
Location: Fulton, MO
Posts: 105,287
Hawkrider will become famous soon enoughHawkrider will become famous soon enough
I think the easiest way to tell will be to read what is on the main jets. The pics are too small for me to see. Factory actually says "Factory". Dynojet comes in sizes divisible by 5. Stock will have a "K" for Keihin.
Hawkrider is offline
Reply
Old 10-02-2007, 09:44 PM
  #11
Banned
MotoGP

8541Hawk's Avatar

Join Date: Aug 2007
Location: Lake View Terrace, CA
Posts: 5,942
8541Hawk will become famous soon enough
They do look like the set of Dynojet needles that I have. Of course I've never used a Factory Pro kit so I'm no help there. They are not HRC parts. So were the springs for the slides around 6" long or around 16" long? Also do you remember if the needle holder (the plastic part you had to pull out with the screw to get the needle out) had a hole through one of the four "ears" at the end of the holder?
8541Hawk is offline
Reply
Old 10-03-2007, 09:49 AM
  #12
RK1
Senior Member
MotoGP

RK1's Avatar

Join Date: Aug 2007
Location: Way Out West
Posts: 2,547
RK1 is on a distinguished road
The OEM springs are nearly 11 inches long. The Dynojet springs are about 5.5 inches.
RK1 is offline
Reply
Old 10-03-2007, 11:00 AM
  #13
Senior Member
SuperSport
Thread Starter

reaper's Avatar

Join Date: Aug 2007
Location: Eagle, ID.
Posts: 599
reaper is on a distinguished road
Checked the main jets and no discernable markings the jet size is printed on the top of the screw. The springs were in the 11 " range and I did not look closely at the needle holder when I took it.
reaper is offline
Reply
Old 10-03-2007, 11:04 AM
  #14
Banned
MotoGP

8541Hawk's Avatar

Join Date: Aug 2007
Location: Lake View Terrace, CA
Posts: 5,942
8541Hawk will become famous soon enough
Originally Posted by reaper
Checked the main jets and no discernable markings the jet size is printed on the top of the screw. The springs were in the 11 " range and I did not look closely at the needle holder when I took it.
Well then I'm stumped.... Kind of sounds like someone put half a dynojet kit in it (the needles and jets without the springs or drilling the slides) but at least it runs good now.
8541Hawk is offline
Reply
Old 10-03-2007, 01:26 PM
  #15
Senior Member
SuperSport
Thread Starter

reaper's Avatar

Join Date: Aug 2007
Location: Eagle, ID.
Posts: 599
reaper is on a distinguished road
Yes, now that a properly installed kit is in, it is running like it supposed to.
