Old 01-28-2017, 11:09 PM   #2041
Senior Member
SuperBike

kenmoore's Avatar

Join Date: Mar 2012
Location: New South Wales Australia
Posts: 1,339
kenmoore is on a distinguished road
fastguy,

Message them, they are good people and used to do low mounts .

Maybe they can knock you up a pair.

I have purchased a few items from them.

They are easy to deal with.

Cheers From Down Under.
Fastguy59 likes this.
kenmoore is offline   Reply With Quote
Old 01-28-2017, 11:36 PM   #2042
Senior Member
Back Marker

Stephan's Avatar

Join Date: Apr 2010
Location: Prague - Czech
Posts: 209
Stephan is on a distinguished road
Quote:
Originally Posted by Fastguy59 View Post
Thanks Kenmoore!

I was hoping for something to do low mount cans with.... oh well...
I consider pair of low mounts too, will write them if they are able to make it on order.
Fastguy59 likes this.
Stephan is offline   Reply With Quote
Old 01-31-2017, 01:07 PM   #2043
Senior Member
Back Marker

Stephan's Avatar

Join Date: Apr 2010
Location: Prague - Czech
Posts: 209
Stephan is on a distinguished road
Quote:
Originally Posted by kenmoore View Post
fastguy,

Message them, they are good people and used to do low mounts .

Maybe they can knock you up a pair.

I have purchased a few items from them.

They are easy to deal with.

Cheers From Down Under.
Thanks Ken, these guys are really classy. New batch of low mounts will be ready in march
Fastguy59 likes this.
Stephan is offline   Reply With Quote
Old 01-31-2017, 02:09 PM   #2044
Senior Member
Superstock

Fastguy59's Avatar

Join Date: Nov 2014
Location: Middletown, CT
Posts: 381
Fastguy59 is on a distinguished road
sooo cool! I can't wait!
Fastguy59 is offline   Reply With Quote
Old 01-31-2017, 11:15 PM   #2045
Senior Member
SuperBike

kenmoore's Avatar

Join Date: Mar 2012
Location: New South Wales Australia
Posts: 1,339
kenmoore is on a distinguished road
That's great news.

They really are a quality product and well worth the $

I wish they did more for our bikes.

Would like to see some pics when you get them fitted.

Cheers From Down Under
Fastguy59 likes this.
kenmoore is offline   Reply With Quote
Old 02-06-2017, 08:47 AM   #2046
Senior Member
Superstock

Join Date: Aug 2016
Posts: 262
RedStormJ is on a distinguished road
Finally got it right. I broke down and braved the cold long enough not really today but a few days ago. I got the oil done. clutch fluid bled and flushed. Chain lubed. Tire aired up. And I finally Balanced up the carbs. I used a piece of breakaway chain to redneck measure it. The ball was too small so it would bounce around at idle was hard to get a reading but it kept sticking to the front. The front carb was wayyy out from the back. Put my idle back to where it should be. Too bad because she would start no choke in negative weather now I need the choke lol. ( Its a joke.)
But it was so out that I really didnt need to choke it..
I also went online and got my vinyl ester. I have four sheets of cf twill. Besides all that I am stranded as I cant find a welder or supplier of aluminum pipe.
Did take her out for a romp. Its been out so long I have not had the nut to give her hell in first or second. Plus all the ice. But third pulls like a bear again.
Oh not really the hawk but I finally got good boots along with a splitable shoei helmet. I dunno if you guys know but I was riding in running shoes....
Fastguy59 likes this.
RedStormJ is offline   Reply With Quote
Old 02-11-2017, 10:52 AM   #2047
Senior Member
Superstock

Fastguy59's Avatar

Join Date: Nov 2014
Location: Middletown, CT
Posts: 381
Fastguy59 is on a distinguished road

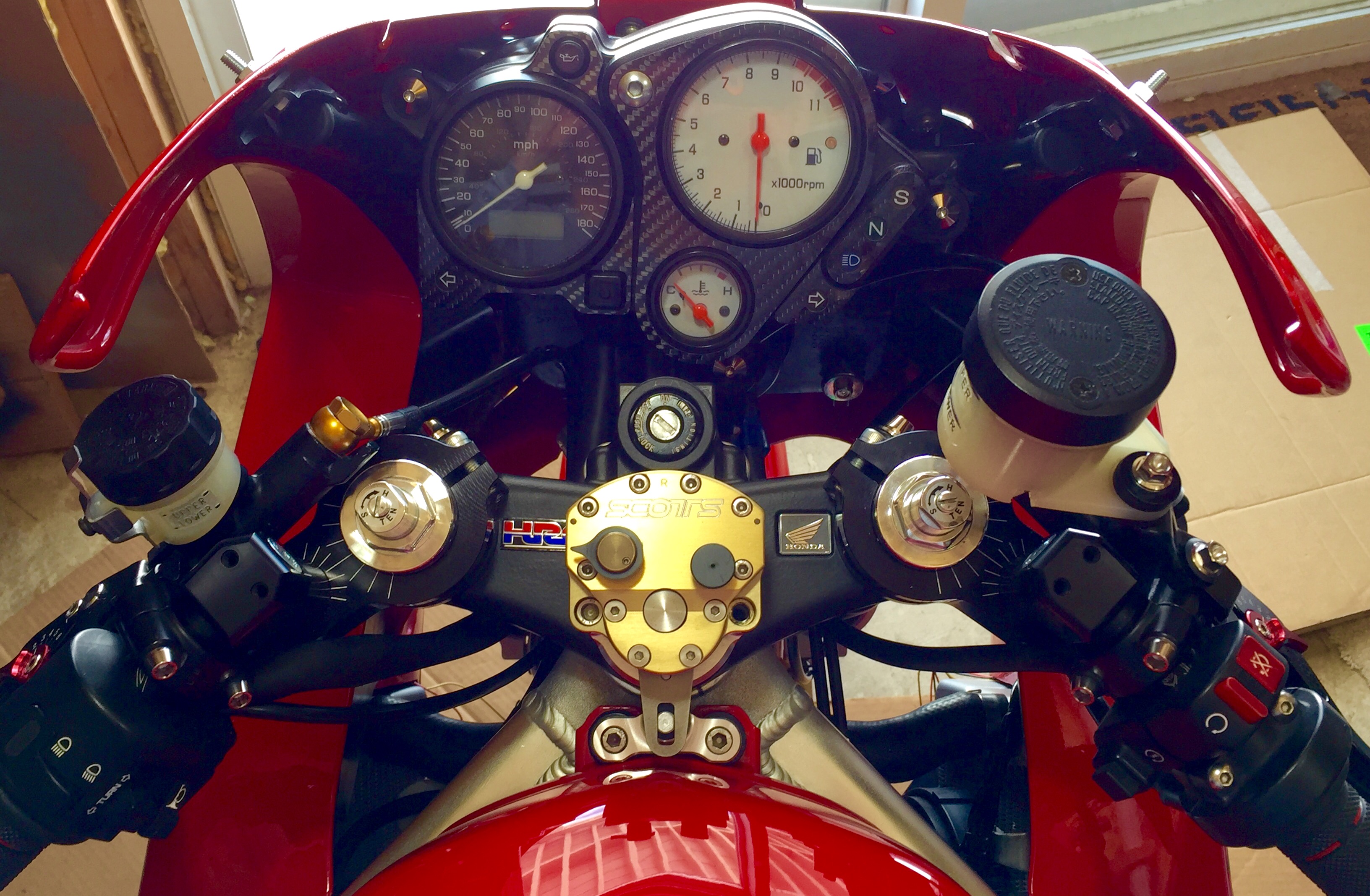

I've been working on the cockpit details almost done!
Attached Thumbnails
What did you do with your SuperHawk today?-img_0007.jpg
kenmoore, Hangfly and IT_Mike like this.
Fastguy59 is offline   Reply With Quote
Old 02-11-2017, 01:29 PM   #2048
Senior Member
SuperBike

kenmoore's Avatar

Join Date: Mar 2012
Location: New South Wales Australia
Posts: 1,339
kenmoore is on a distinguished road
Very neat and tidy.
kenmoore is offline   Reply With Quote
Old 02-12-2017, 04:58 PM   #2049
Member
Squid

Join Date: Jun 2015
Posts: 58
Silverfoxslash is on a distinguished road
Did my steering head bearings today. Wasn't that hard, how you guys torque that nut? I think the bearing were never greased it their life everything fell apart When I dropped the tree.
Fastguy59 likes this.
Silverfoxslash is offline   Reply With Quote
Old 02-12-2017, 06:05 PM   #2050
Senior Member
Superstock

Fastguy59's Avatar

Join Date: Nov 2014
Location: Middletown, CT
Posts: 381
Fastguy59 is on a distinguished road

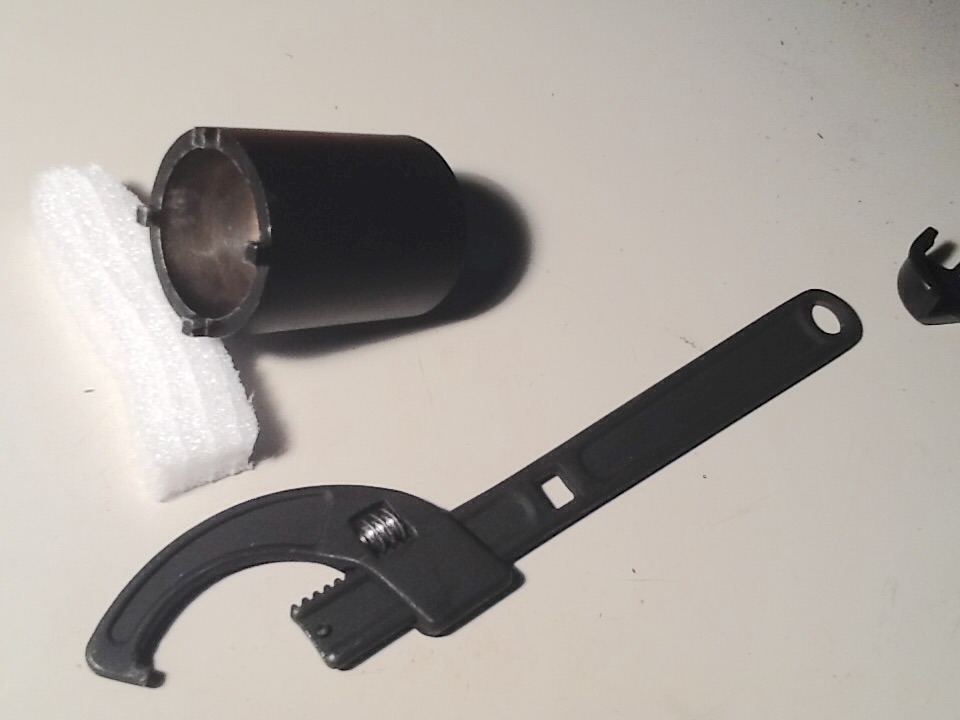

you need a steering stem socket and a adjustable pin spanner
Attached Thumbnails
What did you do with your SuperHawk today?-image.jpeg
Fastguy59 is offline   Reply With Quote
Old 02-12-2017, 06:14 PM   #2051
Member
Squid

Join Date: Jun 2015
Posts: 58
Silverfoxslash is on a distinguished road
Quote:
Originally Posted by Fastguy59 View Post
you need a steering stem socket and a adjustable pin spanner
is this procedure in the manual? I don't get what the pin spanner is for.
Silverfoxslash is offline   Reply With Quote
Old 02-12-2017, 09:24 PM   #2052
Senior Member
SuperBike

kenmoore's Avatar

Join Date: Mar 2012
Location: New South Wales Australia
Posts: 1,339
kenmoore is on a distinguished road
The spanner is used to adjust the bearings.

When I did mine I fitted tapered bearings and adjusted them after about 300 Klms to get them right as they were a bit loose after riding a couple of times.

No problems since.

Also be aware that you best adjust the bearings with the wheel off the ground and you are aiming for no movement when you grab the forks and that the bars fall easily to the right and left.

The tapered bearings made a huge difference to my bike.
Wolverine likes this.
kenmoore is offline   Reply With Quote
Old 02-13-2017, 06:30 AM   #2053
Senior Member
SuperBike

xeris's Avatar

Join Date: Sep 2010
Location: Bisbee, AZ
Posts: 1,091
xeris is on a distinguished road
Quote:
Originally Posted by Fastguy59 View Post
I've been working on the cockpit details almost done!
What make are the bars? How does the angle off horizontal feel? Is it more than second gen stock bars? Inquiring minds want to know.
BTW the detail on your build is inspiring.
xeris is offline   Reply With Quote
Old 02-13-2017, 07:09 AM   #2054
Member
Squid

Join Date: Jun 2015
Posts: 58
Silverfoxslash is on a distinguished road
Quote:
Originally Posted by kenmoore View Post
The spanner is used to adjust the bearings.

When I did mine I fitted tapered bearings and adjusted them after about 300 Klms to get them right as they were a bit loose after riding a couple of times.

No problems since.

Also be aware that you best adjust the bearings with the wheel off the ground and you are aiming for no movement when you grab the forks and that the bars fall easily to the right and left.

The tapered bearings made a huge difference to my bike.
yes I was doing it with a hammer and a drift front lifted up.
Wolverine likes this.
Silverfoxslash is offline   Reply With Quote
Old 02-14-2017, 07:17 AM   #2055
ion
n( . )( . )b
Squid

ion's Avatar

Join Date: Jan 2017
Location: Apex, NC
Posts: 40
ion is on a distinguished road
Some dim bulb re-wired the headlight incorrectly, manifest as current going through the high beam circuit all the time, so I re-wired it correctly and replaced a couple of tiny bulbs in the instrument cluster. This bike is well sorted and running great! I bought the wife a nice leather jacket and myself a new Shoei GT Air and went for a long ride. So needed that.
ion is offline   Reply With Quote
Old 02-15-2017, 11:02 PM   #2056
Senior Member
Back Marker

Stephan's Avatar

Join Date: Apr 2010
Location: Prague - Czech
Posts: 209
Stephan is on a distinguished road
Quote:
Originally Posted by kenmoore View Post
That's great news.

They really are a quality product and well worth the $

I wish they did more for our bikes.

Would like to see some pics when you get them fitted.

Cheers From Down Under

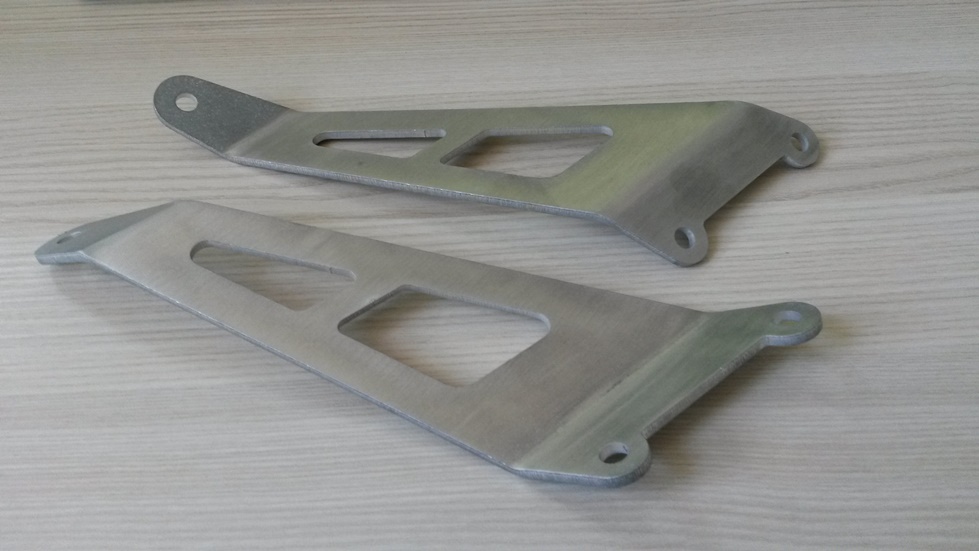

delivered quite fast. Hope it will fit with your nice angle of pipes :-) I am sure there will be nice weight saving too.


Stephan is offline   Reply With Quote
Old 02-16-2017, 03:01 AM   #2057
Senior Member
SuperBike

kenmoore's Avatar

Join Date: Mar 2012
Location: New South Wales Australia
Posts: 1,339
kenmoore is on a distinguished road
Thems the ones.

Can you do me a favour and measure how long they are ?

Just curious !

Post some pics when fitted .

How
kenmoore is offline   Reply With Quote
Old 02-16-2017, 08:33 AM   #2058
Moderator
MotoGP

Wolverine's Avatar

Join Date: Jul 2007
Location: Gettysburg, Pa
Posts: 3,734
Wolverine is on a distinguished road
Quote:
Originally Posted by Silverfoxslash View Post
yes I was doing it with a hammer and a drift front lifted up.
I didn't use a special tool either, not 100% necessary. The book says:

STEERING BEARING PRELOAD
Remove the front fairing (page 2-3).
Support the motorcycle securely using safety
stands or a hoist and raise the front wheel off the
ground.
Position the steering stem to the straight ahead position.
Hook a spring scale to the fork tube between the
fork top and bottom bridges.
Make sure that there is no cable, wire harness or
hose interference.
Pull the spring scale keeping it right angle to the
steering stem.
Read the scale at the point where the steering stem
just starts to move.
STEERING BEARING PRELOAD:
1.0-1.6 kgf(2.2-3.5Ibf)
If the readings do not fall within the limits, readjust
the steering bearing adjustment.


Follow up with a recheck after some hours ride time.
Wolverine is offline   Reply With Quote
Old 02-17-2017, 07:44 AM   #2059
Senior Member
Superstock

Fastguy59's Avatar

Join Date: Nov 2014
Location: Middletown, CT
Posts: 381
Fastguy59 is on a distinguished road

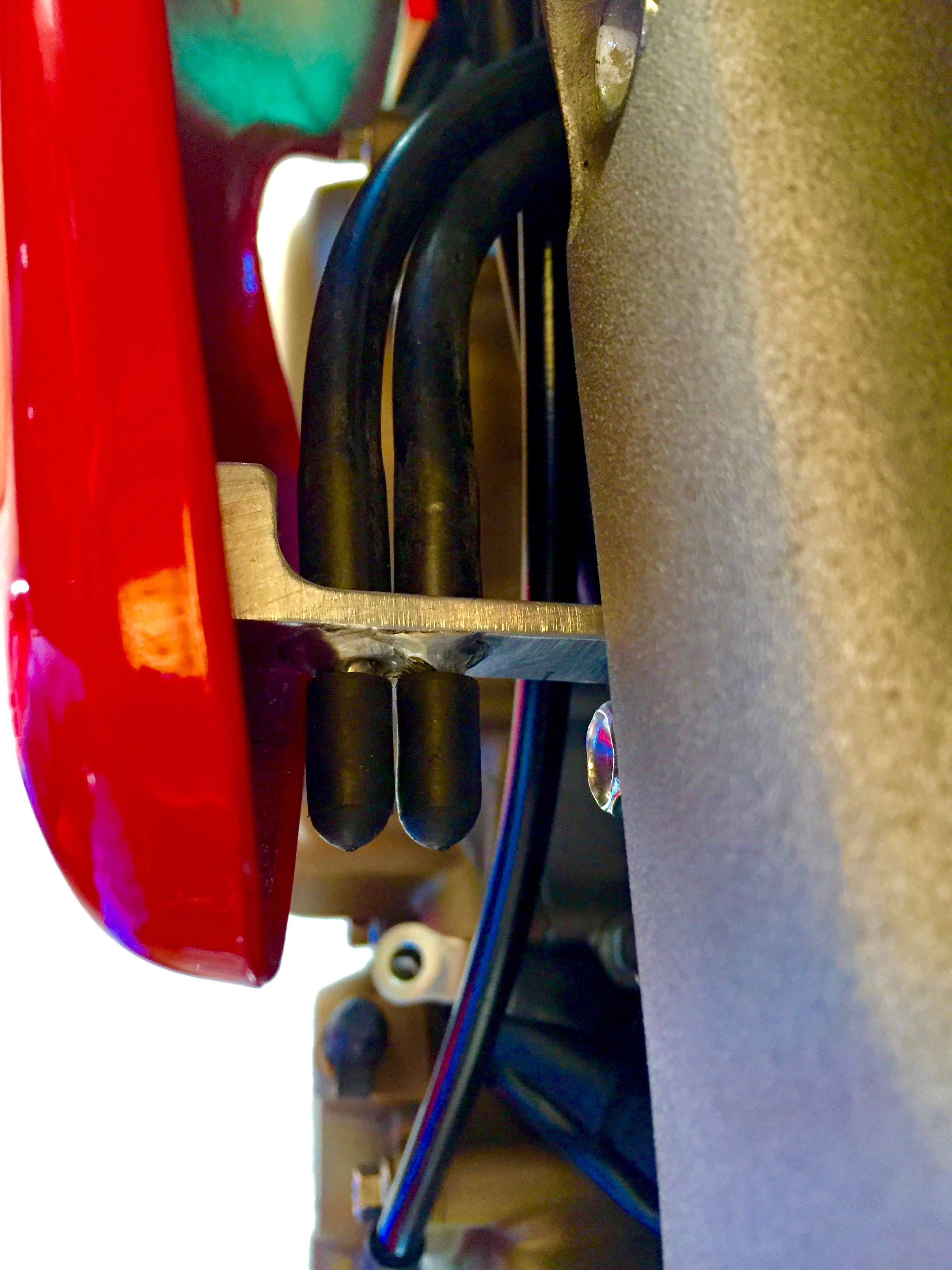

Remote mount vacuum lines for carb balance are sorted out!
Attached Thumbnails
What did you do with your SuperHawk today?-img_0056.jpg
xeris and kenmoore like this.
Fastguy59 is offline   Reply With Quote
Old 02-17-2017, 10:29 AM   #2060
Senior Member
Superstock

Hangfly's Avatar

Join Date: Mar 2015
Location: San Fran Freako
Posts: 387
Hangfly is on a distinguished road
Quote:
Originally Posted by Fastguy59 View Post
Remote mount vacuum lines for carb balance are sorted out!
Welded into the stay. Nice
Fastguy59 likes this.
Hangfly is offline   Reply With Quote
Old 02-17-2017, 10:55 AM   #2061
Senior Member
SuperBike

kenmoore's Avatar

Join Date: Mar 2012
Location: New South Wales Australia
Posts: 1,339
kenmoore is on a distinguished road
Fastguy,

That's a great solution .

Your attention to detail is to be admired. At the moment my remotes just lie in the V between the cylinders, but not for long after seeing this.
Fastguy59 likes this.
kenmoore is offline   Reply With Quote
Old 02-17-2017, 12:00 PM   #2062
Senior Member
Superstock

Fastguy59's Avatar

Join Date: Nov 2014
Location: Middletown, CT
Posts: 381
Fastguy59 is on a distinguished road
Quote:
Originally Posted by kenmoore View Post
Fastguy,

That's a great solution .

Your attention to detail is to be admired. At the moment my remotes just lie in the V between the cylinders, but not for long after seeing this.
So just a couple of notes: I used 3/16" thinwall aluminum hobby tubing for the two thru tubes. They are soldered (with Eastwood Co. Aluminum Solder) into two 3/16" holes drilled through the lower fairing stay. Be warned you must have the frame side bolt/fastener inserted into the fairing support bracket BEFORE you solder the tubes in, no clearance afterwards... Don't ask me how I know...

Last edited by Fastguy59; 02-17-2017 at 12:37 PM.
Fastguy59 is offline   Reply With Quote
Old 02-19-2017, 04:12 PM   #2063
ion
n( . )( . )b
Squid

ion's Avatar

Join Date: Jan 2017
Location: Apex, NC
Posts: 40
ion is on a distinguished road

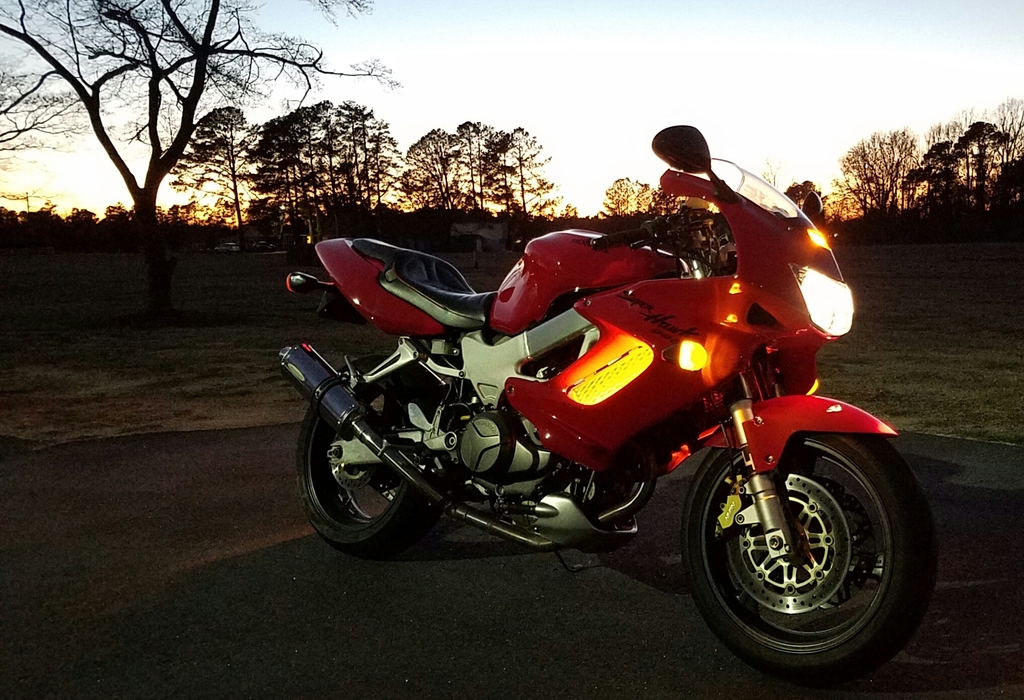

Amber LEDs light up the radiators to make them cool looking side markers:

RedStormJ likes this.

Last edited by ion; 02-19-2017 at 05:35 PM.
ion is offline   Reply With Quote
Old 02-19-2017, 07:17 PM   #2064
Senior Member
MotoGP

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 4,491
smokinjoe73 is on a distinguished road
Interesting look with the rads but where did you put the lights? Will they survive the hellish temps that happen in there? The fan can barely survive in there.
smokinjoe73 is offline   Reply With Quote
Old 02-20-2017, 02:50 AM   #2065
Senior Member
Superstock

Join Date: Aug 2016
Posts: 262
RedStormJ is on a distinguished road
Not today.

but As you all know I got the bike sorted but got told I dont have a liscence here. that dont stop me from riding in town and on the trails. But I also am using it as time to get the new ti pipes and carbon tank sorted.

I got the shape molded but I have to clean up the part. Shes dry on one side. I wasnt liberal enough with the roller. Next time brush all the way.

I am looking for suggestions on molding the bottom of the tank. I plan on vaccum bagging it but I need another sheet as all I have is long strips from the top shell. Please post in my thread any ideas. I am thinking of building the airbox top into the tank and shaping it into an air ram with the litte splitter bar molded in.

I was also thinking about building cf float bowls out of fiber and vinylester because its gonna go bad if I dont use it up. < Please say no. I have a feeling its a bad idea. All I can think of is a fire ball.

Also just drove 20 hours to get the wife an a6 04 wuth the 3.2. half way home I herd the chain on startup at a rest stop.... I knew the tensioner was going to go because the oil looks like it hasnt been changed in forever... I took it home and dumped some cheap oil in.... Its blacker than a coalminers lung already. Just from fill up... I dunno but it could be because I had to reuse the oil filter. I did wash it with kero and a new ones on the way. I think mes gonna change oil again this month but with some good stuff.
btw the audi dealer needed the vin to find the filter.... all a6 3.2 engines use the same filter. I know I was an audi mechanic...

Vtr runs great!
RedStormJ is offline   Reply With Quote
Old 02-20-2017, 02:57 PM   #2066
Member
Squid

Join Date: May 2012
Location: SW Wisconsin
Posts: 30
jjansenrs is on a distinguished road
Threw the battery in and woke her up from hibernation! next few days are supposed to be really nice here in wisco!
GlockPointer likes this.
jjansenrs is offline   Reply With Quote
Old 02-21-2017, 09:12 AM   #2067
ion
n( . )( . )b
Squid

ion's Avatar

Join Date: Jan 2017
Location: Apex, NC
Posts: 40
ion is on a distinguished road
Quote:
Originally Posted by smokinjoe73 View Post
Interesting look with the rads but where did you put the lights? Will they survive the hellish temps that happen in there? The fan can barely survive in there.
They're just inside the lower lip of the opening, and they may or may not survive very long. I'm an experimenter!
ion is offline   Reply With Quote
Old 02-22-2017, 06:40 AM   #2068
Senior Member
SuperBike

xeris's Avatar

Join Date: Sep 2010
Location: Bisbee, AZ
Posts: 1,091
xeris is on a distinguished road
Quote:
Originally Posted by ion View Post
They're just inside the lower lip of the opening, and they may or may not survive very long. I'm an experimenter!
I have an amber LED in the third eye and after it's been on for a short while it gets dimmer. I'm assuming that it's over heating.
Yeah, run it till it breaks, that's my moto.
xeris is offline   Reply With Quote
Old 02-22-2017, 06:59 AM   #2069
ion
n( . )( . )b
Squid

ion's Avatar

Join Date: Jan 2017
Location: Apex, NC
Posts: 40
ion is on a distinguished road
I think they'll hold up fine. Until they don't.

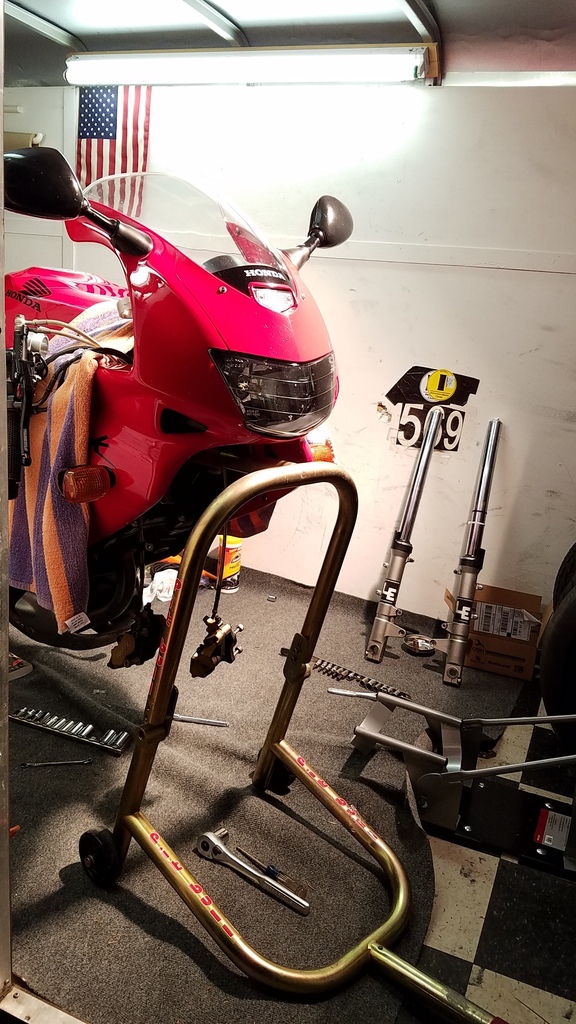

In other news, Imma sort out the suspension now. May be like this for a bit:

ion is offline   Reply With Quote
Old 02-25-2017, 09:02 AM   #2070
Member
Squid

Join Date: Jun 2015
Posts: 58
Silverfoxslash is on a distinguished road
added stainless brake lines all around. I'm surprised the differeance
Silverfoxslash is offline   Reply With Quote


Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
Q = How did you know the SuperHawk was the bike for you? motojoe General Discussion 101 09-08-2016 03:05 AM
Where did you get the idea for your superhawk forum username yruyur Everything Else 130 08-14-2016 09:08 PM
How much did you pay for your SuperHawk? motogomojo General Discussion 272 08-11-2016 02:01 AM
You know you're a Harley rider if you can't let your bike simply IDLE at a stoplight 7moore7 Everything Else 37 06-14-2011 02:47 AM
What did you guys get for your bikes for Christmas? CNI Dawg General Discussion 42 01-10-2006 06:35 PM


Tags
1000, 1999, bandit, custom, fairing, gal, honda, moriwaki, pistons, protectant, sharkhide, superhawk, vtr, wheelie, youtuby

Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off



All times are GMT -7. The time now is 02:14 AM.
