Please help blinker wires

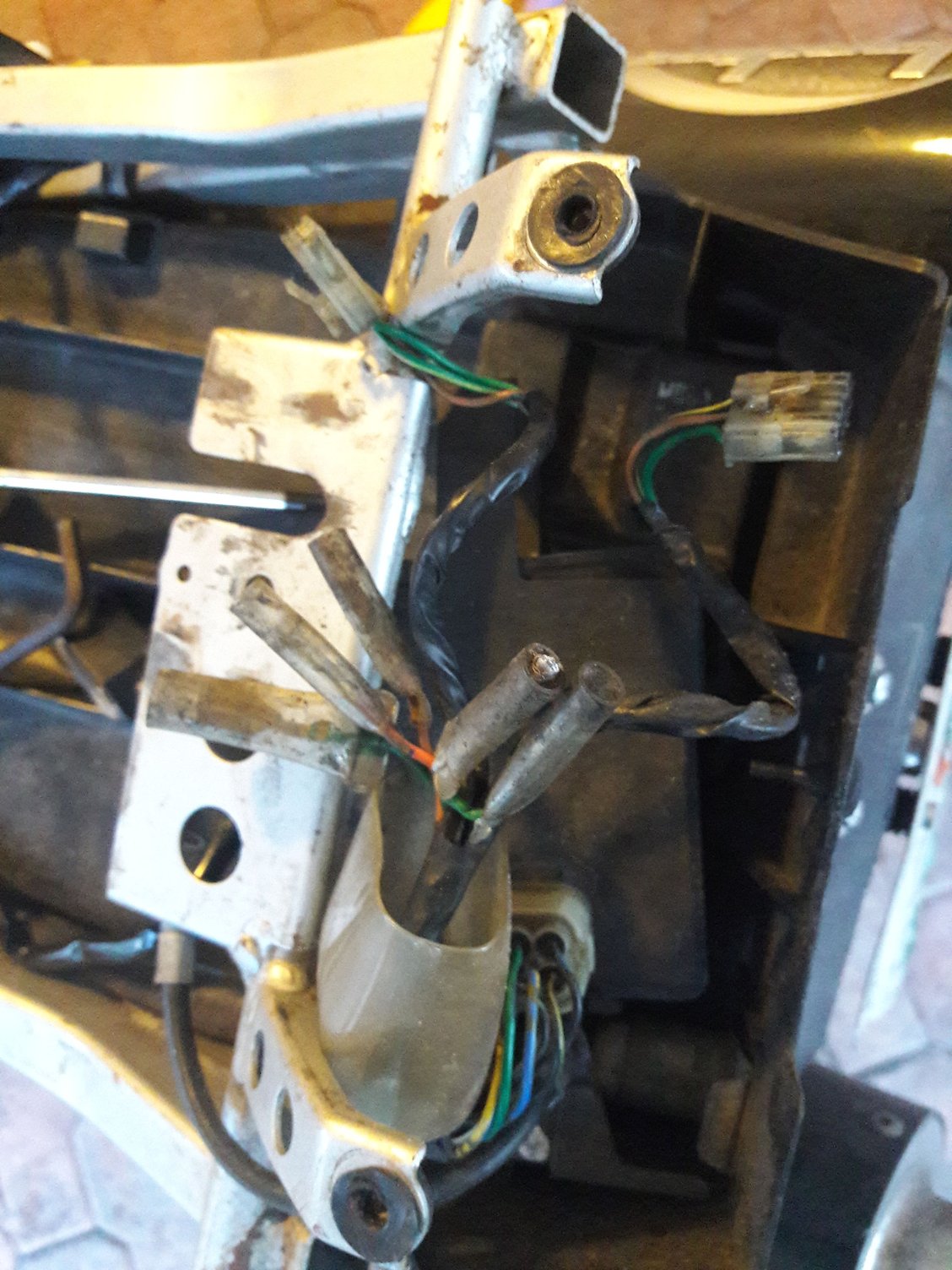

The plug on the right of photo is my brake and running light and tag light plugged into integrated signal. I need to figure out which are blinker wires to plug into my new blinkers which are 2 wire only. I know no runnin light if 2 wire . Guy before me really fucked up the wiring. I just got my front blinkers to work
please help. I can't get more tickets
Mvanriel60 is offline
Old 10-22-2017, 04:02 PM
  #2
Member
Squid
Thread Starter

Join Date: May 2017
Posts: 87
Mvanriel60 is on a distinguished road
Originally Posted by Mvanriel60 View Post
The plug on the right of photo is my brake and running light and tag light plugged into integrated signal. I need to figure out which are blinker wires to plug into my new blinkers which are 2 wire only. I know no runnin light if 2 wire . Guy before me really fucked up the wiring. I just got my front blinkers to work
please help. I can't get more tickets
ok i figured out what goes where,,,plug in until you get it right... anyways now the blinkers all work in unison but they all blink really really fast. Any advice. I havnt had blinkers since owning the bike
Mvanriel60 is offline
Old 10-22-2017, 05:42 PM
  #3
Senior Member
SuperBike

xeris's Avatar

Join Date: Sep 2010
Location: Bisbee, AZ
Posts: 1,461
xeris is on a distinguished road
From what you posted I'm understanding that the tail light has integrated turns. Are the turn bulbs LED? If so, that is the source of the rapid blink. You'll need a new flasher relay designed for low resistance. A ~$12-15 part.
xeris is offline
Old 10-22-2017, 07:14 PM
  #4
Thread Killer
SuperBike

Join Date: Apr 2013
Location: Geneseo, IL
Posts: 1,627
VTR1000F is on a distinguished road
xeris is talking about one of these:

https://www.superbrightleds.com/more...asher/787/842/
VTR1000F is offline
Old 10-22-2017, 09:25 PM
  #5
Senior Member
MotoGP

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 4,924
smokinjoe73 is on a distinguished road
True about the bilnking but the rear signals were never running lights. Rear constant lights are red. Only signals are orange.
smokinjoe73 is offline
Old 10-22-2017, 11:02 PM
  #6
Member
Squid
Thread Starter

Join Date: May 2017
Posts: 87
Mvanriel60 is on a distinguished road
Originally Posted by xeris View Post
From what you posted I'm understanding that the tail light has integrated turns. Are the turn bulbs LED? If so, that is the source of the rapid blink. You'll need a new flasher relay designed for low resistance. A ~$12-15 part.
thankyou ill give that a shot
Mvanriel60 is offline
Old 10-22-2017, 11:05 PM
  #7
Member
Squid
Thread Starter

Join Date: May 2017
Posts: 87
Mvanriel60 is on a distinguished road
Originally Posted by VTR1000F View Post
xeris is talking about one of these:

https://www.superbrightleds.com/more...asher/787/842/
thankyou for the link purchasing that now
Mvanriel60 is offline
Old 10-23-2017, 05:36 AM
  #8
Senior Member
MotoGP

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 4,924
smokinjoe73 is on a distinguished road
This too will solve the problem. Just straight from the country of origin.

https://www.ebay.com/itm/Motorcycles...hWYPxL&vxp=mtr

Or just go down to the auto parts store and get one there.

Last edited by smokinjoe73; 10-23-2017 at 05:41 AM.
smokinjoe73 is offline
Old 10-25-2017, 04:36 PM
  #9
2/97 VTR
Back Marker

Kelevra's Avatar

Join Date: Sep 2008
Location: EMPIRE STATE
Posts: 204
Kelevra is on a distinguished road
I bought an inexpensive integrated blinker as well, came with two resistor blocks (I suppose to offset the blink rate). Not sure about the wiring either, haha.

Edit: Figured it out, no big deal..

https://www.superhawkforum.com/forum...l-light-21956/

Last edited by Kelevra; 10-25-2017 at 06:14 PM.
Kelevra is offline
Old 10-25-2017, 04:55 PM
  #10
Senior Member
Back Marker

Floyd's Avatar

Join Date: Sep 2017
Location: FL
Posts: 176
Floyd is on a distinguished road
I thought the VTR had a 3 wire relay?
Floyd is offline
Old 10-26-2017, 03:49 PM
  #11
2/97 VTR
Back Marker

Kelevra's Avatar

Join Date: Sep 2008
Location: EMPIRE STATE
Posts: 204
Kelevra is on a distinguished road
Installed the LED integrated tail light from ebay. Great idea someone suggested using one (of the two), bulb connectors to power the brake light, and then just connecting the other two wires to each tail light wire, and not using the ground, as it's already grounded. Great suggestion, works perfect.

Here is a foto of which color wires on the 3 prong bulb, go to which wires on the LED integrated tail light, in case anyone hasn't done this mod.


After testing it, I cut off the 3 prong, and soldered the wires to the tail light wires, and shrink wrapped 'em.
Kelevra is offline
Old 07-01-2018, 11:11 AM
  #12
Junior Member
Squid

Join Date: Feb 2018
Posts: 9
jimpapay@yahoo.com is on a distinguished road
Rear blinker wiring

So, if I am understanding this post, there are no running lights in the rear blinkers?
The wires that I have are Green, Orange, Light Blue.
Orange for the left blinker
Light Blue for the right blinker
And the Green is common for both right and left.
That is what my 1998 Honda Super hawk is wired?
Does this sound right?
jimpapay@yahoo.com is offline
Old 07-01-2018, 03:42 PM
  #13
Moderator
MotoGP

Wolverine's Avatar

Join Date: Jul 2007
Location: Gettysburg, Pa
Posts: 4,479
Wolverine is on a distinguished road
Originally Posted by [email protected] View Post
So, if I am understanding this post, there are no running lights in the rear blinkers?
The wires that I have are Green, Orange, Light Blue.
Orange for the left blinker
Light Blue for the right blinker
And the Green is common for both right and left.
That is what my 1998 Honda Super hawk is wired?
Does this sound right?
Correct, rear turns are not 3 wire "running" lights. The service manual is a free download in the knowledge base section. It has a wiring diagram.
