Clutch questions

Old 06-14-2018, 04:55 AM
  #1
Member
Squid
Thread Starter

bigborer's Avatar

Join Date: May 2018
Location: EU
Posts: 64
bigborer is on a distinguished road
Clutch questions

Hello,

This is my first bike with a hydraulic clutch and it's harder to press than anything I've ever ridden. At first I don't notice it, but after 20 min of stop and go traffic my left forearem is more tired than after a full 1h arms workout. Keep in mind that I'm strong enough to fully compress a 200lbs hand gripper on a good day! Other people (GF for one) can't even fully compress the lever once with one hand. This can't be right!

I've bough some steel braided lines and when I'll swap the clutch one I'll try to open up the master and slave, hopefully it's only dirt in the pistons and/or old fluid (previous owner claims to have changed it 3y ago), however perhaps you can give me some input if anything in particular is needed.

So:
1-How heavy should the clutch lever be?
2-Is bleeding any different to brake bleeding?

Thanks!
bigborer is offline
Old 06-14-2018, 05:25 AM
  #2
Moderator
MotoGP

Wolverine's Avatar

Join Date: Jul 2007
Location: Gettysburg, Pa
Posts: 4,446
Wolverine is on a distinguished road
Do yourself a favor and buy a clutch master rebuild kit and buy the parts to do the slave. I can almost guarantee they both need it if not done recently. Here pic of what mine looked like, and I'm a stickler for routine maint.

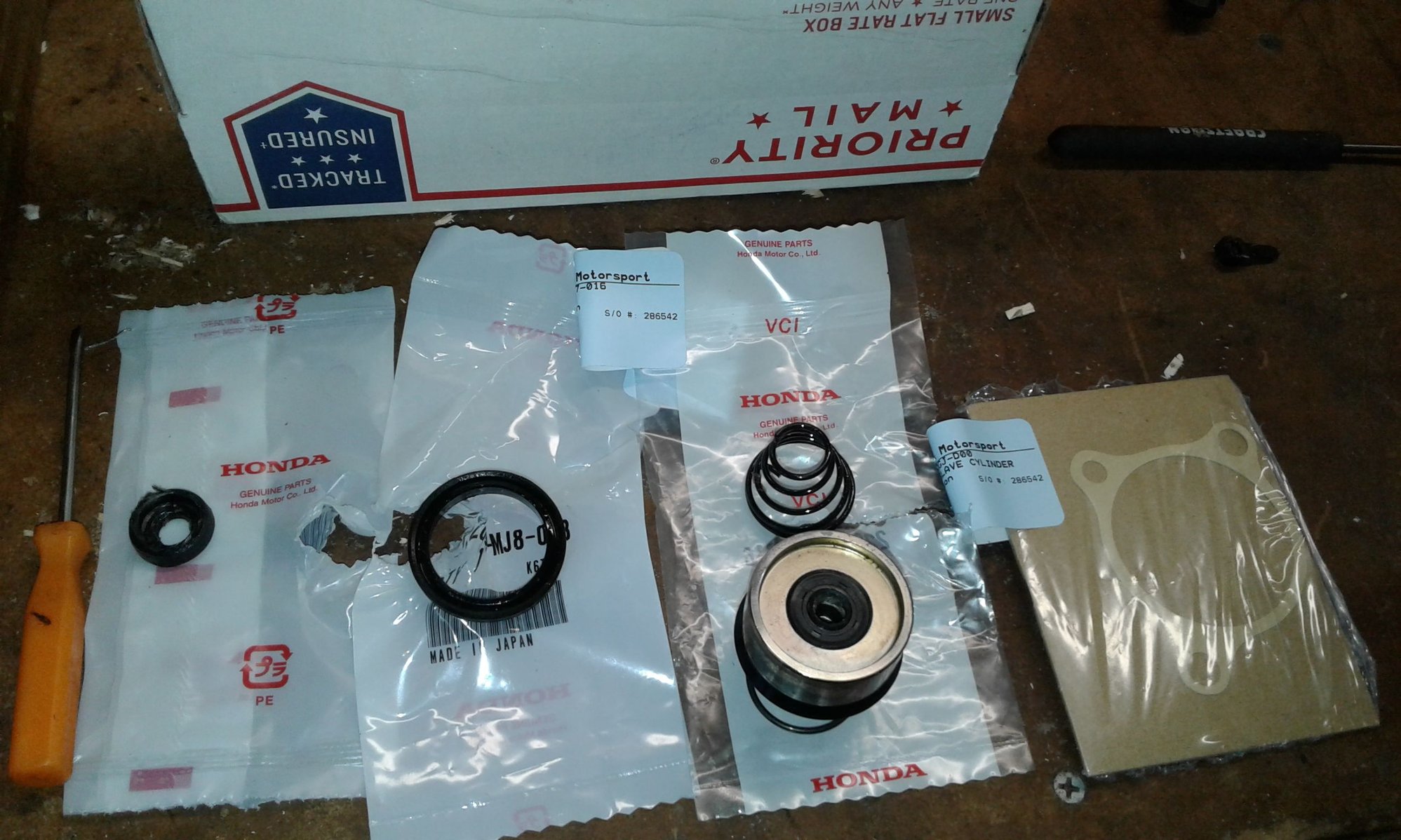

Parts needed for a slave refresh

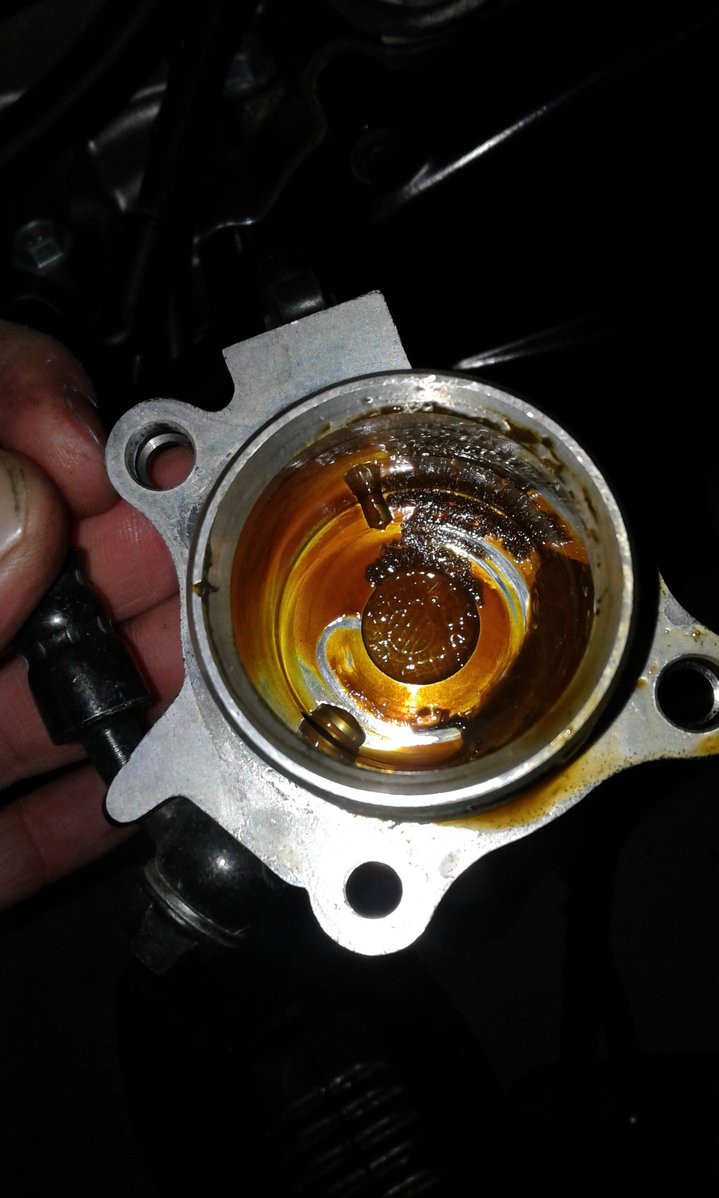

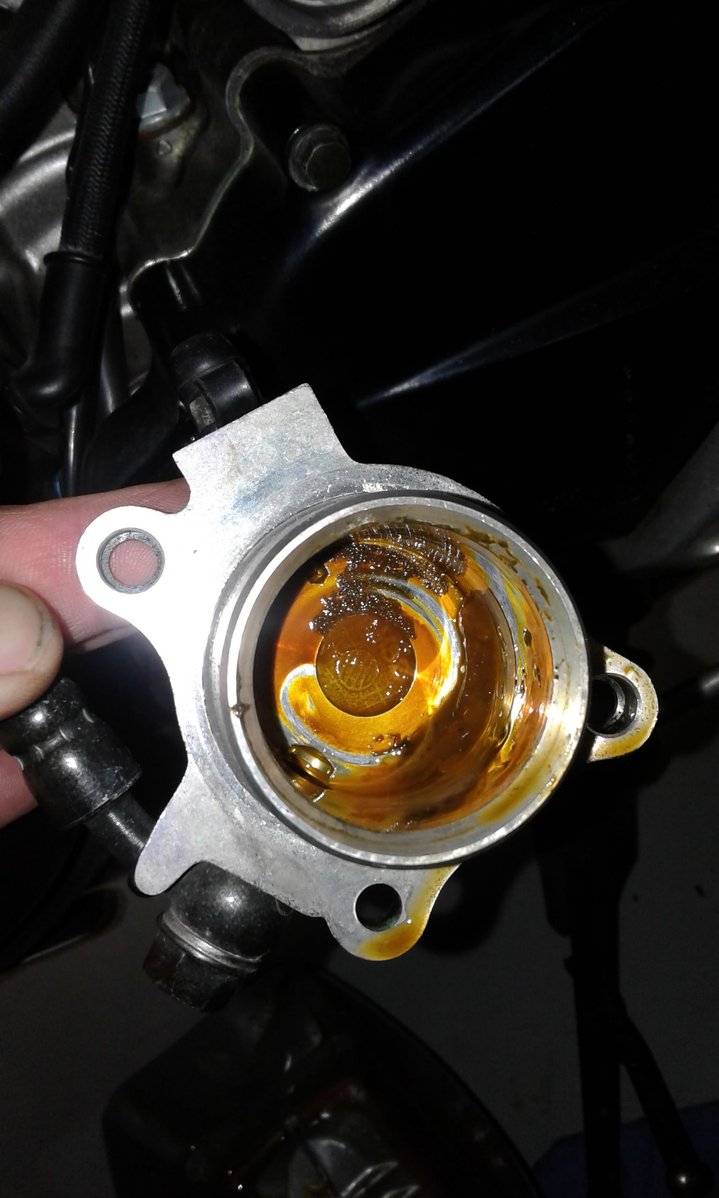

Nasty!



I'm guessing the fresh seals in the master will alleviate your heavy pull. It shouldn't be a difficult as you describe. Here's a pic from a CBR1k I did at work.

This wasn't mine but if you suction the fluid out and remove your cup and see this, you know the entire system needs rehab.
Wolverine is offline
Old 06-14-2018, 05:58 AM
  #3
Member
Squid
Thread Starter

bigborer's Avatar

Join Date: May 2018
Location: EU
Posts: 64
bigborer is on a distinguished road
Thanks!

I hoped I'd do with only a quick toothbrush scrub with IP alcohol, but at least I didn't find out I needed to get the parts AFTER taking it all apart.

What it that stuff inside the slave? Rust or only sludge? And if rust, can it be just buffed off?

The slave was tampered with as there is a trace of liquid gasket (as they likely reused the OEM one), but that is before the last owner got the bike (1st owner '03-14, 2nd '14-18, now me).

Also, is there any decent manufacturer for the rebuild parts? OEM might take too long, and I couldn't even find the slave parts listed on partzilla.
bigborer is offline
Old 06-14-2018, 06:01 AM
  #4
Moderator
MotoGP

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 4,173
E.Marquez is on a distinguished road
Originally Posted by Wolverine View Post
Do yourself a favor and buy a clutch master rebuild kit and buy the parts to do the slave. I can almost guarantee they both need it if not done recently..
YES, the Hydraulic system on the VTR gets overlooked until it no longer works right, and Every One that I have repaired or I've had a hand in helping repair looked like the pics above give or take..

Buy the full list of parts needed...don't forget the cleaners and assembly fluid or grease and rebuild both master cylinder and slave cylinder.
If you don't have a set of long nose snap ring pliers, buy a pair of the less expensive ones at least...the time, effort and frustration it will save you in working on the master cylinder is worth the few $$ to buy them, even if you give them away after.
E.Marquez is offline
Old 06-14-2018, 02:37 PM
  #5
Member
Squid
Thread Starter

bigborer's Avatar

Join Date: May 2018
Location: EU
Posts: 64
bigborer is on a distinguished road
Thanks Marquez for the tips!

I do wish it was cable operated...

Is the slave cylinder needed as well?
bigborer is offline
Old 06-14-2018, 03:03 PM
  #6
Moderator
MotoGP

Wolverine's Avatar

Join Date: Jul 2007
Location: Gettysburg, Pa
Posts: 4,446
Wolverine is on a distinguished road
If you're buying master cylinder rebuild kits, I like the All *****. I've used a ton of these (bike mech by day) with great success. I prefer the oem parts on the slave. I'm not even sure there is an aftermarket option.

All that is a sludge mess, no rust. It all cleans up with due diligence. Be meticulous,
Wolverine is offline
Old 06-14-2018, 05:11 PM
  #7
Moderator
MotoGP

Wolverine's Avatar

Join Date: Jul 2007
Location: Gettysburg, Pa
Posts: 4,446
Wolverine is on a distinguished road
Here's some part numbers.
https://www.superhawkforum.com/forum...roubles-31861/

GSKT, SLAVE CYLINDER

Mfg. Part Number: 22862-MW7-650
Price: $3.91

CUP, SLAVE CYLINDER
Mfg. Part Number: 22865-MJ8-003
Price: $7.70

SPRING
Mfg. Part Number: 22864-MT7-016
Price: $4.31

OIL SEAL (8X18X5)
Mfg. Part Number: 91209-MB0-003
Price: $2.81

From Ronayers.com
Wolverine is offline
Old 06-14-2018, 06:11 PM
  #8
Senior Member
Back Marker

Floyd's Avatar

Join Date: Sep 2017
Location: FL
Posts: 170
Floyd is on a distinguished road
Mine is hard as well. I never really gave it another thought because ive only rode 3 bikes ever and all were older.
Rear brake is very hard as well. Time to dig into that also.
Floyd is offline
Old 06-15-2018, 03:31 AM
  #9
Member
Squid
Thread Starter

bigborer's Avatar

Join Date: May 2018
Location: EU
Posts: 64
bigborer is on a distinguished road
Using those part numbers I've found the product page on partzilla: https://www.partzilla.com/catalog/ho...ver-water-pump

@Floyd- mine was also very hard and impossible to bleed. Some thorough cleaning + some red brake rubber grease cured the issue.

Coming back to the clutch rebuild parts: I've found from K&L Supply 32-1081 and 32-0156 (rebuild kits for the master and slave, made in Japan). Any opinions on those? Both amazon and ebay review show good feedback, and I'd get both for ~45USD + shipping. All ***** was my first intention- so far they've been decent quality for decent prices- but they don't make any rebuild kits for this. I've even tried searching for vtr750 and cbr1000f as those seem to use the same clutch master/slave but all ***** lists nothing for those as well.
bigborer is offline
Old 06-15-2018, 04:32 AM
  #10
Moderator
MotoGP

Wolverine's Avatar

Join Date: Jul 2007
Location: Gettysburg, Pa
Posts: 4,446
Wolverine is on a distinguished road
K&L is very good quality as well. If I don't use All *****, it's K&L kits.
Wolverine is offline
Old 06-15-2018, 09:08 AM
  #11
Moderator
MotoGP

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 4,173
E.Marquez is on a distinguished road
K&L is good aftermarket,,, but in a lot of years using them and other aftermarkets parts, I still feel OEM is better for most seals...
SKF green stripe fork seals being an exception.

I use a K&L carb and petcock kits every month to keep our fleet going...... But on my bikes and good customers, all rubber stuff when available is OEM.
E.Marquez is offline
Old 06-15-2018, 10:07 AM
  #12
Member
Squid
Thread Starter

bigborer's Avatar

Join Date: May 2018
Location: EU
Posts: 64
bigborer is on a distinguished road
OEM from partzilla costs ~110$ and K&L is ~50$, prices incl shipping, on top of that I'll have to pay 19% VAT and 2-3% import taxes. Ordering locally will get me to the same after tax prices +15-40% extra.
If the K&L lasts 30% less, it'd still be much better value .
bigborer is offline
Old 06-15-2018, 10:33 AM
  #13
Moderator
MotoGP

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 4,173
E.Marquez is on a distinguished road
Originally Posted by bigborer View Post
OEM from partzilla costs ~110$ and K&L is ~50$, prices incl shipping, on top of that I'll have to pay 19% VAT and 2-3% import taxes. Ordering locally will get me to the same after tax prices +15-40% extra.
If the K&L lasts 30% less, it'd still be much better value .
Understand.... makes sense for you

.K&L Supply 32-0156 Clutch Slave Cylinder Repair Kit, Honda Vtr1000
$20 US
Amazon Amazon

K & L Clutch Master Cylinder Rebuild Kit - 32-1081

$27 US
Amazon Amazon

(Ignore the fitment applications in that second link, they are incomplete, the K&L 32-1081 is the correct PN

Last edited by E.Marquez; 06-15-2018 at 10:43 AM.
E.Marquez is offline
Old 06-20-2018, 10:35 AM
  #14
Junior Member
Squid

Join Date: May 2018
Location: Calgary, Alberta
Posts: 7
Duck Tape is on a distinguished road
Okay, so seeing those pictures Wolverine posted of the schmutz in the clutch system, this has become the next thing I will be servicing on the used bike I bought a few weeks ago. And yes, feathering the clutch while creeping forward in traffic becomes a hell of a workout. I assume there's gunk in the lines too, how difficult is it to clean that out? Do you just flush with fresh fluid, or try to run some air through them, or what?

Mark
Duck Tape is offline
Old 06-20-2018, 10:46 AM
  #15
Moderator
MotoGP

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 4,173
E.Marquez is on a distinguished road
Originally Posted by Duck Tape View Post
Okay, so seeing those pictures Wolverine posted of the schmutz in the clutch system, this has become the next thing I will be servicing on the used bike I bought a few weeks ago. And yes, feathering the clutch while creeping forward in traffic becomes a hell of a workout. I assume there's gunk in the lines too, how difficult is it to clean that out? Do you just flush with fresh fluid, or try to run some air through them, or what?

Mark
I have never found anything but contaminated fluid in the lines..so if your fluid in the Master cylinder has floaties, sure, it will be in the line as well..but draining, then filling and bleeding takes care of that.

Last edited by E.Marquez; 06-20-2018 at 12:05 PM.
E.Marquez is offline
Old 06-20-2018, 11:52 AM
  #16
Junior Member
Squid

Join Date: May 2018
Location: Calgary, Alberta
Posts: 7
Duck Tape is on a distinguished road
Originally Posted by E.Marquez View Post
I have never found anything but contaminated fluid in the lines..so if your fluid in the Master cylinder has floaties, sure, it will be in the line as well..but draining, then filling and pleading takes care of that.
Thanks. And hopefully pleading won't be necessary.
Duck Tape is offline
Old 06-20-2018, 12:57 PM
  #17
Senior Member
SuperBike

Wicky's Avatar

Join Date: Sep 2008
Location: Essex, UK
Posts: 1,624
Wicky is on a distinguished road
Wicky is offline
Old 06-20-2018, 03:47 PM
  #18
Moderator
MotoGP

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 4,173
E.Marquez is on a distinguished road
Originally Posted by Duck Tape View Post
Thanks. And hopefully pleading won't be necessary.
there have been times in the shop, I've not been above saying please...before depressing the starter button and Thank you when it started
E.Marquez is offline
Old 07-04-2018, 08:39 AM
  #19
Junior Member
Squid

Join Date: May 2018
Location: Calgary, Alberta
Posts: 7
Duck Tape is on a distinguished road
Originally Posted by E.Marquez View Post
there have been times in the shop, I've not been above saying please...before depressing the starter button and Thank you when it started
The K&L kits arrived to rebuild the clutch master and slave cylinders, they were both cruddy (not as bad as the ones in Wolverine's pictures, but overdue for attention). The installation was a nice straightforward job, bleeding the system was easy, pleading was not required, and the effort to squeeze the clutch lever has definitely reduced to something wouldn't **** off David Banner.

Thanks,
Duck Tape is offline
Old 07-04-2018, 09:43 AM
  #20
Moderator
MotoGP

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 4,173
E.Marquez is on a distinguished road
Originally Posted by Duck Tape View Post
The K&L kits arrived to rebuild the clutch master and slave cylinders, they were both cruddy (not as bad as the ones in Wolverine's pictures, but overdue for attention). The installation was a nice straightforward job, bleeding the system was easy, pleading was not required, and the effort to squeeze the clutch lever has definitely reduced to something wouldn't **** off David Banner.

Thanks,
Well done
