Clutch Issue

So my 02 with 67k, has had some slippage over the past 2 years and Saturday I rode to work & then upstate NY.

Well clutch isn't working, barely can get into neutral when at stop light and downshifting very difficult.

I'm thinking the plates are toast but saw some posts about clutch master cylinder
This is the original clutch.

Was going to change the plates and springs & gasket - is there anything else that I need to change?

Other than a torque wrench do I need any special tools?

Lastly where should I order from?
Thanks
Old Sep 7, 2020 | 08:28 AM
  #2
ascothawk's Avatar
Senior Member
Back Marker

Joined: Nov 2007
Posts: 125
From: Dayton,Ohio
ascothawk is on a distinguished road
Clutch issues

I order my parts from Service Honda in Hammond Indiana. They have an easy site to search from and great prices. I prefer oem friction discs and plates. And replace the springs,they are cheap. I use Barnett springs they are only about 10% stiffer than oem. The trouble your having shifting sounds like the clutch not disengaging fully,the time I had a slipping clutch on my Hawk was caused by weak springs. I replaced the discs and plates that showed no measurable wear or
glazing and still had a slipping clutch under load. Then I went back in and replaced the springs.Problem solved.
Old Sep 7, 2020 | 09:48 AM
  #3
Wolverine's Avatar
Moderator
MotoGP

Joined: Jul 2007
Posts: 5,213
From: Gettysburg, Pa
Wolverine is on a distinguished road
I'd make sure that master and slave cylinder are clean/not full of gunk and properly working. How often have you bled the system w/ fresh fluid? 67k isn't bad from a clutch. EBC makes a great replacement kit, check out the SRK. Pick your favorite vendor:
https://www.sportbiketrackgear.com/e...es-clutch-kit/

https://www.ebay.com/itm/HONDA-VTR10...oAAMXQMXRQ6uQ-

Barnett isn't a bad name either. OEM is always great but in this case, I'd do an EBC. I've put them in many bikes at the shop. Great quality, little stiffer springs yadda yadda.

Here's what my slave looked like a few years ago when I rebuilt it.


And all the parts I replaced:





Been a looong time since we've chatted! Hope all is well.
Old Sep 7, 2020 | 08:17 PM
  #4
Cadbury64's Avatar
VTR virgin
Superstock

Joined: Mar 2015
Posts: 447
From: Auckland, New Zealand
Cadbury64 is on a distinguished road
The symptoms sound a whole lot more like air in the clutch line than a worn clutch. In the first instance I would be cleaning out the hydraulic circuit and pistons and refreshing the fluid, and then putting in new seals if needed. I recently swapped out the seals in my slave cylinder as it had developed a weep, and have previously inspected the clutch discs but they were in great shape at nearly 90,000km.
Old Sep 8, 2020 | 09:57 AM
  #5
nnjhawk02's Avatar
Thread Starter
Senior Member
SuperSport

Joined: Mar 2006
Posts: 740
From: Pa
nnjhawk02 is an unknown quantity at this point
Thanks everyone - I have new fluid in there from - either this Spring or last year - I change all brake & clutch fluid every two years & use syn.

As stated, I've noticed slippage over the last year or 2.

Some pics from trip in June with son on his R6. Rode secondary roads from Lehigh Valley Pa to WVa & Va. Great trip - Rt. 33 in WVa is awesome. Was by Germany Valley and Second pic is the infamous Smoke Hole Rd in WVa. - Top Case & Dry Bag strapped behind me & I can travel anywhere.





Old Sep 8, 2020 | 06:30 PM
  #6
Wolverine's Avatar
Moderator
MotoGP

Joined: Jul 2007
Posts: 5,213
From: Gettysburg, Pa
Wolverine is on a distinguished road
Originally Posted by nnjhawk02
Thanks everyone - I have new fluid in there from - either this Spring or last year - I change all brake & clutch fluid every two years & use syn.

As stated, I've noticed slippage over the last year or 2.

Some pics from trip in June with son on his R6. Rode secondary roads from Lehigh Valley Pa to WVa & Va. Great trip - Rt. 33 in WVa is awesome. Was by Germany Valley and Second pic is the infamous Smoke Hole Rd in WVa. - Top Case & Dry Bag strapped behind me & I can travel anywhere.

Looks like quality time!

If you're confident in the hyro's, Get yourself a clutch kit and slap it in there. It's easy to do.
Old Sep 9, 2020 | 07:32 AM
  #7
xeris's Avatar
Senior Member
SuperBike

Joined: Sep 2010
Posts: 1,987
From: Bisbee, AZ
xeris is on a distinguished road
I’ll throw this out there as another possibility. Do you have after market levers? Some have been known to apply pressure to the master when not pulled.
More likely what has been previously suggested, but....
Old Sep 9, 2020 | 07:06 PM
  #8
nnjhawk02's Avatar
Thread Starter
Senior Member
SuperSport

Joined: Mar 2006
Posts: 740
From: Pa
nnjhawk02 is an unknown quantity at this point
Originally Posted by xeris
I’ll throw this out there as another possibility. Do you have after market levers? Some have been known to apply pressure to the master when not pulled.
More likely what has been previously suggested, but....
Thanks - in fact I do.

I installed Pazzo adjustable levers after I destroyed both on a trip 2 or 3 yrs ago
Old Sep 10, 2020 | 04:27 AM
  #9
CrankenFine's Avatar
Retired- but not tired!
SuperBike

Joined: Aug 2010
Posts: 1,481
From: Pittsburgh
CrankenFine is on a distinguished road
Originally Posted by xeris
I’ll throw this out there as another possibility. Do you have after market levers? Some have been known to apply pressure to the master when not pulled.
More likely what has been previously suggested, but....
Especially if not installed correctly... as I learned a few years ago.
Old Sep 17, 2020 | 03:12 PM
  #10
ACE VenTRa's Avatar
Senior Member
SuperSport

Joined: Jul 2018
Posts: 565
ACE VenTRa is on a distinguished road
The first thing you should do is just pull the clutch plates out and measure them. Check the steels for overheating or wear, If they are in spec just change the springs and reinstall. If that doesn't fix it, change the slave.

AV
Old Mar 23, 2021 | 12:00 PM
  #11
nnjhawk02's Avatar
Thread Starter
Senior Member
SuperSport

Joined: Mar 2006
Posts: 740
From: Pa
nnjhawk02 is an unknown quantity at this point

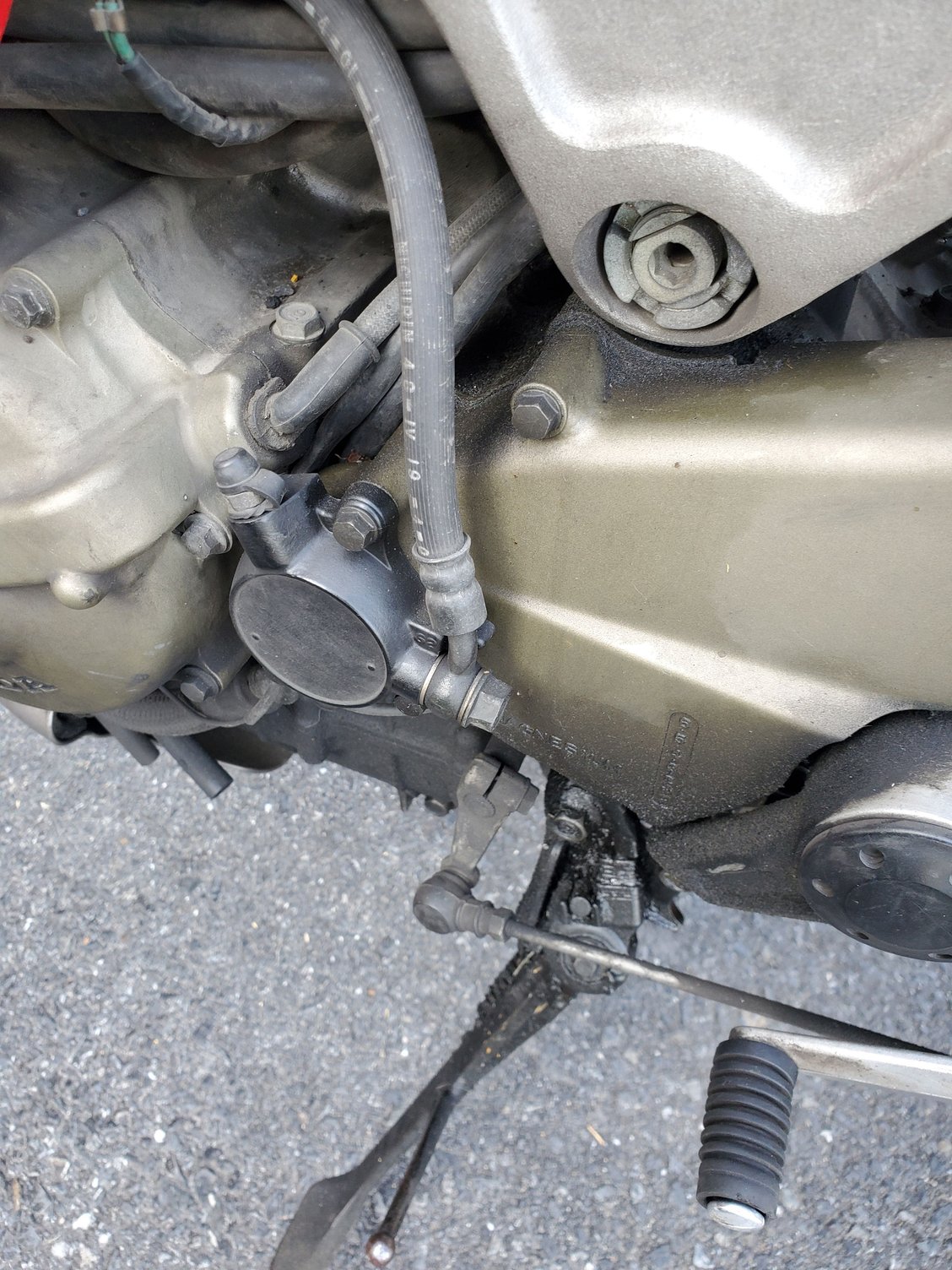

Finally uncovered the VTR to troubleshoot clutch not engaging

No fluid & Slave looks like it sprung a leak.

Just ordered the Oberon in Red - the fastest color - so they said


Old Mar 24, 2021 | 06:20 AM
  #12
Wolverine's Avatar
Moderator
MotoGP

Joined: Jul 2007
Posts: 5,213
From: Gettysburg, Pa
Wolverine is on a distinguished road
Originally Posted by nnjhawk02
Finally uncovered the VTR to troubleshoot clutch not engaging

No fluid & Slave looks like it sprung a leak.

Just ordered the Oberon in Red - the fastest color - so they said

No surprise there. The O will fix you up fine.
Old Mar 30, 2021 | 01:26 PM
  #13
nnjhawk02's Avatar
Thread Starter
Senior Member
SuperSport

Joined: Mar 2006
Posts: 740
From: Pa
nnjhawk02 is an unknown quantity at this point

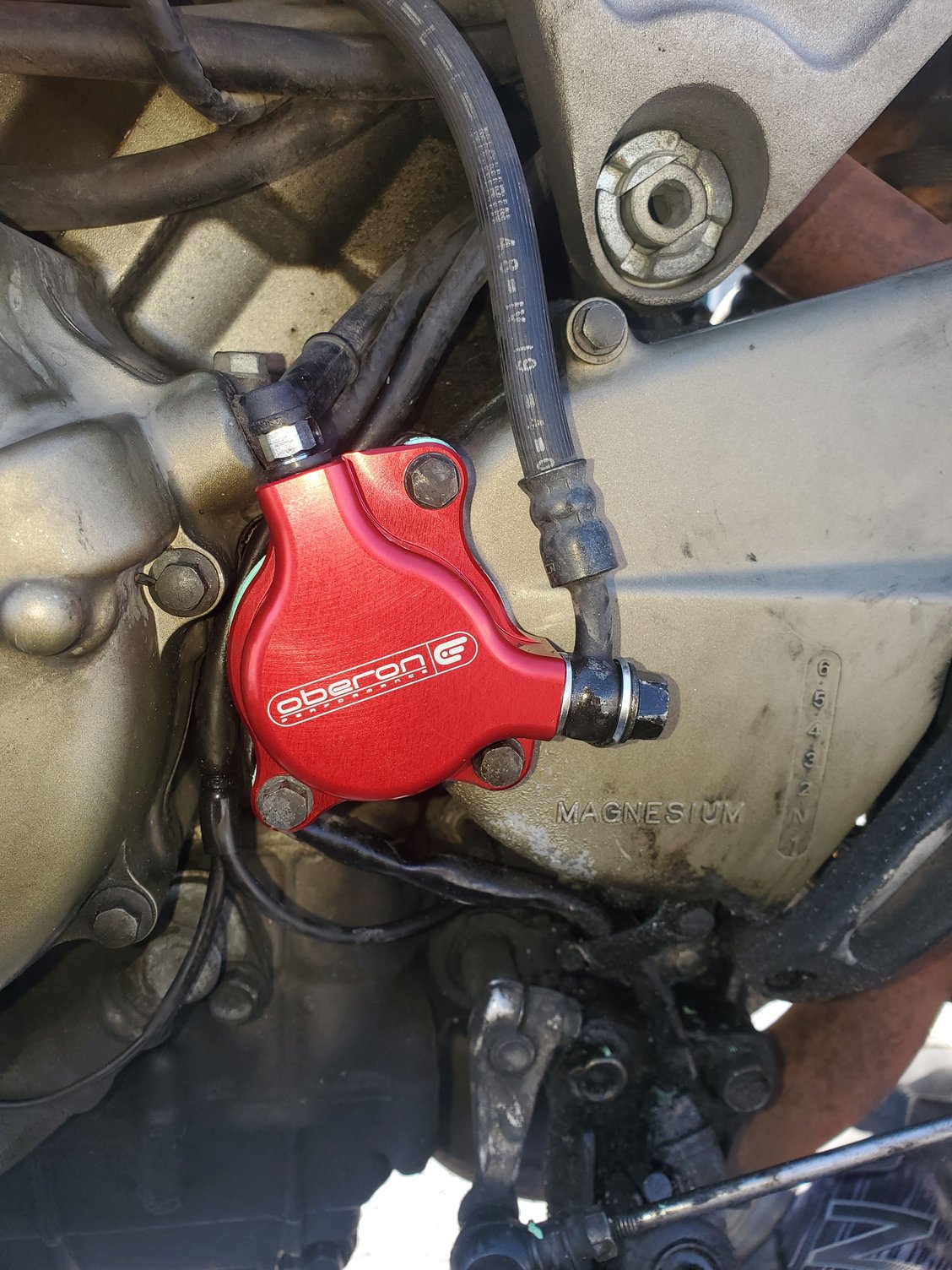

All Good now - Got new one from Oberon Performance in the UK - easy & quickly shipped. Rec'd yesterday & just finished install.

not too difficult to do - PITA was getting old paper gasket off.

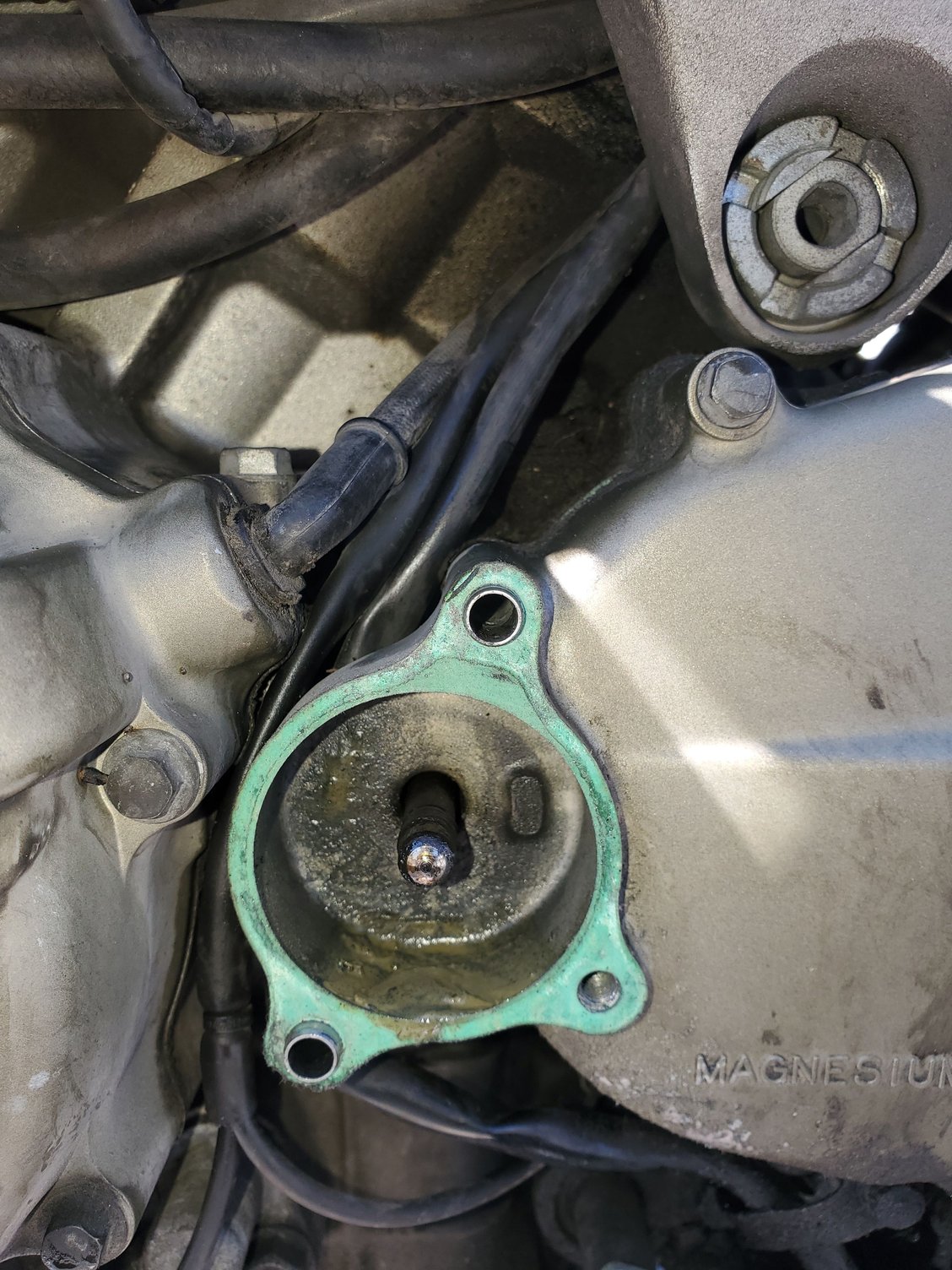

Yuckies

Oberon - All Good now!
Old Mar 30, 2021 | 03:21 PM
  #14
Wolverine's Avatar
Moderator
MotoGP

Joined: Jul 2007
Posts: 5,213
From: Gettysburg, Pa
Wolverine is on a distinguished road
I use this at the shop, it’s awesome.




Too late for you but if you have any jobs in the future, it’s worth buy-in.
Old Apr 26, 2021 | 02:44 AM
  #15
CJVTR00's Avatar
Junior Member
Squid

Joined: Aug 2010
Posts: 6
From: Sydney Orstraalle-yah
CJVTR00 is on a distinguished road
Originally Posted by nnjhawk02
All Good now - Got new one from Oberon Performance in the UK - easy & quickly shipped. Rec'd yesterday & just finished install.

not too difficult to do - PITA was getting old paper gasket off.


Yuckies

Oberon - All Good now!
Did you get a can of degreaser as well?
Old May 2, 2021 | 09:57 AM
  #16
nnjhawk02's Avatar
Thread Starter
Senior Member
SuperSport

Joined: Mar 2006
Posts: 740
From: Pa
nnjhawk02 is an unknown quantity at this point
Originally Posted by CJVTR00
Did you get a can of degreaser as well?

? from Oberon?

No - I did clean out the junk from inside & flushed out with new synthetic
