CBR 1000rr front end first impressions

Old 10-10-2010, 04:46 PM
  #1
Senior Member
Superstock
Thread Starter

t-dogg's Avatar

Join Date: Nov 2008
Location: Florida panhandle
Posts: 360
t-dogg is on a distinguished road
CBR 1000rr front end first impressions

It Kicks ***! Finally got to ride it today. So much better than what it was. It is so flickable now and much more nimble than before. Set it up for my weight and it performs perfect. The radial brakes are what God intended for this bike. It will stop on a dime with one finger! Im still not used to the limited steering at slow speeds. I almost bit it comin out of my driveway this morning. Deffinently the best mod I've ever done. Snapped a few pics...

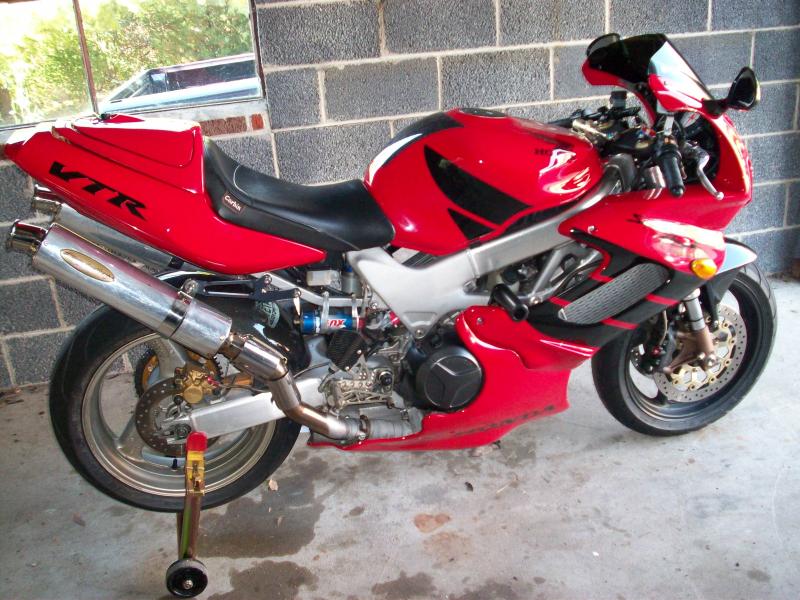

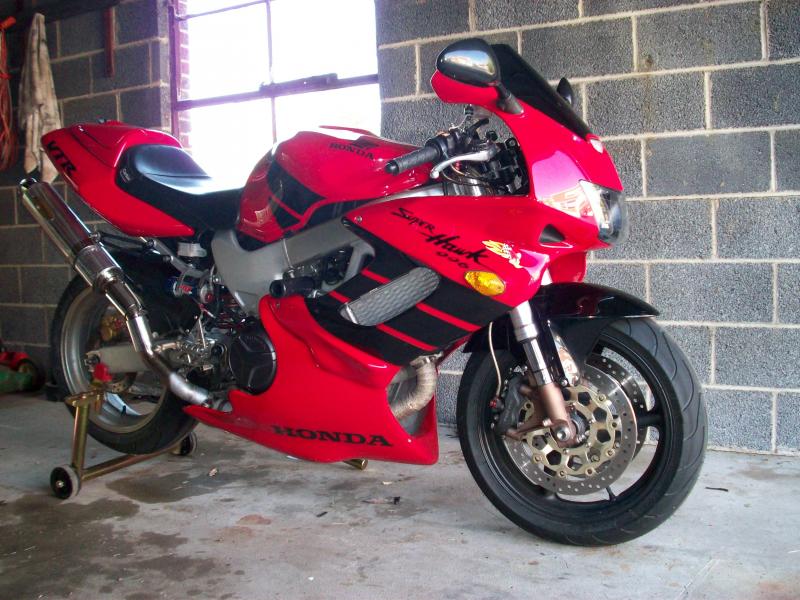

Attached Thumbnails CBR 1000rr front end first impressions-bike-002.jpg   CBR 1000rr front end first impressions-bike-001.jpg
t-dogg is offline
Old 10-10-2010, 05:08 PM
  #2
Member
Squid

cwlucky13's Avatar

Join Date: Jul 2010
Location: huntington beach
Posts: 68
cwlucky13 is on a distinguished road
nice, one day i hope to do this mod, i like your paint job looks good
cwlucky13 is offline
Old 10-10-2010, 05:37 PM
  #3
Senior Member
Superstock
Thread Starter

t-dogg's Avatar

Join Date: Nov 2008
Location: Florida panhandle
Posts: 360
t-dogg is on a distinguished road
Thank You Sir
t-dogg is offline
Old 10-10-2010, 05:42 PM
  #4
I loves me twins
Superstock

NooB's Avatar

Join Date: Feb 2010
Location: Houston, TX
Posts: 380
NooB is on a distinguished road
Yeah, thats nice. Actually you're bike is gorgeous, I really like it. If you don't mind me asking, how much did the whole front-end end up costing? Assuming you did the work yourself.
NooB is offline
Old 10-10-2010, 06:10 PM
  #5
Boosted
SuperSport

Syclone's Avatar

Join Date: Aug 2007
Location: Sioux Falls, SD
Posts: 642
Syclone is on a distinguished road
What did you use for clip-ons?
Syclone is offline
Old 10-10-2010, 06:26 PM
  #6
Member
Squid

Join Date: Oct 2010
Posts: 80
trident00 is on a distinguished road
I think it looks great. I am about to do the same myself. Did you use the 929/954 tripples, or the 1000rr tripples? Any tips would be much appreciated. I also like your lower fairing. Which one is it? The fox rear shock you have. Was it made for the superhawk or was it modified?
Thanks, Walt
trident00 is offline
Old 10-10-2010, 07:19 PM
  #7
Senior Member
MotoGP

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 4,912
smokinjoe73 is on a distinguished road
Yeah, looks good, what clip ons?
smokinjoe73 is offline
Old 10-10-2010, 10:36 PM
  #8
Senior Member
MotoGP

Join Date: May 2008
Location: San Clemente, CA
Posts: 3,447
VTRsurfer is on a distinguished road
Since everyone's asking questions, I'll ask one...and maybe a dumb one at that. What is it that limits the slow speed steering? Does something hit the fairing?

And yes, your bike looks awesome. Wasn't it in the SHOTM competition a while back? I think I voted for yours.
VTRsurfer is offline
Old 10-11-2010, 06:19 AM
  #9
Senior Member
Superstock
Thread Starter

t-dogg's Avatar

Join Date: Nov 2008
Location: Florida panhandle
Posts: 360
t-dogg is on a distinguished road
Ive spent roughly $600 and some change, but have made about $450 of it back so far selling parts. All done myself with the great people on here. Used Apex Riser clip-on's that work perfect and are pretty cheap. Used RC51 Upper and 954 Lower from 8541 Hawk with 954 Wheel, 1000rr Forks and Brakes. Lower Fairing is Sharkskins. Fox shock was made for the SH but briefly. For me what limits the movement at slow speeds is the huge Radial Master cylinder that sticks out and it hits the fairing stay turning left just like smokinjoe said lol. Turning right my steering damper holds it from sliding the rod all the way out of the damper. Wooooo lot of questions. Guess I posted in the wrong section...
t-dogg is offline
Old 10-11-2010, 07:44 AM
  #10
Senior Member
MotoGP

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 4,912
smokinjoe73 is on a distinguished road
I actually switched to an F4i master to solve some steering lock issues. Slightly less powerful but way better than stock still.
smokinjoe73 is offline
Old 10-11-2010, 08:46 AM
  #11
Boosted
SuperSport

Syclone's Avatar

Join Date: Aug 2007
Location: Sioux Falls, SD
Posts: 642
Syclone is on a distinguished road
I wish I had seen those Apex's before I went the SWATT route... Not that mine are bad, but those look like could solve the fitment issues that I ran into.
Syclone is offline
Old 10-11-2010, 09:33 AM
  #12
Banned
MotoGP

Join Date: Aug 2007
Location: Lake View Terrace, CA
Posts: 5,942
8541Hawk will become famous soon enough
Looks good. Yes they do work so much better when you hang a good front end on there. Now you need to brace the swingarm or go all they way and mount a RC arm on there.
8541Hawk is offline
Old 10-11-2010, 10:54 AM
  #13
Senior Member
SuperBike

cliby's Avatar

Join Date: Jul 2005
Location: MN
Posts: 1,547
cliby is on a distinguished road
even if you clear things up top, the triples are so much beefier with the USD forks that you loose most of the steering lock there. Others have moved back the radiator to get a bit of it back. Its not horrible - a bit like a ducati - but when you aren't used to it and you have already dialed in some intended lean angle for a very low speed turn and then find you don't have the steering to support it, you get quite a scare.
cliby is offline
Old 10-11-2010, 03:08 PM
  #14
Senior Member
Superstock
Thread Starter

t-dogg's Avatar

Join Date: Nov 2008
Location: Florida panhandle
Posts: 360
t-dogg is on a distinguished road
Yeah I found that out the hard way. I almost nailed my truck today again comin out of the driveway, right in front of some kids. I look like a power ranger in my one piece suit anyway so that just gave those kids somethin else to laugh at
t-dogg is offline
Old 10-11-2010, 06:28 PM
  #15
Banned
MotoGP

Join Date: Aug 2007
Location: Lake View Terrace, CA
Posts: 5,942
8541Hawk will become famous soon enough
Welcome to the club......lol I did the exact same thing with that triple set up. I did get used to it in a couple of days but came close to dropping it 2 -3 times in those couple of days.

Then I moved the rads and it is well worth the hour or so it take it takes to move them.
8541Hawk is offline
Old 10-11-2010, 09:27 PM
  #16
Senior Member
MotoGP

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 4,912
smokinjoe73 is on a distinguished road
I had an actual crash due to steering lock limit, but it was due to putting hand guards on the bike. The real danger is in a situation when you think you can do the maneuver like you did before but now don't have the range. To anyone who does this mod (t-dogg), make sure you grind back the stops on the lower triples about 1/4 inch to help with the lock to lock distance.
smokinjoe73 is offline
