Modifications - Performance Discuss aftermarket and DIY performance modifications

Well well well, what do we have here?

Old 12-28-2018, 02:39 PM
  #1
Moderator
MotoGP
Thread Starter

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 4,246
E.Marquez is on a distinguished road
Well well well, what do we have here?

E.Marquez is offline
Old 12-28-2018, 02:43 PM
  #2
Moderator
MotoGP
Thread Starter

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 4,246
E.Marquez is on a distinguished road
What would you say if there was a no worry, no soldiering, plug in play using OEM quality water tight sealed connectors allowing the VTR owner to get rid of the bulky OEM coils with spark plug boots some 20 years old and swap in Modern Coil On Plug assembles.

No additional connectors in play so no additional failure points over the OEM set up.

What if such a harness was available now, custom made from new highest quality materials. No scaveging used wiring harness and cutting up your VTR to make this work

what if ....lol

Last edited by E.Marquez; 12-28-2018 at 03:03 PM.
E.Marquez is offline
Old 12-28-2018, 02:52 PM
  #3
Moderator
MotoGP
Thread Starter

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 4,246
E.Marquez is on a distinguished road
Originally Posted by E.Marquez View Post
What would you say if there was a no worry, no soldiering, plug in play using OEM quality water tight sealed connectors allowing the VTR owner to get rid of the bulky OEM coils with spark plug boots some 20 years old and swap in Modern Coil On Plug assembles.

No additional connectors in play so no additional failure points over the OEM set up.

What if such a harness was available now

what if ....lol

E.Marquez is offline
Old 12-28-2018, 03:18 PM
  #4
Senior Member
SuperBike

xeris's Avatar

Join Date: Sep 2010
Location: Bisbee, AZ
Posts: 1,462
xeris is on a distinguished road
If you haven't already done this mod, this is an opportunity to get the parts to do it right.
I noticed a little smoother idle and it felt like a bit more grunt through the mid range.
xeris is offline
Old 12-28-2018, 08:17 PM
  #5
Junior Member
Squid

superhawk138's Avatar

Join Date: Sep 2011
Posts: 15
superhawk138 is on a distinguished road
I've been considering this mod since my bike is naked and the front cylinder coil pack looks like *** sticking out the side.
superhawk138 is offline
Old 12-28-2018, 10:09 PM
  #6
Senior Member
SuperBike

NHSH's Avatar

Join Date: Jul 2011
Location: South of Live Free or Die & North of Family Guy
Posts: 1,397
NHSH is on a distinguished road
Had the parts for couple years now, but didn't get to it yet, I guess it is time to perfect the bike even more!!!
NHSH is offline
Old 12-29-2018, 02:52 AM
  #7
Senior Member
Superstock

Join Date: Jul 2018
Posts: 263
ACE VenTRa is on a distinguished road
I would say it's an awesome idea. I finished mine the other day and can't wait to get it all back together. I bet that between all the members that have purchased 4 coils to do this there are plenty extras tog o around if Ebay comes up short.
ACE VenTRa is offline
Old 12-29-2018, 04:50 AM
  #8
Moderator
MotoGP
Thread Starter

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 4,246
E.Marquez is on a distinguished road
Originally Posted by ACE VenTRa View Post
I would say it's an awesome idea..
It was, and thank you for it....credit where credits due.

Its all his ^^^^ fault....lol
E.Marquez is offline
Old 12-29-2018, 09:43 AM
  #9
Senior Member
Superstock

CaryDG's Avatar

Join Date: Sep 2013
Location: Costa Mesa, CA
Posts: 299
CaryDG is on a distinguished road
So, Eric...... When do you start makin' them? After trying your superb R&R assemblies and lightened flywheel, I'm in for a set.
CaryDG is offline
Old 12-29-2018, 10:44 AM
  #10
Moderator
MotoGP
Thread Starter

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 4,246
E.Marquez is on a distinguished road
Originally Posted by CaryDG View Post
So, Eric...... When do you start makin' them? After trying your superb R&R assemblies and lightened flywheel, I'm in for a set.
Making a set now...
Planning on offering just the harness and harness with a pair of good used coils.. Rider would only need to remove the rubber boot from the stock plug cap and slide it on the new coil
E.Marquez is offline
Old 12-29-2018, 11:08 AM
  #11
Junior Member
Squid

superhawk138's Avatar

Join Date: Sep 2011
Posts: 15
superhawk138 is on a distinguished road
Do you have an estimated price for a set?
superhawk138 is offline
Old 12-29-2018, 12:35 PM
  #12
Moderator
MotoGP
Thread Starter

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 4,246
E.Marquez is on a distinguished road
Originally Posted by superhawk138 View Post
Do you have an estimated price for a set?
Still working though that.
The Harness only is looking to be $49 including shipping to US locations.
The Harness and coils ..... well its going to depend a lot on availability at a decent price ..I got a few so far at a good deal...but the rest I found were not such a good deal, or of untried source application.

I can do 4 sets of complete kits at $74 assuming all 8 coils test good when I get them next week. After that is will depend on market price (kind of like ordering the Fresh caught lobster at your local restaurant...lol )

I'll start a new thread in the classifieds when I have coils in hand and ready to ship.
E.Marquez is offline
Old 12-30-2018, 06:43 AM
  #13
Senior Member
MotoGP

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 4,929
smokinjoe73 is on a distinguished road
I think the trickiest part is the "waterproof boot" that keeps water out of the plug opening. I had some lighting bolts arcing in heavy rain. Took some carefulness to get the seal right.
smokinjoe73 is offline
Old 12-30-2018, 08:24 AM
  #14
Moderator
MotoGP
Thread Starter

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 4,246
E.Marquez is on a distinguished road
Originally Posted by smokinjoe73 View Post
I think the trickiest part is the "waterproof boot" that keeps water out of the plug opening. I had some lighting bolts arcing in heavy rain. Took some carefulness to get the seal right.
It is really an easy deal if you are willing to use the stock spark plug boots. I've done 1/2 doz now besides my two SH, and all fit well with minimal work.
E.Marquez is offline
Old 12-30-2018, 02:30 PM
  #15
Retired- but not tired!
SuperBike

CrankenFine's Avatar

Join Date: Aug 2010
Location: Pittsburgh
Posts: 1,431
CrankenFine is on a distinguished road
Originally Posted by NHSH View Post
Had the parts for couple years now, but didn't get to it yet...
Yup, same here. I even have a spare set of stock coils so I can put it all back to stock if anything is unsatisfactory.
CrankenFine is offline
Old 12-31-2018, 07:52 AM
  #16
Moderator
MotoGP
Thread Starter

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 4,246
E.Marquez is on a distinguished road

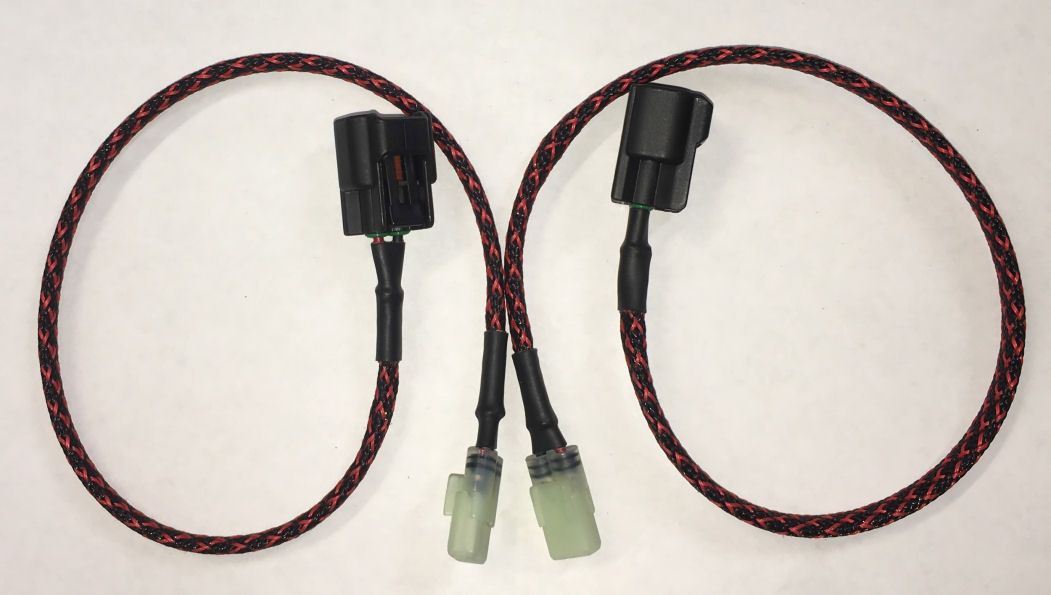

First set completed.

Last edited by E.Marquez; 12-31-2018 at 07:55 AM.
E.Marquez is offline
Old 01-09-2019, 07:54 PM
  #17
Junior Member
Squid

PT Matt2's Avatar

Join Date: Feb 2018
Location: North East Florida
Posts: 27
PT Matt2 is on a distinguished road
Got mine in the mail today. Quality work.

Now I need to find the time to install them!

Thanks Erik!


PT Matt2 is offline
Old 01-09-2019, 09:12 PM
  #18
Senior Member
MotoGP

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 4,929
smokinjoe73 is on a distinguished road
Wish this was on offer when I was kneeling on the side of the road at midnight in Queens in the pouring rain watching the lightning storm on my rear coil.
What a treat that was. But at least it didn't happen on the Brooklyn Queens expressway with no shoulder.
smokinjoe73 is offline
Old 01-13-2019, 09:52 PM
  #19
Senior Member
Superstock

CaryDG's Avatar

Join Date: Sep 2013
Location: Costa Mesa, CA
Posts: 299
CaryDG is on a distinguished road
Erik, Got mine today. Great workmanship, as usual. I turned down a few CBR1000rr coils so I can install them tomorrow. By the way if anyone needs additional plug caps/moisture seals to mod for a COP project, they are available from Honda (part #30700=MBB-640) for about $16 ea. If anyone needs a couple of CBR1000 coils already turned down, I have two extras for $25 shipped.
CaryDG is offline
