Coil on Plug MOD

This is my version of the Coil on spark plug MOD.. It's not new, it's not leading edge, it's not needed if your OEM coils, wires, spark plug cap are in serviceable condition.

BUT if you need to replace any of the OEM parts, or just have a desire to do a useful easy mod.... Then the CBR coil on plug MOD might be for you.

My donor parts were from 2006 CBR1000. I purchased a set of coils and the wiring harness on eBay for under $60 delivered to my door.

30 minutes of stripping tape and OEM harness cover and I ended up with four separate plugs and wire pigtails.



I cut the plug from the OEM coil and attached it to the new harness plug.
Connections are soldiered, heat shrink tube and liquid electrical tape used to seal connections.


Several have done this MOD and worked though the issue of how to provide a seal to the head. I chose to do it the OEM Like way.. I cut the rubber OEM plug section off the OEM plugs, removed the lower rubber section of the CBR coils,

and fit the VTR section of rubber plug to the CBR coil on plug.





Once both the coils are wired to the old plug, the rubber section has been added to the lower part of the coil ...install them in place


Put everything else back together, and go test ride.

Last edited by E.Marquez; 10-01-2014 at 03:45 AM.
E.Marquez is offline   Reply With Quote
Old 06-26-2010, 04:56 AM   #2
Senior Member
MotoGP

mikstr's Avatar

Join Date: Apr 2005
Location: Montreal
Posts: 5,419
mikstr is on a distinguished road
thanks for that, I may have to mod mine with the OEM rubber seal also.
mikstr is offline   Reply With Quote
Old 06-26-2010, 06:54 AM   #3
Moderator
MotoGP
Thread Starter

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 3,369
E.Marquez is on a distinguished road
Quote:
Originally Posted by mikstr View Post
thanks for that, I may have to mod mine with the OEM rubber seal also.
I figured why not. I had already cut the plug from the OEM coils, I knew that if this coil on cap setup failed, I was not going back to OEM coils,,, and I found the stock plug cap rubber outer cover was not glued or otherwise molded to the body of the cap.

2 sec with a razor, off it came.

You do have to trim it though to fit. Over all length from spark plug connection to the end of the rubber cap is too long with the OEM seal installed on the CBR coil cap.

Trim the top of the seal as close as possible on top, install on the CBR coil. You can measure the difference of seating depth between an OEM cap and the CBR cap with an old plug or small dowel, rod 1/4 drive extension, etc.. You'll see the difference being about 5mm. Trim that off the seal installed on the CBR cap.

You will also notice the CBR cap is larger in diameter. The scavenged seal withs no problem,, BUT then the new installed diameter of the seal is a bit too much for the recess in the head.
So trim 2-3 mm around the circumference and it will now fit in the spark plug recess just like OEM.

Add a dab of dielectric silicone to the inside of the spark plug cap and your all set

I always spray the outside of a spark plug boot / seal with silicone spray to both keep it from sticking at next removal, and to help repel water. In this case it also makes sure the seal/cap fit in the recess easy.

E.Marquez is offline   Reply With Quote
Old 06-26-2010, 08:53 AM   #4
Destructive Tester
Superstock

bjorn toulouse's Avatar

Join Date: Oct 2009
Location: N.E. oHIo
Posts: 263
bjorn toulouse is on a distinguished road
I went about using the OEM seal on the stick coil a little differently.
Rather than trim the seal, I ground the end of the coil until all of the ridges, etc. were gone and I had a nice round end for the seal. Same result, the spark plug well is sealed from whatever.

I first thought of trimming the coil in my lathe, but the connector wouldn't allow the coil to run centered.....I guess that's my excuse for getting a larger lathe.

During preliminary fit up I noticed that the coil, even with the OEM seal in place, would wobble a bit. By sliding the upper seal of the stick coil down the body of the coil 35mm (1.375" if you're metrically challenged), the seal nestles into the joint of the cam cover and the cylinder head, eliminating any wobble.

This pic is the coil work in progress:



This pic, from preliminary fit up, shows how the relocated upper seal seats at cover joint:




Rex

Last edited by bjorn toulouse; 06-26-2010 at 08:56 AM. Reason: speelage
bjorn toulouse is offline   Reply With Quote
Old 06-26-2010, 10:22 AM   #5
Moderator
MotoGP
Thread Starter

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 3,369
E.Marquez is on a distinguished road
Nice work ...

I chose not to grind the coil (or chuck it up in the lathe) because I was not sure how fragile the body or electrics were.

As you had no issue I guess I could have.

Nice to have choices.
E.Marquez is offline   Reply With Quote
Old 06-27-2010, 12:35 AM   #6
Destructive Tester
Superstock

bjorn toulouse's Avatar

Join Date: Oct 2009
Location: N.E. oHIo
Posts: 263
bjorn toulouse is on a distinguished road
Quote:
Originally Posted by E.Marquez View Post
I chose not to grind the coil (or chuck it up in the lathe) because I was not sure how fragile the body or electrics were.

As you had no issue I guess I could have.

Having a set of 4 and only needing 2, I figured I was prepared for an "Oh,****!" moment!


Rex
bjorn toulouse is offline   Reply With Quote
Old 08-01-2010, 09:45 AM   #7
Senior Member
SuperSport

jay956's Avatar

Join Date: Aug 2009
Location: Richmond, VA
Posts: 684
jay956 is on a distinguished road
do the wires have a certain polarity?
jay956 is offline   Reply With Quote
Old 08-01-2010, 02:48 PM   #8
Out of my mind, back in 5
MotoGP

Tweety's Avatar

Join Date: Nov 2006
Location: Skurup, Sweden
Posts: 6,109
Tweety is on a distinguished road
The common colour is ground, I believe it's black with a white stripe... Should be on both coils, the other wire should be different colours and are the "hot" one... But I'm fairly certain it's no problem if they are hooked up inverse...
Tweety is offline   Reply With Quote
Old 08-02-2010, 11:04 AM   #9
Moderator
MotoGP
Thread Starter

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 3,369
E.Marquez is on a distinguished road
Yes black with white trace is the ground, and common to both coils. The other wire (colored not black) is the hot one..
E.Marquez is offline   Reply With Quote
Old 08-19-2010, 09:27 PM   #10
Senior Member
SuperSport

98VTRrider's Avatar

Join Date: Jun 2010
Location: Baltimore, Maryland
Posts: 636
98VTRrider is on a distinguished road

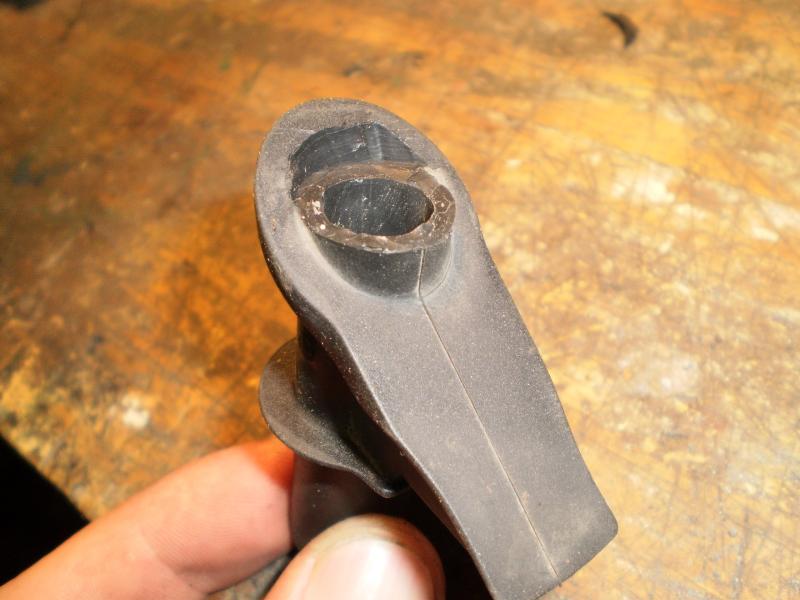

Just finished my 600rr Coil Mod. Fired right up and runs great. Here are pics of my OEM seal fitment.

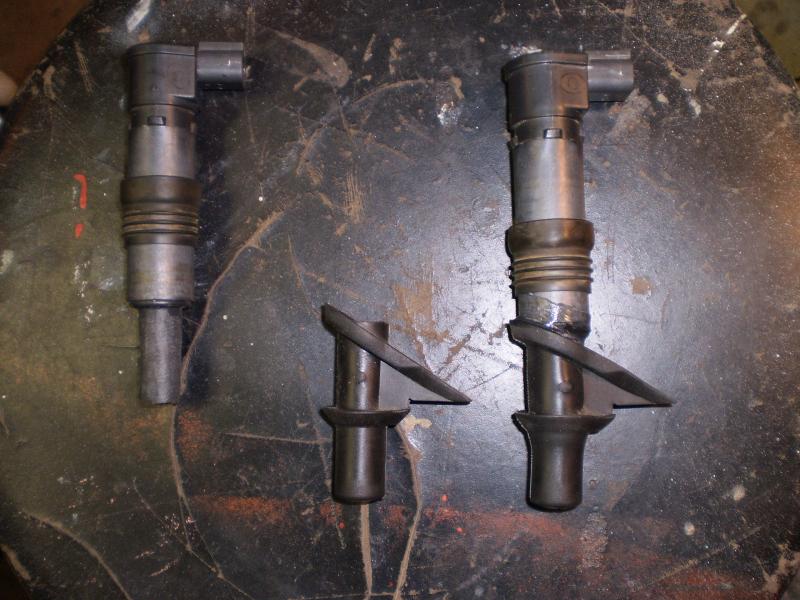

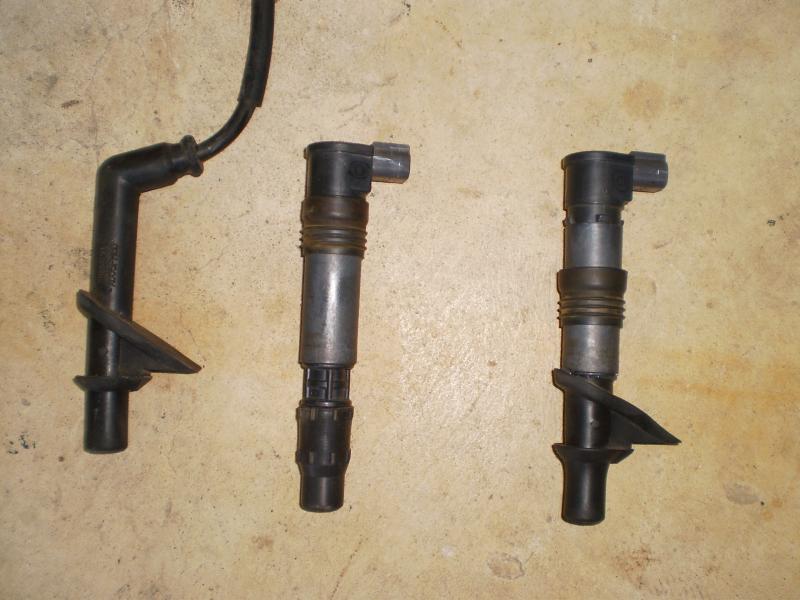

Coil on Plug MOD-p8190873.jpgCoil on Plug MOD-p8190878.jpgCoil on Plug MOD-p8190879.jpg
98VTRrider is offline   Reply With Quote
Old 01-24-2011, 10:14 PM   #11
Über Member
Superstock

justinity's Avatar

Join Date: Aug 2010
Location: Virginia Beach VA.
Posts: 293
justinity is on a distinguished road
WOW This is a nice mod.
justinity is offline   Reply With Quote
Old 01-30-2012, 06:06 PM   #12
Junior Member
Squid

VThokie412's Avatar

Join Date: Nov 2011
Location: Huntsville, AL
Posts: 18
VThokie412 is on a distinguished road
As far as wiring is concerned, what color wires from the VTR harness connect to what color wires in the CBR coils?
VThokie412 is offline   Reply With Quote
Old 01-30-2012, 06:36 PM   #13
Junior Member
Squid

VThokie412's Avatar

Join Date: Nov 2011
Location: Huntsville, AL
Posts: 18
VThokie412 is on a distinguished road

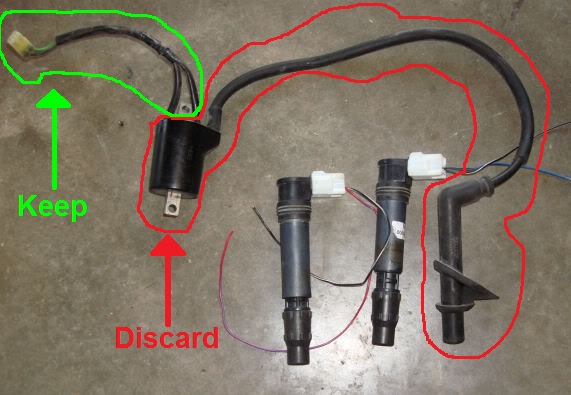

Also, to be straight, we are eliminating this: RED, and using this: GREEN, on each cylinder. Sorry for being dumb, I just want to make sure I have this right. Also, I want to use 600rr sticks, does it matter which years?
Attached Thumbnails
Coil on Plug MOD-overall.jpg
VThokie412 is offline   Reply With Quote
Old 01-30-2012, 07:56 PM   #14
Senior Member
MotoGP

7moore7's Avatar

Join Date: Jul 2010
Location: Phoenix, AZ
Posts: 3,859
7moore7 is on a distinguished road
Everything you circled can be tossed (as well as the plug that it plugs into on your stock harness). The wires coming from the plugs on your coils should just splice into the wires on your VTR harnass.

In essence, you're replacing everything behind the plug on your VTR with the plug that goes directly into the coil. Year doesn't matter as long as you can fit it onto your plugs when they're installed.

I also don't think that the wires matter. It's just completing a circuit so order wont effect anything. You probably have a green to a green for ground, though, so do that if it's there. Easier than you thought, eh?

Edit: FWIW I just checked wiring, and green is ground on the VTR so find a diagram for a 600rr and match the grounds up. Good chance it's the black/white wires judging by your picture.

Last edited by 7moore7; 01-30-2012 at 08:01 PM.
7moore7 is offline   Reply With Quote
Old 01-31-2012, 12:49 AM   #15
Moderator
MotoGP
Thread Starter

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 3,369
E.Marquez is on a distinguished road
Quote:
Originally Posted by VThokie412 View Post
Also, to be straight, we are eliminating this: RED, and using this: GREEN, on each cylinder. Sorry for being dumb, I just want to make sure I have this right. Also, I want to use 600rr sticks, does it matter which years?
black with white trace is the ground, and common to both coils. The other wire (colored not black) is the hot one.
the only thing reused from the OEM setup is the two wire plug, which is cut from the old coil and wired to the cap on plug coil
E.Marquez is offline   Reply With Quote
Old 05-07-2012, 01:08 PM   #16
Junior Member
Squid

hyperlite's Avatar

Join Date: Dec 2007
Location: Germany, near Berlin
Posts: 19
hyperlite is on a distinguished road
Hi guys, I am from the german VTR forum, where one of our members linked this thread here. I am happy to say that this coil on cap mode works perfectly, I have just built it how it is described here.
Therefore I would like to say thank you all, especially Marquez
E.Marquez likes this.
hyperlite is offline   Reply With Quote
Old 05-07-2012, 02:48 PM   #17
GTS
Seasoned tech
SuperSport

GTS's Avatar

Join Date: Apr 2012
Location: Issaquah, WA
Posts: 576
GTS is on a distinguished road
So are you guys who have done this seeing a performance increase or just doing it to replace a faulty factory coil set up/simplify the system?
GTS is offline   Reply With Quote
Old 05-07-2012, 04:46 PM   #18
Moderator
MotoGP
Thread Starter

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 3,369
E.Marquez is on a distinguished road
Quote:
Originally Posted by hyperlite View Post
Hi guys, I am from the german VTR forum, where one of our members linked this thread here. I am happy to say that this coil on cap mode works perfectly, I have just built it how it is described here.
Therefore I would like to say thank you all, especially Marquez
Welcome, happy to see the write up put to good use.
E.Marquez is offline   Reply With Quote
Old 05-07-2012, 04:49 PM   #19
Moderator
MotoGP
Thread Starter

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 3,369
E.Marquez is on a distinguished road
Quote:
Originally Posted by GTS View Post
So are you guys who have done this seeing a performance increase or just doing it to replace a faulty factory coil set up/simplify the system?
Not a performance upgrade, you can see increased performance only if your replacing a faulty OEM ignition.

What it does is clean up the area somewhat, trims some weight off, updates the ignition coil system to something current.
E.Marquez is offline   Reply With Quote
Old 11-02-2012, 12:05 AM   #20
the boss
SuperBike

saige's Avatar

Join Date: Mar 2010
Location: largo,fl
Posts: 1,182
saige is on a distinguished road
what is the minimum resistance i could use on this mod?
i got some gsxr 750 coils and they are rated at 1.2 to 1.3
i think the cbr600 is 1.3 to 1.6
and will cbr denso coil plugs work on these gsxr coils?
saige is offline   Reply With Quote
Old 11-02-2012, 03:52 PM   #21
Moderator
MotoGP
Thread Starter

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 3,369
E.Marquez is on a distinguished road
Quote:
Originally Posted by saige View Post
what is the minimum resistance i could use on this mod?
i got some gsxr 750 coils and they are rated at 1.2 to 1.3
i think the cbr600 is 1.3 to 1.6
and will cbr denso coil plugs work on these gsxr coils?


The COP mod is a Coil On Plug swap for the separate coil and plug OEM design... ie the coil is integrated in the plug. You do not use coils AND the denso COP

Last edited by E.Marquez; 10-01-2014 at 03:46 AM.
E.Marquez is offline   Reply With Quote
Old 11-02-2012, 04:08 PM   #22
the boss
SuperBike

saige's Avatar

Join Date: Mar 2010
Location: largo,fl
Posts: 1,182
saige is on a distinguished road
sorry,I meant it to say it is the coil on cap mod.
the gsxr coil on cap is the same as cbr600rr,just different resistance.
the gsxr is a denso 129700-4150 J0396
was wondering the lowest resistance i could go for the hawk.the gsxr COP is at 1.3 to 1.5/1.6
saige is offline   Reply With Quote
Old 11-02-2012, 05:57 PM   #23
Moderator
MotoGP
Thread Starter

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 3,369
E.Marquez is on a distinguished road
Ahh, got ya, no clue, and unless building something wild,, I doubt it makes a difference.
E.Marquez is offline   Reply With Quote
Old 11-02-2012, 06:11 PM   #24
the boss
SuperBike

saige's Avatar

Join Date: Mar 2010
Location: largo,fl
Posts: 1,182
saige is on a distinguished road
Quote:
Originally Posted by E.Marquez View Post
Ahh, got ya, no clue, and unless building something wild,, I doubt it makes a difference.
ok,was wondering,the cbr600rr COP'S is I beleive is 1.5 and a bit higher,I think i may try it and see how it goes,i got extra shawk coils so wont hurt.
now i just gotta get the cbr denso plugs,seeing that it seems that you cant get them from a gsxr,i think its all in the same loom.
thanks.
saige is offline   Reply With Quote
Old 12-18-2012, 09:12 PM   #25
the boss
SuperBike

saige's Avatar

Join Date: Mar 2010
Location: largo,fl
Posts: 1,182
saige is on a distinguished road
well,i finally got to do the coil mod,and i got to say,so far,a very good result.did everything in the instructions,easy,straight forward.
I matched the wires,soddered them,taped them,used heat shrink and used the original rubber sheild off the old coil wires.very clean look.
the only difference to this is i used a gsxr COP denso 129700-4150 J0396
it is the exact same as a cbr COP,only difference is the COP is shorter on the gsxr.
i have been using so far with good results,so now there is more options and cost to do this setup.

now hopefully i could get some riding in to see if there is a difference in gas mileage.
saige is offline   Reply With Quote
Old 07-05-2014, 07:50 AM   #26
Senior Member
MotoGP

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 4,518
smokinjoe73 is on a distinguished road
I have a couple late breaking questions about this mod.

Can I use cbr600 parts? Also, did you solder right to the pins/posts on the coils?

I would want to get the cbr harness also to use watertight factory plugs.

So yeah, does the cbr600 create the same or enuff spark ?
smokinjoe73 is offline   Reply With Quote
Old 07-05-2014, 01:25 PM   #27
Senior Member
SuperSport

NZSpokes's Avatar

Join Date: Apr 2014
Location: Auckland, new Zealand
Posts: 930
NZSpokes is on a distinguished road
Quote:
Originally Posted by smokinjoe73 View Post
I have a couple late breaking questions about this mod.

Can I use cbr600 parts? Also, did you solder right to the pins/posts on the coils?

I would want to get the cbr harness also to use watertight factory plugs.

So yeah, does the cbr600 create the same or enuff spark ?
Yes Im using 07 CBR600rr coils. Works well. Yes you need the harness.
NZSpokes is offline   Reply With Quote
Old 07-05-2014, 03:47 PM   #28
Senior Member
MotoGP

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 4,518
smokinjoe73 is on a distinguished road
Ok thanks spokes, ordered the harness and coils, someone get ready to buy my other 2
smokinjoe73 is offline   Reply With Quote
Old 07-22-2014, 02:07 PM   #29
European Member
Back Marker

RoadManiac's Avatar

Join Date: Mar 2013
Location: Netherlands
Posts: 193
RoadManiac is on a distinguished road
I also have 2 left
08/09 CBR1000RR
maybe for someone in europe
ive got an amazing deal on these so 15 dollars to the first one who wants them ? only shipping might be a pain maybe someone has something to trade ?
RoadManiac is offline   Reply With Quote
Old 10-01-2014, 03:49 AM   #30
Moderator
MotoGP
Thread Starter

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 3,369
E.Marquez is on a distinguished road
Quote:
Originally Posted by smokinjoe73 View Post
I have a couple late breaking questions about this mod.

Can I use cbr600 parts? Also, did you solder right to the pins/posts on the coils?

I would want to get the cbr harness also to use watertight factory plugs.

So yeah, does the cbr600 create the same or enuff spark ?
I know I missed this post and Joe is long done with this mod,,, but for others..

NO, I did not solder wires to the coil pins, nor do most others far as I know.

You buy a used harness....and re-use the plugs, or buy new plugs.. you can get them at any automotive store as replacement parts for hundreds of different car models
E.Marquez is offline   Reply With Quote


Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
FS: engine, Sharkskin solo tail, stick coil mod, CBR1XXX triple tree, much more! Crashrat Classifieds 20 05-28-2012 06:23 PM
Coil on Cap mod question chemomche Technical Discussion 0 04-21-2012 06:10 AM
Sticky coil mod - what coils? chemomche Modifications - Performance 0 03-19-2012 02:09 AM
(2) CBR 600rr Stick Coils - Coil on Plug mod 98VTRrider Classifieds 2 09-14-2010 06:28 AM
FS: CBR Coil Stick Mod ff Classifieds 7 03-30-2010 07:32 AM


Tags
boot, cap, caps, cbr, coil, coilsmotorbike, honda, instlation, mod, motorcycle, plug, rubber, sealing, silicone, stick, superhawk

Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off



All times are GMT -7. The time now is 08:25 PM.
