SH847 Series R/R

And its here


OEM for a Suzuki 2015 DL1000 SH847 Series R/R PN 32800-31J00

Install tomorrow

For Sale Superhawk Mosfet Kit FH020AA
Attached Thumbnails SH847 Series R/R-img_6002.jpg
Fastguy59 likes this.

Last edited by E.Marquez; 02-13-2018 at 02:09 PM.
E.Marquez is offline
Reply With Quote
Old 07-28-2016, 11:18 AM
  #2
Moderator
MotoGP
Thread Starter

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 3,952
E.Marquez is on a distinguished road
Closer

Another Amazon deliver, another step closer to install
Attached Thumbnails SH847 Series R/R-50-amp-braker.jpg
E.Marquez is offline
Reply With Quote
Old 07-28-2016, 03:27 PM
  #3
Moderator
MotoGP
Thread Starter

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 3,952
E.Marquez is on a distinguished road
Pulled the cowl off and removed the FH020AA, man, this new SH847 is a monster..
Not going to get it to fit under the cowl as I had hoped

And found a unpleasant surprize


Nothing some nice new yellow, 12 AWG 37/28 stranding, Tinned copper conductor, Tefzel insulation, -50 to +150 C temperature rated
Tefzel insulated wire is in particular outstanding for it's resistance to oil, oxidation, heat, sunlight and flame; and also it's ability to remain flexible at low temperature. They have excellent resistance to ozone, water, alcohol, gasoline, acids, alkalis, aromatic hydrocarbons and solvents.
in a new Furukawa QLW-F-300 socket with silicone seal cant fix

Attached Thumbnails SH847 Series R/R-correded-wire.jpg   SH847 Series R/R-all-better.jpg

Last edited by E.Marquez; 07-28-2016 at 03:37 PM.
E.Marquez is offline
Reply With Quote
Old 07-28-2016, 06:29 PM
  #4
Moderator
MotoGP
Thread Starter

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 3,952
E.Marquez is on a distinguished road

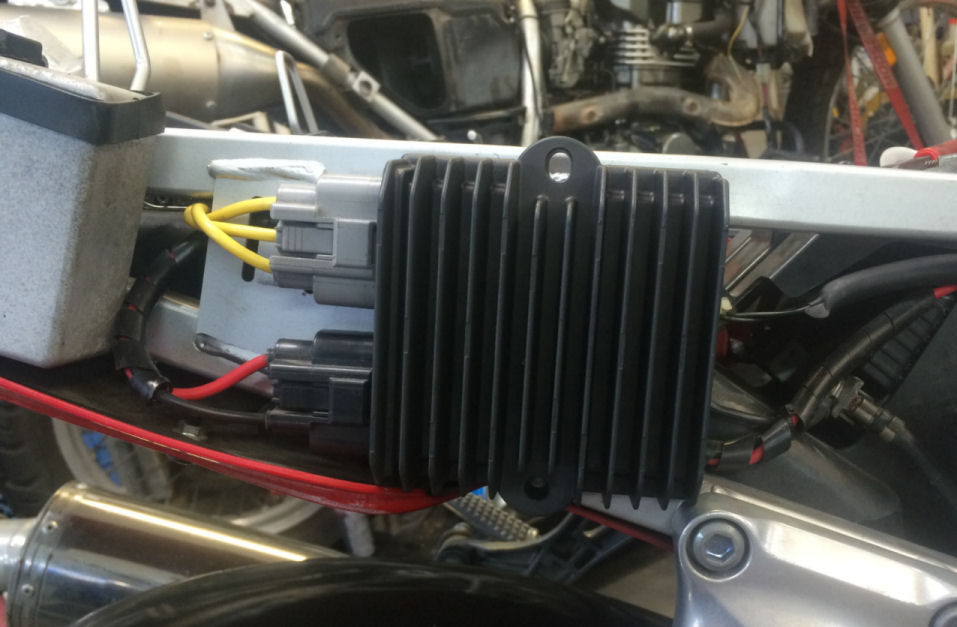

Well maybe it'll fit..... just maybe... with a bit of trimming.
But it is bigger for sure

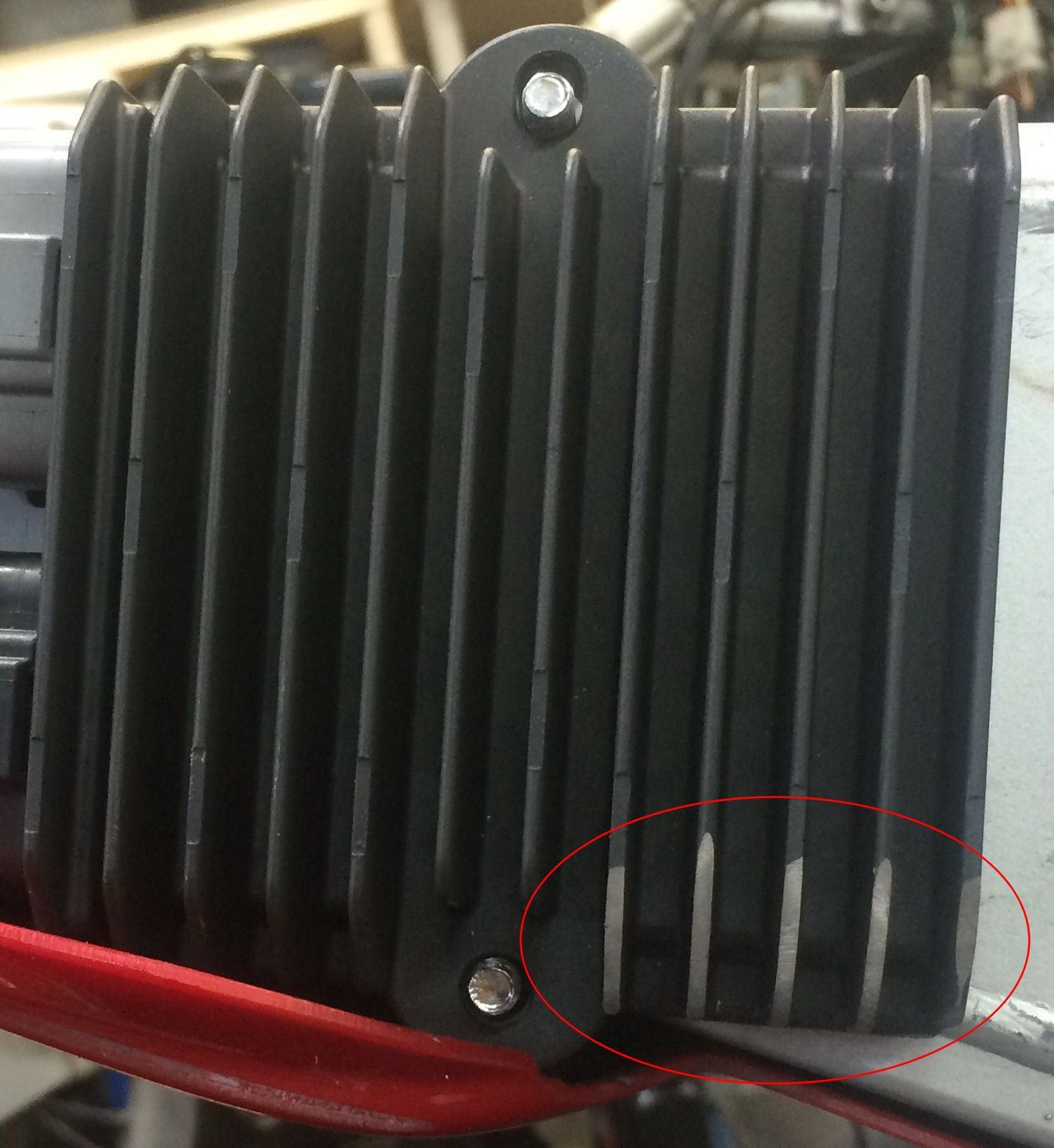

The fins JUUUUUUst interfere with the curved lower inside of the cowl, I'll have to trim just a bit.
Always fun to take a cutting tool to a brand new $160 electronic part
Attached Thumbnails SH847 Series R/R-bigger.jpg   SH847 Series R/R-well-might-fit.jpg
thetophatflash likes this.
E.Marquez is offline
Reply With Quote
Old 07-28-2016, 06:49 PM
  #5
Moderator
MotoGP
Thread Starter

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 3,952
E.Marquez is on a distinguished road

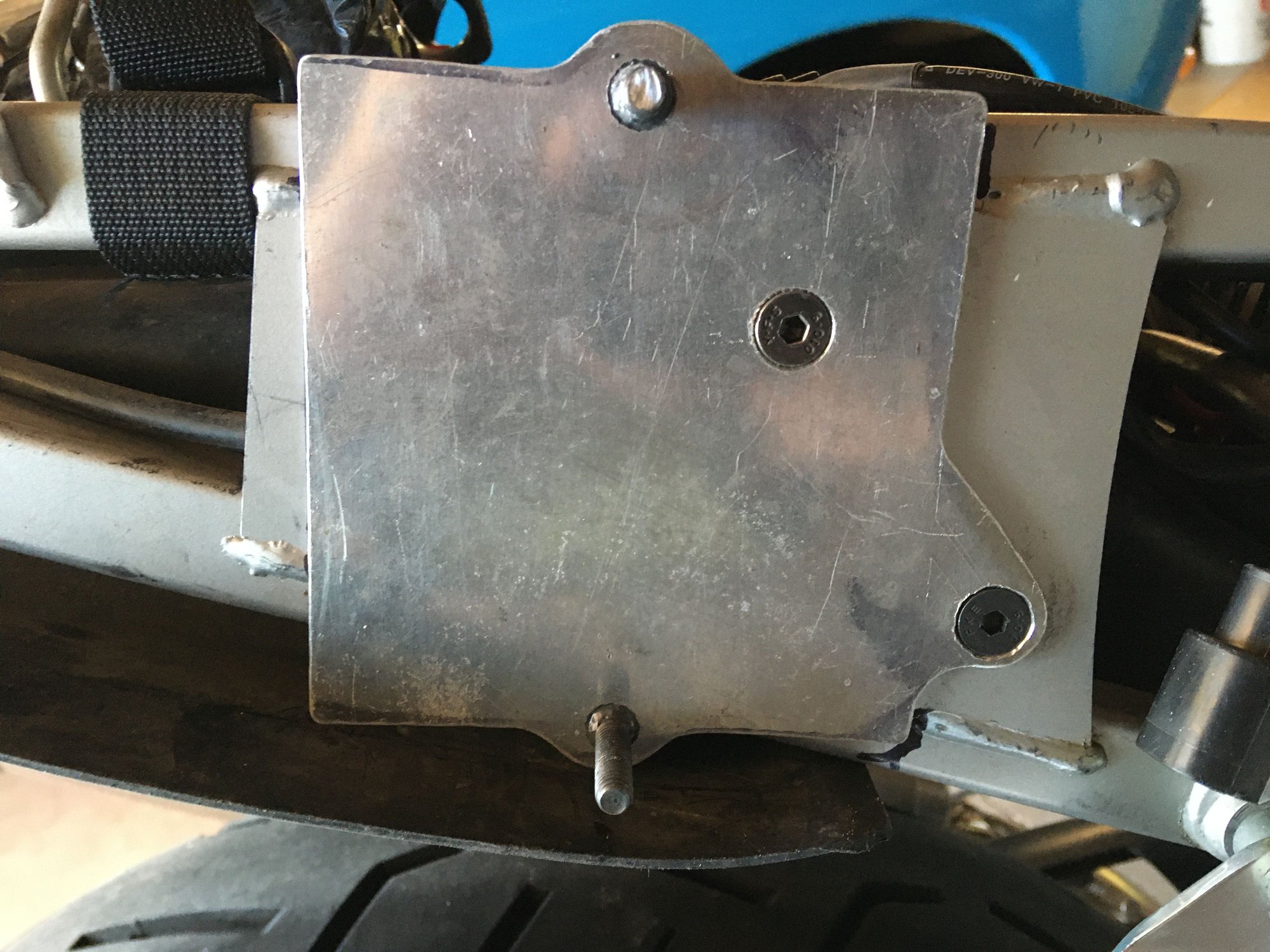

Ok so with some mods it fits under the cowl

New mounting bolts had to be welded on as the FH020 were too close together
Attached Thumbnails SH847 Series R/R-image.jpeg
E.Marquez is offline
Reply With Quote
Old 07-29-2016, 01:39 PM
  #6
Moderator
MotoGP
Thread Starter

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 3,952
E.Marquez is on a distinguished road


Rock solid 14.7v
Perfect for keeping a lithium ion battery charged.

End of the day is a Series style MOFSET RR better than the shunt style MOFSET FH020AA RR that is proven to work on this bike?? probably not..

But my brother just bought a 2000 superhawk and the previous owner a dealer "technician" replaced a failed regulator, with a newer fined style OEM diode regulator which of course failed in short order because this "technician" used crappy auto store crimp spade connectors and plier type crimpers which quickly overheated, melting the wire and shorting out the new regulator.

So I built a plug-and-play wiring harness for the FH020 regulator I had on my bike and sent him an entire package ready to bolt on having to only solder and heatshrink tube three yellow stator wires.


Leaving me the need for a new RR.... Hey why not try the new SH875 or buy a Superhawk Mosfet Kit FH020AA
Attached Thumbnails SH847 Series R/R-14vplus.jpg   SH847 Series R/R-pablo.jpg

Last edited by E.Marquez; 02-13-2018 at 02:09 PM.
E.Marquez is offline
Reply With Quote
Old 07-31-2016, 09:10 PM
  #7
Senior Member
MotoGP

mikstr's Avatar

Join Date: Apr 2005
Location: Montreal
Posts: 5,524
mikstr is on a distinguished road
Been running this same unit since the start of the year (after doing some research). What I like is that it's series (or so I have read), which means that it only draws the current it needs from the stator (rather than pulling max from stator and dissipating the excess), meaning the stator runs cooler (should last longer) and reduces parasitic drag on engine.
E.Marquez likes this.
mikstr is offline
Reply With Quote
Old 08-01-2016, 07:10 AM
  #8
Moderator
MotoGP
Thread Starter

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 3,952
E.Marquez is on a distinguished road
Originally Posted by mikstr View Post
Been running this same unit since the start of the year (after doing some research). What I like is that it's series (or so I have read), which means that it only draws the current it needs from the stator (rather than pulling max from stator and dissipating the excess), meaning the stator runs cooler (should last longer) and reduces parasitic drag on engine.
Good to hear.. I new I was far from the first to swap an SH875 in, as I have been reading reports for more than a year now while the supply stabilized. With no "need" for a new Reg I was not pushing for the new one to see how they worked.

Once the NEED came up the decision was easy .
The Shindengen company site calls it a series type RR
ƒJƒ^ƒƒO””„b“d‘••ib•i•bV“dŒH‹Š”Ž‰ Ž
So pretty confident that it what it is.

I'll do some testing later next month and see if I can "see" the AC voltage effected or the DC voltage "shut off"

Last edited by E.Marquez; 10-29-2017 at 08:24 AM.
E.Marquez is offline
Reply With Quote
Old 07-12-2017, 04:55 PM
  #9
Moderator
MotoGP
Thread Starter

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 3,952
E.Marquez is on a distinguished road
So we are at almost a year now and figured I'd report back on all the issues this SH847 series RR has caused.

.....
And done.....

Rock solid voltage @14.7v
Li battery staying charged (something weak charging systems do not do)
No heat issues from the new unit (it sits mere MM from the cowl,,,I half expected it to melt the cowl.
E.Marquez is offline
Reply With Quote
Old 07-19-2017, 10:48 AM
  #10
Senior Member
MotoGP

mikstr's Avatar

Join Date: Apr 2005
Location: Montreal
Posts: 5,524
mikstr is on a distinguished road
Originally Posted by E.Marquez View Post
So we are at almost a year now and figured I'd report back on all the issues this SH847 series RR has caused.

.....
And done.....

Rock solid voltage @14.7v
Li battery staying charged (something weak charging systems do not do)
No heat issues from the new unit (it sits mere MM from the cowl,,,I half expected it to melt the cowl.
my experience is the same. I have an LED voltage monitor and it's always in the green (even at idle)...
