Wiring location?

Had the seat off and saw these bits floating around not mounted to ANYTHING. They are just flopped up there.
Where in the heck should these mount to?

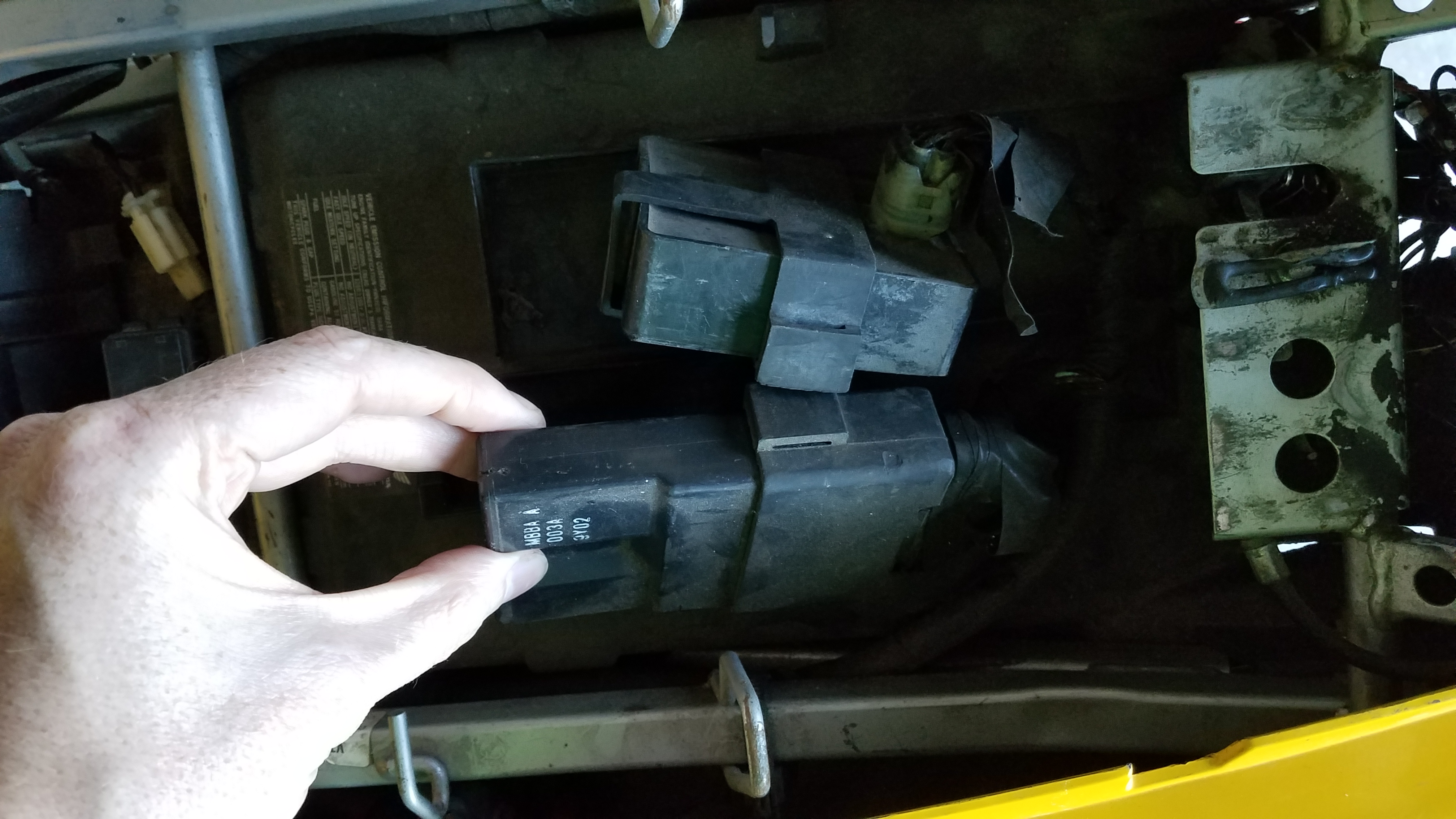

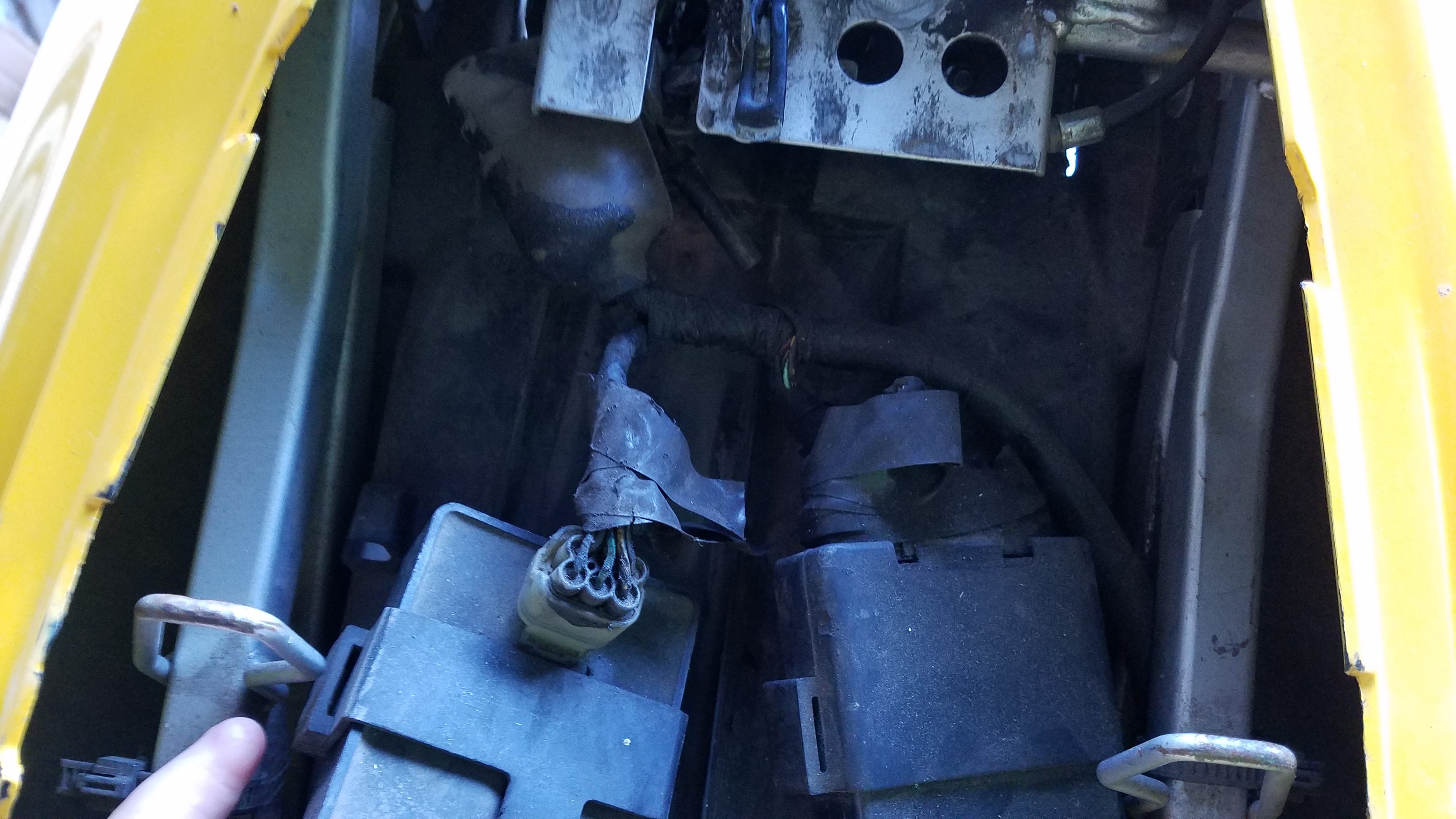

Attached Thumbnails Wiring location?-20171030_170807.jpg   Wiring location?-20171030_170838.jpg
Floyd is offline
Old 10-31-2017, 02:06 AM
  #2
Senior Member
SuperBike

Wicky's Avatar

Join Date: Sep 2008
Location: Essex, UK
Posts: 1,638
Wicky is on a distinguished road
Should be rubber mounted and secure

https://www.bike-parts-honda.com/pie...IRE+STORM.html
Wicky is offline
Old 10-31-2017, 05:27 AM
  #3
Moderator
MotoGP

Wolverine's Avatar

Join Date: Jul 2007
Location: Gettysburg, Pa
Posts: 4,490
Wolverine is on a distinguished road
The slots on the rubber surrounding piece have corresponding male plastic "posts" to slide in to keep them secure.
Wolverine is offline
Old 10-31-2017, 07:55 AM
  #4
Senior Member
SuperBike

xeris's Avatar

Join Date: Sep 2010
Location: Bisbee, AZ
Posts: 1,465
xeris is on a distinguished road
Originally Posted by Wolverine View Post
The slots on the rubber surrounding piece have corresponding male plastic "posts" to slide in to keep them secure.
By stacking one on the other, partial under the support for the seat lock.
As a quick preventative maintenance hack, you should clean the wires where they enter the weather pack plug and coat the wire(s) where the insulation is worn away with some liquid electrical tape.
xeris is offline
Old 10-31-2017, 07:59 AM
  #5
Moderator
MotoGP

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 4,255
E.Marquez is on a distinguished road
E.Marquez is offline
Old 10-31-2017, 08:00 AM
  #6
Senior Member
Back Marker
Thread Starter

Floyd's Avatar

Join Date: Sep 2017
Location: FL
Posts: 177
Floyd is on a distinguished road
Can someone take a second and post a picture of where they go? I see no posts that the rubber can slide into.
Im sure its messed up from the PO when he hacked the back and installed LED bulbs. Its a butcher job for sure. Ill take pics.
Floyd is offline
Old 10-31-2017, 08:01 AM
  #7
Senior Member
Back Marker
Thread Starter

Floyd's Avatar

Join Date: Sep 2017
Location: FL
Posts: 177
Floyd is on a distinguished road
Thanks Marquez! Ill take a look deeper tonight.
Floyd is offline
Old 10-31-2017, 08:02 AM
  #8
Senior Member
Superstock

VTRDarren's Avatar

Join Date: Jan 2005
Location: Western NY
Posts: 306
VTRDarren
Originally Posted by Floyd View Post
Can someone take a second and post a picture of where they go? I see no posts that the rubber can slide into.
Im sure its messed up from the PO when he hacked the back and installed LED bulbs. Its a butcher job for sure. Ill take pics.
Random suggestion in case you no longer have mounting tabs. Two small holes drilled into the plastic undertray, then a long zip tie (or two) fed through the rubber slots to secure them.
VTRDarren is offline
Old 10-31-2017, 08:08 AM
  #9
Moderator
MotoGP

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 4,255
E.Marquez is on a distinguished road
Originally Posted by E.Marquez View Post
E.Marquez is offline
Old 10-31-2017, 08:11 AM
  #10
Moderator
MotoGP

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 4,255
E.Marquez is on a distinguished road
Originally Posted by Floyd View Post
Can someone take a second and post a picture of where they go? I see no posts that the rubber can slide into.
Im sure its messed up from the PO when he hacked the back and installed LED bulbs. Its a butcher job for sure. Ill take pics.
I did, and just added another pic.

NOTE, folks sometimes trim (AKA Hack) up the under tail.....those plastic tabs may be gone. If so, get some Zip tie mounts from your good local hardware store or order on line.....I buy um 1000 at a time on line for pennies a piece.



Clean an area with rubbing alcohol, and stick the zip tie mounts to the plastic tray, then zip tie the ECU and converter in place.
E.Marquez is offline
Old 10-31-2017, 08:24 AM
  #11
Senior Member
Superstock

VTRDarren's Avatar

Join Date: Jan 2005
Location: Western NY
Posts: 306
VTRDarren
Originally Posted by E.Marquez View Post
I did, and just added another pic.

NOTE, folks sometimes trim (AKA Hack) up the under tail.....those plastic tabs may be gone. If so, get some Zip tie mounts from your good local hardware store or order on line.....I buy um 1000 at a time on line for pennies a piece.



Clean an area with rubbing alcohol, and stick the zip tie mounts to the plastic tray, then zip tie the ECU and converter in place.
ZIP Tie mounts?!?! I had no idea those existed! Waaay better option than drilling little holes. Nice!
VTRDarren is offline
Old 10-31-2017, 11:22 AM
  #12
Senior Member
Back Marker
Thread Starter

Floyd's Avatar

Join Date: Sep 2017
Location: FL
Posts: 177
Floyd is on a distinguished road
I also have tons of those zip tie mounts.
Stay tuned for pics tonight of the carnage!
Floyd is offline
Old 10-31-2017, 03:04 PM
  #13
Senior Member
SuperBike

xeris's Avatar

Join Date: Sep 2010
Location: Bisbee, AZ
Posts: 1,465
xeris is on a distinguished road
Originally Posted by Floyd View Post
I also have tons of those zip tie mounts.!
At one ton, a very rough calculation says that you have ~896000 of them. Can you spare a pound?
xeris is offline
Old 10-31-2017, 03:52 PM
  #14
Senior Member
Back Marker
Thread Starter

Floyd's Avatar

Join Date: Sep 2017
Location: FL
Posts: 177
Floyd is on a distinguished road
Here are a couple pre-clean up.
I have both "posts" for the boxes to mount to so ill try that route.

First trick or treating with the kids then maybe work on that tonight.

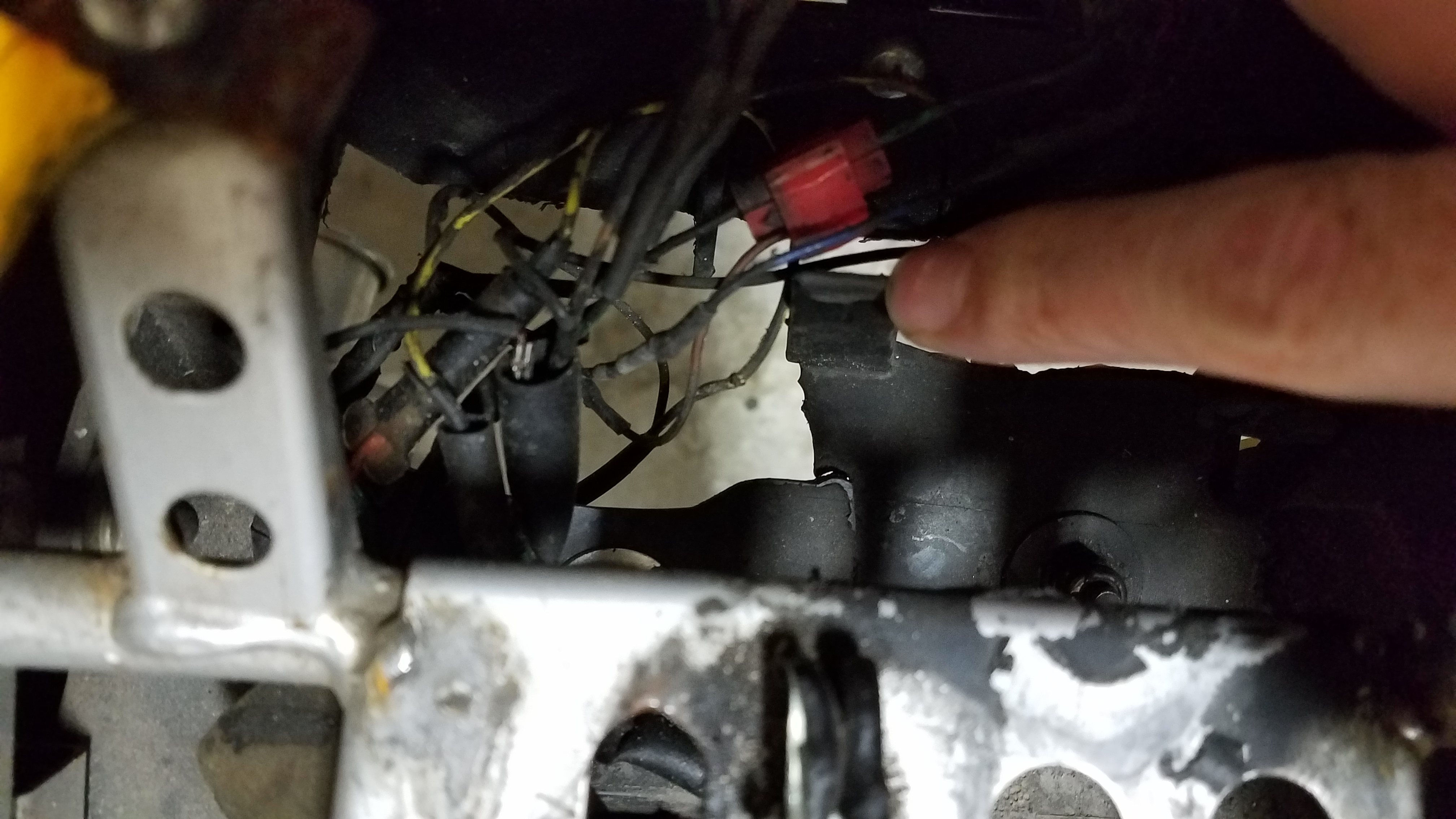

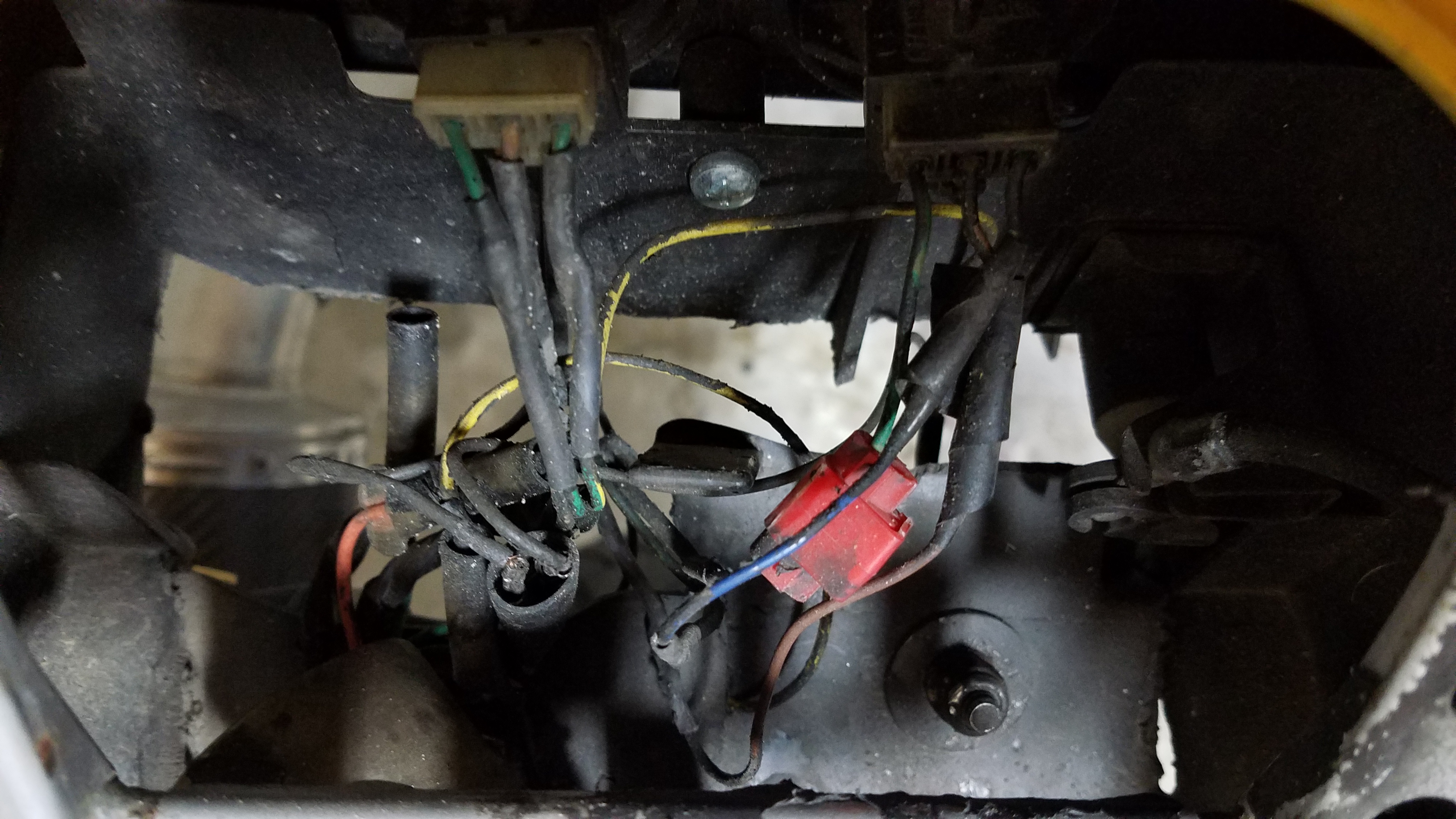

Attached Thumbnails Wiring location?-20171031_173000.jpg   Wiring location?-20171031_173035.jpg
Floyd is offline
Old 10-31-2017, 08:31 PM
  #15
Senior Member
Back Marker
Thread Starter

Floyd's Avatar

Join Date: Sep 2017
Location: FL
Posts: 177
Floyd is on a distinguished road
Well taking my kids out took its toll and I didnt get much done.
I did find out that the tail light bulbs are LED and were wired wrong, they now work great.
Also I cannot get the stuff onto the plastic tabs because of the bolts used for the license plate bracket hitting.
Anyone have a link for an LED flasher relay that will work with the hawk? Mine flash like they are freaking the hell out.
Floyd is offline
Old 11-01-2017, 08:04 PM
  #16
VTR virgin
Superstock

Cadbury64's Avatar

Join Date: Mar 2015
Location: Auckland, New Zealand
Posts: 408
Cadbury64 is on a distinguished road
I have one of these on my ST1100, will also be plug and play on your VTR. Don't worry that the original flasher unit uses 3 pins and these only have two, the missing one is a ground and not actually needed. The connector size is identical.

https://www.customled.com/products/e...-flasher-relay
Cadbury64 is offline
Old 11-01-2017, 08:13 PM
  #17
Senior Member
Back Marker
Thread Starter

Floyd's Avatar

Join Date: Sep 2017
Location: FL
Posts: 177
Floyd is on a distinguished road
That will fix one issue!
I have to get the tank off the bike and see what is going on under there with the fuel lines/air box and carbs.
Floyd is offline
