melted connector on R/R harness HELP.. WANT TO RIDE ASAP

1st off.. here are my 1st 2 threads.. to get ya started on my prob..
https://www.superhawkforum.com/forum...ad.php?t=23536
https://www.superhawkforum.com/forum...ad.php?t=23535

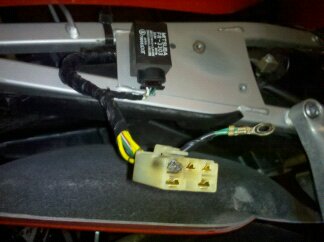

i have a new r/r to put in.. a/m plug and play.. and i dont want to plug it in and blow a new one.. any ideas why this pin on harness would melt.. and also advice on getting it out/ replace that female pin would be appreciated
Attached Thumbnails melted connector on R/R harness HELP.. WANT TO RIDE ASAP-1283728889198.jpg
SloatsburgSuperhawk is offline
Old 09-05-2010, 04:41 PM
  #2
Banned
MotoGP

Join Date: Aug 2007
Location: Lake View Terrace, CA
Posts: 5,942
8541Hawk will become famous soon enough
That does happen from time to time, check to make sure the grounds are clean and well mounted. You can also run an extra ground wire right to the battery.

As for the plug, I would just replace the whole thing to be on the safe side. You can get one for a reasonable price: http://www.regulatorrectifier.com/ca...fier-Connector
8541Hawk is offline
Old 09-05-2010, 06:54 PM
  #3
Junior Member
Squid
Thread Starter

Join Date: Mar 2009
Posts: 24
SloatsburgSuperhawk is on a distinguished road
Run the ground wire that is next to this harness to battery? does the female terminal pull out of the rear or front of plug? if i was just to replace one pin... thanks
SloatsburgSuperhawk is offline
Old 09-05-2010, 06:55 PM
  #4
Junior Member
Squid
Thread Starter

Join Date: Mar 2009
Posts: 24
SloatsburgSuperhawk is on a distinguished road
oh and what other grounds/ connections should i check..and what are their locations.. i have checked a few but im sure i am missing something else..
SloatsburgSuperhawk is offline
Old 09-05-2010, 07:01 PM
  #5
Out of my mind, back in 5
MotoGP

Tweety's Avatar

Join Date: Nov 2006
Location: Skurup, Sweden
Posts: 6,109
Tweety is on a distinguished road
http://tweety.se/download.php?file=V... Superhawk.jpg

Look at the diagram, the ground points are pretty close to the markings in the real harness, so it's a good way to know where to look...
