Cct install problem

Old 08-28-2016, 07:55 AM
  #1
Junior Member
Squid
Thread Starter

billd_697@yahoo.com's Avatar

Join Date: Jun 2016
Posts: 15
billd_697@yahoo.com is on a distinguished road
Cct install problem

Just install kreig mccts last night i thought all went well. But. I tooker her for a test drive this moring and it ran good till i got home. Thats when i noticed smoke coming from left pipe (rear cyl exhaust) and a little from the right

Any help would really be appreited ??
I hope i havent damaged anything. The bike sounds and runs great. Excetp for smoke lol and it running hotter on left exhaust , rear cycl

I was on tdc compress stroke (rear and front) when i Did each

Maybe cct too tight or missed hose

Please help
billd_697@yahoo.com is offline
Old 08-28-2016, 08:22 AM
  #2
Moderator
MotoGP

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 4,217
E.Marquez is on a distinguished road
Assume nothing, pretend you have never seen the bike.
look at it with fresh set of eyes in the morning.
Double check timing, then have someone else check as well.
Originally Posted by [email protected] View Post
Just install kreig mccts last night i thought all went well. But. I tooker her for a test drive this moring and it ran good till i got home. Thats when i noticed smoke coming from left pipe (rear cyl exhaust) and a little from the right

Any help would really be appreited ??
I hope i havent damaged anything. The bike sounds and runs great. Excetp for smoke lol and it running hotter on left exhaust , rear cycl

I was on tdc compress stroke (rear and front) when i Did each

Maybe cct too tight or missed hose

Please help
E.Marquez is offline
Old 08-28-2016, 09:08 AM
  #3
Rex Kramer-Thrill Seeker
SuperBike

CruxGNZ's Avatar

Join Date: Jan 2011
Location: Brookfield, WI
Posts: 2,312
CruxGNZ is on a distinguished road
Is the smoke coming from inside the pipe? Or are you seeing oil burning off, possibly from the rear CCT leaking a little on the header?

Also, if you have a look at how the stock header is made, you will see it goes from 2-1-2. And because of the design, the majority of the exhaust gasses will come out of the left muffler. This is why your left muffler is always warmer than the right.

EDIT: Not sure which guide you used to install the MCCT's, but this one is fantastic with lots of great pictures.
http://vtr1000.org/phpBB3/viewtopic.php?f=31&t=28583

Last edited by CruxGNZ; 08-28-2016 at 09:12 AM.
CruxGNZ is offline
Old 08-28-2016, 10:37 AM
  #4
Junior Member
Squid
Thread Starter

billd_697@yahoo.com's Avatar

Join Date: Jun 2016
Posts: 15
billd_697@yahoo.com is on a distinguished road
Ya smoke is coming from inside pipe
I use the kreig one that u take off only the rear cover
I think its going to have to goto mechanic tuesday. Lesson learned i guess. I will have stick to electronics. dam diy attitued

Last edited by [email protected]; 08-28-2016 at 11:33 AM.
billd_697@yahoo.com is offline
Old 08-28-2016, 12:42 PM
  #5
Senior Member
SuperBike

Wicky's Avatar

Join Date: Sep 2008
Location: Essex, UK
Posts: 1,632
Wicky is on a distinguished road
What colour smoke? as mentioned any smoke coming out of either can could come from any pot due to 2-1-2 system.

Did you apply threadloc / silicon on the MCCT bolt as if not oil can dribble out the rear tensioner.

If its not squealing or rattling then your tension sounds generally okay. Did you cable tie the cam chain to the sprocket when doing the rear CCT to stop any chance of the timing slipping?
Wicky is offline
Old 08-28-2016, 01:13 PM
  #6
Junior Member
Squid
Thread Starter

billd_697@yahoo.com's Avatar

Join Date: Jun 2016
Posts: 15
billd_697@yahoo.com is on a distinguished road
Its a white smoke and i used blu thred locker on mounting screw snd locknut has oring and i did zip tie rear cams
I notice rpm was a little low on inital start up. And during test ride. So figurig cct were too tight and i have back them off and it idels as before. No noticeAble new nosie and it runs great. But it smokes.
And no visiable leaks for anybwhere
billd_697@yahoo.com is offline
Old 08-29-2016, 01:30 AM
  #7
Senior Member
SuperBike

Wicky's Avatar

Join Date: Sep 2008
Location: Essex, UK
Posts: 1,632
Wicky is on a distinguished road
Okay - what about the cam cover seal, is that back securely in place?
Wicky is offline
Old 08-30-2016, 03:47 PM
  #8
Junior Member
Squid
Thread Starter

billd_697@yahoo.com's Avatar

Join Date: Jun 2016
Posts: 15
billd_697@yahoo.com is on a distinguished road
I believe i had it back on correctly
Thanks for help guys ill let u know what the verdict is
I dropped it off to the Doctor Scotty Miller from fast company here a couple towns over from me. If anyane can fix it he will, hes also gonna check valve clearance while hes in there and maybe make some measurements to it for future improvements
billd_697@yahoo.com is offline
Old 08-30-2016, 05:00 PM
  #9
Moderator
MotoGP

Wolverine's Avatar

Join Date: Jul 2007
Location: Gettysburg, Pa
Posts: 4,467
Wolverine is on a distinguished road
Well it appears as if he has a helluva resume, but I didn't notice any twins. Keep us posted on the specifics
Championship Winning Service! - Fast Company Motorcycles
Wolverine is offline
Old 08-30-2016, 05:22 PM
  #10
Junior Member
Squid
Thread Starter

billd_697@yahoo.com's Avatar

Join Date: Jun 2016
Posts: 15
billd_697@yahoo.com is on a distinguished road
Will do. I was shooting **** with him today and he worked on one last year and it suprise surprise had a cct failure and jumped timing. He fixed it all up for him and buddy was lucky there was no damage. Moral of store is to definatly change out ur auto cct to manuals BUT know what the hell ur doing (me anyways lol)
billd_697@yahoo.com is offline
Old 09-09-2016, 10:03 PM
  #11
Junior Member
Squid
Thread Starter

billd_697@yahoo.com's Avatar

Join Date: Jun 2016
Posts: 15
billd_697@yahoo.com is on a distinguished road
Just got baby back from the doctor. Not too bad actually ... No damage thank god. The smoke was from myself forgetting to check oring in cam cover and oil seeping in. We're not too sure as to were the oring ended up. Probably fell in passed cam chains and hopefully it just gets chewed up And dont make it past screens internally. He told me not to worry bout it. He also found that the choke cable was routed wrong at carb(previous owner) and was causing it not to close all the way. So he corrected. Valve clearence was spot on, while he was in there. He preformed leak test, checked compression, checked timing, adjusted mcct's. Everything is all good thank god i didnt screw anything up too bad. I guess it was good to have him look at it as he solved other issues mentioned. All of this for 400.
Thank u to u guys as well for helping me thru this prob. Some decent members here
Now time to get fairings back on and take her for a rip bud

Last edited by [email protected]; 09-09-2016 at 10:09 PM.
billd_697@yahoo.com is offline
Old 09-10-2016, 03:18 AM
  #12
Moderator
MotoGP

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 4,217
E.Marquez is on a distinguished road
Originally Posted by [email protected] View Post
Just got baby back from the doctor. Not too bad actually ... No damage thank god. The smoke was from myself forgetting to check oring in cam cover and oil seeping in. We're not too sure as to were the oring ended up. Probably fell in passed cam chains and hopefully it just gets chewed up And dont make it past screens internally. He told me not to worry bout it.
Glad you got it fixed.
May I ask... What O ring are you referring to?
I dont remember a " oring in cam cover" . There is no O ring on the parts fiche I can see?


The only rubber bit to forget to install or misalign is the cylinder head cover gasket... but you're not going to likley not notice that gone... and it cant "fell in passed cam chains"
So you have me curious ?
EDIT: I suppose it could have been a cyl head cover bolt washer which is also rubber faced? or the PAIR cover gasket...but that is not removed as part of the cover.. and could also not fall past the cams chain??


The common issues is that huge rubber gasket simply does not get seated correctly (as someone noted in this thread) and you get an oil leak, ..loosen cyl head cover bolts, alight gasket, tighten bolts, done.
Attached Thumbnails Cct install problem-vtr-head-cover.gif

Last edited by E.Marquez; 09-10-2016 at 03:27 AM.
E.Marquez is offline
Old 09-10-2016, 07:21 AM
  #13
Junior Member
Squid
Thread Starter

billd_697@yahoo.com's Avatar

Join Date: Jun 2016
Posts: 15
billd_697@yahoo.com is on a distinguished road
Im not to sure but he show me one just look like a normal oring i cant see it on diagram either. Possibly on head diagram ???
billd_697@yahoo.com is offline
Old 09-10-2016, 07:25 AM
  #14
Junior Member
Squid
Thread Starter

billd_697@yahoo.com's Avatar

Join Date: Jun 2016
Posts: 15
billd_697@yahoo.com is on a distinguished road
Possibly this part 12395-MAT-750
billd_697@yahoo.com is offline
Old 09-10-2016, 09:16 AM
  #15
Senior Member
SuperBike

Wicky's Avatar

Join Date: Sep 2008
Location: Essex, UK
Posts: 1,632
Wicky is on a distinguished road
12395-MAT-750 is the part metal/rubber washer on the head cover bolts. I hope that's not rattling about in your engine! Did the mechanic drop the sump to look for it?


Wicky is offline
Old 09-10-2016, 11:23 AM
  #16
Rex Kramer-Thrill Seeker
SuperBike

CruxGNZ's Avatar

Join Date: Jan 2011
Location: Brookfield, WI
Posts: 2,312
CruxGNZ is on a distinguished road

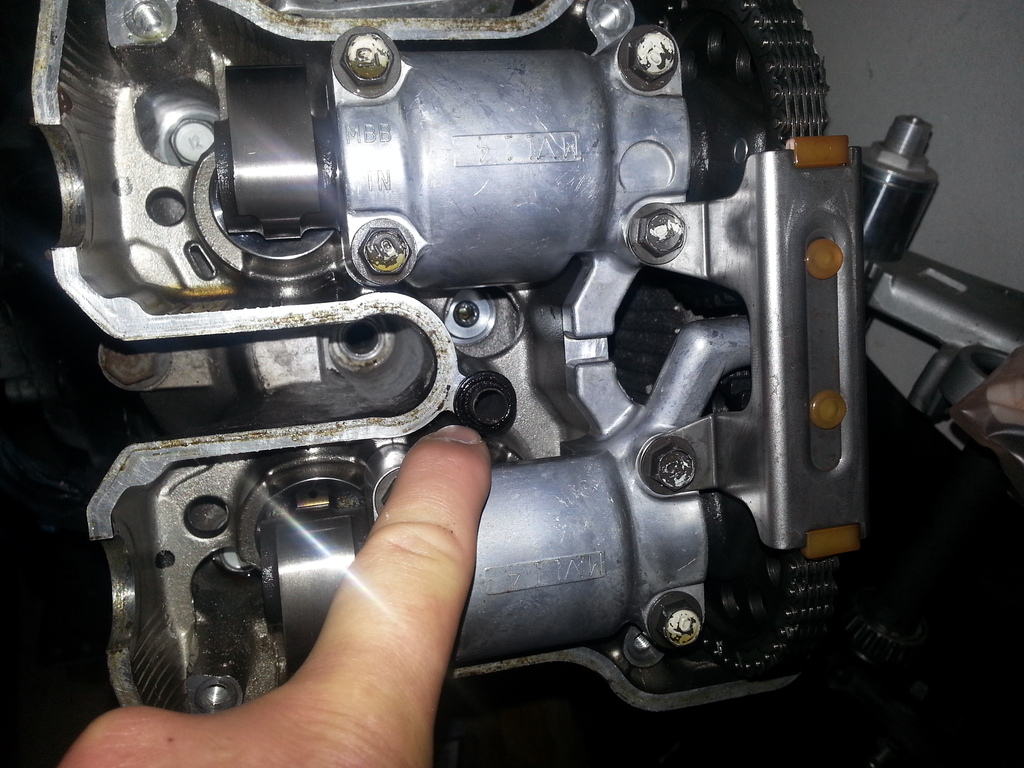

I think it is possibly this o-ring.

Name:  20160910_131735.jpg
Views: 30
Size:  332.7 KB
CruxGNZ is offline
Old 09-10-2016, 11:35 AM
  #17
Junior Member
Squid
Thread Starter

billd_697@yahoo.com's Avatar

Join Date: Jun 2016
Posts: 15
billd_697@yahoo.com is on a distinguished road
Yup the one in pic not metal one thank god
But i didnt mess with this bolt so im not 100% sure.
It also may be the rubber part of cover bolt.
I will ask him next time i get up his way. Im not worried in the least.
If hes say dont worry bout it then i wont. But it would be usefull for information purposes here on form. So i will update excat oring he mentioned to me and post to this topic when i find out

Last edited by [email protected]; 09-10-2016 at 01:17 PM.
billd_697@yahoo.com is offline
Old 09-10-2016, 03:53 PM
  #18
Senior Member
SuperBike

xeris's Avatar

Join Date: Sep 2010
Location: Bisbee, AZ
Posts: 1,458
xeris is on a distinguished road
When you do talk to the mechanic, just for laughs, ask him what he did to check the timing.
xeris is offline
Old 09-10-2016, 04:24 PM
  #19
Junior Member
Squid
Thread Starter

billd_697@yahoo.com's Avatar

Join Date: Jun 2016
Posts: 15
billd_697@yahoo.com is on a distinguished road
Im 100% sure it was my mistake and not his. As it dont smoke no more. Just got back from a rip And shes running great
He also was hinting at a missing seal or gasket when i first drop it off
billd_697@yahoo.com is offline
Old 09-14-2016, 06:10 PM
  #20
Senior Member
Superstock

Fastguy59's Avatar

Join Date: Nov 2014
Location: Middletown, CT
Posts: 408
Fastguy59 is on a distinguished road
Originally Posted by CruxGNZ View Post
I think it is possibly this o-ring.

Wow,
Crux, I was just inside my heads and never noticed that oring, I did notice the hollow locating dowel. Does that just sit around the dowel on the surface or or does it sit in a recess ???
Fastguy59 is offline
Old 09-14-2016, 07:35 PM
  #21
Rex Kramer-Thrill Seeker
SuperBike

CruxGNZ's Avatar

Join Date: Jan 2011
Location: Brookfield, WI
Posts: 2,312
CruxGNZ is on a distinguished road
Just sits around the dowel. The dowel could be inside your valve cover with the o-ring around it as well.

Make sure you have that o-ring. The oil comes from the engine, up into the valve cover and onto the cams.

Last edited by CruxGNZ; 09-14-2016 at 07:37 PM.
CruxGNZ is offline
Old 09-14-2016, 10:28 PM
  #22
Member
Squid

Twitchy's Avatar

Join Date: Apr 2015
Location: Perth, Western Australia
Posts: 40
Twitchy is on a distinguished road
Originally Posted by Wicky View Post
...Did you apply threadloc / silicon on the MCCT bolt as if not oil can dribble out the rear tensioner.
Installed Kreigers last year an did not do this. Guess what? The gearbox casing a rear spring shall not rust!!! Need to pull that sucker out but kinda ignoring atm.
Twitchy is offline
Old 09-15-2016, 09:22 AM
  #23
Thread Killer
SuperBike

Join Date: Apr 2013
Location: Geneseo, IL
Posts: 1,612
VTR1000F is on a distinguished road
Add a craftily routed length of tubing and you'll have yourself a chain oiler.
VTR1000F is offline
