BLINKER LIGHTS ON DASH ON DIMLEY ALL THE TIME

Old 10-18-2013, 07:03 AM
  #1
Junior Member
Squid
Thread Starter

Join Date: Apr 2013
Location: Connecticut
Posts: 27
curlcd is on a distinguished road
BLINKER LIGHTS ON DASH ON DIMLEY ALL THE TIME

Good morning all,

I have an 02 RED (fastest color) SH that I am just finishing up making it re-roadworthy. It has not been on the road since 06 and was a salvage from the insurance company due to the upper fairing stay mount on the frame had snapped off (tig welded new one.... voila good to go)
It only has 2500 miles on it and is stock besides pipes and a lower fairing (not installed yet.

The PO did not have the factory blinkers, and I was installing beetlebags anyway.

I installed the Lockhart flush mount three ways in the front, and used the integrated blinkers in the beetle bags for the rear.... I finally hooked them up last night. They all work perfectly..... BUT

the little blinker lights on the dash are just dimly lit all the time now... If I put the blinker on, it flashes as normal. But otherwise it is on all the time just a little bit.

Any ideas of cause? Any and all ideas appreciated.

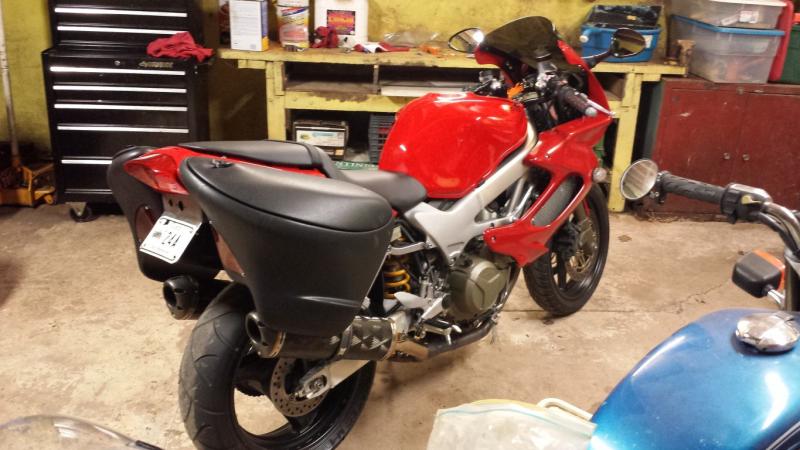

Attached Thumbnails BLINKER LIGHTS ON DASH ON DIMLEY ALL THE TIME-20131013_185719-medium-.jpg
curlcd is offline
Old 10-18-2013, 07:29 AM
  #2
Senior Member
SuperBike

xeris's Avatar

Join Date: Sep 2010
Location: Bisbee, AZ
Posts: 1,463
xeris is on a distinguished road
Voltage is leaking in from the running light circuit? I wonder if there is a weak diode in either of the aftermarket lights. Do the bettle bags have bulbs with dual filaments (two contacts on the bulb)
I would dsiconect the bags and the LP blinkers and test with a MM. Then add back one at a time and see which one is causing the problem.
Maybe one of the electrical gurus will chime in.
xeris is offline
Old 10-18-2013, 07:33 AM
  #3
Senior Member
Back Marker

996thehawk's Avatar

Join Date: May 2013
Posts: 175
996thehawk is on a distinguished road
You're right, it is the fastest color.
996thehawk is offline
Old 10-18-2013, 07:48 AM
  #4
Rex Kramer-Thrill Seeker
SuperBike

CruxGNZ's Avatar

Join Date: Jan 2011
Location: Brookfield, WI
Posts: 2,312
CruxGNZ is on a distinguished road
Originally Posted by curlcd View Post
I installed the Lockhart flush mount three ways in the front
Three ways? Are you saying you hooked these up as running lights as well? This could very well be your problem.
CruxGNZ is offline
Old 10-18-2013, 10:16 AM
  #5
Junior Member
Squid
Thread Starter

Join Date: Apr 2013
Location: Connecticut
Posts: 27
curlcd is on a distinguished road
I got the three wire lockharts (since there are three wires) for the front blinkers.

So common ground
one lead for flasher filiment
one lead for running filiment

is that wrong?
curlcd is offline
Old 10-18-2013, 10:18 AM
  #6
Junior Member
Squid
Thread Starter

Join Date: Apr 2013
Location: Connecticut
Posts: 27
curlcd is on a distinguished road
thanks for the advice.... the light stays on with only the front blinkers/lights installed
curlcd is offline
Old 10-18-2013, 10:31 AM
  #7
Senior Member
SuperBike

xeris's Avatar

Join Date: Sep 2010
Location: Bisbee, AZ
Posts: 1,463
xeris is on a distinguished road
Originally Posted by curlcd View Post
I got the three wire lockharts (since there are three wires) for the front blinkers.

So common ground
one lead for flasher filiment
one lead for running filiment

is that wrong?
That's right.
Trying swapping the hot leads. Not my fault if you set your bike on fire JK
xeris is offline
Old 03-18-2014, 08:20 AM
  #8
Senior Member
Superstock

102dals's Avatar

Join Date: Jul 2004
Location: Little Rock, AR
Posts: 405
102dals is an unknown quantity at this point
How do those front lights mount? Are they stick on? Sometimes the ground is via the frame?
