Technical Discussion Topics related to Technical Issues

another day another issue

Old 09-27-2012, 07:05 PM
  #1
Member
Squid
Thread Starter

Join Date: Aug 2012
Posts: 68
Renderw is on a distinguished road
another day another issue

so made it out of the driveway for the first time. ran it over to a friends house and everything seemed fine.. went to the gas station filled it up and headed to a straight road.. ran the throttle upto 7k and it seemed fine back down to around 5 and cursing along the it started to hesitate.. turned it around and headed for home.. made it a very short distance before the motor quit.. coasted along (no traffic) pulled the choke and it fired right up again.. but it wasn't running well. around 3k rpm it seemed ok.. but as soon as you got it up to 5k you could feel it surging either lack of fuel or lack of spark.. it was like one cylinder was working 100% and the other one was just limping along and every now and then it kicked in.. very distinctive feel when the 2nd cylinder turned on and off again.. going through the neighbourhood I didn't have enough power to leave a stop sign with out slipping the clutch until the bike catches up to the motor... just no power..
any suggestions?
dumb question here.. but -petcock.. what way do you turn it to turn it on? right now it's full counter clockwise.. is that right?
Renderw is offline
Old 09-27-2012, 07:16 PM
  #2
Senior Member
SuperBike

RWhisen's Avatar

Join Date: Sep 2008
Location: Ft. Worth, TX
Posts: 1,605
RWhisen is on a distinguished road
RWhisen is offline
Old 09-27-2012, 07:43 PM
  #3
Member
Squid
Thread Starter

Join Date: Aug 2012
Posts: 68
Renderw is on a distinguished road
yes and it was!!
not only did I find the proper position.. but I discovered a nipple on the back of a the pet **** that I didn't know existed!! and aparently that's where the vaccume hose goes..

so what the HE double hocky stick did connecting the vacumme to that pipe do? and the fact that the bike did run for over an hour hooked up like this
Name:  petcock1.jpg
Views: 186
Size:  34.7 KB


so this is the proper way to hook it up I understand
https://www.superhawkforum.com/forum...es-pics-22048/
Renderw is offline
Old 09-27-2012, 08:00 PM
  #4
the boss
SuperBike

saige's Avatar

Join Date: Mar 2010
Location: largo,fl
Posts: 1,182
saige is on a distinguished road
the pic on this page,the hose is in the wrong place.
the rear of the petcock pic is the correct way.
the nipple in the back.
and yes,its not good,but it can run that way,there was one guy who ran it like that for months on end,dont know how,but he was lucky.
saige is offline
Old 09-27-2012, 08:42 PM
  #5
Member
Squid
Thread Starter

Join Date: Aug 2012
Posts: 68
Renderw is on a distinguished road
Originally Posted by saige View Post
the pic on this page,the hose is in the wrong place.
the rear of the petcock pic is the correct way.
the nipple in the back.
and yes,its not good,but it can run that way,there was one guy who ran it like that for months on end,dont know how,but he was lucky.
I do by moving it to the right spot it fixes the problem I'm having.
Renderw is offline
Old 09-27-2012, 09:39 PM
  #6
the boss
SuperBike

saige's Avatar

Join Date: Mar 2010
Location: largo,fl
Posts: 1,182
saige is on a distinguished road
it should fix it.have you put it on the back nipple yet and tested it.
saige is offline
Old 09-28-2012, 04:00 AM
  #7
Retired- but not tired!
SuperBike

CrankenFine's Avatar

Join Date: Aug 2010
Location: Pittsburgh
Posts: 1,430
CrankenFine is on a distinguished road
Originally Posted by saige View Post
the pic on this page,the hose is in the wrong place.
the rear of the petcock pic is the correct way.
the nipple in the back.
and yes,its not good,but it can run that way,there was one guy who ran it like that for months on end,dont know how,but he was lucky.
If an S'Hawk runs for months with the vacuum hose on the wrong port of the petcock, it has to mean a seriously leaking petcock - right?
CrankenFine is offline
Old 09-28-2012, 04:07 AM
  #8
Senior Member
SuperBike

RWhisen's Avatar

Join Date: Sep 2008
Location: Ft. Worth, TX
Posts: 1,605
RWhisen is on a distinguished road
Another victim of PVLIR.
RWhisen is offline
Old 09-28-2012, 09:02 AM
  #9
Junior Member
Squid

Join Date: Jul 2012
Location: New Braunfels, TX
Posts: 24
Manny is on a distinguished road
Are you guys talking about the one facing down? My set up looks like the last picture.
Manny is offline
Old 09-28-2012, 09:18 AM
  #10
Well take off, eh.
SuperBike

Jack Flash's Avatar

Join Date: Jun 2012
Location: QC, Canada
Posts: 1,165
Jack Flash is on a distinguished road
Manny, if your hooked up like the last picture, your set up is wrong.
It's the nipple facing the seat, that points to the left of the bike that needs to be hooked up.
Jack Flash is offline
Old 09-28-2012, 10:22 AM
  #11
Junior Member
Squid

Join Date: Jul 2012
Location: New Braunfels, TX
Posts: 24
Manny is on a distinguished road
Originally Posted by Jack Flash View Post
Manny, if your hooked up like the last picture, your set up is wrong.
It's the nipple facing the seat, that points to the left of the bike that needs to be hooked up.
Is this a common thing? I bought it this way, maybe the PO connected it wrong. I have to take a look and fix it
Manny is offline
Old 09-28-2012, 11:58 AM
  #12
Senior Member
Superstock

Join Date: Jan 2012
Location: ABE PA
Posts: 423
Bandit400man is on a distinguished road
I did a new petcock diaphragm the other week an it seemed close to impossible to mix up the hoses...all were different diameters an only went one place...except the two side hoses but they should be obvious cause their curved.
Maybe op needs a new diaphragm? Symptoms appear similar...

Last edited by Bandit400man; 09-28-2012 at 12:01 PM.
Bandit400man is offline
Old 09-28-2012, 03:00 PM
  #13
Member
Squid
Thread Starter

Join Date: Aug 2012
Posts: 68
Renderw is on a distinguished road
moved the hose to the right spot.. ideal is well it works!! and that's new for me.. before it wouldn't ideal for more then minute with out stalling and then you had to choke it and roll for a while before it would start again.. haven’t had a chance to take it for a run yet but I'm very optimistic that it's going to work!
fingers crossed
thanks for the kind comments!
Renderw is offline
Old 10-02-2012, 06:36 AM
  #14
Member
Squid
Thread Starter

Join Date: Aug 2012
Posts: 68
Renderw is on a distinguished road
The good news is the motor is running great!! and my first spirited twist of the wrist left me white knuckled and smiling ear to ear!! that damn thing goes!!
BUT -On to the next problem..
As the motor warmed the clutch began to slip, so I read and read on this last night, but one thing I was thinking was not listed so I thought I would just ask

QUESTION
I replaced the leavers,
Cheap ebay leavers
https://www.superhawkforum.com/forums/general-discussion-30/cheapo-ebay-leavers-25103/

When the clutch leaver installs the piston is pushed in a very small amount in order to get the pin(bolt) to go through and mount the leaver, this pressure can not be released as the leaver is at full extension..
1. is this normal?
2. I bled the lines and notice as soon as I opened the bleeder screw fluid shot out.

Based on # 2 I’m thinking that the clutch was partially engaged even when my hand was off the leaver and I needed to bleed off this pressure before I road?

NOTE:
The fluid was not fluid.. it was thick paste.. never seen anything like that before.. basically just mud.. I flushed the lines all new fluid – have not rode it as I did this last night.

Oil- I used the oil I use in my SV650, Rottela T6 Synthetic 5W30. Could the oil be the cause of my problem?

Thanks again
Renderw is offline
Old 10-02-2012, 07:46 AM
  #15
Senior Member
SuperBike

Join Date: Oct 2007
Location: Menifee, CA
Posts: 1,082
HRCA#1 is on a distinguished road
The oil shouldn't be the problem, it probably is the lever.
HRCA#1 is offline
Old 10-02-2012, 09:42 AM
  #16
Member
Squid
Thread Starter

Join Date: Aug 2012
Posts: 68
Renderw is on a distinguished road
Originally Posted by HRCA#1 View Post
The oil shouldn't be the problem, it probably is the lever.

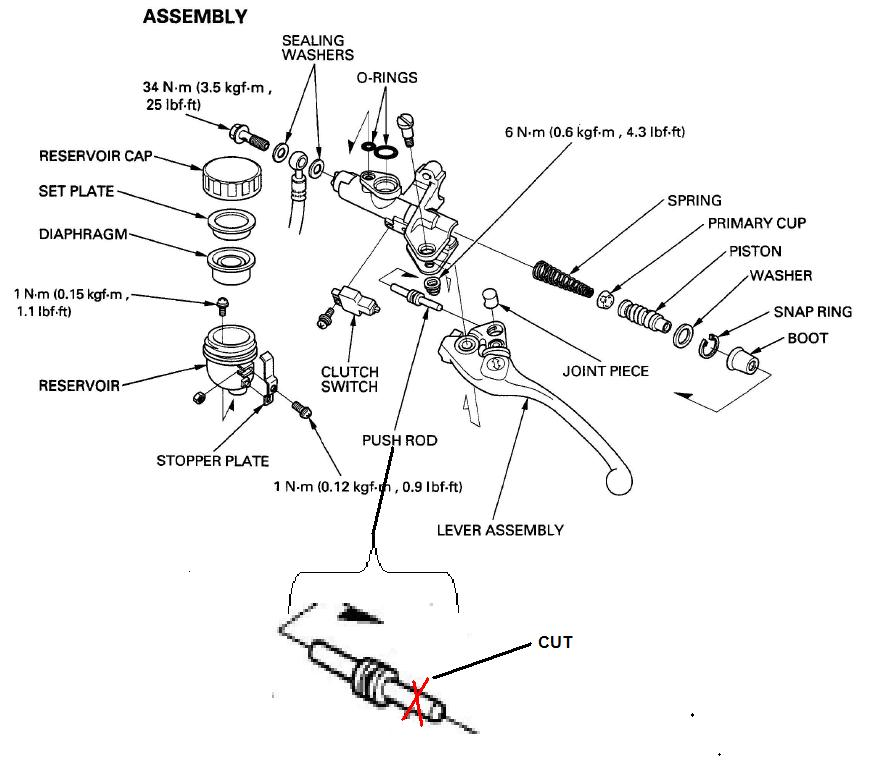

should releasing the pressure solve the problem? the other option is I cut the "Push Rod" that is pushing on the piston

Name:  clutch.jpg
Views: 189
Size:  71.9 KB
Renderw is offline
Old 10-02-2012, 10:00 AM
  #17
the boss
SuperBike

saige's Avatar

Join Date: Mar 2010
Location: largo,fl
Posts: 1,182
saige is on a distinguished road
you shouldnt have to cut anything,by cutting it,you will have almost no movement,probably none.
you should try bleeding it thru again,or make sure you got the right lever installed on there.
the clutch doesnt have far to travel in the first place,have you rode the motorcycle yet to see if it gives any problems shifting.
but overall,you should just make sure its bled thru properly and test ride it.if there is no grinds or anything like that,i would think its good to go.
saige is offline
Old 10-02-2012, 11:13 AM
  #18
Senior Member
SuperBike

Join Date: Oct 2007
Location: Menifee, CA
Posts: 1,082
HRCA#1 is on a distinguished road
If you have to grind something grind the lever at the contact point, and if the old fluid was as bad a you say a rebuild kit would be in order.

My bad that is what you were talking about grinding.

Last edited by HRCA#1; 10-02-2012 at 11:14 AM. Reason: Ooops
HRCA#1 is offline
Old 10-02-2012, 11:55 AM
  #19
aja
Senior Member
SuperSport

aja's Avatar

Join Date: Nov 2011
Posts: 700
aja is on a distinguished road
I would flush that system a few times with fresh fluid, then refill and bleed. Depending on your temperatures the 5w could cause slight slipping, but that is not very likely. You should know that these clutches engage very near mid release of the lever, and don't fully engage until around 3/4 release, so don't let that throw you off.
aja is offline
Old 10-02-2012, 01:08 PM
  #20
Out of my mind, back in 5
MotoGP

Tweety's Avatar

Join Date: Nov 2006
Location: Skurup, Sweden
Posts: 6,109
Tweety is on a distinguished road
Bleed the system properly, and then bleed at the top banjo bolt as well... It's very likely that it's just air in the system and nothing wrong with your levers...
Tweety is offline
Old 10-02-2012, 04:42 PM
  #21
Member
Squid
Thread Starter

Join Date: Aug 2012
Posts: 68
Renderw is on a distinguished road
Issues are over!! New fluid solved the problem!! Clutch is hooking up perfectly. So finally I can say I have a fully functional SUPERHAWK!!!

Thanks again for all he help!
Renderw is offline
Old 10-02-2012, 04:52 PM
  #22
Sprung
World Champion

Hawkrider's Avatar

Join Date: Dec 2004
Location: Fulton, MO
Posts: 105,285
Hawkrider will become famous soon enoughHawkrider will become famous soon enough
Something I find on ALL bikes that I have picked up over the years is that nobody seems to realize that the pivot points on the lever also require lubrication. I have felt some really notchy, grabby, squeaky levers over the years. Do yourself a favor and lube both clutch and brake levers at ALL the pivot/contact points. Clean off all the old gunk too. You'll be happy you did.
Hawkrider is offline
