Fuel Valve Hoses - Pics

Photos of the fuel valve before taking off the tank. Note the hoses, and in particular that NO hose is attached to the bottom post. This is the correct hose configuration. The valve is in the ON position.

Front


Rear
residentg is offline   Reply With Quote
Old 03-30-2010, 05:40 PM   #2
Senior Member
MotoGP

8541Hawk's Avatar

Join Date: Aug 2007
Location: Lake View Terrace, CA
Posts: 5,871
8541Hawk will become famous soon enough
Yes that is the correct set up
8541Hawk is offline   Reply With Quote
Old 03-30-2010, 08:27 PM   #3
Senior Member
Superstock

spladle160's Avatar

Join Date: Aug 2009
Location: Warrenton Virginia
Posts: 370
spladle160 is on a distinguished road
has anyone ever looked at turning the petcock 180 or designing a tool to shut off the gas without lifting the tank? I know it can't just be flipped because the fitting is not symmetrical but it would be nice to be able to turn the fuel on and off without lifting the tank.
spladle160 is offline   Reply With Quote
Old 03-30-2010, 11:15 PM   #4
Senior Member
SuperSport
Thread Starter

residentg's Avatar

Join Date: Feb 2010
Location: NY State
Posts: 667
residentg is on a distinguished road
I am not secure enough to use the word "petcock". JB
residentg is offline   Reply With Quote
Old 03-31-2010, 12:25 AM   #5
Senior Member
SuperSport

ranchomice's Avatar

Join Date: Nov 2009
Location: Rancho Cordova, California
Posts: 677
ranchomice is on a distinguished road
Fuel is not allowed to come out of the petcock without vacuum applied, in my experience. I suppose that would make turning the fuel "off" obsolete?
ranchomice is offline   Reply With Quote
Old 03-31-2010, 12:37 AM   #6
BBB
Good Root
Squid

BBB's Avatar

Join Date: Jul 2009
Location: Shoebox
Posts: 87
BBB is on a distinguished road
I beg to differ!

Its a major pain in the "a" to take the tank off, without draining it first.

Fuel may not come out the 2 outlets of the petcock without vacuum but I assure you once you take the hose off the fitting on the bottom of the tank, then it runs, out the tank.
The petcock has to come off with the tank is what you are saying?

BBB
BBB is offline   Reply With Quote
Old 03-31-2010, 12:42 AM   #7
BBB
Good Root
Squid

BBB's Avatar

Join Date: Jul 2009
Location: Shoebox
Posts: 87
BBB is on a distinguished road
And then I took a good look and can now see that you guys have a different fitting to mine.
My bike has a hose that runs from the outlet of the tank to the petcock assembly mounted on the frame right next to the rear tank mount.
The tank outlet does not have anything but a hose fitting...

BBB
BBB is offline   Reply With Quote
Old 03-31-2010, 04:52 AM   #8
Member
Squid

Gilson's Avatar

Join Date: Feb 2009
Location: Essex, uk
Posts: 44
Gilson is on a distinguished road
I've converted my fuel tap to a free flowing one, i.e. no vacuum pipe from carbs to make it operate. I've done this on my track bike as the ST1 tuning, especially with the Moriwaki carbs use all the fuel in the float bowls when going around a corner resulting in fuel starvation. I've since added a CBR600 fuel pump and made the fuel tap free flowing by removing the diaphragms inside.

The only way to easily remove the tank is to add a quick release connector. On a standar fuel set-up this would mean using a two T joints. One to join the two outlet pipes from the tap and another to split it again to both carbs but with the QA connector in between the Ts.

Hope this helps
Gilson is offline   Reply With Quote
Old 03-31-2010, 06:25 AM   #9
Senior Member
SuperBike

trinc's Avatar

Join Date: Feb 2007
Location: Portland, Oregon
Posts: 1,051
trinc is on a distinguished road
Quote:
Originally Posted by BBB View Post
I beg to differ!

Its a major pain in the "a" to take the tank off, without draining it first.

Fuel may not come out the 2 outlets of the petcock without vacuum but I assure you once you take the hose off the fitting on the bottom of the tank, then it runs, out the tank.
The petcock has to come off with the tank is what you are saying?

BBB
something is not right... maybe your overflow line is clogged and is not draining ? with the petcock vacuum off the only gas that will spill is from the main lines if you don't run them dry before tank removal.

tim
trinc is offline   Reply With Quote
Old 03-31-2010, 08:28 AM   #10
Senior Member
Superstock

spladle160's Avatar

Join Date: Aug 2009
Location: Warrenton Virginia
Posts: 370
spladle160 is on a distinguished road
sorry I just don't trust the diaphragm to always stop all the fuel. wouldn't it be nice to twist a lever to shut off the gas and be able to run it dry. On a side note apparently the section of the petcock held on with 4 screws closest to the riders.. uh body, can be turned so that the nipple is facing either down or right with no adverse consequences. Mine was in downward dog when I got it. hehe I said nipple and petcock
spladle160 is offline   Reply With Quote
Old 04-01-2010, 01:02 PM   #11
BBB
Good Root
Squid

BBB's Avatar

Join Date: Jul 2009
Location: Shoebox
Posts: 87
BBB is on a distinguished road
Pain

I'll see if I can post up a couple of pictures to better illustrate my issue.
BBB
BBB is offline   Reply With Quote
Old 10-23-2010, 04:13 PM   #12
Junior Member
Squid

Join Date: Oct 2010
Location: Cocoa, Florida
Posts: 5
CocoaCabana is on a distinguished road
Talking petcock pics help my fix my bike

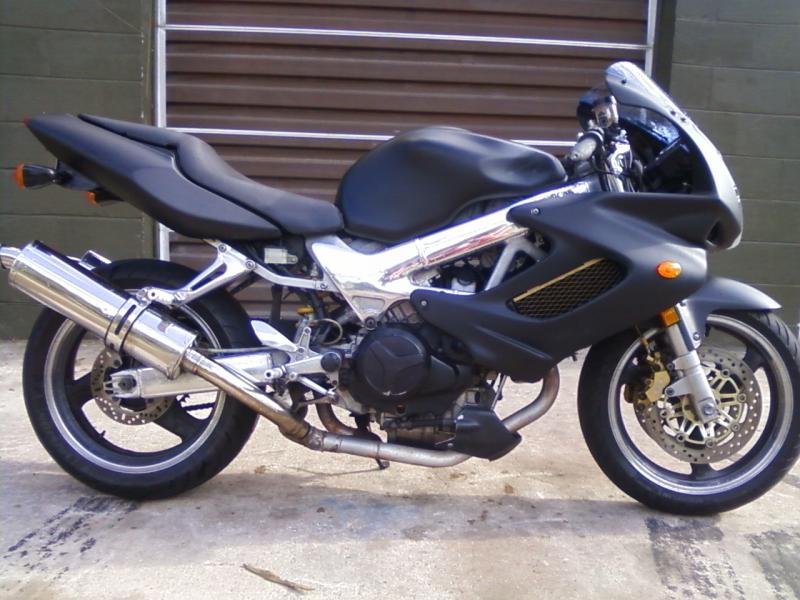

just wanted to say, " THANKS! " since i bought my vtr, it's been a roller coaster of performance & emotions, running good one minute & dying the next ... i've had the tank & carbs off at least a hundred times, " tinkering " ... cleaned & jetted carbs, flushed tank ... & figured that my hoses might be wrong because, my gas cap was under pressure & would hiss, when opened ... looking in the shop manual they have no pics of the petcock hook up or the bottom of the tank ... i search ebay looking at tank pics, but, they're all stripped ... finally found your pics & realized that my pet **** was put together wrong, diaphragm was 180 out & the vacuum line was in the wrong spot. plus i had the tank hose on the bottom ... my bike runs awesome now ... " THANKS! "



Quote:
Originally Posted by residentg View Post
Photos of the fuel valve before taking off the tank. Note the hoses, and in particular that NO hose is attached to the bottom post. This is the correct hose configuration. The valve is in the ON position.

Front


Rear
Attached Thumbnails
Fuel Valve Hoses - Pics-0411101729a.jpg
CocoaCabana is offline   Reply With Quote
Old 10-23-2010, 08:01 PM   #13
Senior Member
SuperBike

RWhisen's Avatar

Join Date: Sep 2008
Location: Ft. Worth, TX
Posts: 1,605
RWhisen is on a distinguished road
Another victim of PVLIR
RWhisen is offline   Reply With Quote
Old 02-25-2011, 08:16 PM   #14
Senior Member
SuperSport

geekonamotorcycle's Avatar

Join Date: Jan 2011
Location: Tampa Florida
Posts: 521
geekonamotorcycle is on a distinguished road
believe it or not, my bike was running for 2k miles with the PVLIR connected to the bottom nipple, not only that but it was leaning fuel into whatever is on the other end of the PVLIR. I have video to prove this. and my bike is fucked atm.
geekonamotorcycle is offline   Reply With Quote
Old 03-15-2011, 08:40 PM   #15
Senior Member
MotoGP

7moore7's Avatar

Join Date: Jul 2010
Location: Phoenix, AZ
Posts: 3,859
7moore7 is on a distinguished road
Bringing this thread up again...

For those of you who aren't familiar, I've torn my bike to pieces with reckless abandon, and am in the process of putting it back together. It's like leggos with very shady directions and more lethal if done incorrectly. I tore up two sets of incomplete carbs and took the best of both worlds, one de-PAIR'd and one not.

Ok, with that background, I'm having problems replacing all of the hoses and could use some guidance, as I don't even trust how it was put together before. Specifically, the vacuum lines. Water hoses I'm fine. Main fuel hoses I'm fine. The ones that I think that I'm a little fuzzy on are the petcock vacuum line (does this go to the carbs?) and the carb sync stuff.

I am still trying to puzzle together a full visual from my teardown pics (not to be trusted, remember!) parts websites and factory service/haynes manuals. I would like to make sure I have everything setup correctly. I do not have the tank with me as it's getting painted, and it appears that there are two hoses that go from there to somewhere too...

Haha if anyone can even figure out what I'm asking, you get kudos from me. Off to take pictures of my setup so far...
7moore7 is offline   Reply With Quote
Old 03-15-2011, 09:01 PM   #16
Senior Member
MotoGP

7moore7's Avatar

Join Date: Jul 2010
Location: Phoenix, AZ
Posts: 3,859
7moore7 is on a distinguished road
Ok, here are the question areas...

This pictures is of the RIGHT side of the bike, front carb/cylinder looking forward. I think this alan bolt in the lower left is undone during a carb synch? Don't need do do anything here, correct?


Next pic... same carb but looking down. I have what I think is another vacuum hose with a t-joint and a plug in the hose coming off that joint. Drainage hose perhaps? It seems to be in the manual as a vacuum hose.



Ok, moving to the LEFT side of the bike, looking backward at the rear carb/cylinder. This is the part that concerns me- I have this fitting that looks to want a hose on it. Again, seems to be part of the carb synch setup. The question is, which hose and what's it doing when it's not synching carbs. Should the hose be attached and then plugged?


Finally, this pic is pretty non descript, but its of the rear carb looking down. Here there is no t-joint in the carb hose like the front one... the unsymmetry is just something I am questioning- it could be fine?


Ok, like I said, I'm trying to piece together what's all happening, but the manuals and such all include the PAIR system, which eliminates about 2/3 of the hoses and confusion, but leaves me trying to figure out what parts are left and I need. The timespan that this project is taking me makes it hard to place everything perfectly correctly! Thanks in advance...
7moore7 is offline   Reply With Quote
Old 03-16-2011, 01:24 AM   #17
Senior Member
SuperBike

RWhisen's Avatar

Join Date: Sep 2008
Location: Ft. Worth, TX
Posts: 1,605
RWhisen is on a distinguished road
The little brass nipple is only used for carb synch. It should have a plug on it when not in use for that purpose.
RWhisen is offline   Reply With Quote
Old 03-16-2011, 04:25 AM   #18
jonesey
Squid

jonesey's Avatar

Join Date: Sep 2008
Location: essex uk
Posts: 77
jonesey is on a distinguished road
Correct me if i'm wrong, but is'nt the brass nipple supposed to be connected to the vacuum line that leads to the petcock for fuel supply?
jonesey is offline   Reply With Quote
Old 03-16-2011, 06:03 AM   #19
Senior Member
MotoGP

7moore7's Avatar

Join Date: Jul 2010
Location: Phoenix, AZ
Posts: 3,859
7moore7 is on a distinguished road
Quote:
Originally Posted by jonesey View Post
Correct me if i'm wrong, but is'nt the brass nipple supposed to be connected to the vacuum line that leads to the petcock for fuel supply?
I'm hoping that this is the case. 'Cause then I have everything accounted for. I'm hoping also that the two hoses dropping down from the tank in the first pic in the thread (not the petcock) are just vent hoses and don't go anywhere...

Last edited by 7moore7; 03-16-2011 at 08:56 AM.
7moore7 is offline   Reply With Quote
Old 03-16-2011, 11:17 AM   #20
Sprung
World Champion

Hawkrider's Avatar

Join Date: Dec 2004
Location: Fulton, MO
Posts: 105,286
Hawkrider will become famous soon enoughHawkrider will become famous soon enough
Yes, for all bikes the rear vacuum port goes to the rear port on the petcock. I think CA bikes have something going to the front petcock port, but I can't remember for sure. Anyone with a stock CA bike care to provide clarification?

The lines off the bottom of the tank snake down to the left side of the oil pan. They are vents and drains. One is the internal vent (smaller), the other is the overflow (larger) that comes from where you put fuel into the tank - Basically the small hole under the fuel cap.

You DO know all this is in the downloadable service manual, right?
Hawkrider is offline   Reply With Quote
Old 03-16-2011, 11:34 AM   #21
Senior Member
MotoGP

7moore7's Avatar

Join Date: Jul 2010
Location: Phoenix, AZ
Posts: 3,859
7moore7 is on a distinguished road
Quote:
Originally Posted by Hawkrider View Post

You DO know all this is in the downloadable service manual, right?
Yeah, I actually have a hardcopy of that and the Haynes manual... and I snoop around on the parts sites to get to what they don't tell me.

My problem was that in most of the systems, they only show a portion of the hoses (which is how I know I have the water lines hooked up correctly), or include CA instructions (hard to decipher) AND/OR include the PAIR stuff. I would be better off if I had no PAIR hoses, but one of my sets of carbs did, so I have a bunch of hoses left over and and awfully confusing time working out which was needed which was PAIR and which was CA. I think I have it straight now, it's just been awhile since I was ripping things apart and couldn't quite remember. If you look at the hoses on the attached pic, my brain just hurt figuring it all out. Especially since most references to the hoses in the manual were for maintenance purposes- as in they were already attached where they should have been

Thanks for the help... I think I have it all covered now!
Attached Thumbnails
Fuel Valve Hoses - Pics-carbs.jpg
7moore7 is offline   Reply With Quote
Old 09-21-2012, 09:33 PM   #22
Member
Squid

jdobeckj's Avatar

Join Date: Mar 2012
Location: Bothell WA
Posts: 85
jdobeckj is on a distinguished road
SOOOOOOOO, after ripping that damn thing apart a half dozen times, (swapping out carbs to diagnose an issue) redoing every vacuum line, becoming very intimate with my carbs both inside and out.... it all came down to a misplaced vacuum line to the bottom of the petcock (PVLIR)... Thank you 7 moore .. again you bail me out.. so I guess I owe you at least a pallet of beer..... and extensive help on your jeep.

Ill drop off your carbs on Saturday ...
jdobeckj is offline   Reply With Quote
Old 11-25-2014, 06:20 PM   #23
Bike Hoarder
Squid

SgtHollywood's Avatar

Join Date: Oct 2012
Location: NYC
Posts: 43
SgtHollywood is on a distinguished road
Zombie thread, but man did this help me with a little problem I was having. Totally went stupid and hooked the Vac line to the bottom fitting. Explains why I was getting dodgy fuel issues... Shop manual doesn't help if I don't look at it..
SgtHollywood is offline   Reply With Quote
Old 01-23-2015, 02:25 PM   #24
Member
Squid

YellowBird's Avatar

Join Date: Feb 2008
Posts: 81
YellowBird is on a distinguished road
new question along this line. I hadn't ridden the bike for 7-9 months. It was running ruff on the low idle side so I pulled the carbs to clean them. My son has done them before and did them again. He said the jets were pretty well clogged. I put them back on and now it wont start unless the choke is all the way out and then still wont accept any throttle. Just stops. My son say it sounds starved for fuel and check the fuel lines and the filter. I see the filter is internal and doesn't seem to be recommended unless it's a high mileage bike. Mine only has 17K miles and its a 99.
What would be the suggested thing to check for these symptoms? I have no problem pulling the petcock and checking.
YellowBird is offline   Reply With Quote
Old 01-23-2015, 04:59 PM   #25
Retired- but not tired!
SuperBike

CrankenFine's Avatar

Join Date: Aug 2010
Location: Pittsburgh
Posts: 1,369
CrankenFine is on a distinguished road
Quote:
Originally Posted by YellowBird View Post
new question along this line. I hadn't ridden the bike for 7-9 months. It was running ruff on the low idle side so I pulled the carbs to clean them. My son has done them before and did them again. He said the jets were pretty well clogged. I put them back on and now it wont start unless the choke is all the way out and then still wont accept any throttle. Just stops. My son say it sounds starved for fuel and check the fuel lines and the filter. I see the filter is internal and doesn't seem to be recommended unless it's a high mileage bike. Mine only has 17K miles and its a 99.
What would be the suggested thing to check for these symptoms? I have no problem pulling the petcock and checking.
Make sure it is not PVLIR.

is the vacuum line going to the correct port on the petcock? Connect it to the back- not to the bottom of the petcock.
CrankenFine is offline   Reply With Quote
Old 01-24-2015, 06:45 AM   #26
Member
Squid

YellowBird's Avatar

Join Date: Feb 2008
Posts: 81
YellowBird is on a distinguished road
I have a question about what I think is a vacuum line off the front carb. In the photos from 7more7, it has a screw inserted in it. I assume my problem is that I didn't have it hooked to anything. Where is it supposed to go? The only thing in the area that looks like it can take a hose is the thing attached to the bottom side of the air box. I think that's the PAIR gizmo. It has something coming off it that looks like a hose should go on it but it is solid. If it goes there the hose would be closed off.
YellowBird is offline   Reply With Quote
Old 01-24-2015, 07:44 AM   #27
Senior Member
SuperBike

xeris's Avatar

Join Date: Sep 2010
Location: Bisbee, AZ
Posts: 1,124
xeris is on a distinguished road
Quote:
Originally Posted by YellowBird View Post
I have a question about what I think is a vacuum line off the front carb. In the photos from 7more7, it has a screw inserted in it. I assume my problem is that I didn't have it hooked to anything. Where is it supposed to go? The only thing in the area that looks like it can take a hose is the thing attached to the bottom side of the air box. I think that's the PAIR gizmo. It has something coming off it that looks like a hose should go on it but it is solid. If it goes there the hose would be closed off.
If you have a hose coming from where the hex screw as in 7's first photo then it should be plugged or capped off. If you are not the first owner and found it this way, the PO must have installed the hose for ease of carb sync.
xeris is offline   Reply With Quote
Old 01-24-2015, 11:50 AM   #28
Member
Squid

YellowBird's Avatar

Join Date: Feb 2008
Posts: 81
YellowBird is on a distinguished road
It's in his second photo. It "T"'s off what the diagram calls the air cutoff valve. Its a black plastic piece that you can also see in his photo. Someone has put a screw in the end of the hose closing it off.
YellowBird is offline   Reply With Quote
Old 01-24-2015, 03:04 PM   #29
Member
Squid

YellowBird's Avatar

Join Date: Feb 2008
Posts: 81
YellowBird is on a distinguished road
I took a chance and hooked that tube to the blank post that effectively closed it off.
Put it back together and it started right up. Now the problem is it needs full choke to start and shuts down the instant I try to add any throttle.
Thoughts anyone?
YellowBird is offline   Reply With Quote
Old 05-22-2015, 11:20 PM   #30
Junior Member
Squid

Join Date: May 2015
Posts: 1
tyler98redsupper is on a distinguished road
I'm having the same issue but I just replaced my se value or choke valve. My se valve broke where it connects to the carburetor after I replaced it the bike only starts if the choke is pulled in completely please help sounds like we had the same issue my vacuum lines are definitely connected right under fuel tank
tyler98redsupper is offline   Reply With Quote


Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
Fuel shut-off valve? avramd General Discussion 10 10-22-2009 08:42 AM
Fuel Valve Starbucks Fueled Technical Discussion 4 11-14-2008 01:20 PM
Vacuum Hoses..... 3D02 Technical Discussion 4 10-04-2006 08:53 AM
F/S:NEW Rad hoses & Thermostat superbling Classifieds 0 08-27-2006 02:56 PM
leaking hoses sprhawk neil Technical Discussion 0 03-01-2006 04:01 PM


Tags
assy, back, cock, connection, framemounted, fuel, hose, hoses, motorcycle, petcock, pictures, runs, superhawk, tank, vacuum, valve

Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off



All times are GMT -7. The time now is 08:24 PM.
