Rear Shock Mod

I swapped out my stock shock with Redman and in return I got a stock shock that has an Eibach spring and the nitrogen reservoir has been fitted with a Schrader valve to refilled the gas.

I have also seen the mod listed on the Internet, but cannot locate the link.


Anyone know someone that has had this done and if so what is the volume of gas needed to refill the reservior?


Thanks.
Old Oct 4, 2007 | 01:26 PM
  #2
8541Hawk's Avatar
Banned
MotoGP

Joined: Aug 2007
Posts: 5,942
From: Lake View Terrace, CA
8541Hawk will become famous soon enough
Originally Posted by reaper
I swapped out my stock shock with Redman and in return I got a stock shock that has an Eibach spring and the nitrogen reservoir has been fitted with a Schrader valve to refilled the gas.

I have also seen the mod listed on the Internet, but cannot locate the link.


Anyone know someone that has had this done and if so what is the volume of gas needed to refill the reservior?


Thanks.
I had Lindemann Engineering set mine up like that. I don't know how much or to what pressure you charge the shock but maybe they could tell you if you contact them. http://www.le-suspension.com/
Old Oct 4, 2007 | 09:39 PM
  #3
Hawkrider's Avatar
Administrator
World Champion

Joined: Dec 2004
Posts: 105,287
From: Fulton, MO
Hawkrider will become famous soon enoughHawkrider will become famous soon enough
Usually it's like 250psi and it must be nitrogen, but you will need a special fitting to accomplish this. The fitting allows you to pressurize the bladder and close the schrader while it's under pressure. I recommend a suspension shop in your state.
Old Oct 5, 2007 | 07:30 AM
  #4
reaper's Avatar
Thread Starter
Senior Member
SuperSport

Joined: Aug 2007
Posts: 599
From: Eagle, ID.
reaper is on a distinguished road
Thanks guys for the information.
Old Oct 6, 2007 | 06:27 PM
  #5
skokievtr's Avatar
RUNLEVELZERO #99
SuperBike

Joined: Jan 2007
Posts: 2,219
From: Skokie
skokievtr is on a distinguished road
How much does 1 mm of added shock length

equate to in ride height increase with the stock linkage? I tried about 5mm on my Penske from its minimum length & it was way too much. I just backed it down to maybe 1mm from full short (PITA BTW). I also have the fork tubes raised about 4.5 mm up the triple clamps. Not sure (its been 9 years) what the OD/profile of the Conti Road Attack Rear & Sport Attack front are compared to the OEM rubber.
Old Oct 7, 2007 | 07:57 PM
  #6
redman's Avatar
Senior Member
Superstock

Joined: Jul 2007
Posts: 387
redman is on a distinguished road
thanks for chiming in Skokievtr, I have a new Wilbers shock on the rear and although I ordered stock height...when I installed it I left in place the two washers that jacked it up about 7or8 mms. After riding it for two weeks now....I think I'll go in and remove one for starters and maybe both later. The new spring is a bit stiff for my taste and with the washers...the *** end of my bike is way up there. I need to properly check sag first and see what's up.
It's a long process but once you get your bike dialed in to your taste....YEEHAWW...it becomes an extension of your mind and you fly!
Old Oct 8, 2007 | 04:04 PM
  #7
skokievtr's Avatar
RUNLEVELZERO #99
SuperBike

Joined: Jan 2007
Posts: 2,219
From: Skokie
skokievtr is on a distinguished road
Wierd

Is the ride height (shock length) too short or too long if on the side stand the bike is too vertical and easil;y could tip over? hmmmmmmmmmm Inquiring minds want to know.

Don't ask me why...
Old Oct 8, 2007 | 04:25 PM
  #8
SlowHAWK's Avatar
Senior Member
SuperSport

Joined: Jun 2004
Posts: 818
From: Thornwood, NY
SlowHAWK is an unknown quantity at this point
If it wants to tip away from the side stand (right)... you too low... If it looks like the bike wants to tip over towards the stand (left) your high...

J.
Old Oct 8, 2007 | 07:48 PM
  #9
skokievtr's Avatar
RUNLEVELZERO #99
SuperBike

Joined: Jan 2007
Posts: 2,219
From: Skokie
skokievtr is on a distinguished road
I agree

Originally Posted by SlowHAWK
If it wants to tip away from the side stand (right)... you too low... If it looks like the bike wants to tip over towards the stand (left) your high...

J.
I just don't know how the shock got shorter. OA length is 13-5/8" eye-to-eye (though I will recheck). The linkage is right. What OA length are you at, excluding any shims added between the OEM upper mount & frame? There is no recess in the frame cross member for the mount toslip into, so where did the length go???
Old Oct 8, 2007 | 08:14 PM
  #10
8541Hawk's Avatar
Banned
MotoGP

Joined: Aug 2007
Posts: 5,942
From: Lake View Terrace, CA
8541Hawk will become famous soon enough
Originally Posted by skokievtr
I just don't know how the shock got shorter. OA length is 13-5/8" eye-to-eye (though I will recheck). The linkage is right. What OA length are you at, excluding any shims added between the OEM upper mount & frame? There is no recess in the frame cross member for the mount toslip into, so where did the length go???
Maybe it got cold.......
possibly you didn't get it tight when you adjusted it the last time and it spun down on you
Old Oct 10, 2007 | 07:41 PM
  #11
happytrack44's Avatar
WERA #44
Superstock

Joined: Jul 2007
Posts: 265
From: About 57 miles south of VIR
happytrack44 is on a distinguished road
Did it go swimming? Shrinkage!
Old Oct 10, 2007 | 08:31 PM
  #12
skokievtr's Avatar
RUNLEVELZERO #99
SuperBike

Joined: Jan 2007
Posts: 2,219
From: Skokie
skokievtr is on a distinguished road
Impossible

Originally Posted by 8541Hawk
Maybe it got cold.......
possibly you didn't get it tight when you adjusted it the last time and it spun down on you
In order to adjust length on a Penske, the rear linkage rocker must be disconnected from the frame, shock and link; then the locknut loosened and the bottom "eye" threaded in or out while the shaft nut is held with a one inch wrench. I use a 1" service wrench and 1" crowfoot wrench. Consequently, once everything is back together, its impossible for the length to change. I have to recheck, maybe I was too tired last adjustment.

BTW, the rear of the bike must be suspended and its easier to align the linkage bolts if the rear wheel/tire is first removed (the swingarm can then be held in place with a heavy gauge wire hooked to the subframe and the axle through the swingarm). See pics of the gantry I made to suspend the rear of the bike. These pics are over 3 years old from when I first installed the Penske 8981.

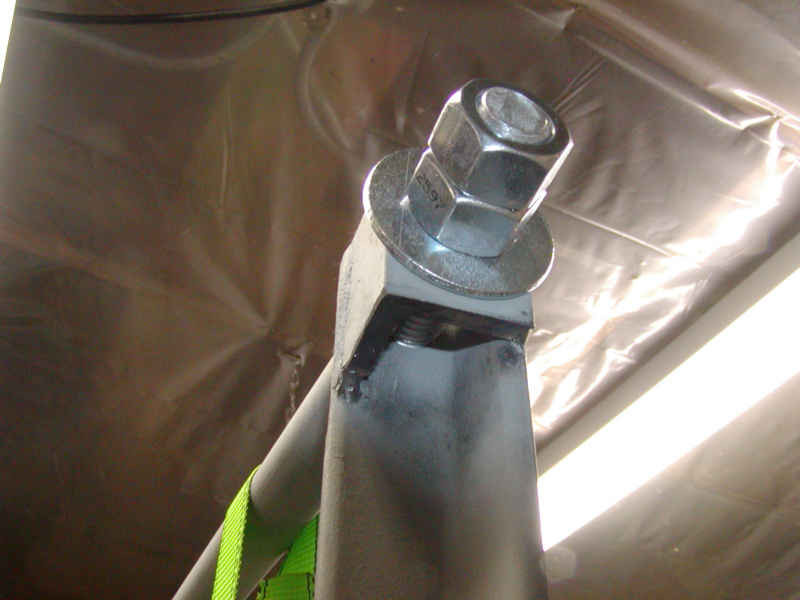

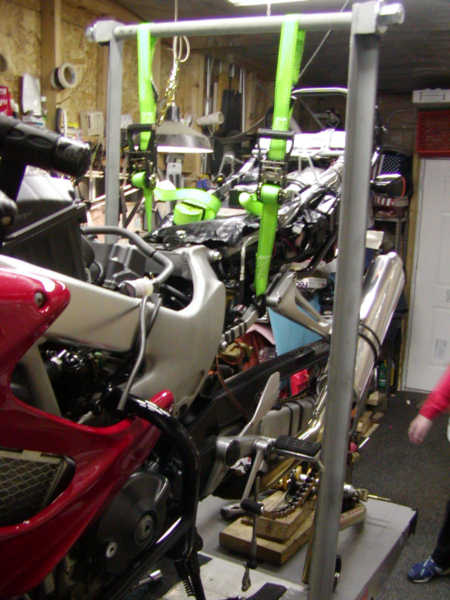

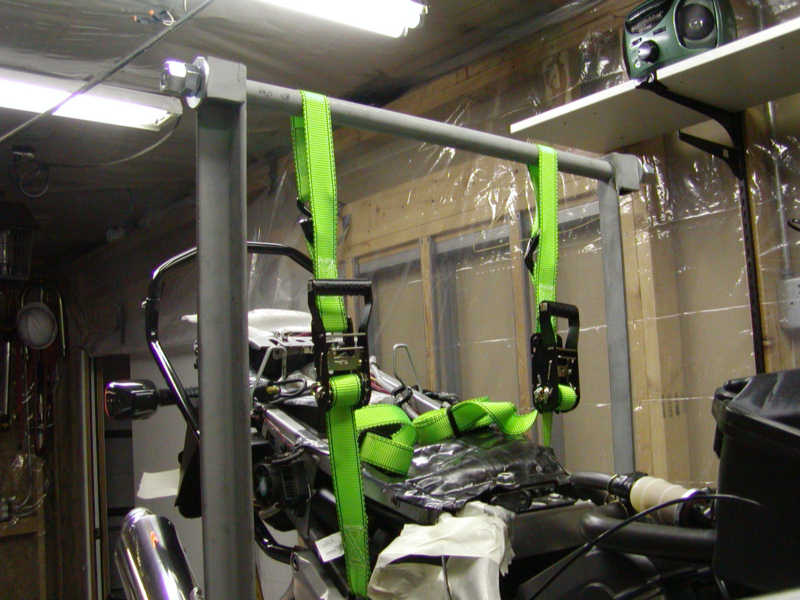

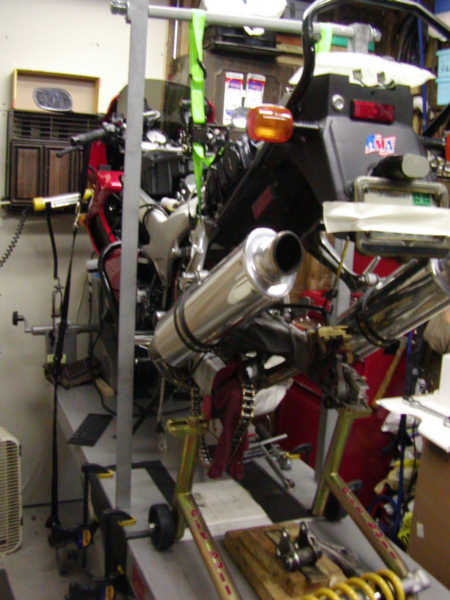

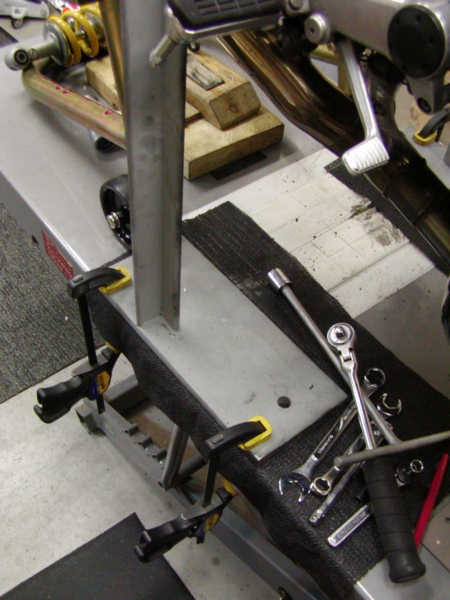

Attached Thumbnails Rear Shock Mod-gantry-rt-side-2.jpg   Rear Shock Mod-gantry-lt-side.jpg   Rear Shock Mod-gantry-lt-side-2.jpg   Rear Shock Mod-gantry-close-up-c.jpg   Rear Shock Mod-gantry-close-up-2c.jpg

Old Oct 10, 2007 | 09:14 PM
  #13
8541Hawk's Avatar
Banned
MotoGP

Joined: Aug 2007
Posts: 5,942
From: Lake View Terrace, CA
8541Hawk will become famous soon enough
Originally Posted by skokievtr
In order to adjust length on a Penske, the rear linkage rocker must be disconnected from the frame, shock and link; then the locknut loosened and the bottom "eye" threaded in or out while the shaft nut is held with a one inch wrench. I use a 1" service wrench and 1" crowfoot wrench. Consequently, once everything is back together, its impossible for the length to change. I have to recheck, maybe I was too tired last adjustment.

BTW, the rear of the bike must be suspended and its easier to align the linkage bolts if the rear wheel/tire is first removed (the swingarm can then be held in place with a heavy gauge wire hooked to the subframe and the axle through the swingarm). See pics of the gantry I made to suspend the rear of the bike. These pics are over 3 years old from when I first installed the Penske 8981.
Well it's a good question on how the shock could change length.
There is another way to take off the rear shock.... I take a peice of a 2x4 that is around 5-6" long (it's been a while so I don't have the exact length at this time) loosen the nut on the top shock mount and put 2x4 between the sub frame and the swingarm. Tap it in place and put the bike on a swing arm stand and you're good to go.
Old Oct 10, 2007 | 10:01 PM
  #14
skokievtr's Avatar
RUNLEVELZERO #99
SuperBike

Joined: Jan 2007
Posts: 2,219
From: Skokie
skokievtr is on a distinguished road
A lttle iffy

Originally Posted by 8541Hawk
Well it's a good question on how the shock could change length.
There is another way to take off the rear shock.... I take a peice of a 2x4 that is around 5-6" long (it's been a while so I don't have the exact length at this time) loosen the nut on the top shock mount and put 2x4 between the sub frame and the swingarm. Tap it in place and put the bike on a swing arm stand and you're good to go.
Whereas your method may work, it is not the prescribed procedure. And if the 2X4 should loosen (even if it is duct taped somehow), I shudder to think of the consequences. Secondly, your method does not provide the leaway necessary to readily remove & reassemble the linkage, particularly with a remote resevoir type shock. Some people suspend the bike from rafters when structurally adequate (and not).
Old Oct 10, 2007 | 11:02 PM
  #15
8541Hawk's Avatar
Banned
MotoGP

Joined: Aug 2007
Posts: 5,942
From: Lake View Terrace, CA
8541Hawk will become famous soon enough
Originally Posted by skokievtr
Whereas your method may work, it is not the prescribed procedure. And if the 2X4 should loosen (even if it is duct taped somehow), I shudder to think of the consequences. Secondly, your method does not provide the leaway necessary to readily remove & reassemble the linkage, particularly with a remote resevoir type shock. Some people suspend the bike from rafters when structurally adequate (and not).
Well I guess the the last time I pulled the shock & linkage I was mr. magic as there is pleanty of room to do it (and I even left the exhaust system hooked up) and it's much safer than hanging the bike from weak rafters or tring to work on the bike while it's swinging around. Why do you need more room for a remote resevior shock? The ones I've used have the same size shock body and spring as a standard shock, just an extra hose to run and a resevior to mount. I guess I missed something.
As for the 2x4 commong out, yeah it could happen but it would have to move over an 1 1/2" for that to happen, so besides the fact it has never moved while I've worked on mine, you would have to really not be paying attention for it to happen. I mean one of your straps "could" break also but it really isn't likely to happen. Besides if you ever tried it you would find out how stable it really is.
I guess my real point I was tring to make is for the guys who don't have a lift and fancy gantry or rafters to work from can still do the job with no real problems. So call it iffy if you like but I prefer to do it this way if for no other reason than I don't have a bunch of straps and hardware in the way while I'm working on the bike. YMMV
