Jardine High Mount's w/ oem passenger pegs

Old 04-02-2010, 07:39 AM
  #1
Junior Member
Squid
Thread Starter

Join Date: Mar 2010
Posts: 14
fz911 is on a distinguished road
Jardine High Mount's w/ oem passenger pegs

I am sure others have done this but here is my solution to the Jardin high mounts and OEM pegs with some pictures.

What you will need:
-Longer bolts(forgot what size, sorry)
-4 pcs. 1 inch aluminum by 1 1/4 inch long
-Alumnum polish (optional)

1. Drill out your alum pieces to fit the bolts
2. After drilling them out I attached the alum peices to a bolt and stuck them back on the drill to sand and polish, works great.
3. Take a sawzall to the footpegs and cut off the oem muffler mount. unless you like the looks of it(and you may need longer extentions.
4. Lastly a sand and polish to the footpegs and reasssemble.

It sits close to the muffler but I have not had any complaints from the passenger.

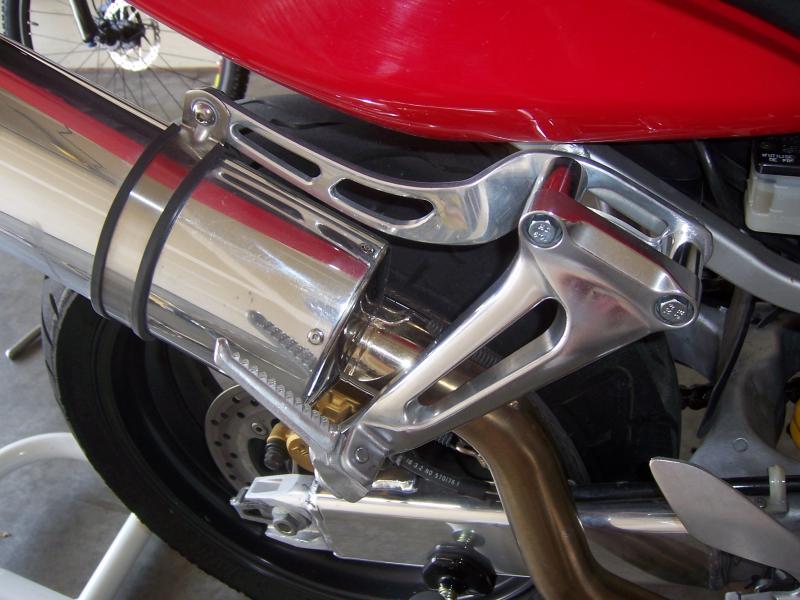

Attached Thumbnails Jardine High Mount's w/ oem passenger pegs-001.jpg   Jardine High Mount's w/ oem passenger pegs-002.jpg

Last edited by fz911; 04-02-2010 at 07:16 PM.
fz911 is offline
Old 04-02-2010, 10:20 AM
  #2
Senior Member
SuperSport

mboe794's Avatar

Join Date: Jul 2008
Location: Twin Cities
Posts: 505
mboe794 is on a distinguished road
My Jardines came with all the necessary hardware to do this. But their design retained the stock muffler mounts which forces everything to be a little wider. I wasn't a fan of that so I did just like you and got some smaller spacers and cut off the old mounts.
mboe794 is offline
Old 04-02-2010, 11:03 AM
  #3
evil man of nothing
MotoGP

captainchaos's Avatar

Join Date: Jan 2006
Location: Boynton Beach, FL
Posts: 4,199
captainchaos is on a distinguished road
Nice job! And this same idea should apply to any other highmounts as well where the hardware wasn't included.
captainchaos is offline
Old 04-02-2010, 07:13 PM
  #4
Junior Member
Squid
Thread Starter

Join Date: Mar 2010
Posts: 14
fz911 is on a distinguished road
Yes, I bought these used and the hardware was not included. The aluminum peices cost me 6 bucks and they even cut them for me.
fz911 is offline
Old 04-02-2010, 07:16 PM
  #5
Junior Member
Squid
Thread Starter

Join Date: Mar 2010
Posts: 14
fz911 is on a distinguished road
another inch extension on what I have would be too much. Kind of poor planing on jardines part, that must be why it shows the exhaust with out the footpegs in jardine stock photos.
fz911 is offline
Old 04-02-2010, 07:47 PM
  #6
Senior Member
Back Marker

Join Date: Aug 2006
Location: IL
Posts: 227
98ILVTR is on a distinguished road
I wish I didn't have a passenger on the SH, but I will make this a project for next winter. Right now, I have the old exhaust mounts still intact with the rubber grommet(s) in them, so that way they don't mark up my cans...
98ILVTR is offline
Old 04-02-2010, 10:43 PM
  #7
evil man of nothing
MotoGP

captainchaos's Avatar

Join Date: Jan 2006
Location: Boynton Beach, FL
Posts: 4,199
captainchaos is on a distinguished road
Originally Posted by fz911 View Post
another inch extension on what I have would be too much. Kind of poor planing on jardines part, that must be why it shows the exhaust with out the footpegs in jardine stock photos.
New Jardines do come with the hardware. It moves the stock pass pegs out a bit further probably than you did since you cut off the stock mounts. I posted a high(er) mount yosh system a few days back I found on ebay japan that I've never seen before, and it actually came with new yosh designed pass pegs. Really cool.

Last edited by captainchaos; 04-02-2010 at 10:46 PM.
captainchaos is offline
Old 04-03-2010, 03:59 AM
  #8
Senior Member
SuperSport

residentg's Avatar

Join Date: Feb 2010
Location: NY State
Posts: 667
residentg is on a distinguished road
I just installed Staintunes - they use the same spacers with longer bolts as well.
residentg is offline
Old 04-25-2010, 09:18 PM
  #9
Senior Member
Back Marker

kj4kym's Avatar

Join Date: Apr 2010
Location: kingsport, tn/ tri cities
Posts: 157
kj4kym is on a distinguished road
just bought an 03 hawk 3 days ago. Mine has the high mount jardine rt-ones, no passenger pegs. i want to buy someones if they have them laying around or something.

ps i need the pegs and brackets.
kj4kym is offline
Old 09-09-2010, 11:19 PM
  #10
Junior Member
Squid

Join Date: Sep 2010
Location: Tri-Cities, WA
Posts: 5
viper87 is on a distinguished road
Thanks for the info FZ911 !

I've got the same exhaust, and will be heading to the hardware store tomorrow ! Soon to come .... 2 up riding!
