Modifications - Performance Discuss aftermarket and DIY performance modifications

Acceptable modifications to the "Air Box" comments please

Old 09-05-2010, 01:11 AM
  #1
Mad Max NO Squid!
Squid
Thread Starter

skycam's Avatar

Join Date: Jun 2010
Location: Honolulu, Hawaii, 96789
Posts: 54
skycam is on a distinguished road
Talking Acceptable modifications to the "Air Box" comments please

I have completed the Flo-commander and Dr. Honda's Velocity Stacks install.
it is a solid improvement! it has cleaned up the low end stumble and made it smoother overall. Note: Stock OEM Air Filter and 2" flow Ultra Baffelectomy

from all the information i can search up these modifications are not considered un-wize i am interested in some feed back.

i am waiting for a while to look at the plugs, i will install a A/F mixture logger before i state it is running at the best jet settings and i will see i if i can get some more consistency out of this combination.

adjusting the flow commander takes a few seconds to get the screwdriver out and turn it a bit and GO! there is a definite effective change that will help dial in tighter, good for fine tuning tweeks, but, i still need more time with the Jets to be sure things are optimized

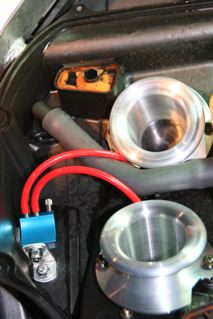

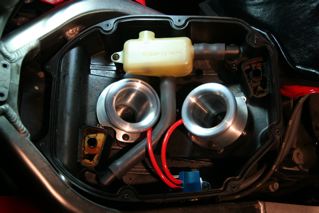

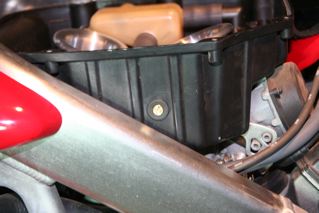

Attached Thumbnails Acceptable modifications to the "Air Box" comments please-img_9670.jpg   Acceptable modifications to the "Air Box" comments please-img_9671.jpg   Acceptable modifications to the "Air Box" comments please-img_9672.jpg
skycam is offline
Old 09-05-2010, 06:43 AM
  #2
Senior Member
SuperBike

RWhisen's Avatar

Join Date: Sep 2008
Location: Ft. Worth, TX
Posts: 1,605
RWhisen is on a distinguished road
Very nice. Need to get mine done.
RWhisen is offline
Old 09-13-2010, 06:44 AM
  #3
ukbiker.me
Back Marker

seb421's Avatar

Join Date: Jan 2009
Location: Manchester UK
Posts: 116
seb421 is on a distinguished road
Those look very trick mate, hope they work good for you

where did you get them from?
seb421 is offline
Old 09-13-2010, 07:42 AM
  #4
Senior Member
SuperSport

Stevebis1's Avatar

Join Date: Sep 2008
Location: Delmar NY
Posts: 805
Stevebis1 is on a distinguished road
Originally Posted by RWhisen View Post
Very nice. Need to get mine done.
+1

What are you looking at for the A/F logger? I saw this on line - is this suitable or are there better/cheaper solutions?

http://www.innovatemotorsports.com/products/db.php
Stevebis1 is offline
Old 09-13-2010, 10:19 AM
  #5
ride it out
SuperSport

nothing's Avatar

Join Date: Feb 2009
Location: NH
Posts: 745
nothing is on a distinguished road
skycam those secondary air filters (the little ones) are all chewed up, mine were partially missing and I found the missing bits inside my carburetors so you might want to clean them out. looks nice, though!
nothing is offline
Old 09-13-2010, 11:29 AM
  #6
Banned
MotoGP

Join Date: Aug 2007
Location: Lake View Terrace, CA
Posts: 5,942
8541Hawk will become famous soon enough
Originally Posted by seb421 View Post
Those look very trick mate, hope they work good for you

where did you get them from?
Look for DR. Honda here on the board
or to make it even easier: http://www.a-lmotorsports.com/Produc...ty-stacks.aspx
8541Hawk is offline
Old 09-13-2010, 11:31 AM
  #7
Banned
MotoGP

Join Date: Aug 2007
Location: Lake View Terrace, CA
Posts: 5,942
8541Hawk will become famous soon enough
Originally Posted by nothing View Post
skycam those secondary air filters (the little ones) are all chewed up, mine were partially missing and I found the missing bits inside my carburetors so you might want to clean them out. looks nice, though!
Yes you do need to replace them. That is where the carb gets clean air for the back side of the slide. If left out or damaged the carbs fill up with dirt and the slides and \or carb bodies can be damaged.
8541Hawk is offline
Old 09-17-2010, 01:32 AM
  #8
insane
Squid

V-king's Avatar

Join Date: Nov 2009
Location: Timisoara, Romania
Posts: 27
V-king is on a distinguished road
nice tune!
please someone can tell me where i can buy a flow commander?
a link or two.....
thank you!
V-king is offline
Old 09-17-2010, 02:06 AM
  #9
Mad Max NO Squid!
Squid
Thread Starter

skycam's Avatar

Join Date: Jun 2010
Location: Honolulu, Hawaii, 96789
Posts: 54
skycam is on a distinguished road
flow commander = http://flo-commander.com/
VStacks = http://www.a-lmotorsports.com/Produc...ty-stacks.aspx

too bad they are hidden under the tank
skycam is offline
Old 09-17-2010, 02:56 AM
  #10
Mad Max NO Squid!
Squid
Thread Starter

skycam's Avatar

Join Date: Jun 2010
Location: Honolulu, Hawaii, 96789
Posts: 54
skycam is on a distinguished road
8541Hawk

tell me more! please i cleaned the bits of degraded foam out of the area it was sticky and falling apart. what exactly does that foam filter do and why not just rely on the clean air of the main airbox area, i am confused.. sorry i thought it was a breather pipe or
skycam is offline
Old 09-17-2010, 03:07 AM
  #11
Out of my mind, back in 5
MotoGP

Tweety's Avatar

Join Date: Nov 2006
Location: Skurup, Sweden
Posts: 6,109
Tweety is on a distinguished road
Those small filters provide clean air to the slides in the carbs like Hawk8541 said... If you look at it there are a hole in the bottom of the airbox, and the top part of the little box separates them from the rest of the box... The reason is that they should have separate pressure to work...
Tweety is offline
Old 09-17-2010, 04:25 AM
  #12
Senior Member
SuperBike

Join Date: Aug 2009
Location: thorold ontario
Posts: 1,978
uchi is on a distinguished road
innovative makes one of the best widebands on the market. i had one in my turbo car and i loved it. infact i wish i had never sold it as id be using it on the bike right now. the problem with a wideband airfuel system is the cost, youre looking at an easy 400 for a cheap but decent setup. personlly if i were to buy one id buy a handheld unit, itll data log, i believe its cheaper to go that route then with the guage system, and this way you can rent it out to people who are tuning and make a few bucks back
uchi is offline
Old 09-17-2010, 10:55 AM
  #13
Banned
MotoGP

Join Date: Aug 2007
Location: Lake View Terrace, CA
Posts: 5,942
8541Hawk will become famous soon enough
Originally Posted by Tweety View Post
Those small filters provide clean air to the slides in the carbs like Hawk8541 said... If you look at it there are a hole in the bottom of the airbox, and the top part of the little box separates them from the rest of the box... The reason is that they should have separate pressure to work...
Exactly..... that is why the air filter has the 2 molded fitting on the bottom of it (or the rubber "blocks" like with a K&N filter). They plug into the part with the foam filter and make a separate chamber to supply clean air to the back sides of the slides.
8541Hawk is offline
