Modifications - Performance Discuss aftermarket and DIY performance modifications

900rr swing arm brace

Old 12-30-2011, 06:28 PM
  #1
Senior Member
SuperSport
Thread Starter

zmaniv's Avatar

Join Date: Jun 2008
Location: San Diego
Posts: 916
zmaniv is on a distinguished road
900rr swing arm brace

Hey looking for pics of the 900rr swing arm brace on the vtr Anyone got any?
zmaniv is offline
Old 12-30-2011, 07:06 PM
  #2
Senior Member
SuperSport

Join Date: Mar 2010
Location: Asheville, North Carolina
Posts: 886
1971allchaos is on a distinguished road
I got a lower braced (swinger) swingarm.. And I just got another 900rr swingarm that will be used to "FAB" another braced swingarm(This one will have the brace on the top) If you are still looking for pictures in a week or so to come... I should be able to post a few..
1971allchaos is offline
Old 12-30-2011, 08:00 PM
  #3
Banned
MotoGP

Join Date: Aug 2007
Location: Lake View Terrace, CA
Posts: 5,942
8541Hawk will become famous soon enough

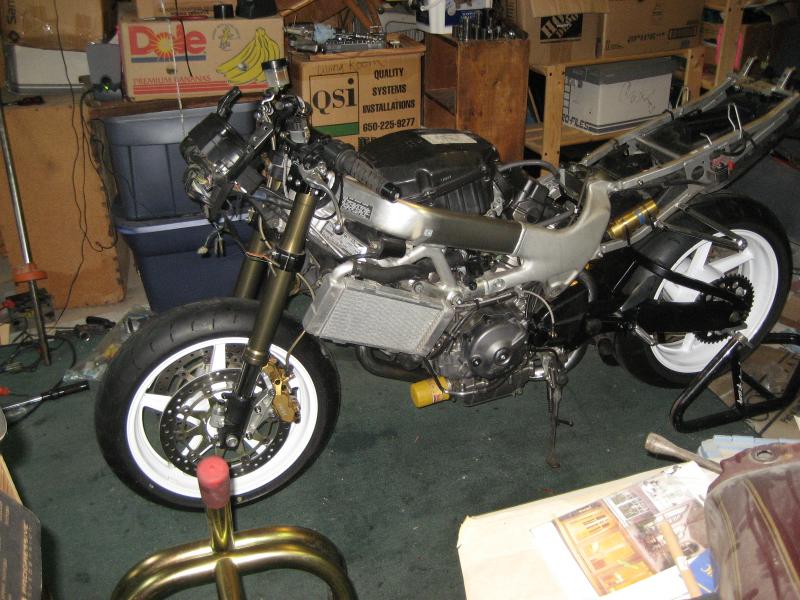

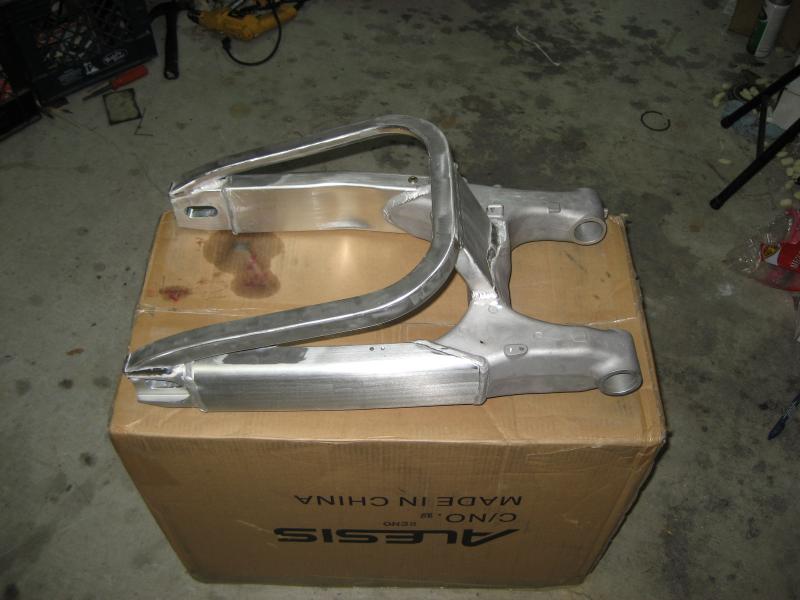

900rr swing arm brace-012.jpg

900rr swing arm brace-015.jpg

900rr swing arm brace-029.jpg
8541Hawk is offline
Old 12-31-2011, 03:51 PM
  #4
Senior Member
SuperSport
Thread Starter

zmaniv's Avatar

Join Date: Jun 2008
Location: San Diego
Posts: 916
zmaniv is on a distinguished road
Thanks
zmaniv is offline
Old 01-01-2012, 04:30 AM
  #5
Senior Member
Superstock

Join Date: Apr 2011
Location: Oak Harbor, Washington
Posts: 463
Squid is on a distinguished road
zmaniv, Sorry for thread jacking you here but 8541Hawk: If that is your swinger did the person put it in a jig when they welded it up for you and does it seem to be a common practice? Guys up here want an extra 100 just to put it in a jig and weld it up for me.
Squid is offline
Old 01-01-2012, 10:06 AM
  #6
Banned
MotoGP

Join Date: Aug 2007
Location: Lake View Terrace, CA
Posts: 5,942
8541Hawk will become famous soon enough
Originally Posted by Squid View Post
zmaniv, Sorry for thread jacking you here but 8541Hawk: If that is your swinger did the person put it in a jig when they welded it up for you and does it seem to be a common practice? Guys up here want an extra 100 just to put it in a jig and weld it up for me.

There was no jig used on mine.

The brace was tack welded on, I then took it home and did the test fit.

After that I took it back and he finished the welds.
8541Hawk is offline
Old 01-01-2012, 10:17 AM
  #7
Senior Member
SuperSport
Thread Starter

zmaniv's Avatar

Join Date: Jun 2008
Location: San Diego
Posts: 916
zmaniv is on a distinguished road
8541hawk do you know the al composition is it 6061 or 7075?
I plan on removing my rear wheel from my spare bike to mock up the rear brake boss and brace.
zmaniv is offline
Old 01-01-2012, 10:51 AM
  #8
Banned
MotoGP

Join Date: Aug 2007
Location: Lake View Terrace, CA
Posts: 5,942
8541Hawk will become famous soon enough
Originally Posted by zmaniv View Post
8541hawk do you know the al composition is it 6061 or 7075?
I plan on removing my rear wheel from my spare bike to mock up the rear brake boss and brace.
That is something I don't know.
8541Hawk is offline
Old 01-01-2012, 12:15 PM
  #9
Senior Member
Back Marker

2whltuner's Avatar

Join Date: Jun 2010
Posts: 228
2whltuner is on a distinguished road
900rr swingarm brace

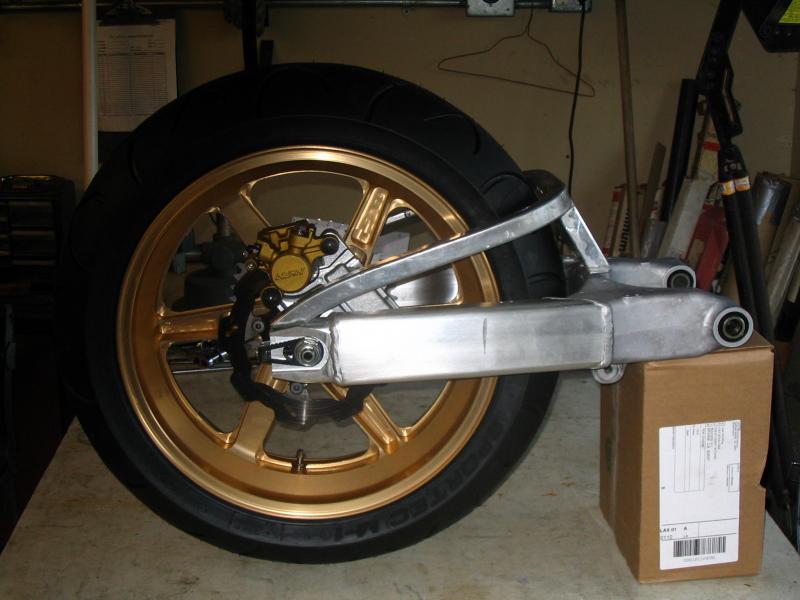

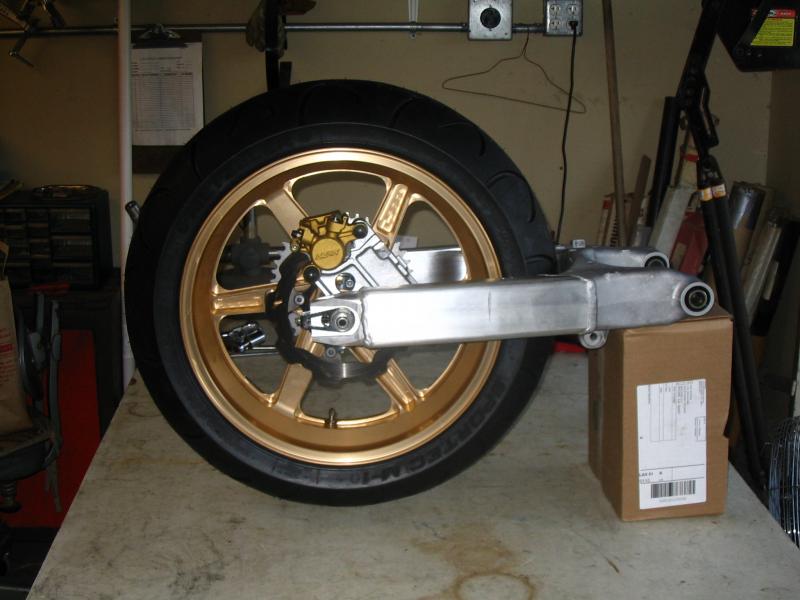

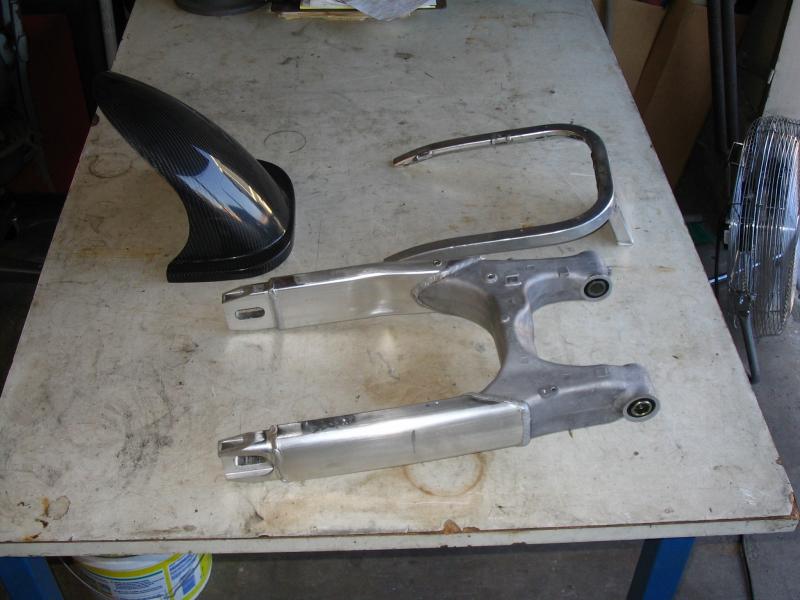

900rr swing arm brace-img_0394.jpg

900rr swing arm brace-img_0395.jpg

900rr swing arm brace-img_0396.jpg

900rr swing arm brace-img_0397.jpg
2whltuner is offline
Old 01-01-2012, 12:25 PM
  #10
Banned
MotoGP

Join Date: Aug 2007
Location: Lake View Terrace, CA
Posts: 5,942
8541Hawk will become famous soon enough
Does the front of the brace hang into the shock area?

It might just be the pics but it does look like your brace is a bit too far forward.

Also have you run into problems not dishing out the shock cut out area?

On mine I needed to do it so the shock wouldn't hit when bottomed.
8541Hawk is offline
Old 01-02-2012, 02:23 AM
  #11
Senior Member
Back Marker

Revelation's Avatar

Join Date: Jul 2010
Location: Netherlands
Posts: 102
Revelation is on a distinguished road
Still to be powdercoated black






Last edited by Revelation; 01-02-2012 at 02:25 AM.
Revelation is offline
Old 01-02-2012, 06:14 PM
  #12
Senior Member
Back Marker

2whltuner's Avatar

Join Date: Jun 2010
Posts: 228
2whltuner is on a distinguished road
Does the front of the brace hang into the shock area?

It might just be the pics but it does look like your brace is a bit too far forward.

Also have you run into problems not dishing out the shock cut out area?

On mine I needed to do it so the shock wouldn't hit when bottomed.

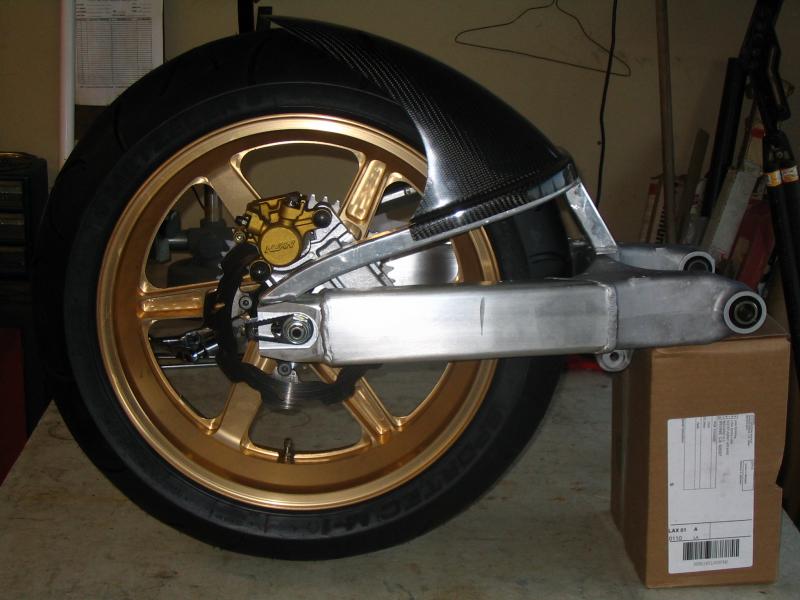

yeah it appears that the front of the brace hangs out there, this picture #0397 was before the weld up, I used the installed wheel assy as my jig with everything torqed to spec,

yes I did "dish in" the front of the brace to conform with the shock cutout on the swingarm in order to clear the shock on bottom out.
2whltuner is offline
Old 01-03-2012, 12:09 AM
  #13
Senior Member
Back Marker

Revelation's Avatar

Join Date: Jul 2010
Location: Netherlands
Posts: 102
Revelation is on a distinguished road
Originally Posted by 2whltuner View Post
Does the front of the brace hang into the shock area?
yeah it appears that the front of the brace hangs out there, this picture #0397 was before the weld up, I used the installed wheel assy as my jig with everything torqed to spec,

yes I did "dish in" the front of the brace to conform with the shock cutout on the swingarm in order to clear the shock on bottom out.
I also cut away a bit in the front to go around the shock.
Hopefully it will be less visible when everything is black.
Revelation is offline
Old 01-03-2012, 10:40 AM
  #14
Banned
MotoGP

Join Date: Aug 2007
Location: Lake View Terrace, CA
Posts: 5,942
8541Hawk will become famous soon enough
Originally Posted by Revelation View Post
I also cut away a bit in the front to go around the shock.
Hopefully it will be less visible when everything is black.
Well what I don't like on your set up is how you take the front box section, where it welds to the swingarm, and cut it so you only have the back wall left.

It is easier to mount that way but, IMHO, you lose a lot of structural integrity with that method. Unlike the box section, the single wall should be able to twist under load

I'm not a structural engineer or anything but that is why I mounted mine the way I did.
8541Hawk is offline
Old 01-03-2012, 01:36 PM
  #15
Senior Member
SuperSport
Thread Starter

zmaniv's Avatar

Join Date: Jun 2008
Location: San Diego
Posts: 916
zmaniv is on a distinguished road
8541hawk so you also cut off the center part and flipped it?
zmaniv is offline
Old 01-03-2012, 01:58 PM
  #16
Wild Man
Back Marker

Matt_Hawk's Avatar

Join Date: Oct 2011
Location: California Central Coast
Posts: 189
Matt_Hawk is on a distinguished road
Man, that Aprilia subframe and tail cowl looks awesome.
how did you get to fit?
Matt_Hawk is offline
Old 01-03-2012, 03:38 PM
  #17
Banned
MotoGP

Join Date: Aug 2007
Location: Lake View Terrace, CA
Posts: 5,942
8541Hawk will become famous soon enough
Originally Posted by zmaniv View Post
8541hawk so you also cut off the center part and flipped it?
No I didn't cut the center off. I left the box section the way it came except for the cut out needed for the shock.

If you look at the pics Revelation posted, you can see where that brace was cut so only the back wall of the box section is welded to the swingarm and then an angled plate was welded on the front to close the box section back up.

This type of mounting will allow the brace to flex, which is not a good thing IMHO.....

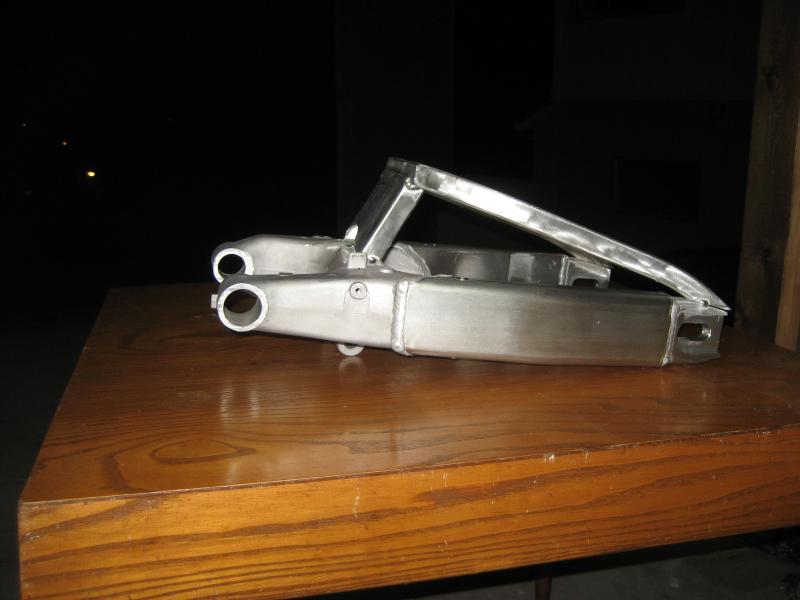

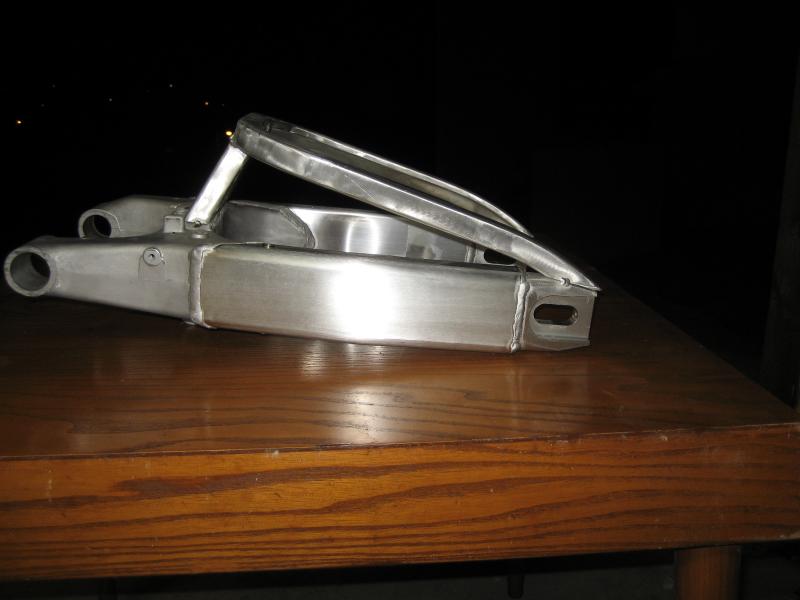

Here are the pics from when it was just tacked together to test for interference.

900rr swing arm brace-032.jpg

900rr swing arm brace-035.jpg

900rr swing arm brace-036.jpg
8541Hawk is offline
Old 01-03-2012, 04:07 PM
  #18
Senior Member
SuperSport
Thread Starter

zmaniv's Avatar

Join Date: Jun 2008
Location: San Diego
Posts: 916
zmaniv is on a distinguished road
That's strange my brace looks like revelations. Looks like two squares joined by a plate and the cavity between the two faces the shock.
zmaniv is offline
Old 01-03-2012, 04:27 PM
  #19
Banned
MotoGP

Join Date: Aug 2007
Location: Lake View Terrace, CA
Posts: 5,942
8541Hawk will become famous soon enough
Originally Posted by zmaniv View Post
That's strange my brace looks like revelations. Looks like two squares joined by a plate and the cavity between the two faces the shock.
That would be a later model brace than the one I used but it mounts the same way.

If you look at the first photo that Rev posted you can see what I'm talking about with the only welding the rear wall of the center section to the swingarm.

It would be like if you took your square sections, that you have, and only welded the rear wall of them to the swingarm. Then cut them at an angle to clear the shock (and so they don't just stick out into open space) and then box up the now open sections.

IMHO for the brace to function properly the whole center section, whether the two square legs or the rectangular layout, should be welded to the swingarm.
8541Hawk is offline
