Modifications - Performance Discuss aftermarket and DIY performance modifications

1000RR front end on-bike TRANSFORMED!

Old 07-04-2010, 12:33 AM
  #1
Senior Member
MotoGP
Thread Starter

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 4,924
smokinjoe73 is on a distinguished road
1000RR front end on-bike TRANSFORMED!

So I am on the road with the 1000RR front end. I did it with the RR triples & it only required a tiny bit of cut on the lower part of the fairing, none on the upper. The brakes are rediculous; one finger from any speed. On my normal ride to work I cant figure where all the bumps went. I have the spring preload at almost none & just tweaked the damping. The bike turns like it knows my thoughts. Doesnt fall into the turn like it used to. Rock solid motogp handling. As good as any of my 3 racebikes. My other hawk has racetech & this buries it. I cant figure out how I am even writing this because I dont want to get off the bike........... I used 3" rise bars that I found on ebay by just searching "50mm bars" for $25!!! God really wanted me to have this project work. I used to want a ducati but not anymore; this is it. Pics to come
smokinjoe73 is offline
Old 07-04-2010, 02:55 AM
  #2
Senior Member
Back Marker

Join Date: Jul 2009
Location: Santa Cruz, CA
Posts: 117
Karbon is on a distinguished road
awesome!

please do a full descrip. of what you did and components thanks!
Karbon is offline
Old 07-04-2010, 08:33 AM
  #3
Junior Member
Squid

Join Date: Oct 2009
Posts: 21
2Smoker is on a distinguished road
so you like it then?



hehe....
2Smoker is offline
Old 07-04-2010, 09:35 AM
  #4
Senior Member
MotoGP
Thread Starter

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 4,924
smokinjoe73 is on a distinguished road
Ya think?
smokinjoe73 is offline
Old 07-04-2010, 11:50 AM
  #5
Banned
MotoGP

Join Date: Aug 2007
Location: Lake View Terrace, CA
Posts: 5,942
8541Hawk will become famous soon enough
Swapping the front end does do wonders for the bike. Have you braced the swingarm yet? If not, you should really put it on your list of things to do as it brings the rear up to par with the front.
8541Hawk is offline
Old 07-04-2010, 09:30 PM
  #6
Senior Member
MotoGP
Thread Starter

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 4,924
smokinjoe73 is on a distinguished road
Acually hadn't thought of or planned that but I did get a penske shock. I am still dialing in the whole thing. I have been riding it to work so I had to rig luggage on it. Instead of the whole givi rack like my other bike I just bolted a givi plate onto the passenger seat. I also have to do the TPS mod since someone "tuned" this bike I just got for all top end & no off idle torque. Guess they wanted a 600 but I want my bottom end...
smokinjoe73 is offline
Old 07-04-2010, 10:08 PM
  #7
Senior Member
Back Marker

Red_Liner740's Avatar

Join Date: Jul 2008
Location: Toronto, Ontario
Posts: 243
Red_Liner740 is on a distinguished road
aaagh dont tell me this! i got an entire GSXR1000 front end in my shed while i debate to put it on or just sell it. i have an F4i front end on it, but i'm not satisfied....thing is, how much better can the front get with the rear staying stock? hard decision this...

especially since g/f's sv650 already has a gsxr600 front end on it and i absolutely LOVE the brakes on that thing....LOVE!
Red_Liner740 is offline
Old 07-06-2010, 10:25 PM
  #8
Senior Member
MotoGP
Thread Starter

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 4,924
smokinjoe73 is on a distinguished road

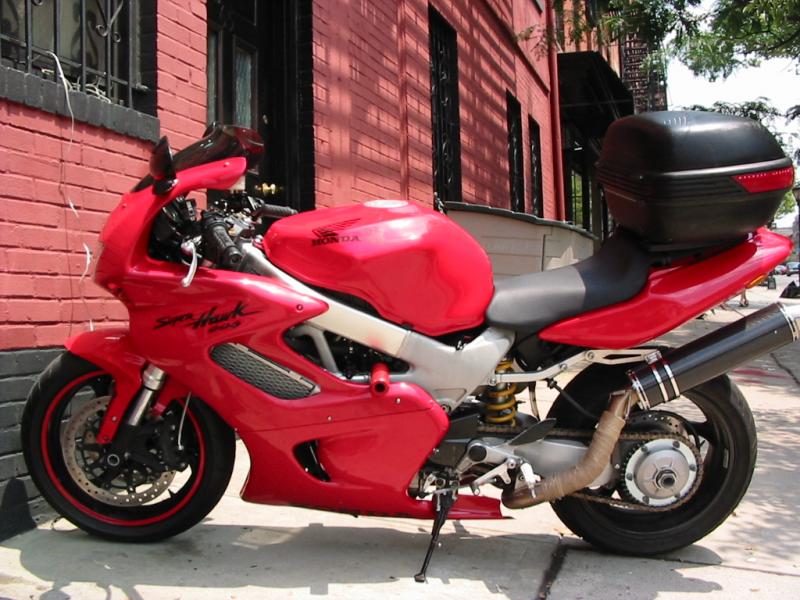

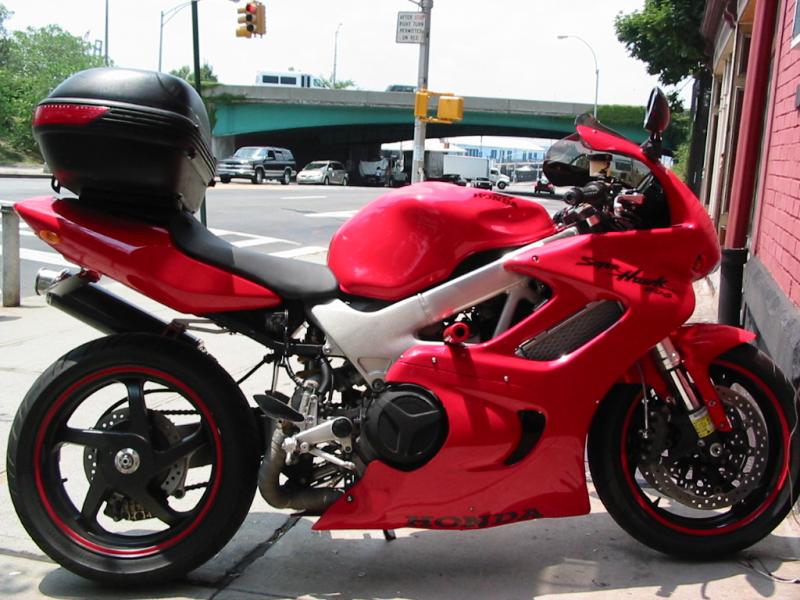

So here is the bike so far. Great handling, comfortable position. Had to carry stuff to work so I bolted a GIVI baseplate onto an extra seat I had. This bike now handles like my SV650 but less wallowy & tons more rip. SV is still a better race bike but for the street this is great.
Attached Thumbnails 1000RR front end on-bike TRANSFORMED!-july4-2010-bearmtn-011.jpg   1000RR front end on-bike TRANSFORMED!-july4-2010-bearmtn-012.jpg
smokinjoe73 is offline
Old 07-06-2010, 10:44 PM
  #9
Banned
MotoGP

Join Date: Aug 2007
Location: Lake View Terrace, CA
Posts: 5,942
8541Hawk will become famous soon enough
Didn't realize you have a VFR swingarm on your bike, so bracing the swingarm is not really applicable in your case.
8541Hawk is offline
Old 07-06-2010, 11:23 PM
  #10
Member
Squid

Join Date: Jul 2009
Posts: 48
midwest22 is on a distinguished road
I realize this is a subjective question but can you please describe how difficult it was to do this swap? Also, do you have pics of the triple tree? Did you reuse the superhawk key or the CBR?
midwest22 is offline
Old 07-06-2010, 11:57 PM
  #11
Senior Member
MotoGP
Thread Starter

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 4,924
smokinjoe73 is on a distinguished road

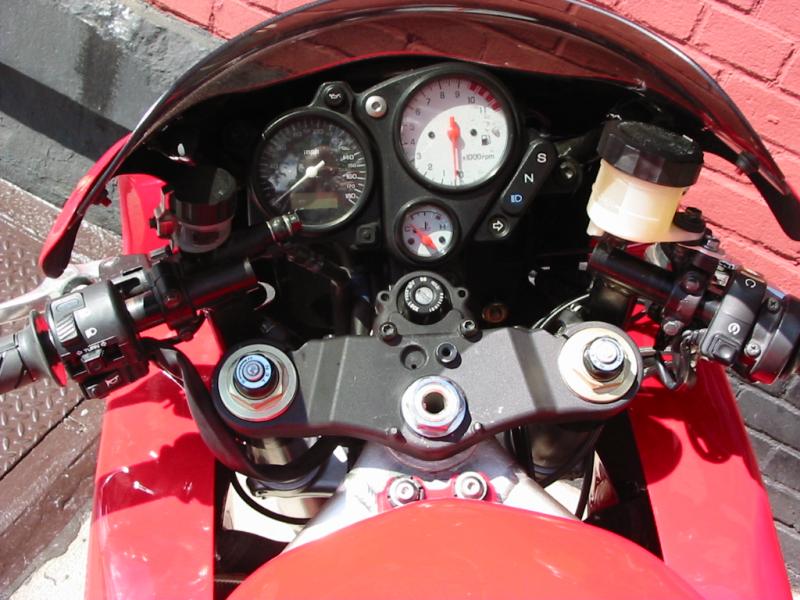

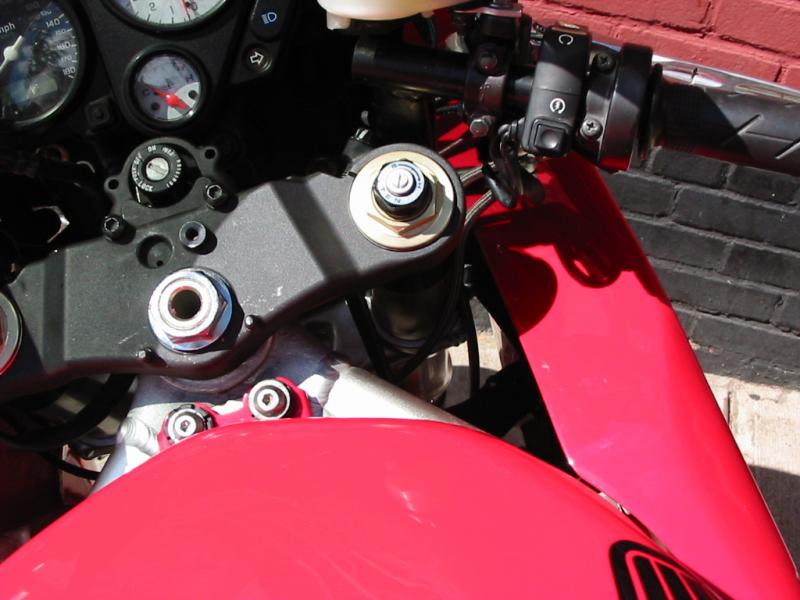

I have to say it being all honda stuff it was pretty easy. I have done alot of head bearings on racebikes over the years so if you do the freezer/ heat method they go on easy (I would recommend tapered rollers even on a stock set-up). I bought the parts over the winter pretty cheap (join a bunch of CBR forums). I assembled the whole front end in my living room, bled the brakes, etc so it was ready to put on. The installation only took an afternoon if you dont count the time spent stripping fairing. Figure a weekend. A bit of time for all the other tweaks like controls. The old ignition just bolts right in. Like I said the turning radius is comprimised in tight walking speed left turns but I have an F4 master on the way. This is the way honda meant to do this bike. I mean it is a SUPERhawk right? How did it loose the single sided swingarm of the hawk & not get USD adjustable forks?
Attached Thumbnails 1000RR front end on-bike TRANSFORMED!-race-6.15.10-cieling-leak-120.jpg   1000RR front end on-bike TRANSFORMED!-race-6.15.10-cieling-leak-121.jpg
smokinjoe73 is offline
Old 07-07-2010, 12:28 AM
  #12
Junior Member
Squid

buckets's Avatar

Join Date: Jul 2010
Location: Australia
Posts: 1
buckets is on a distinguished road
Looking at doing this myself having found a cheap 2007 CBR100RR front end cheap. Is it a problem going for such late model??
buckets is offline
Old 07-07-2010, 08:43 AM
  #13
Senior Member
SuperBike

RCVTR's Avatar

Join Date: Dec 2005
Location: South Lake Tahoe, CA, USA
Posts: 1,689
RCVTR is an unknown quantity at this point
Originally Posted by smokinjoe73 View Post
How did it not get USD adjustable forks?
I knew you would eventually see the light.

I believe Honda built the Super Hawk as a cheap testbed for their L-Twin superbike project. I don't think they expected to sell many to sportbike enthusiasts. And equipping it the way they did guaranteed a self-fulfilling prophecy. But it is a lot of fun to build it up to be what it should have been!
RCVTR is offline
Old 07-07-2010, 08:58 AM
  #14
Junior Member
Squid

Join Date: Apr 2010
Posts: 17
seanvtr is on a distinguished road
could you list all the parts you needed for the conversion please, im think along the same route
seanvtr is offline
Old 07-07-2010, 09:24 AM
  #15
Senior Member
MotoGP
Thread Starter

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 4,924
smokinjoe73 is on a distinguished road
Well 1) CBR front end 2) All ***** tapered roller bearing set 3) 50mm handlebars with 3" rise. Thats it
smokinjoe73 is offline
Old 07-07-2010, 10:20 AM
  #16
Army Aviation
Squid

Join Date: Aug 2009
Location: Colorado Springs. Colorado
Posts: 55
Firefly is on a distinguished road
Originally Posted by smokinjoe73 View Post
Well 1) CBR front end 2) All ***** tapered roller bearing set Thats it
For the other streetfighter enthusiasts.
________
N Series Tractors

Last edited by Firefly; 02-27-2011 at 04:49 PM.
Firefly is offline
Old 07-07-2010, 11:27 AM
  #17
Out of my mind, back in 5
MotoGP

Tweety's Avatar

Join Date: Nov 2006
Location: Skurup, Sweden
Posts: 6,109
Tweety is on a distinguished road
Originally Posted by seanvtr View Post
could you list all the parts you needed for the conversion please, im think along the same route
Or if you don't like the above reply you could use that secret forum function that only us oldtimers know about that lets you find older threads... Specificly those containing titles like "fork swap" or "front end swap" or "CBR fork"...
Tweety is offline
Old 07-07-2010, 11:30 AM
  #18
Senior Member
MotoGP

mikstr's Avatar

Join Date: Apr 2005
Location: Montreal
Posts: 5,560
mikstr is on a distinguished road
Originally Posted by Tweety View Post
Or if you don't like the above reply you could use that secret forum function that only us oldtimers know about that lets you find older threads... Specificly those containing titles like "fork swap" or "front end swap" or "CBR fork"...
and what secret function might that be Markus? lol
mikstr is online now
Old 07-07-2010, 11:45 AM
  #19
Out of my mind, back in 5
MotoGP

Tweety's Avatar

Join Date: Nov 2006
Location: Skurup, Sweden
Posts: 6,109
Tweety is on a distinguished road
What?! You gonna make me say the magic word... Huh?!
Tweety is offline
Old 07-07-2010, 12:15 PM
  #20
Banned
MotoGP

Join Date: Aug 2007
Location: Lake View Terrace, CA
Posts: 5,942
8541Hawk will become famous soon enough
Originally Posted by Tweety View Post
What?! You gonna make me say the magic word... Huh?!
No just wondering why you are being so nice about it........ it's not like it's all that hard to find the magic button......
8541Hawk is offline
Old 07-07-2010, 12:23 PM
  #21
Out of my mind, back in 5
MotoGP

Tweety's Avatar

Join Date: Nov 2006
Location: Skurup, Sweden
Posts: 6,109
Tweety is on a distinguished road
Um... I just took a nice little ride around the block... 180 miles or so... Not a single straight over half a mile long... One small dip in the ocean, one ice cream, one pizza... Girl on the back... Feeling good...
Tweety is offline
Old 07-07-2010, 01:02 PM
  #22
Banned
MotoGP

Join Date: Aug 2007
Location: Lake View Terrace, CA
Posts: 5,942
8541Hawk will become famous soon enough
Originally Posted by Tweety View Post
Um... I just took a nice little ride around the block... 180 miles or so... Not a single straight over half a mile long... One small dip in the ocean, one ice cream, one pizza... Girl on the back... Feeling good...
That explains everything......
8541Hawk is offline
