Etching my swingarm

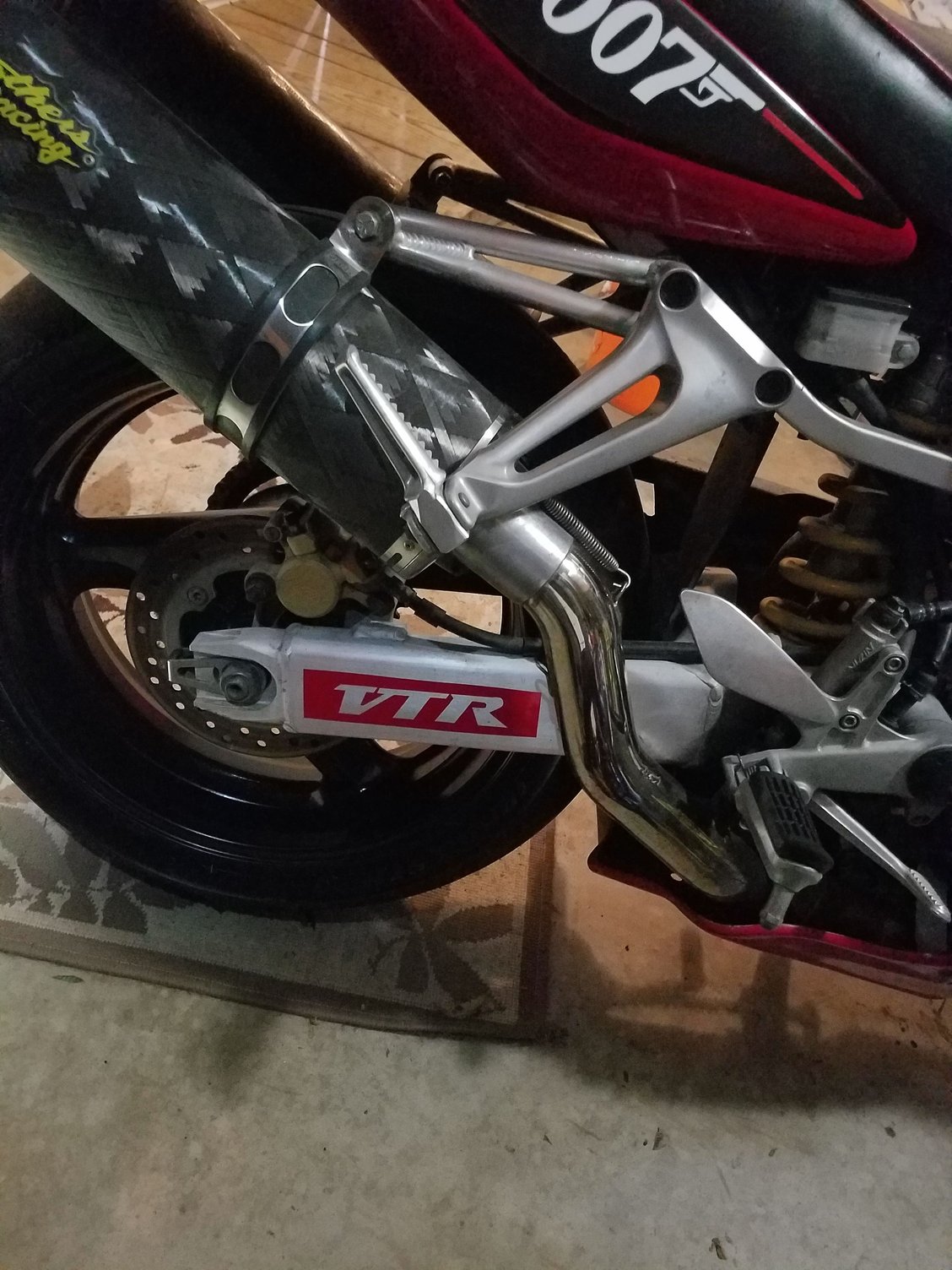

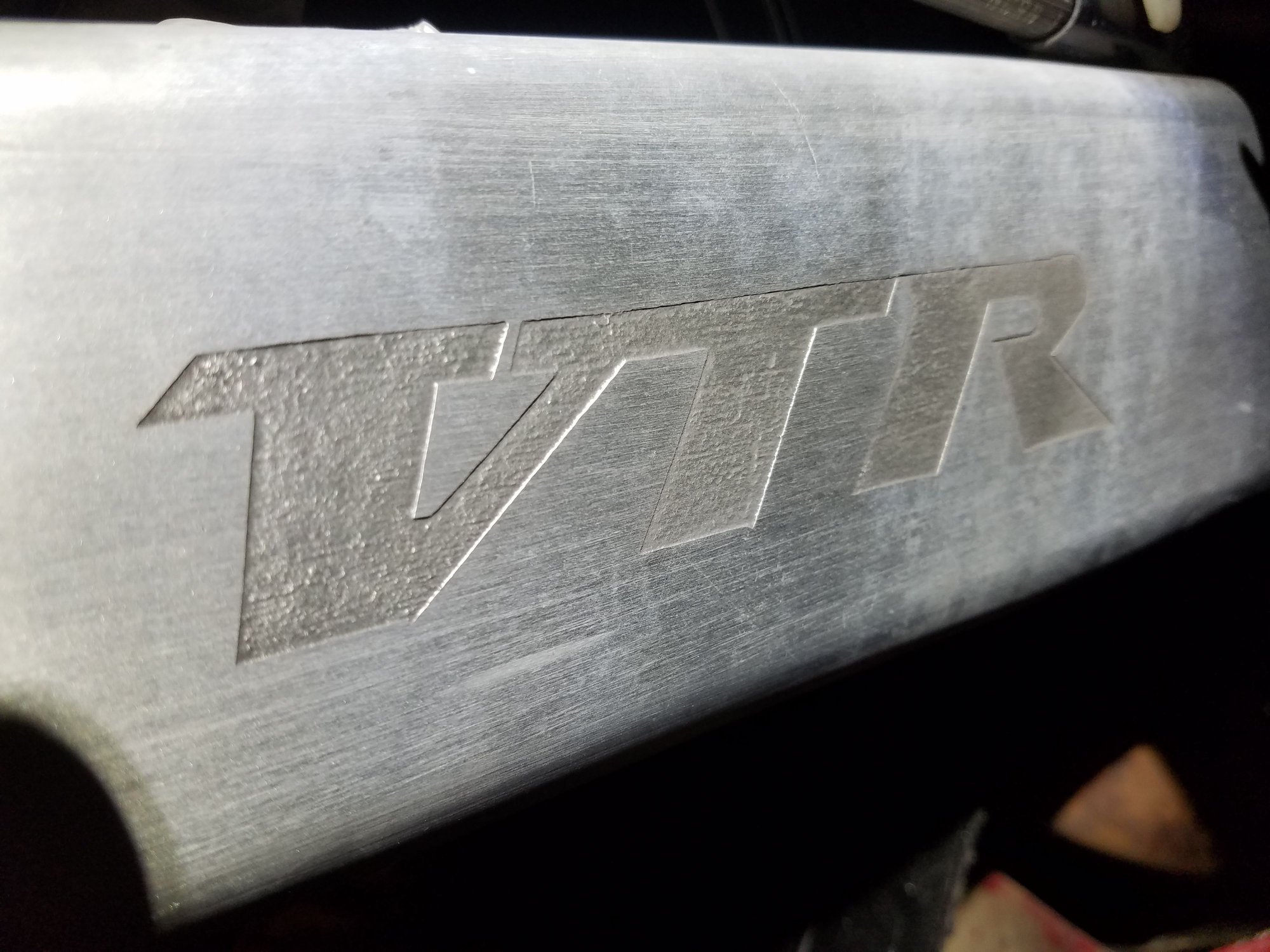

Has anyone thought of etching parts on their bike? I looked online and didn't see anything. I've done knives and such in the past. Decided to try it on the bike and it turned out OK I think. Shoot me some feedback, all it takes is a battery charger, steel wool and saltwater.


Bigbondo007 is offline   Reply With Quote
Old 10-28-2017, 07:28 AM   #2
Moderator
MotoGP

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 3,465
E.Marquez is on a distinguished road
It looks ok, and just me perhaps, but all can think of when i see that is, "wear" I wold be looking at to decide if the part was still serviceable . I see the protective anodize coating gone.


It does look unique and I kind of like it, but Im too much of a mechanic, machinist, pretend engineer to let it go at "It does look good" , and it does.
E.Marquez is offline   Reply With Quote
Old 10-28-2017, 07:34 AM   #3
Junior Member
Squid
Thread Starter

Join Date: Oct 2017
Posts: 19
Bigbondo007 is on a distinguished road
Quote:
Originally Posted by E.Marquez View Post
It looks ok, and just me perhaps, but all can think of when i see that is, "wear" I wold be looking at to decide if the part was still serviceable . I see the protective anodize coating gone.


It does look unique and I kind of like it, but Im too much of a mechanic, machinist, pretend engineer to let it go at "It does look good" , and it does.
I'm not that worried about a wear issue, I've seen cast aluminum auto parts I.e. Cylinder heads/mc's/control arms last 20+ years corrosion free. I'm in salt free South Central GA.
E.Marquez likes this.
Bigbondo007 is offline   Reply With Quote
Old 10-28-2017, 07:39 AM   #4
Senior Member
SuperBike

xeris's Avatar

Join Date: Sep 2010
Location: Bisbee, AZ
Posts: 1,256
xeris is on a distinguished road
HUH! That is very interesting. Your finished results look good. I'm a bit surprised at the consistancy of the depth of the etch. A new twist on graphics.
BTY tell me you didn't learn this technique at Gitmo.
xeris is offline   Reply With Quote
Old 10-28-2017, 07:45 AM   #5
Junior Member
Squid
Thread Starter

Join Date: Oct 2017
Posts: 19
Bigbondo007 is on a distinguished road
Quote:
Originally Posted by xeris View Post
HUH! That is very interesting. Your finished results look good. I'm a bit surprised at the consistancy of the depth of the etch. A new twist on graphics.
BTY tell me you didn't learn this technique at Gitmo.

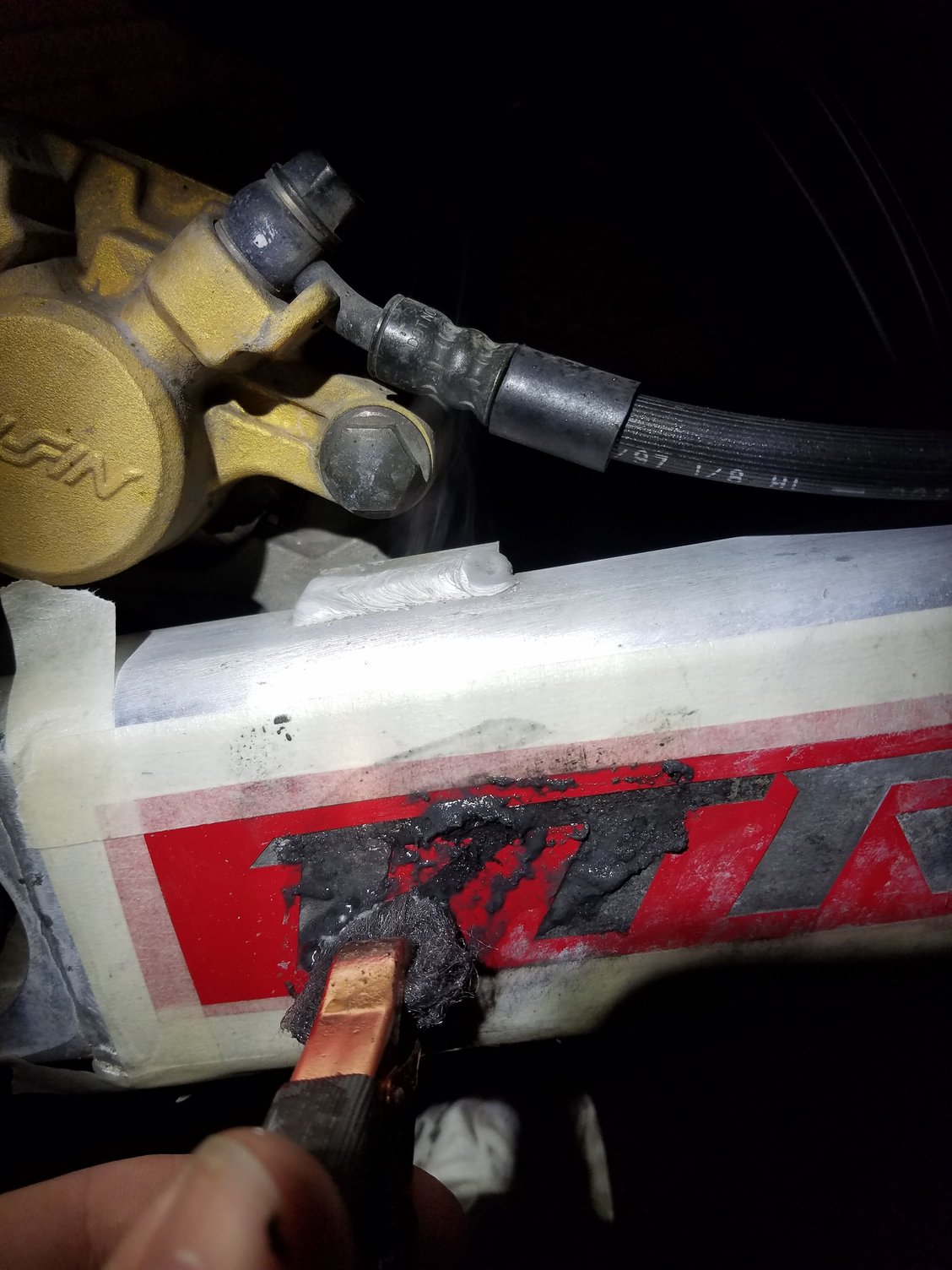

It's nothing but running your fingers over the surface every few seconds. BTW on steel parts use a q tip or cotton ***** dipped in salt water since steel is more conductive, steel wool on aluminum. But keep the steel wool soaking wet to reduce sparks. Mask off surrounding areas well to keep other areas from etching from running saline solution.
Bigbondo007 is offline   Reply With Quote
Old 10-28-2017, 01:02 PM   #6
Senior Member
SuperBike

kenmoore's Avatar

Join Date: Mar 2012
Location: New South Wales Australia
Posts: 1,414
kenmoore is on a distinguished road
Very clever and unique !

I like the look .

Can you post a pic of the whole bike so I can see how it looks in relation to the rest of your bike Please.
kenmoore is offline   Reply With Quote
Old 10-28-2017, 01:48 PM   #7
Junior Member
Squid
Thread Starter

Join Date: Oct 2017
Posts: 19
Bigbondo007 is on a distinguished road
Quote:
Originally Posted by kenmoore View Post
Very clever and unique !

I like the look .

Can you post a pic of the whole bike so I can see how it looks in relation to the rest of your bike Please.
Thanks, painting calipers black as we speak.
Ignore the handguards, they're just for winter.
kenmoore likes this.
Bigbondo007 is offline   Reply With Quote
Old 10-28-2017, 03:20 PM   #8
Senior Member
SuperBike

kenmoore's Avatar

Join Date: Mar 2012
Location: New South Wales Australia
Posts: 1,414
kenmoore is on a distinguished road
Nice looking bike,

Attention to detail , clean and functional.

What else do you have planned?
kenmoore is offline   Reply With Quote
Old 10-28-2017, 03:23 PM   #9
Junior Member
Squid
Thread Starter

Join Date: Oct 2017
Posts: 19
Bigbondo007 is on a distinguished road
As for now I'm not sure. Waiting on a windscreen, levers, single seat cowl, and fork adjusters, and a rectifier.
Bigbondo007 is offline   Reply With Quote
Old 11-04-2017, 08:36 AM   #10
Junior Member
Squid
Thread Starter

Join Date: Oct 2017
Posts: 19
Bigbondo007 is on a distinguished road

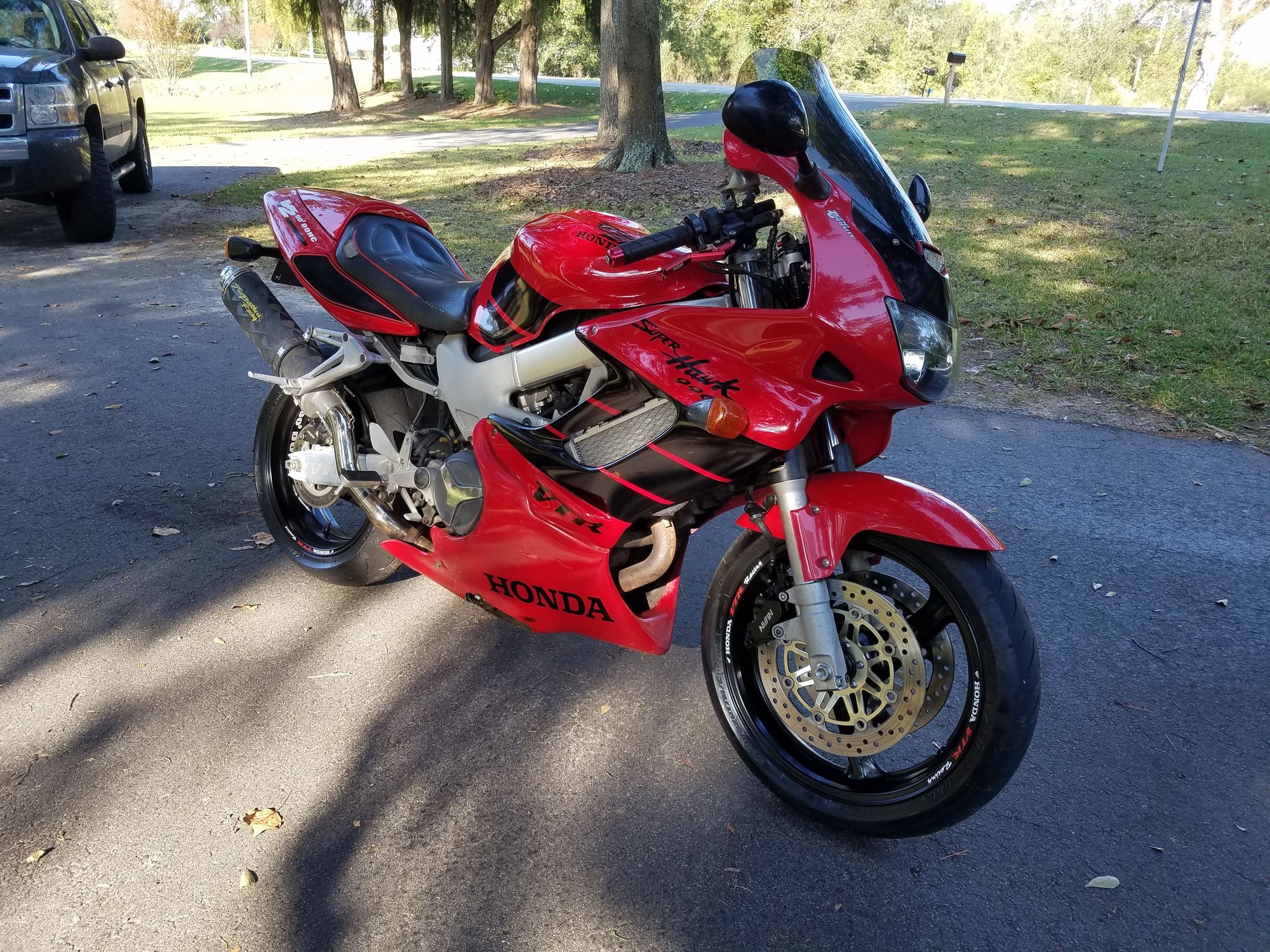

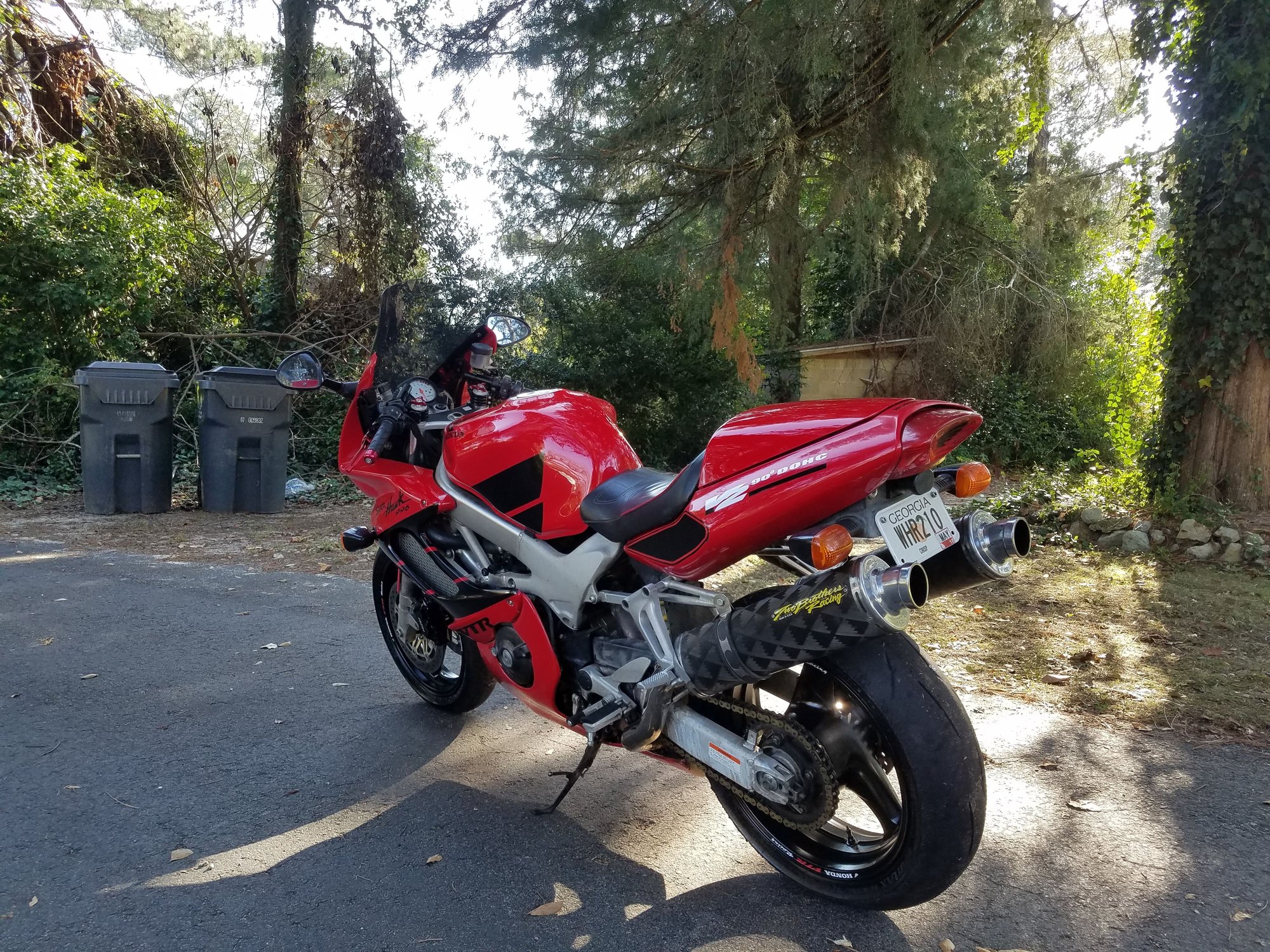

The road so far





ZG windscreen, clip ons, adjustable levers, bar ends, rebound adjusters, Honda seat cowl. Obviously there's a fade issue with the old fairing, should I just mask part of the cowl black?
Bigbondo007 is offline   Reply With Quote
Old 11-04-2017, 11:15 AM   #11
Thread Killer
SuperBike

Join Date: Apr 2013
Location: Geneseo, IL
Posts: 1,475
VTR1000F is on a distinguished road
Looking good. How sturdy are the rear pegs spaced out like that? I've been considering doing the same with TBR hangers, but have been concerned about them holding up to a passenger climbing on & off.
VTR1000F is offline   Reply With Quote
Old 11-04-2017, 11:17 AM   #12
Junior Member
Squid
Thread Starter

Join Date: Oct 2017
Posts: 19
Bigbondo007 is on a distinguished road
Quote:
Originally Posted by VTR1000F View Post
Looking good. How sturdy are the rear pegs spaced out like that? I've been considering doing the same with TBR hangers, but have been concerned about them holding up to a passenger climbing on & off.
They'd have to snap a grade 10 bolt to break em, and the inside would touch the cans before that. But I haven't had any issues as yet.
Bigbondo007 is offline   Reply With Quote
Old 11-06-2017, 11:04 AM   #13
Senior Member
Superstock

VTRDarren's Avatar

Join Date: Jan 2005
Location: Western NY
Posts: 281
VTRDarren
Quote:
Originally Posted by Bigbondo007 View Post
They'd have to snap a grade 10 bolt to break em, and the inside would touch the cans before that. But I haven't had any issues as yet.
years ago (previous vtr) I had the spaced out oem pegs like yours, never had a problem. At some point I recall finding a set of gsxr600 passenger pegs that had a different shape, allowing for a good fitment with the high mount pipes. I had to reem out the holes just a little bit and then they fit. Does anyone else recall this mod?
