1/2 done paint

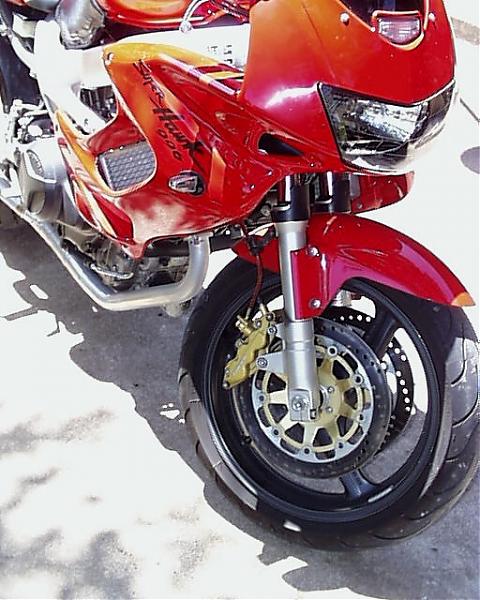

Here's a some pics of mine from start to where it stands this morning. Still have flames and other graphics to paint on, along with SuperHawk down the fairing and 996 on the cowl, both in Harliquin paint....changes colors. Some other misc. highlights here and there on fenders and fairings...
Attachment 2866
Attachment 2867
Attachment 2868
Attachment 2869
Attachment 2870
Attachment 2866
Attachment 2867
Attachment 2868
Attachment 2869
Attachment 2870
04-01-2007, 03:58 PM
#5
Senior Member
Back Marker
Thread Starter
Join Date: Jun 2006
Location: Ohio
Posts: 121
Well, I'll have about $800-900 in materials (primer, paint, sealers, clears, flake additives, etc.). My brother-in-law does this on the side, he has had 2 vans featured in Truckin' Magazine, and a Barracuda in Car Craft. One of the vans won 2nd out of around 3000 in a competition out west years ago. He has also done many "cough" Harley's, and other bikes, cars, trucks, pulling tractors, even did a give-away car (Camaro I think) for Summit racing. I have done some painting myself, but don't have his talent. It's a gift, and these pics don't do it ANY justice.
It is House Of Kolor paint, custom mix of red and tangerine basecoat. Long process to get it to this point. 3 previous owners laid her down, not bad, but messed up the plastic as you can see in the first pic.
The flames will fade from silver/ yellow/ orange/ red/ blue on front of fairing and tank. Going to also put a few purple flakes in the final clear over everything, along with gold pearl. There will be "panels" and other effects done on the fairings and fenders. Will have SuperHawk running in stacked letters down the front part of each fairing and 996 on seat cowl in Harliquin paint, just not sure what colors we are going to put in it yet to change between. Depending on where you look at it and where the light source is, it will appear to change colors in front of your eyes as you move around it.
I will post more pis when it's done. He told me this afternoon it should be ready in 2-3 weeks. I polished the frame and swingarm, not sure what I'm doing with the wheels yet, either chrome them or polish outer lips and paint inner to match bike. Hope that is what you wanted, if not, let me know specifics of what you want to know.....of course, there are "trade secrets" I swore not to tell about....
....but I will try to help.
It is House Of Kolor paint, custom mix of red and tangerine basecoat. Long process to get it to this point. 3 previous owners laid her down, not bad, but messed up the plastic as you can see in the first pic.
The flames will fade from silver/ yellow/ orange/ red/ blue on front of fairing and tank. Going to also put a few purple flakes in the final clear over everything, along with gold pearl. There will be "panels" and other effects done on the fairings and fenders. Will have SuperHawk running in stacked letters down the front part of each fairing and 996 on seat cowl in Harliquin paint, just not sure what colors we are going to put in it yet to change between. Depending on where you look at it and where the light source is, it will appear to change colors in front of your eyes as you move around it.
I will post more pis when it's done. He told me this afternoon it should be ready in 2-3 weeks. I polished the frame and swingarm, not sure what I'm doing with the wheels yet, either chrome them or polish outer lips and paint inner to match bike. Hope that is what you wanted, if not, let me know specifics of what you want to know.....of course, there are "trade secrets" I swore not to tell about....
....but I will try to help.
04-21-2007, 10:41 AM
#10
Senior Member
Back Marker
Thread Starter
Join Date: Jun 2006
Location: Ohio
Posts: 121
Another quick update....still going slow, but another pic to show......the spots are water spots form wet sanding....but here's the flames on the tank, minus the highlight pinstripe and drop shadow.
04-21-2007, 06:12 PM
#13
Senior Member
Superstock
Join Date: Jan 2007
Location: Ranson, WV
Posts: 276
That's an awesome paint job. I'm looking forward to seeing you post pics of the whole bike. I have a special appreciation for nice paint jobs since my previous hobby was antique cars, although my father and I only did original restorations. Your paint job is sick!
04-23-2007, 11:39 AM
#14
Senior Member
Back Marker
Thread Starter
Join Date: Jun 2006
Location: Ohio
Posts: 121
Thanks guys......all those late nights are finally starting to pay off! Should be ready to reassemble in about 2 weeks. Still have pinstriping and airbrush work to do. Put the Harliquin (color change) paint on last night. Finished polishing frame and wheels 2 nights ago, also made some one-off muffler brackets, camera mount for tank, guards for radiator, intake duct guards, a bunch of LED lighting and strobe effects, and a few other misc parts I made at work. Will post some pics when she's done. Thanks for the help/ support from everyone who answered some of my questions also!
04-26-2007, 12:08 PM
#16
Senior Member
Back Marker
Thread Starter
Join Date: Jun 2006
Location: Ohio
Posts: 121
Well, paint will be done in one week, but I am headed to Detroit for training, so will be about 2 weeks before I can put it back together. Here are a couple more pics, last ones 'til it's done. Shows muffler hangers I made, along with gas cap, just final buff needed on them. Also seat cowl showing the Harliquin paint. All from same side, just different angles to show how it changes. Has Harliquin on fairing (SuperHawk) and fenders (designs) also. There is no clearcoat on yet, so it's not very shiny.
I'll post pics when back together....see y'all in a couple weeks!
I'll post pics when back together....see y'all in a couple weeks!
05-22-2007, 09:15 AM
#17
Senior Member
Back Marker
Thread Starter
Join Date: Jun 2006
Location: Ohio
Posts: 121
Damn this has taken a lot longer than expected, but finally got all the color on two nights ago. Here are a couple pics of parts. Will buff them this weekend and then start putting her back together next week......can't wait! I post her when she's all done in the sunlight!
05-22-2007, 07:04 PM
#18
Administrator
World Champion
Join Date: Dec 2004
Location: Fulton, MO
Posts: 105,287
Saxman,
I don't care how long it has taken, that paint job is Da Bomb, as they say. Truly worth the time you're spending on it. When you're done and it's all back together send me some high res pics and I'd like to add your bike to my website if you don't mind.
I don't care how long it has taken, that paint job is Da Bomb, as they say. Truly worth the time you're spending on it. When you're done and it's all back together send me some high res pics and I'd like to add your bike to my website if you don't mind.
05-22-2007, 10:07 PM
#19
Senior Member
Back Marker
Thread Starter
Join Date: Jun 2006
Location: Ohio
Posts: 121
Thanks a lot..........yea, it's a love hate thing.......it's worth the wait, but it's been really hard! I will send some pics when she's together, hopefully next week sometime. Thanks for the support from you and all the members on here, it's been a big help!
Have a great trip to the gap........I'll be there next year if it happens again.
Have a great trip to the gap........I'll be there next year if it happens again.
