Header pipe dent removal

Old 03-28-2016, 02:48 AM
  #31
Member
Squid

Join Date: Mar 2016
Location: New Zealand
Posts: 39
The End is on a distinguished road
Interesting idea, I've noticed a small dent on the header pipe right where the bend is where the stock small faring thing is. It's not a huge dent, but enough that I know its there.

Not sure if it was there previously, or appeared when I recently went over a speedbump with a pillion and heard a light scratch...
The End is offline
Old 05-01-2016, 01:58 AM
  #32
Senior Member
SuperSport

NZSpokes's Avatar

Join Date: Apr 2014
Location: Auckland, new Zealand
Posts: 932
NZSpokes is on a distinguished road
I need to find somebody with a big freezer.
NZSpokes is offline
Old 05-01-2016, 02:22 AM
  #33
Member
Squid

Join Date: Mar 2016
Location: New Zealand
Posts: 39
The End is on a distinguished road
I've noticed a dent on mine right on the curve where the belly pan is - looks like it has bottomed out at some point.

Is that where your dent is too?
The End is offline
Old 05-01-2016, 06:44 PM
  #34
Member
Squid

Join Date: Nov 2013
Posts: 45
bird-rider is on a distinguished road
Great tip! Will try to this with my bent headers this weekend.
bird-rider is offline
Old 05-02-2016, 12:34 AM
  #35
Senior Member
SuperSport

NZSpokes's Avatar

Join Date: Apr 2014
Location: Auckland, new Zealand
Posts: 932
NZSpokes is on a distinguished road
Originally Posted by The End View Post
I've noticed a dent on mine right on the curve where the belly pan is - looks like it has bottomed out at some point.

Is that where your dent is too?
Yes.
NZSpokes is offline
Old 05-05-2016, 06:11 PM
  #36
Senior Member
Superstock

Fastguy59's Avatar

Join Date: Nov 2014
Location: Middletown, CT
Posts: 408
Fastguy59 is on a distinguished road
Just dropped my SS TBR exhaust header in my buddy's freezer... Hope this works!!!
Fastguy59 is offline
Old 05-06-2016, 06:47 PM
  #37
Senior Member
Superstock

Fastguy59's Avatar

Join Date: Nov 2014
Location: Middletown, CT
Posts: 408
Fastguy59 is on a distinguished road
Ok, it works just picked up my header from my buddy's freezer. Dent gone, happy camper my bike is excited whoooo-hooooo!!!! Pix to follow!
Fastguy59 is offline
Old 05-06-2016, 06:49 PM
  #38
Rex Kramer-Thrill Seeker
SuperBike

CruxGNZ's Avatar

Join Date: Jan 2011
Location: Brookfield, WI
Posts: 2,312
CruxGNZ is on a distinguished road
Nice! Give us some before and after pictures if possible.
CruxGNZ is offline
Old 05-06-2016, 07:26 PM
  #39
Senior Member
Superstock

Fastguy59's Avatar

Join Date: Nov 2014
Location: Middletown, CT
Posts: 408
Fastguy59 is on a distinguished road
It works!

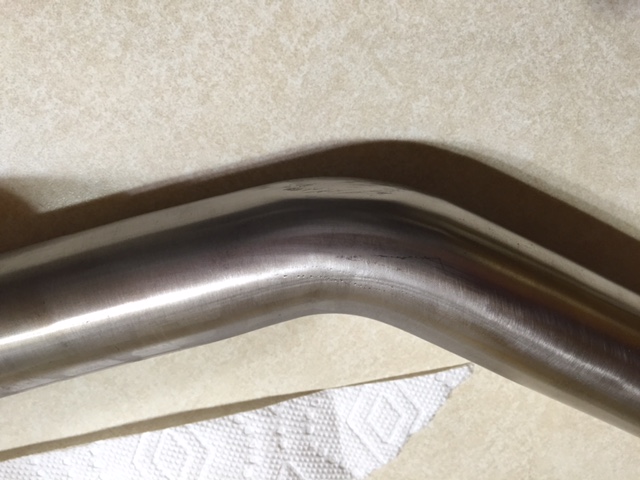

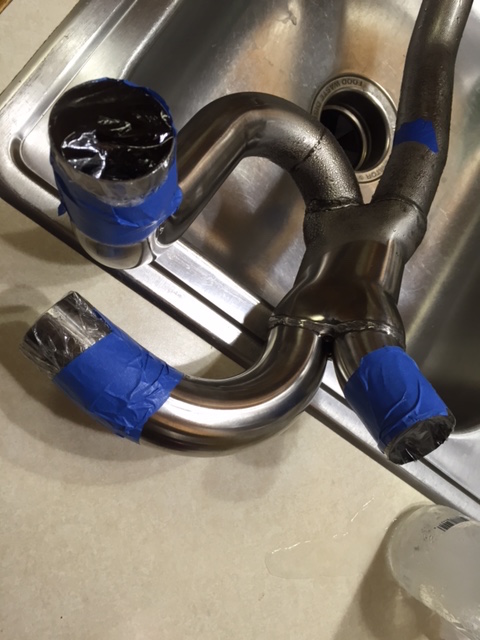

So I followed the dialog on the forum to take the dent out of the header I bought from Capt Chaos. I wrapped the dented area in a towel to insulate it from the surrounding tube using blue masking tape to secure the towel. I then used Saran Wrap and blue masking tape to secure all other outlets but one. I then filled the header until the the water extended about 6" past the dent on each side. I then taped up the headers last entry/exit with Saran and blue tape then into the deep freeze! The unpolished pix were shot by Capt Chaos to show the dent. I then cleaned up the header the after shots show the dent 99% removed I am soooo happy with the result!
Attached Thumbnails Header pipe dent removal-before-1.jpeg   Header pipe dent removal-before2.jpeg   Header pipe dent removal-prep0.jpeg   Header pipe dent removal-prep2.jpeg   Header pipe dent removal-after1.jpeg

Header pipe dent removal-after2.jpeg

Last edited by Fastguy59; 05-08-2016 at 08:08 AM.
Fastguy59 is offline
Old 05-06-2016, 07:37 PM
  #40
Member
Squid

Join Date: Mar 2016
Location: Hills of TIN UH C
Posts: 64
rktdoc is on a distinguished road
Originally Posted by Fastguy59 View Post
So I followed the dialog on the forum to take the dent out of the header I bought from Capt Chaos. I wrapped the dented area in a towel to insulate it from the surrounding tube using blue masking tape to secure the towel. I then used Saran Wrap and blue masking tape to secure all other outlets but one. I then filled the header until the the water extended about 6" past the dent on each side. I then taped up the headers last entry/exit with Saran and blue tape then into the deep freeze! The unpolished pix were shot by Capt Chaos to show the dent. I then cleaned up the header the after shots show the dent 99% removed I am soooo happy with the result!

Were the edges of the dent creased, or just rolled in?
rktdoc is offline
Old 05-07-2016, 05:41 AM
  #41
Rex Kramer-Thrill Seeker
SuperBike

CruxGNZ's Avatar

Join Date: Jan 2011
Location: Brookfield, WI
Posts: 2,312
CruxGNZ is on a distinguished road
Originally Posted by Fastguy59 View Post
So I followed the dialog on the forum to take the dent out of the header I bought from Capt Chaos. I wrapped the dented area in a towel to insulate it from the surrounding tube using blue masking tape to secure the towel. I then used Saran Wrap and blue masking tape to secure all other outlets but one. I then filled the header until the the water extended about 6" past the dent on each side. I then taped up the headers last entry/exit with Saran and blue tape then into the deep freeze! The unpolished pix were shot by Capt Chaos to show the dent. I then cleaned up the header the after shots show the dent 99% removed I am soooo happy with the result!
Bobby, for those that can't see the pictures, go to your album and underneath the picture will be the url. Copy that url and paste it here. Then your album pictures will show up in this post.

That's pretty cool that it actually works. A header I have has a dent in the normal spot. I think I'll give this a shot.

One more thing, how did you get your header polished up? I was thinking of using 400 grit, then 800, then 1000. And then polish. That about what you do?
CruxGNZ is offline
Old 05-08-2016, 08:13 AM
  #42
Senior Member
Superstock

Fastguy59's Avatar

Join Date: Nov 2014
Location: Middletown, CT
Posts: 408
Fastguy59 is on a distinguished road
Originally Posted by rktdoc View Post
Were the edges of the dent creased, or just rolled in?
So I finally got the pix downsized to comply with the forum attachment manager.

As you can see the header was actually dented twice. The first one was a small oval dent right at the bend. The second was a bigger smack that left a large part of the radius flattened... Being that is was a compound dent the results are amazing, I am very happy with the results, the forum advice and knowledge and having a big-*** deep-freezer (sub-zero temp)
Fastguy59 is offline
Old 05-08-2016, 08:28 AM
  #43
Senior Member
Superstock

Fastguy59's Avatar

Join Date: Nov 2014
Location: Middletown, CT
Posts: 408
Fastguy59 is on a distinguished road
Originally Posted by CruxGNZ View Post
Bobby, for those that can't see the pictures, go to your album and underneath the picture will be the url. Copy that url and paste it here. Then your album pictures will show up in this post.

That's pretty cool that it actually works. A header I have has a dent in the normal spot. I think I'll give this a shot.

One more thing, how did you get your header polished up? I was thinking of using 400 grit, then 800, then 1000. And then polish. That about what you do?
On the polish I wasn't too fussy on the ultimate finish as I prefer my SS with a slightly brushed finish. I used a 120g flap wheel on a drill, then onto a 180g, then to 220g emery roll by hand then Rollite aircraft rough cut polish (no picture) on a cone and wheel buff and finished with Rollite Metal Polish on a cone and wheel buff on a drill. Close enough! I love Rollite, it is an industrial product formulated to polish aircraft bodies, airstream trailers etc., kicks every other polish to the curb...
Attached Thumbnails Header pipe dent removal-rollite-flap.jpg   Header pipe dent removal-pipe-rear.jpg
Fastguy59 is offline
Old 05-08-2016, 05:59 PM
  #44
Rex Kramer-Thrill Seeker
SuperBike

CruxGNZ's Avatar

Join Date: Jan 2011
Location: Brookfield, WI
Posts: 2,312
CruxGNZ is on a distinguished road
Awesome! Thanks for the tip. Looking at your header, I kind of like the brushed finish more than the polished. It would match my paint scheme better. I think I will go that route now. Thanks for posting those pictures.
CruxGNZ is offline
Old 05-09-2016, 02:58 AM
  #45
Member
Squid

Join Date: Mar 2016
Location: New Zealand
Posts: 39
The End is on a distinguished road
Looking good... Now what's the best way to make sure it doesn't get a dent again?
The End is offline
Old 05-09-2016, 06:38 AM
  #46
Rex Kramer-Thrill Seeker
SuperBike

CruxGNZ's Avatar

Join Date: Jan 2011
Location: Brookfield, WI
Posts: 2,312
CruxGNZ is on a distinguished road
Originally Posted by The End View Post
Looking good... Now what's the best way to make sure it doesn't get a dent again?
When you see a speed bump in your path, wheelie.
