VFR Rim

There is a 1990 VFR rim on ebay, does anyone which rotors will work with that rim on a VTR?

Thank you
Old Jan 31, 2019 | 01:23 PM
  #2
ACE VenTRa's Avatar
Thread Starter
Senior Member
SuperSport

Joined: Jul 2018
Posts: 565
ACE VenTRa is on a distinguished road
Alternatively. do any forum members have a rim for sale?
Old Jan 31, 2019 | 01:31 PM
  #3
NHSH's Avatar
Senior Member
SuperBike

Joined: Jul 2011
Posts: 1,461
From: South of Live Free or Die & North of Family Guy
NHSH is on a distinguished road
Is it front or rear rim, VFR have a very different wheel in the rear :-) it is a single sided swing arm.
Old Jan 31, 2019 | 02:24 PM
  #4
ACE VenTRa's Avatar
Thread Starter
Senior Member
SuperSport

Joined: Jul 2018
Posts: 565
ACE VenTRa is on a distinguished road
Well, rotors indicates plural, which should mean front rim.
Maybe I have sss on my hawk...it has been a long January.
If I said rear would I be ridiculed?

Anyhoo, front rim please. Does anyone know which rotors will fit on the front rim of a 1990 VFR and will work on the VTR?
Old Jan 31, 2019 | 05:31 PM
  #5
xeris's Avatar
Senior Member
SuperBike

Joined: Sep 2010
Posts: 1,994
From: Bisbee, AZ
xeris is on a distinguished road
Originally Posted by ACE VenTRa
There is a 1990 VFR rim on ebay, does anyone which rotors will work with that rim on a VTR?

Thank you
Rim, rotors, axle from a '90 VFR wont fit a VTR. Sure anything is possible, but why?
Old Jan 31, 2019 | 06:19 PM
  #6
NHSH's Avatar
Senior Member
SuperBike

Joined: Jul 2011
Posts: 1,461
From: South of Live Free or Die & North of Family Guy
NHSH is on a distinguished road
Actually you can make it fit, but first you will have to change the wheel bearing to fit the later axle size (I did that before) and than you have to get rotors from either VFR750 same year or CBR600 F2, CBR1000F, it is an older pattern bolts and these parts are rarer and probably not in a good shape, you much better off using CBR600 F3 wheels if you interested in the style of the rim, pretty much bolt on.

Last edited by NHSH; Feb 1, 2019 at 05:59 AM.
Old Jan 31, 2019 | 08:17 PM
  #7
xeris's Avatar
Senior Member
SuperBike

Joined: Sep 2010
Posts: 1,994
From: Bisbee, AZ
xeris is on a distinguished road
Spacers, rotor diameter and offset, possible issues with bearing and seal depth.
Why? When there are other, better combinations.
Old Feb 1, 2019 | 02:05 AM
  #8
ACE VenTRa's Avatar
Thread Starter
Senior Member
SuperSport

Joined: Jul 2018
Posts: 565
ACE VenTRa is on a distinguished road
Roger that,

Thx
Old Feb 1, 2019 | 02:06 AM
  #9
ACE VenTRa's Avatar
Thread Starter
Senior Member
SuperSport

Joined: Jul 2018
Posts: 565
ACE VenTRa is on a distinguished road
Originally Posted by xeris
Rim, rotors, axle from a '90 VFR wont fit a VTR. Sure anything is possible, but why?


Cuz it looks most similar to the 900RR rear rim...which I would like to have on my hawk, window shopping now basically.
Old Feb 1, 2019 | 02:08 AM
  #10
ACE VenTRa's Avatar
Thread Starter
Senior Member
SuperSport

Joined: Jul 2018
Posts: 565
ACE VenTRa is on a distinguished road
Originally Posted by xeris
Spacers, rotor diameter and offset, possible issues with bearing and seal depth.
Why? When there are other, better combinations.
Other VFR combo's? I'd really like the twisted spoke. Machining is not an issue, it's the least of concerns.
Old Feb 1, 2019 | 05:53 AM
  #11
xeris's Avatar
Senior Member
SuperBike

Joined: Sep 2010
Posts: 1,994
From: Bisbee, AZ
xeris is on a distinguished road
Originally Posted by ACE VenTRa
Cuz it looks most similar to the 900RR rear rim...which I would like to have on my hawk, window shopping now basically.
OK, I get it.
A very useful tool, if you don't already know about it, is at (maybe others) Partzilla. There is a feature that when a part is clicked on you will get the part details (sometimes) and a a list of other models that the part was/is used on.
Old Feb 1, 2019 | 06:08 AM
  #12
NHSH's Avatar
Senior Member
SuperBike

Joined: Jul 2011
Posts: 1,461
From: South of Live Free or Die & North of Family Guy
NHSH is on a distinguished road
The original 900RR rim was actually smaller diameter of 16" I can't remember the later models, CBR600F3 is the best match for front wheel, as for the rear, you can either use the CBR600F3 or CBR900RR, both match and work on VTR, just different width.
Old Feb 1, 2019 | 07:32 PM
  #13
smokinjoe73's Avatar
Senior Member
MotoGP

Joined: Jul 2007
Posts: 5,066
From: NYC
smokinjoe73 is on a distinguished road
I have rims if you need.
Old Feb 1, 2019 | 09:50 PM
  #14
captainchaos's Avatar
evil man of nothing
MotoGP

Joined: Jan 2006
Posts: 4,517
From: Boynton Beach, FL
captainchaos is on a distinguished road
F3 front, 900RR rear. The easy way to get what you want
Old Feb 2, 2019 | 04:42 AM
  #15
ACE VenTRa's Avatar
Thread Starter
Senior Member
SuperSport

Joined: Jul 2018
Posts: 565
ACE VenTRa is on a distinguished road
Do tell!!$?
Old Jul 28, 2020 | 01:49 PM
  #16
102dals's Avatar
Senior Member
Superstock

Joined: Jul 2004
Posts: 442
From: Little Rock, AR
102dals is an unknown quantity at this point
ACE, how 'bout some pics?
Old Jul 28, 2020 | 02:25 PM
  #17
ACE VenTRa's Avatar
Thread Starter
Senior Member
SuperSport

Joined: Jul 2018
Posts: 565
ACE VenTRa is on a distinguished road

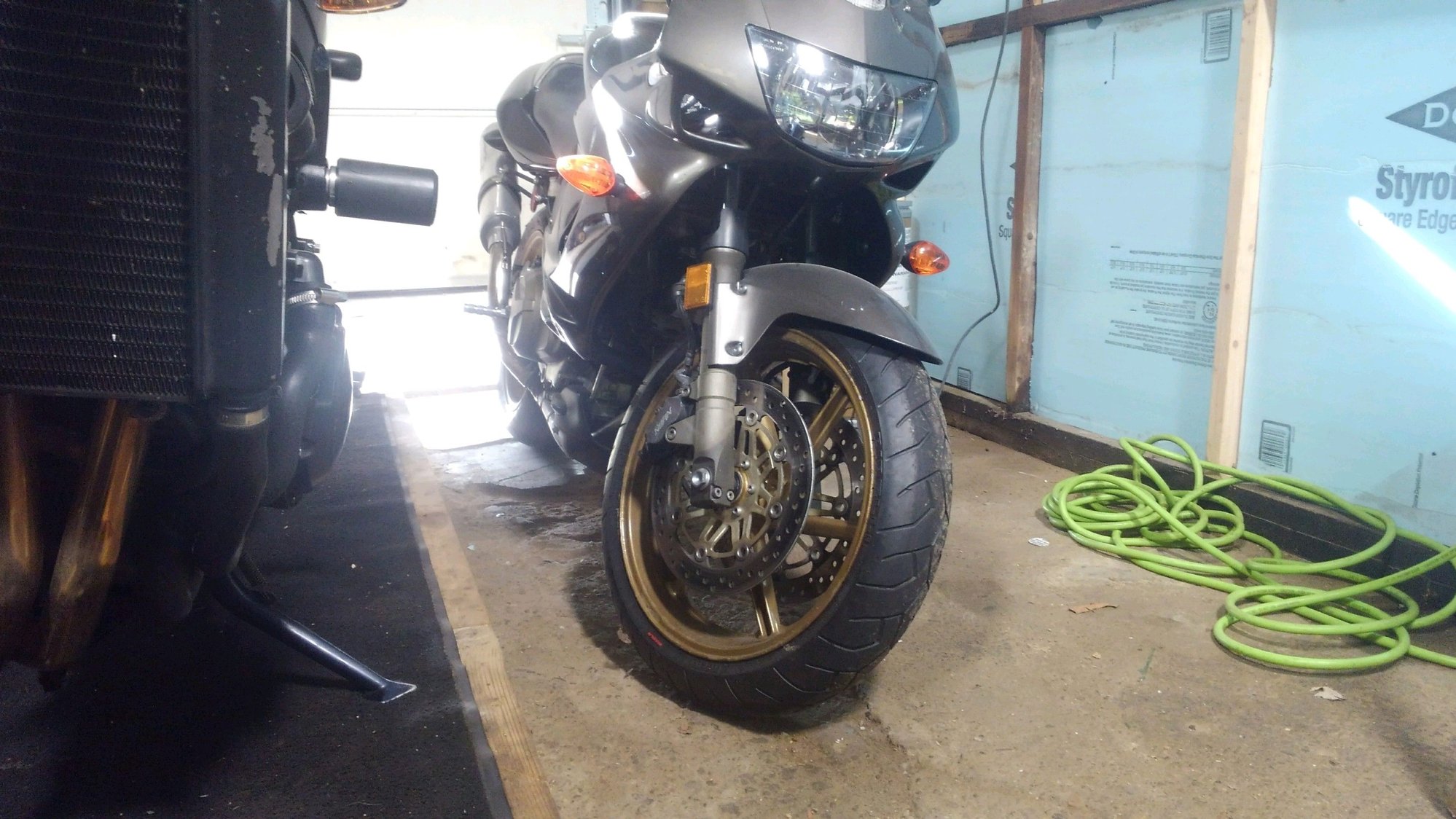

Here's mine...might be off a 900rr, not sure.



Old May 29, 2021 | 11:42 AM
  #18
102dals's Avatar
Senior Member
Superstock

Joined: Jul 2004
Posts: 442
From: Little Rock, AR
102dals is an unknown quantity at this point
ACE,
It's a 17" right? If so, which year 900RR is this from? Love the gold BTW.
Thanks
