Temp Differential From Exhaust?

Old 04-25-2013, 06:20 AM
  #1
Junior Member
Squid
Thread Starter

Join Date: Nov 2009
Posts: 22
Brother J is on a distinguished road
Temp Differential From Exhaust?

Just the other day I was listening to my '98 SH idling in the driveway and enjoying the deep basso profundo emanating from the Two Brothers CF cans. I put my hand over the left side tip and felt the hot gasses pulsating rhythmically against my hand. Switched to the RH side, expecting the same. WTH, its cold! This was just after a 30 minute ride. What do I have here? A jetting issue? I used Sta-bil during the winter and started it up weekly to keep the carbs clean. What could it be?? Inquiring minds gotta know..
Brother J is offline
Old 04-25-2013, 06:45 AM
  #2
Moderator
MotoGP

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 4,215
E.Marquez is on a distinguished road
Do you have no contact IR temp gun? or a Multi meter with a temp probe? if so, get yourself a temp at the header as it exits each head before trying to fix something as diagnosed with a calibrated hand at the end of two completely different exhaust paths Front to rear.

I have felt the same thing,, thinking I had a dead cylinder, but with no change in runnability, total power.. i checked temps at the head.... both the same, checked plugs, both the same, checked ignition signal, both present.

Last edited by E.Marquez; 04-25-2013 at 07:13 AM.
E.Marquez is offline
Old 04-25-2013, 06:54 AM
  #3
Senior Member
Superstock

cybercarl's Avatar

Join Date: May 2012
Location: UK
Posts: 397
cybercarl is on a distinguished road

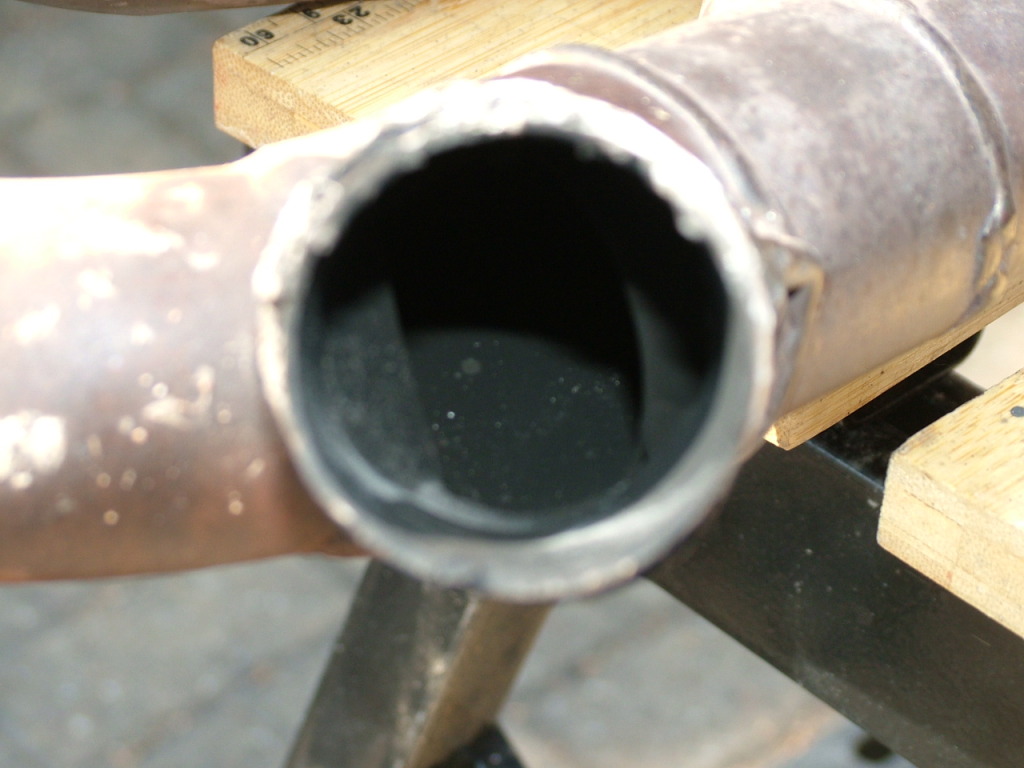

That's normal you don't get the full amount out the right side until you get to higher revs. There's a restrictor plate in the end of the header pipe at the Y junction just before the exhaust gases flow out the right hand side.

Name:  DSCF8000.jpg
Views: 12
Size:  142.0 KB

(:-})
cybercarl is offline
Old 04-25-2013, 08:24 AM
  #4
Senior Member
MotoGP

7moore7's Avatar

Join Date: Jul 2010
Location: Phoenix, AZ
Posts: 3,867
7moore7 is on a distinguished road
+1, at idle (when the exhaust pressure is relatively low) both pipes flow out of the left side. When pressure builds it evens up. Do what Marquez said and check your headers, likely they'll both be the same temp.
7moore7 is offline
Old 04-25-2013, 01:12 PM
  #5
Junior Member
Squid
Thread Starter

Join Date: Nov 2009
Posts: 22
Brother J is on a distinguished road
Very much appreciate you all's expert input re the exhaust flow. Very interesting how the SH system operates. Big sigh of relief. Thanks!!!
Brother J is offline
