The SAGA continues.....

The saga continues.. Episode “ rent a gun and buy a bullet “, So in relation to the posts rear cylinder and carb hell.. I think. This is where I am… me and my hawk are intimately familiar with each other and considering I teabag her daily turnaround is fair play, right? Last night I removed the carb pack and opened up the bowls to let them drain.. today I pulled off the diaphragms cleaned them, the bowl area and removed the jets and cleaned the complete system by running cleaner through everywhere I could. Reassembled the complete unit and carefully reinstalled the carbs on the bike.. got her all dialed in and fired her. She fired right up without hesitation… she runs, sounds great then when I throttle her I get the same result. It sounds and feels like she is choking out and dies… AFTER slamming my head angst the floor repeatedly I came to think, DAMN is she out of sync…. HOW do I tell and anyone have any “ghetto” ways to Sync the carbs??? I am at a loss and running short on $$$
By the way, Thank everyone who has given me support and helped out with "words of wisdom" you guys rock
jdobeckj is offline
Old 09-18-2012, 09:00 PM
  #2
the boss
SuperBike

saige's Avatar

Join Date: Mar 2010
Location: largo,fl
Posts: 1,182
saige is on a distinguished road
$1.55 Carb Sync Tool by Marty Ignazito
https://www.superhawkforum.com/forum...ool-use-21028/

you will need to find a fitting for the front carb,make sure it fits correctly and is sealed to get proper,or close to proper reading.
this will help you get as close as possible to correct sync.
saige is offline
Old 09-19-2012, 01:40 AM
  #3
Senior Member
SuperBike

Wicky's Avatar

Join Date: Sep 2008
Location: Essex, UK
Posts: 1,632
Wicky is on a distinguished road
Make sure the vacuum hose is connected in the right place.

www.vtr1000.org • View topic - How to balance your carbs
Wicky is offline
Old 09-19-2012, 05:58 AM
  #4
Member
Squid
Thread Starter

jdobeckj's Avatar

Join Date: Mar 2012
Location: Bothell WA
Posts: 85
jdobeckj is on a distinguished road
SAGA

WORD......that page is simple and awesome Thanks
jdobeckj is offline
Old 09-19-2012, 06:30 AM
  #5
the boss
SuperBike

saige's Avatar

Join Date: Mar 2010
Location: largo,fl
Posts: 1,182
saige is on a distinguished road
ahhhh yes,thats the page i was looking for.my computer crashed a couple weeks ago.so catching up with replacing all my usefull links lol.
saige is offline
Old 09-19-2012, 06:36 AM
  #6
the boss
SuperBike

saige's Avatar

Join Date: Mar 2010
Location: largo,fl
Posts: 1,182
saige is on a distinguished road
but,i would do that with the air box on and is your air mixture screws adjusted correctly.
2 1/4 turns out for the front.
2 1/2 turns out for the rear.
this is from all the way in,coming out.
when turning the air mixture screw in,do it lightly,when it stops,dont put any more force on it.do not tighten down,it will ruin the seating.
saige is offline
Old 09-19-2012, 05:48 PM
  #7
Sprung
World Champion

Hawkrider's Avatar

Join Date: Dec 2004
Location: Fulton, MO
Posts: 105,285
Hawkrider will become famous soon enoughHawkrider will become famous soon enough
PVLIR bites another....
Hawkrider is offline
Old 09-19-2012, 07:13 PM
  #8
Member
Squid
Thread Starter

jdobeckj's Avatar

Join Date: Mar 2012
Location: Bothell WA
Posts: 85
jdobeckj is on a distinguished road
Ok I have to ask? PVLIR?? whats that..
jdobeckj is offline
Old 09-19-2012, 07:53 PM
  #9
the boss
SuperBike

saige's Avatar

Join Date: Mar 2010
Location: largo,fl
Posts: 1,182
saige is on a distinguished road
it is the vacuum hose that goes from the rear head to the back of the petcock.
saige is offline
Old 09-20-2012, 07:40 PM
  #10
Sprung
World Champion

Hawkrider's Avatar

Join Date: Dec 2004
Location: Fulton, MO
Posts: 105,285
Hawkrider will become famous soon enoughHawkrider will become famous soon enough
Petcock Vent Line Inadvertent Relocation = PVLIR!
Hawkrider is offline
Old 09-21-2012, 01:56 PM
  #11
Senior Member
MotoGP

7moore7's Avatar

Join Date: Jul 2010
Location: Phoenix, AZ
Posts: 3,867
7moore7 is on a distinguished road
7moore7 is offline
Old 09-25-2012, 07:29 PM
  #12
Member
Squid
Thread Starter

jdobeckj's Avatar

Join Date: Mar 2012
Location: Bothell WA
Posts: 85
jdobeckj is on a distinguished road
Ok so this has gone to the nucking futs file, please allow me to explain. The bike got knocked over in the garage, since then I have replaced the coils, torn the carbs apart and cleaned them several times, replaced all vacuum lines, the petcock and diaphragm and quadruple checked everything that I have touched… but the bike starts strong, idols smoothly, when I ride her.. at 4000 rpm the bike feels as if she is being choked out????? Any thoughts? please
jdobeckj is offline
Old 09-25-2012, 11:23 PM
  #13
Senior Member
SuperBike

Wicky's Avatar

Join Date: Sep 2008
Location: Essex, UK
Posts: 1,632
Wicky is on a distinguished road
Wicky is offline
Old 09-26-2012, 10:16 AM
  #14
aja
Senior Member
SuperSport

aja's Avatar

Join Date: Nov 2011
Posts: 700
aja is on a distinguished road
You never answered me in your other thread when I asked if you synced and tuned your carbs, here you say you dialed them in so I assume you adjusted the air fuel mixtures, but you have to sync also. Did you ever check pvlir? Check your airbox and all hoses that connect to it
aja is offline
Old 09-26-2012, 10:27 AM
  #15
Member
Squid
Thread Starter

jdobeckj's Avatar

Join Date: Mar 2012
Location: Bothell WA
Posts: 85
jdobeckj is on a distinguished road
Sorry bout that, PVLIR, Yeah compleatly rebuilt the petcock and vac, as for sync the carbs, not yet. in process of building the thing.. so I know im a step short in diagnosis. all the hoses are correctly connected to the airbox as well.. just this choke out at 4k gggrrrr. I am going to replace all the choke cables and parts... IDK.
Josh
jdobeckj is offline
Old 09-26-2012, 12:22 PM
  #16
aja
Senior Member
SuperSport

aja's Avatar

Join Date: Nov 2011
Posts: 700
aja is on a distinguished road
Sync your carbs. I would bet my money on that being the problem. You can't correctly tune the carbs without syncing them. Search how to sync carbs, build yourself a meter or buy one and get then in spec. Guessing and throwing parts at it is only going to cost you more.

Pvlir is essentially putting the vac hose for the petcock on the wrong nipple, although I couldn't see it revving to 4k with the line in the wrong place.
aja is offline
Old 09-26-2012, 12:44 PM
  #17
Member
Squid
Thread Starter

jdobeckj's Avatar

Join Date: Mar 2012
Location: Bothell WA
Posts: 85
jdobeckj is on a distinguished road
Ill get on that tonight, I have a nipple for the front cyl and 20' of tubing, somewhere in my box is a ball berring or 12 so I can make this happen,, Just so were all on the same page and thank you again for the help... the read cyl carb vac line goes to the BACK of the PVLIR (petcock)...??? that is where I put her.?
jdobeckj is offline
Old 09-26-2012, 08:15 PM
  #18
Sprung
World Champion

Hawkrider's Avatar

Join Date: Dec 2004
Location: Fulton, MO
Posts: 105,285
Hawkrider will become famous soon enoughHawkrider will become famous soon enough
As I said in my PM to you, it IS being choked out. Replace the choke cables before you do anything else!
Hawkrider is offline
Old 09-27-2012, 09:38 AM
  #19
aja
Senior Member
SuperSport

aja's Avatar

Join Date: Nov 2011
Posts: 700
aja is on a distinguished road
Pvlir is just the phrase used to say you put the vac hose on the wrong nipple, but yes it goes on the rear nipple, closest to the seat.
aja is offline
Old 09-27-2012, 10:53 AM
  #20
Member
Squid
Thread Starter

jdobeckj's Avatar

Join Date: Mar 2012
Location: Bothell WA
Posts: 85
jdobeckj is on a distinguished road
Yeah, as for the choke I was putting the choke back together last night and snaped the forward choke housing at the elbow.... GGGRRRR. I would like to figure out why the bike fires and idol's wonderfully, powers up to 4K and drops out. Is it a venturi, fuel or what.. It is just perplexing.. any thoughts.
jdobeckj is offline
Old 09-27-2012, 01:02 PM
  #21
Senior Member
SuperBike

Wicky's Avatar

Join Date: Sep 2008
Location: Essex, UK
Posts: 1,632
Wicky is on a distinguished road
Until you fix the things that you know are broken - then it's hard to proceed onto the things that might possibly be wrong.

As for you broken choke nut - check this thread out for solutions

https://www.superhawkforum.com/forum...e2/#post320073

or alternatively contact and speak very nicely to gl_s_r who has recently made some brass (& titanium) replacements for the crappy plastic fitting.

www.vtr1000.org • View topic - upload picture test

www.vtr1000.org • View topic - Starting engine
Wicky is offline
Old 10-12-2012, 10:51 AM
  #22
Member
Squid
Thread Starter

jdobeckj's Avatar

Join Date: Mar 2012
Location: Bothell WA
Posts: 85
jdobeckj is on a distinguished road
http://dl.dropbox.com/u/7569877/VTR%...putter%201.wmv

I took a 6 second video of the issue NOW. new choke guide holders, new vac lines and idol adjustment.. any ideas, I posted the video to my public dropbox..????


im sooo pissed off.....
jdobeckj is offline
Old 10-12-2012, 10:57 AM
  #23
Senior Member
SuperSport

thetophatflash's Avatar

Join Date: Jan 2005
Location: Nooksack WA
Posts: 831
thetophatflash
Originally Posted by jdobeckj View Post
http://dl.dropbox.com/u/7569877/VTR%...putter%201.wmv

I took a 6 second video of the issue NOW. new choke guide holders, new vac lines and idol adjustment.. any ideas, I posted the video to my public dropbox..????


im sooo pissed off.....
Watched the video. What's the question?
thetophatflash is offline
Old 10-12-2012, 11:13 AM
  #24
Member
Squid
Thread Starter

jdobeckj's Avatar

Join Date: Mar 2012
Location: Bothell WA
Posts: 85
jdobeckj is on a distinguished road
Why is she still sputtering......... the same condition exists????
jdobeckj is offline
Old 10-12-2012, 03:26 PM
  #25
Senior Member
SuperSport

thetophatflash's Avatar

Join Date: Jan 2005
Location: Nooksack WA
Posts: 831
thetophatflash
I never had much luck with the carbs with the air box off. When I rejetted in '99, I remember starting the bike with the air box off and she ran poorly. I thought it was a screw up and spent hours of "searching" to no avail. Put the air box on and "magic". After a sync, all was good. If it doesn't run any better, then you need to determine if you are lean or fat by using the choke to enrich the mixture and watch for a changes in rpm.
thetophatflash is offline
Old 10-12-2012, 05:02 PM
  #26
Member
Squid
Thread Starter

jdobeckj's Avatar

Join Date: Mar 2012
Location: Bothell WA
Posts: 85
jdobeckj is on a distinguished road
Airbox is going back on NOW.. Ill keep this posted..
jdobeckj is offline
Old 10-12-2012, 05:09 PM
  #27
the boss
SuperBike

saige's Avatar

Join Date: Mar 2010
Location: largo,fl
Posts: 1,182
saige is on a distinguished road
i noticed too in the video,you slides was not moving at all,or super fast that i couldnt notice.do they slide back and forth at all on their own when running.
it will run a lot better with airbox and such on.when you do the sync,make sure the air box is on.
saige is offline
Old 10-12-2012, 09:09 PM
  #28
Member
Squid
Thread Starter

jdobeckj's Avatar

Join Date: Mar 2012
Location: Bothell WA
Posts: 85
jdobeckj is on a distinguished road
re did the electric wiring on the R/R I replaced a few months ago. the connectors looked worn already.. and The carbs are on.. Ill fire her tomorrow and see.. cross your fingers
jdobeckj is offline
Old 10-13-2012, 09:22 AM
  #29
Member
Squid
Thread Starter

jdobeckj's Avatar

Join Date: Mar 2012
Location: Bothell WA
Posts: 85
jdobeckj is on a distinguished road

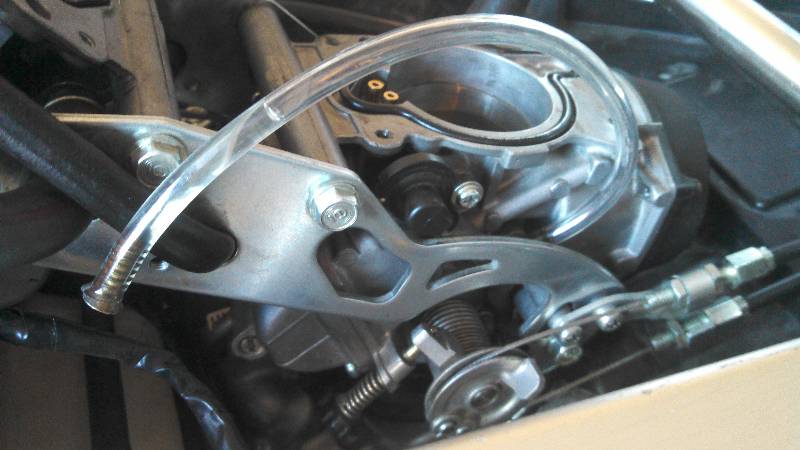

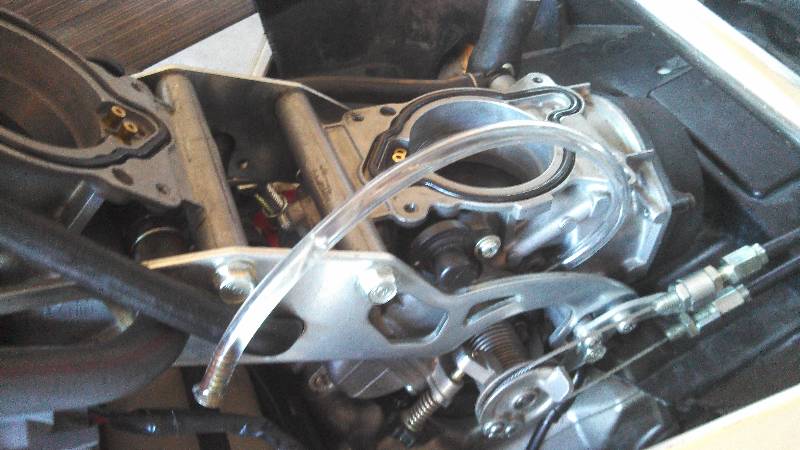

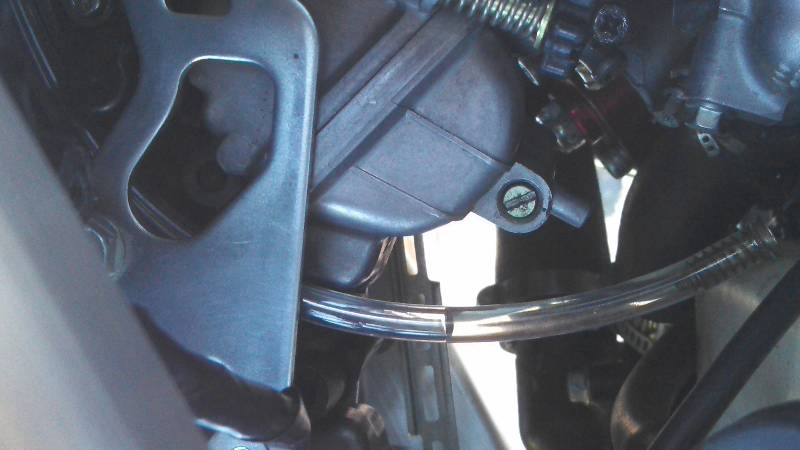

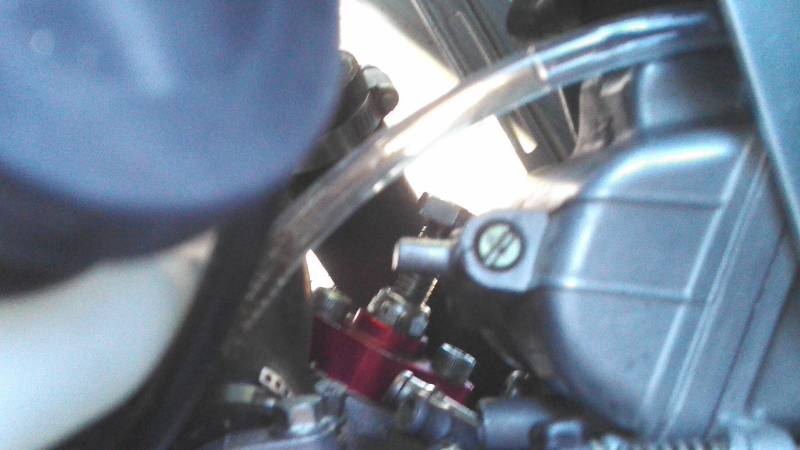

Fuel in a vac line??

This morning after I put the bike back together, she fired right up… I let her idle to warm up, then to take her down the street. Again at 4K she started to sputter and bog down (almost sounded like a 2 stroke) belching out blue smoke from her pipes. I noticed a nasty fuel smell.. I limped her back down to my pad and tore off the tank again. I noticed something I haven’t seen before.. fuel in a vacuum line.. I do not know what this line is for. 3 years ago I preformed a PAIR removal.. but this is new to me… I have attached a few pix ..
Attached Thumbnails The SAGA continues.....-optimized-fuel-7.jpg   The SAGA continues.....-optimized-fuel-1.jpg   The SAGA continues.....-optimized-fuel-2.jpg   The SAGA continues.....-optimized-fuel-3.jpg
jdobeckj is offline
Old 10-13-2012, 09:49 AM
  #30
Member
Squid
Thread Starter

jdobeckj's Avatar

Join Date: Mar 2012
Location: Bothell WA
Posts: 85
jdobeckj is on a distinguished road

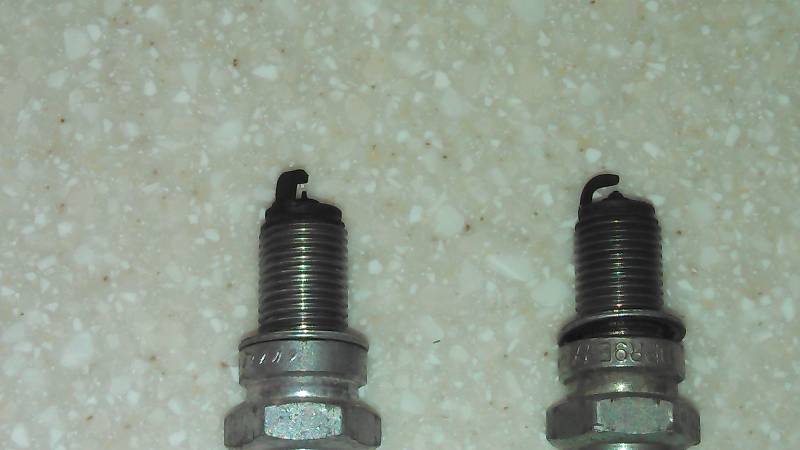

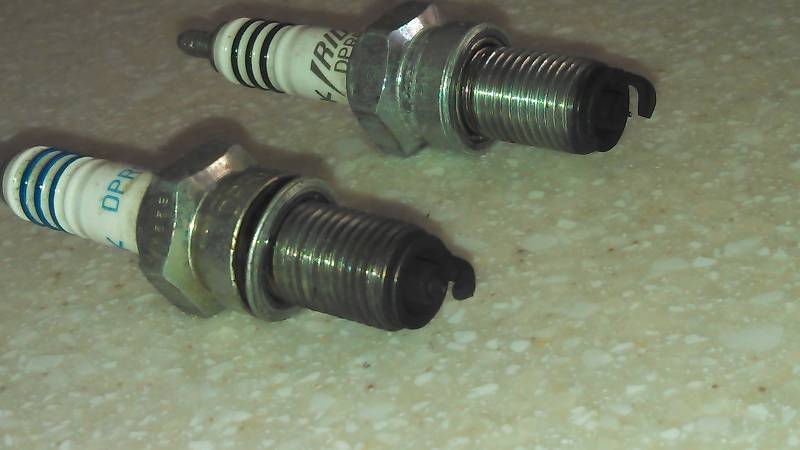

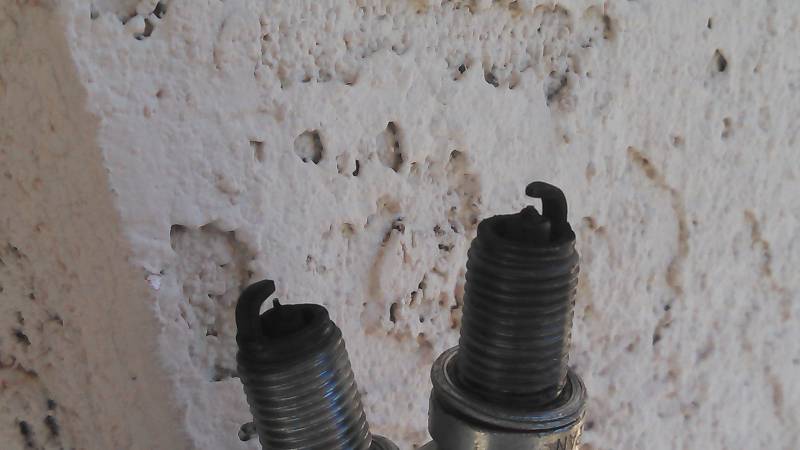

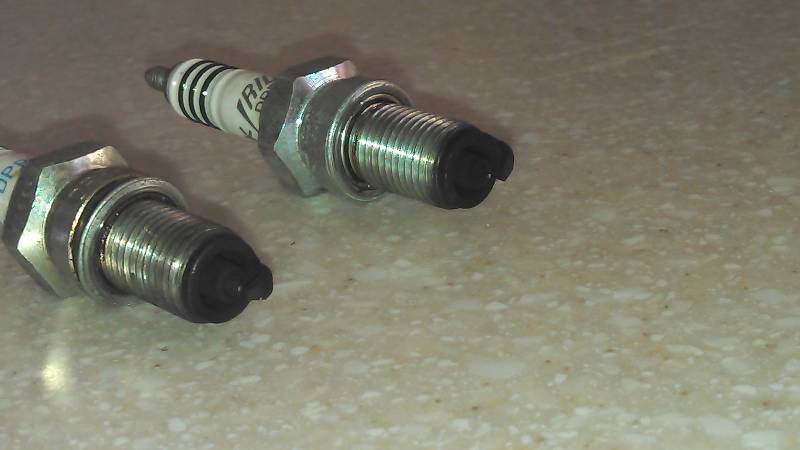

The plugs

here are the plugs that came out of her..
Attached Thumbnails The SAGA continues.....-optimized-plug-1.jpg   The SAGA continues.....-optimized-plug-2.jpg   The SAGA continues.....-optimized-plug-3.jpg   The SAGA continues.....-optimized-plug-4.jpg
