It's my turn. CCT broke, bad consequences!

Old 05-09-2011, 02:21 PM
  #1
Member
Squid
Thread Starter

Cursio's Avatar

Join Date: Jun 2009
Location: Norway!
Posts: 39
Cursio is on a distinguished road
Unhappy It's my turn. CCT broke, bad consequences!

Hi all.

On my way home from the eastern holidays my bike started "ticking", the ticking increased when i raised the rpms. Rode carefully for a couple of minutes, not sure what this sound was (I was in a line), then the bike died. It died the same way it dies if it runs out of gas, not sudden, but slow and surely.

Tried to crank it, then it sounded like I had a loose chain inside my engine, a terrible sound! I don't own a garage or the tools to open it up and check for myself, so I got it to the local Honda workshop, and they gave me the news today. He confirmed the CCT as the failing part. A lot of bent valves and damage inside the engine. He said it looked like I had it running for a while after the CCT actually failed, and this messed up a lot of different parts.

I am going there to see for myself, and note the damages, but he advised me to buy a new engine instead of a rebuild. He said the rebuild would cost me about $5000 in parts and work hours...

Here is the bike in question, as you can see, CCT is not one of my mods...
https://www.superhawkforum.com/forum...41/#post235136

What should I do? What is my options? It is not so easy to get hold of an used engine in Norway, though I will happily pay the shipping!

Everybody, change your CCT's!!
Cursio is offline
Old 05-09-2011, 03:00 PM
  #2
Senior Member
Back Marker

superhen's Avatar

Join Date: Oct 2010
Location: Madison, WI
Posts: 120
superhen is on a distinguished road
I'm sorry to hear of your misfortune. Wish I had a spare engine to crate up for you and send over. Good luck, hope someone can help you out.
superhen is offline
Old 05-09-2011, 03:13 PM
  #3
Senior Member
MotoGP

lazn's Avatar

Join Date: Mar 2007
Location: Phoenix, AZ
Posts: 3,132
lazn is on a distinguished road
If the bottom is still ok you could look for just a head to swap too.

And yes everyone, manual CCTs are FAR cheaper than a new engine, swap them!
lazn is offline
Old 05-09-2011, 03:17 PM
  #4
Light Cycle Expert
Back Marker

tomzxt's Avatar

Join Date: Mar 2011
Location: Tampa, Florida
Posts: 194
tomzxt is on a distinguished road
Arrow

Sorry to hear about your CCTs. Out of curiosity how many miles were on your bike when they went. I know it has nothing to do with mileage but again just curious.
tomzxt is offline
Old 05-09-2011, 03:53 PM
  #5
Ditch Magnet
Squid

mput's Avatar

Join Date: Dec 2010
Location: Chapel Hill TN.
Posts: 78
mput is on a distinguished road
I use to think it was site induced paranoia, but I find it on my mind more and more. Hearing Phantom ticks screw it I'm changeing them at the end of the season.
mput is offline
Old 05-09-2011, 04:20 PM
  #6
Senior Member
MotoGP

lazn's Avatar

Join Date: Mar 2007
Location: Phoenix, AZ
Posts: 3,132
lazn is on a distinguished road
It is probably only 3% or less per year that this happens to. But given enough years this will eventually happen to everyone who doesn't prevent it..
lazn is offline
Old 05-09-2011, 08:59 PM
  #7
Mid-level Member
Superstock

fred's Avatar

Join Date: Dec 2004
Location: Chicago
Posts: 268
fred
ouch. that's bad news. 5 grand? buy a new bike before listening to those bandits. i'm in the middle of diagnosing a horrible clanking that came on with no warning. you can be absolutely sure that i have APE ccts being shipped as i write.
fred is offline
Old 05-10-2011, 01:24 AM
  #8
Member
Squid
Thread Starter

Cursio's Avatar

Join Date: Jun 2009
Location: Norway!
Posts: 39
Cursio is on a distinguished road
Originally Posted by superhen
I'm sorry to hear of your misfortune. Wish I had a spare engine to crate up for you and send over. Good luck, hope someone can help you out.
Thank you very much, buying a used engine on ebay might be the best way

Originally Posted by lazn
If the bottom is still ok you could look for just a head to swap too.
When you say the head, do you mean the top of the engine over each cylinder (the part over the top gasket)? Will a head change on each cylinder be necessary you think? I will certanly look into this!

Originally Posted by tomzxt
Sorry to hear about your CCTs. Out of curiosity how many miles were on your bike when they went.
My bike has done about 50000 miles. It is a 2000-mod, but I have only owned it for the last two years, and I am not sure when the last CCT-change was done. This breakdown is absolutely part my fault, even though the workshop never had seen this problem before!

Originally Posted by tomzxt
ouch. that's bad news. 5 grand? buy a new bike before listening to those bandits. i'm in the middle of diagnosing a horrible clanking that came on with no warning. you can be absolutely sure that i have APE ccts being shipped as i write.
Yeah, 5 grand. I never said Norway is a cheap country to live in. I am also thinking about selling the bike as a part bike to get rid of the problem, but at the same time I think that it is in too good of a condition to do that!
Cursio is offline
Old 05-10-2011, 02:52 AM
  #9
Junior Member
Squid

Join Date: Jun 2010
Posts: 2
Pantaloonie is on a distinguished road
As long as the piston wasn't damaged by hitting the valves, a replacement cylinder head complete with valves is all you'll need.
Keep an eye on ebay, they pop up occasionally, although front heads are rare as it's usually the front that lets go.
Pantaloonie is offline
Old 05-10-2011, 06:34 AM
  #10
Member
Squid
Thread Starter

Cursio's Avatar

Join Date: Jun 2009
Location: Norway!
Posts: 39
Cursio is on a distinguished road
Originally Posted by Pantaloonie
As long as the piston wasn't damaged by hitting the valves, a replacement cylinder head complete with valves is all you'll need.
Keep an eye on ebay, they pop up occasionally, although front heads are rare as it's usually the front that lets go.
Are you serious? If that's the case, I'll might survive this after all!

It is probably just one of the CCT's that failed, and then it's proably just damages on one of the heads, right? (because of the independent cam chains?)
From what i could tell, the mechanic did just open the top cover on one of the heads and had a look around, so what should I ask him to do?
Is this a good approach?

- Fully open both heads and check for damage on pistons in addition to damage on valves.
- If there's no damage to the pistons, change the head / two heads if needed, and get it running!
- If there's damage to the pistons, and / or small pieces of metal everywhere, buy a new engine?
Cursio is offline
Old 05-10-2011, 06:41 AM
  #11
Fastest Color
SuperBike

FL02SupaHawk996's Avatar

Join Date: Jul 2007
Location: Lithia, FL
Posts: 2,091
FL02SupaHawk996 is on a distinguished road
Sorry to hear about your cct failure If it were me I'd find a good used low mileage motor and just swap it out.

Here's an example of one in Germany: Find Honda VTR1000F Firestorm SC36 Motor on eBay Global Buying, with worldwide deals on items in all your top categories
FL02SupaHawk996 is offline
Old 05-10-2011, 07:07 AM
  #12
Member
Squid
Thread Starter

Cursio's Avatar

Join Date: Jun 2009
Location: Norway!
Posts: 39
Cursio is on a distinguished road
Originally Posted by FL02SupaHawk996
Sorry to hear about your cct failure If it were me I'd find a good used low mileage motor and just swap it out.

Here's an example of one in Germany: Find Honda VTR1000F Firestorm SC36 Motor on eBay Global Buying, with worldwide deals on items in all your top categories
That engine looks like a really good choice, I actually looked at it earlier today.
Would you not take the chance of just changing the head (I assume changing the head on my old engine is cheaper), because of the possibility of more damage deeper down?
Cursio is offline
Old 05-10-2011, 07:20 AM
  #13
Fastest Color
SuperBike

FL02SupaHawk996's Avatar

Join Date: Jul 2007
Location: Lithia, FL
Posts: 2,091
FL02SupaHawk996 is on a distinguished road
Originally Posted by Cursio View Post
That engine looks like a really good choice, I actually looked at it earlier today.
Would you not take the chance of just changing the head (I assume changing the head on my old engine is cheaper), because of the possibility of more damage deeper down?
Yes, there will be a HIGH probability that you'll have metal from the chain slapping the inside of the head that circulated in the oil. The best way to check is pull the oil pan and inspect the crevices in the bottom of it and check pump's filter foot for metal hiding in it.

If no metal pieces can be found then just replacing the head will work fine, otherwise you may risk another engine failure after replacing the head due to the metal contaminated oil reaching bearings and/or tranny...
FL02SupaHawk996 is offline
Old 05-10-2011, 07:21 AM
  #14
2nd mouse gets the cheese
SuperBike

Little_Horse's Avatar

Join Date: Jan 2008
Location: Beaverton, OR
Posts: 1,697
Little_Horse is on a distinguished road
I have two good heads one front and one rear complete with good valves if you decide to go that route although shipping would overseas would be pretty steep.
Little_Horse is offline
Old 05-10-2011, 07:25 AM
  #15
Fastest Color
SuperBike

FL02SupaHawk996's Avatar

Join Date: Jul 2007
Location: Lithia, FL
Posts: 2,091
FL02SupaHawk996 is on a distinguished road
Originally Posted by Little_Horse View Post
I have two good heads one front and one rear complete with good valves if you decide to go that route although shipping would overseas would be pretty steep.
If he only needed 1 head at about 20 lbs that wouldn't be too bad to ship. I'd guess $75-100 with insurance, maybe less?
FL02SupaHawk996 is offline
Old 05-10-2011, 09:49 AM
  #16
Senior Member
SuperBike

Old Yeller's Avatar

Join Date: Apr 2010
Location: Big Lick
Posts: 1,090
Old Yeller is on a distinguished road
parting these bikes can bring some significant $ if the rest of your bike is in good shape. I'd suggest looking into doing that to offset the cost of another bike. It would be cheaper to buy a good running Firestorm instead of paying that much for just the engine.
Old Yeller is offline
Old 05-11-2011, 02:30 AM
  #17
Member
Squid
Thread Starter

Cursio's Avatar

Join Date: Jun 2009
Location: Norway!
Posts: 39
Cursio is on a distinguished road
Originally Posted by FL02SupaHawk996
Yes, there will be a HIGH probability that you'll have metal from the chain slapping the inside of the head that circulated in the oil. The best way to check is pull the oil pan and inspect the crevices in the bottom of it and check pump's filter foot for metal hiding in it.

If no metal pieces can be found then just replacing the head will work fine, otherwise you may risk another engine failure after replacing the head due to the metal contaminated oil reaching bearings and/or tranny...
I have given this some thought, and I think it's the safest option to change the engine, though it's not necessarily the cheapest one.

But consider that the new engine is two years newer, and has 36000 less miles on it!

Originally Posted by Old Yeller
parting these bikes can bring some significant $ if the rest of your bike is in good shape. I'd suggest looking into doing that to offset the cost of another bike. It would be cheaper to buy a good running Firestorm instead of paying that much for just the engine.
The Norwegian VTR-community is quite small, so I am not sure if this is a good option... I do not have a garage to tear down the bike and to store the parts either. :/
Cursio is offline
Old 05-13-2011, 01:23 PM
  #18
Member
Squid
Thread Starter

Cursio's Avatar

Join Date: Jun 2009
Location: Norway!
Posts: 39
Cursio is on a distinguished road
Well, the "new" engine is on it's way (it has about 14000 miles on it). I found out this is the least risky option, because there is not easy to say how big the damages is on my engine. I will put my engine out for sale cheap, it probably is just the front head that needs changing.

I will give a update when I get the new engine, let's see how it goes
Cursio is offline
Old 05-16-2011, 07:54 AM
  #19
Senior Member
Back Marker

insider's Avatar

Join Date: Sep 2009
Posts: 161
insider is on a distinguished road
so i don't start out a new topic...

all this talk got me paranoid about my VTR.

has almost 49.000 km onboard.

I m thinking of changing CCTs to brand new OEM CCTs...

I can't putn APE ccts because I'm not that technical (don't have the tools, the skills, the time ,the place and the will). And also can't find/trust somebody to do it.

My question is: to change the CCTs does something need to be taken off (same procedure as replacing them with APE's ?)

Also,should I think of changing the cam chains as well (& cam sprockets & etc?)

Or I can just change the CCTs ?
insider is offline
Old 05-16-2011, 08:02 AM
  #20
Fastest Color
SuperBike

FL02SupaHawk996's Avatar

Join Date: Jul 2007
Location: Lithia, FL
Posts: 2,091
FL02SupaHawk996 is on a distinguished road
Originally Posted by insider View Post
so i don't start out a new topic...

all this talk got me paranoid about my VTR.

has almost 49.000 km onboard.

I m thinking of changing CCTs to brand new OEM CCTs...

I can't putn APE ccts because I'm not that technical (don't have the tools, the skills, the time ,the place and the will). And also can't find/trust somebody to do it.

My question is: to change the CCTs does something need to be taken off (same procedure as replacing them with APE's ?)

Also,should I think of changing the cam chains as well (& cam sprockets & etc?)

Or I can just change the CCTs ?
Just the CCTs and here's the best DIY writeup that I know of that's easy to follow: https://www.superhawkforum.com/forum...pe-ccts-11275/
FL02SupaHawk996 is offline
Old 05-16-2011, 08:10 AM
  #21
Out of my mind, back in 5
MotoGP

Tweety's Avatar

Join Date: Nov 2006
Location: Skurup, Sweden
Posts: 6,109
Tweety is on a distinguished road
Originally Posted by insider View Post
so i don't start out a new topic...

all this talk got me paranoid about my VTR.

has almost 49.000 km onboard.

I m thinking of changing CCTs to brand new OEM CCTs...

I can't putn APE ccts because I'm not that technical (don't have the tools, the skills, the time ,the place and the will). And also can't find/trust somebody to do it.

My question is: to change the CCTs does something need to be taken off (same procedure as replacing them with APE's ?)

Also,should I think of changing the cam chains as well (& cam sprockets & etc?)

Or I can just change the CCTs ?
Swapping CCT's are the same job, regardless of if you use OEM, or APE's... Same level of skill needed, same basic tools, and the same things needs to come off... And yes, the same opportunity to blow up your working engine exist, doesn't matter what replacement parts you choose...

The only difference is that you use a tool to lock the spring in the stock CCT before installing them... If a shop does the work they have the tool, if you do it, you need to make it...

And as far as "not having the know-how", don't assume a shop has the know-how, other people have tried that with less than stellar results... The VTR's have a "quirk" in that oyu can grenade an engine on CCT replacement where other bikes are "safe" to work on... If the mechanic makes that assumption, it goes "crunch"...

Camchain and sprockets should be replaced when they reach their wear limit, the service manual tells you how to check that, and what limits... It's not cheap, and if you are uncomfortable doing CCT's, the risks go up exponentially with added complexity...

BTW, where are you located? Km means Europe?... Could be an idea to put it in your info...
Tweety is offline
Old 05-16-2011, 02:26 PM
  #22
Just hangin' out
Back Marker

klx678's Avatar

Join Date: Apr 2011
Location: Delaware, Ohio USA
Posts: 136
klx678 is on a distinguished road
Originally Posted by insider View Post
so i don't start out a new topic...

all this talk got me paranoid about my VTR.

has almost 49.000 km onboard.

I m thinking of changing CCTs to brand new OEM CCTs...

I can't putn APE ccts because I'm not that technical (don't have the tools, the skills, the time ,the place and the will). And also can't find/trust somebody to do it.

My question is: to change the CCTs does something need to be taken off (same procedure as replacing them with APE's ?)

Also,should I think of changing the cam chains as well (& cam sprockets & etc?)

Or I can just change the CCTs ?

My two cents:

First off the HyVo cam chains should last virtually the life of the bike given the adjustment is proper, whether an OEM unit or a manual unit. The fact is I've only done 4 adjustments over a 30,000 mile range on new cam chains on my KLX650, with the last one being so many miles ago I don't remember when it was. Clearly the chains (it has two) seated in and have pretty much stayed put after the last adjustment. The total adjustment was less than one full turn of an M8-1.25 bolt or about .050". Not too much. The Zephyr has gone 8K without any changes, it had the original chain and I've had a few riders tell me of similar experience with minimal adjustment. That's what led me to the conclusion about the incrementation of the ratchet mechanisms and the stacking of tolerances putting some of the tensioners in position to fail quickly while others don't. But that's another story.

As for the difficulty, on the Kaws it's a breeze to do them. I installed one in an Eliminator in the infield at Mid Ohio last year, but they're wide open and easy to get to. One rider commented "If you know which end of a screwdriver to hold onto, you can do this." But on the Superhawk you need to be more careful with how they are installed, keeping the cylinders at TDC compression on the one in which you are intalling the tensioner. That is the hard part. Adjusting the tensioner is not that difficult, especially if you use a mechanic's stethoscope or screwdriver to the ear to listen for the ticking sound of the chain slack slapping the slider, which taps on the adjuster bolt. I will say I do it by ear only on the KLX, it's quite easily heard.

At this point from what I've read here I'd NEVER put a set of stock tensioners back in the bike. On the Kaws it's a progressive failure that is non-catastrophic for some time. Clearly on the VTRs it can be instantaneous.

By the way, if you can strip the bike down to where you can get to the tensioners all it takes to put in the set I make is the 10mm (or whatever wrench it takes) to pull the stock tensioners, a 5mm allen wrench to put in mine with the countersunk fasteners, and two 13mm wrenches - one to hold the adjuster bolt and one to tighten the lock nut - to install them. No tricks. In my book it's harder to strip the bike down than put in the parts. Stock tensioners sound a lot more difficult since clearly they also need to have the cylinders at TDC, but have some trick to setting them for assembly. Then after some time they break...
klx678 is offline
Old 05-17-2011, 05:14 PM
  #23
Mid-level Member
Superstock

fred's Avatar

Join Date: Dec 2004
Location: Chicago
Posts: 268
fred
Originally Posted by Tweety View Post
Swapping CCT's are the same job, regardless of if you use OEM, or APE's...
<snip>
The only difference is that you use a tool to lock the spring in the stock CCT before installing them... If a shop does the work they have the tool, if you do it, you need to make it...
<snip>

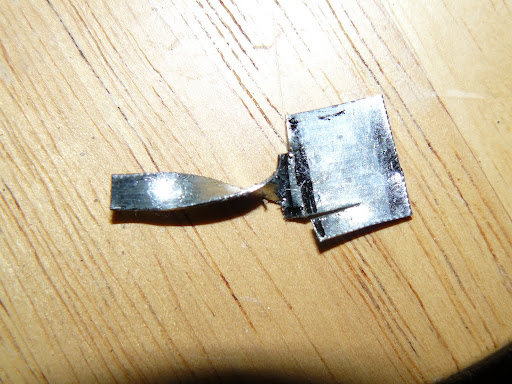

is this the tool you're referring to, Tweety?

before:


after: (whoops):
fred is offline
Old 05-18-2011, 03:46 AM
  #24
Out of my mind, back in 5
MotoGP

Tweety's Avatar

Join Date: Nov 2006
Location: Skurup, Sweden
Posts: 6,109
Tweety is on a distinguished road
Originally Posted by fred View Post
is this the tool you're referring to, Tweety?
That would be the one... But I'd call that poor quality control...

BTW, why anybody would replace with stock CCT's are beyond me though...
Tweety is offline
Old 05-18-2011, 06:35 PM
  #25
Mid-level Member
Superstock

fred's Avatar

Join Date: Dec 2004
Location: Chicago
Posts: 268
fred
Originally Posted by Tweety View Post
That would be the one... But I'd call that poor quality control...

BTW, why anybody would replace with stock CCT's are beyond me though...
i took the top of the rear apart to look for source of nasty clanking. once i get the cam chain back on with both RE and RI and the cams aligned correctly at R TDC i'll ask myself the following questions. 1) "why didn't i just measure the valve lash?" 2) "why did i remove the cams?" and then i spray mace in my eyes as penance for my sins.

here's a nicer one. i'm getting better.
fred is offline
Old 05-18-2011, 07:08 PM
  #26
Escape Reality
SuperSport

calitoz's Avatar

Join Date: Jun 2006
Location: KANATA, KANADA
Posts: 612
calitoz is on a distinguished road
Make your own if you're a cheap *** but change it now!

It seems like every month there is a CCT issue. I don't know about you but why take the chance? Just spend an afternoon and change them out. If you don't want to spend $100 on the APE Bling.... Spend $10 and make your own. Works the same. Regarding my write up, I realized there are some technical errors in the piece but it's all there. If you take that and also read Lazn's piece you're know just about the same as any Honda tech regarding CCT change. Just do the damn thing and let's not have anymore of these thread come up. We need every VTR on the road!

Make your own here:

https://www.superhawkforum.com/forum...ual-one-22711/
calitoz is offline
Old 05-18-2011, 07:25 PM
  #27
Mid-level Member
Superstock

fred's Avatar

Join Date: Dec 2004
Location: Chicago
Posts: 268
fred
Originally Posted by calitoz View Post
It seems like every month there is a CCT issue. I don't know about you but why take the chance? Just spend an afternoon and change them out.
when my rear cyl began clanking and i shut down the motor and had the bike towed to my garage, one of the first things i did was order a couple red APE CCTs. i assumed that my rear CCT had failed. i got the APEs in the mail late last week. i'm currently back-tracking on the sprocket removal so that i can get an accurate reading of valve lash at TDC. in order to do that i need to release the tension on the OEM CCTs.

-f
fred is offline
Old 05-18-2011, 07:40 PM
  #28
Escape Reality
SuperSport

calitoz's Avatar

Join Date: Jun 2006
Location: KANATA, KANADA
Posts: 612
calitoz is on a distinguished road
BTW - That special Honda tool can be replaced with a flat head screw driver....
calitoz is offline
Old 05-19-2011, 05:18 PM
  #29
Mid-level Member
Superstock

fred's Avatar

Join Date: Dec 2004
Location: Chicago
Posts: 268
fred
Originally Posted by calitoz View Post
BTW - That special Honda tool can be replaced with a flat head screw driver....
it's much more fun to make the special little tool. ? . ?
i wish i could figure out how to make that damn banana stand still!

Last edited by fred; 05-20-2011 at 09:17 PM.
fred is offline
Old 05-20-2011, 11:47 AM
  #30
Retired- but not tired!
SuperBike

CrankenFine's Avatar

Join Date: Aug 2010
Location: Pittsburgh
Posts: 1,433
CrankenFine is on a distinguished road
Originally Posted by fred View Post
it's much more fun to make the special little tool. ? . ?
i wish i could figure out how to make that damn banana stand still!
+1. Making the special little tool is the most fun part of the project. (apart from the fact you get to keep riding because your valves aren't AFU..)
CrankenFine is offline

Thread Tools
Search this Thread
Quick Reply: It's my turn. CCT broke, bad consequences!


Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

© 2019 MH Sub I, LLC dba Internet Brands

We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.

All times are GMT -7. The time now is 12:01 PM.


© 2019 MH Sub I, LLC dba Internet Brands
