greetings from Sweden please, i need some help

hi to all. please first excuse my English, i speak it very well but write it worse :-)


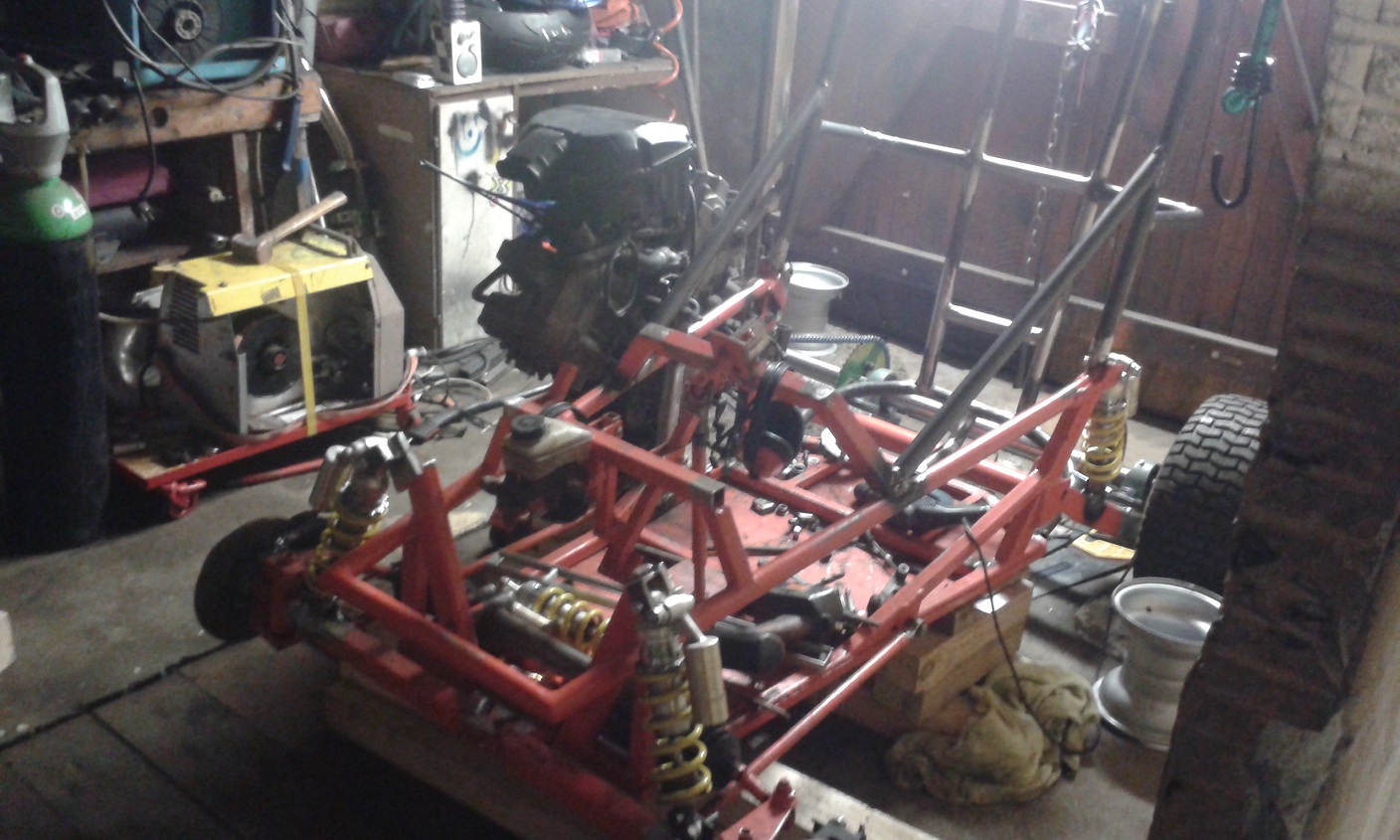

Im building a Buggy using an Honda Varadero (carb version) that has had an Honda VTR (carb version) Engine transplant.


The bike was chrashed ang given to me for free. As i had the buggy chssies laying around.. i decided to make something out of it,

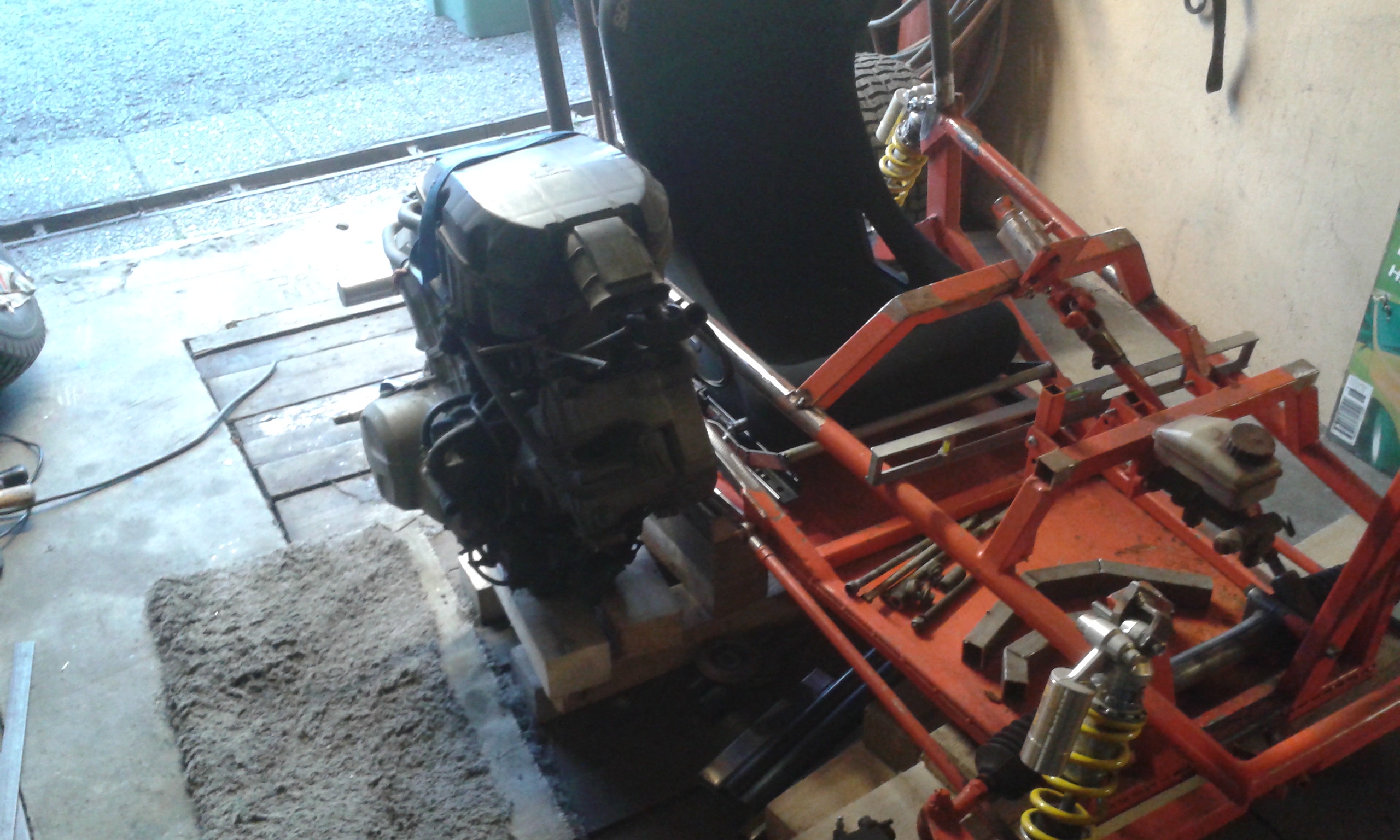

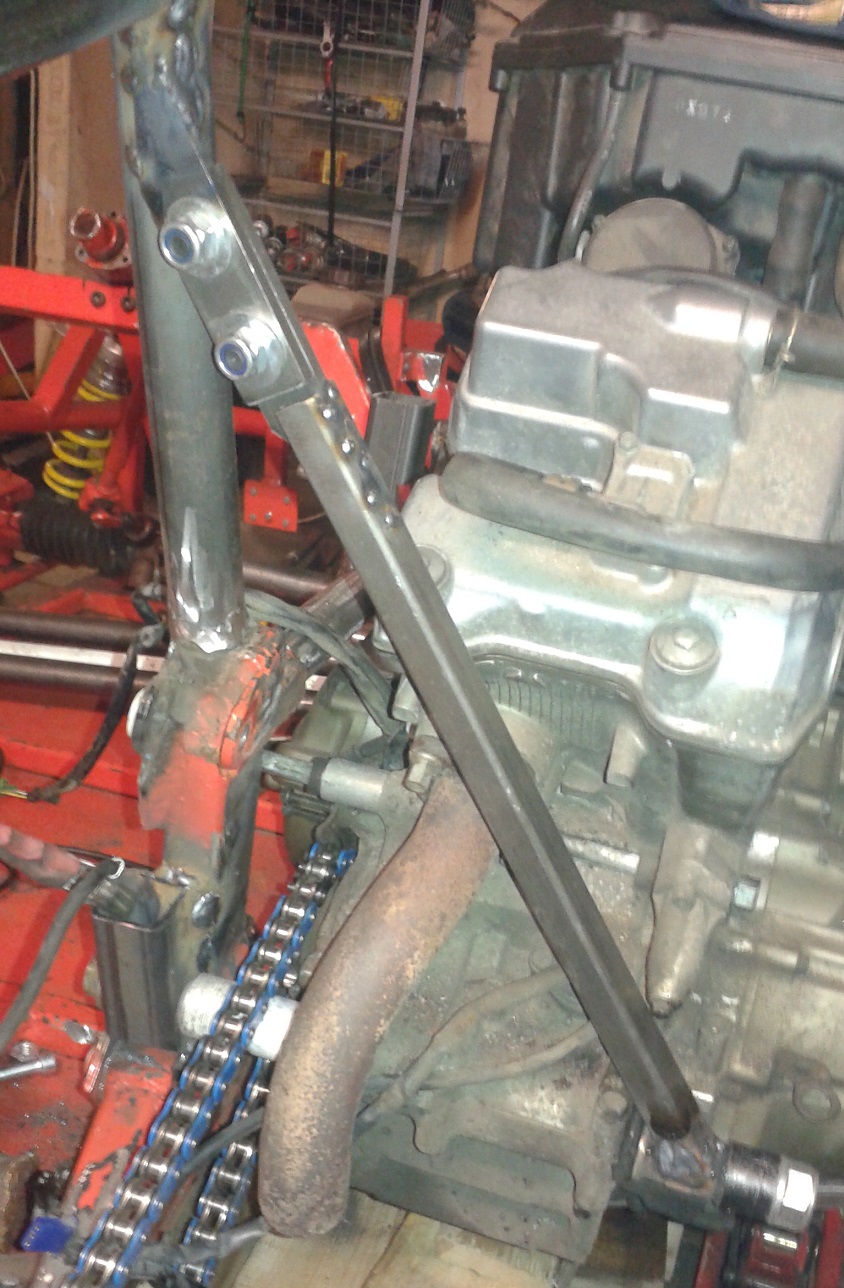

I have fitted the Engine. and wireharness - but wont get the Engine to fire at all.


the key part of ignitionlock was smhed. so cut it off. but tere are only Three wires in it.


also wonderiing if ll years of the Varadero / VTR had a tipsensor as stock ? nd if swhere would this be on the bike as i cannot seem to find it,


there are 2-3 places on the wireloom that might be for the tipsensor. etc etc




also. i have no instrumentcluster as it also was smashed totally so i donot know where to which each of the front located vireconnectors go to except the one for the ignitionkey


help meŽplease. IŽll gladly post Pictures for you.


/ Kristian / Sweden

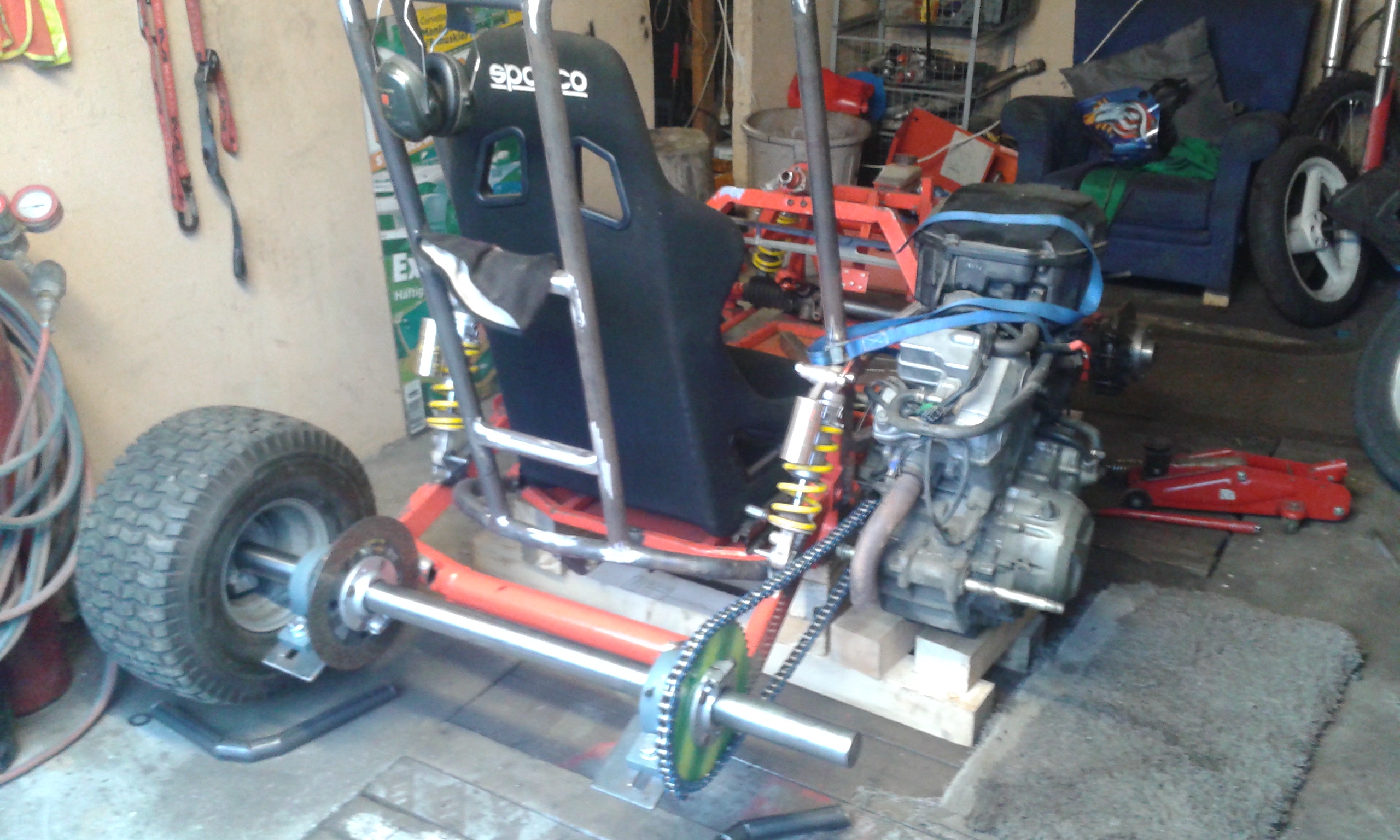

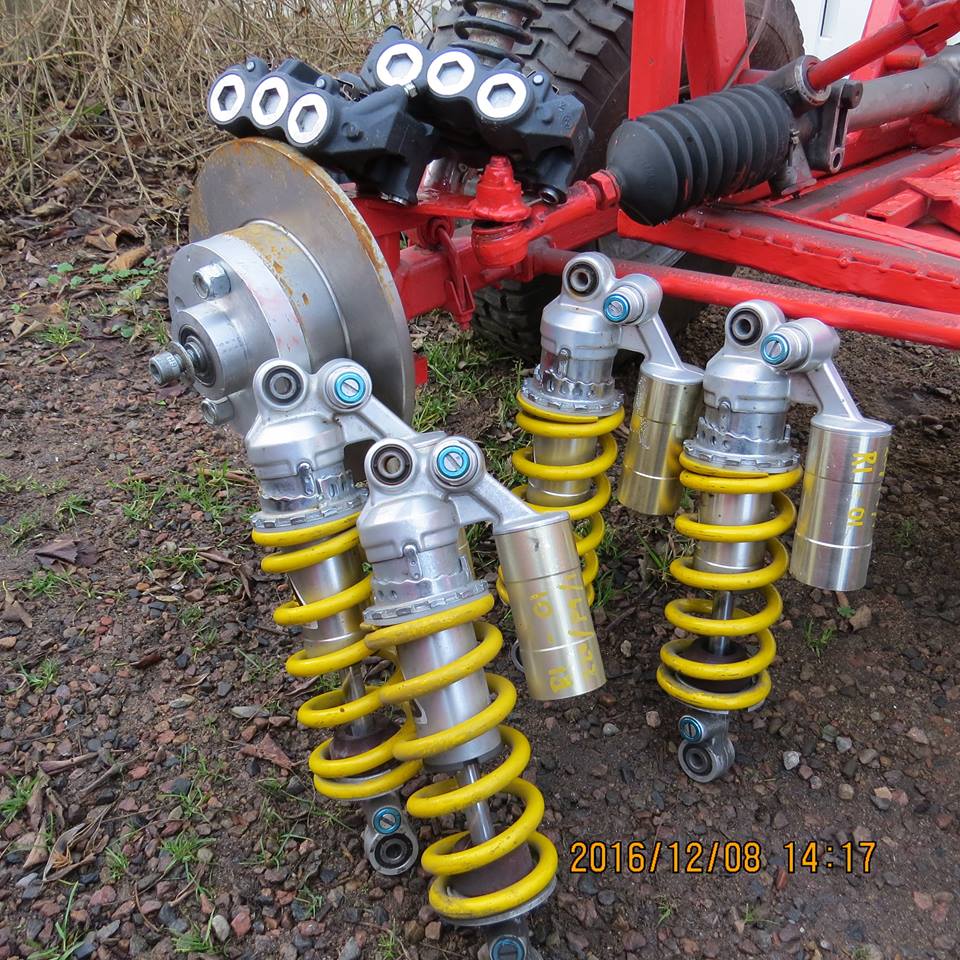

Attached Thumbnails greetings from Sweden please, i need some help-20170414_213414.jpg   greetings from Sweden please, i need some help-20170416_211549.jpg   greetings from Sweden please, i need some help-15400493_10154070831019080_6445136011352459085_n.jpg   greetings from Sweden please, i need some help-20170411_195136.jpg   greetings from Sweden please, i need some help-20170413_164037.jpg

greetings from Sweden please, i need some help-20170411_195233.jpg
KristiaŽn Hesselmark is offline
Old 04-19-2017, 03:01 PM
  #2
VTR virgin
Superstock

Cadbury64's Avatar

Join Date: Mar 2015
Location: Auckland, New Zealand
Posts: 408
Cadbury64 is on a distinguished road
vtr1000f%20wiring%20diagram.jpg?t=1492552716

I have attached a copy of the wiring diagram, and there is no tip-over sensor on the VTR.
Cadbury64 is offline
Old 04-19-2017, 03:35 PM
  #3
Junior Member
Squid
Thread Starter

Join Date: Apr 2017
Location: sweden
Posts: 15
KristiaŽn Hesselmark is on a distinguished road
Cadbury64 - Many thanxs


if i posted som pics of the harness might you be able to help me further ?
KristiaŽn Hesselmark is offline
Old 04-19-2017, 03:36 PM
  #4
Junior Member
Squid
Thread Starter

Join Date: Apr 2017
Location: sweden
Posts: 15
KristiaŽn Hesselmark is on a distinguished road
thanxs som much. if i post some pics of the harness could you help me furhter ?
KristiaŽn Hesselmark is offline
Old 04-19-2017, 03:48 PM
  #5
VTR virgin
Superstock

Cadbury64's Avatar

Join Date: Mar 2015
Location: Auckland, New Zealand
Posts: 408
Cadbury64 is on a distinguished road
Happy to help if I can.

Here is a dropbox link to the service manual for the VTR:

https://www.dropbox.com/s/wnh696qph5...1000F.pdf?dl=0
Cadbury64 is offline
Old 04-19-2017, 08:36 PM
  #6
Banned
MotoGP

Join Date: Aug 2007
Location: Lake View Terrace, CA
Posts: 5,942
8541Hawk will become famous soon enough
Looks like a fun project. Here are a couple more links that might help you out:

Tweety's Wild Thinking and say hi to Markus
also: vtr.nu - VTR-Klubben i Sverige ? Index
8541Hawk is offline
Old 04-20-2017, 07:24 AM
  #7
Senior Member
Superstock

Fastguy59's Avatar

Join Date: Nov 2014
Location: Middletown, CT
Posts: 408
Fastguy59 is on a distinguished road
Looks like fun!
Fastguy59 is offline
Old 04-20-2017, 09:28 AM
  #8
Junior Member
Squid
Thread Starter

Join Date: Apr 2017
Location: sweden
Posts: 15
KristiaŽn Hesselmark is on a distinguished road
8541Hawk - thank you
Fastguy59 thanxs

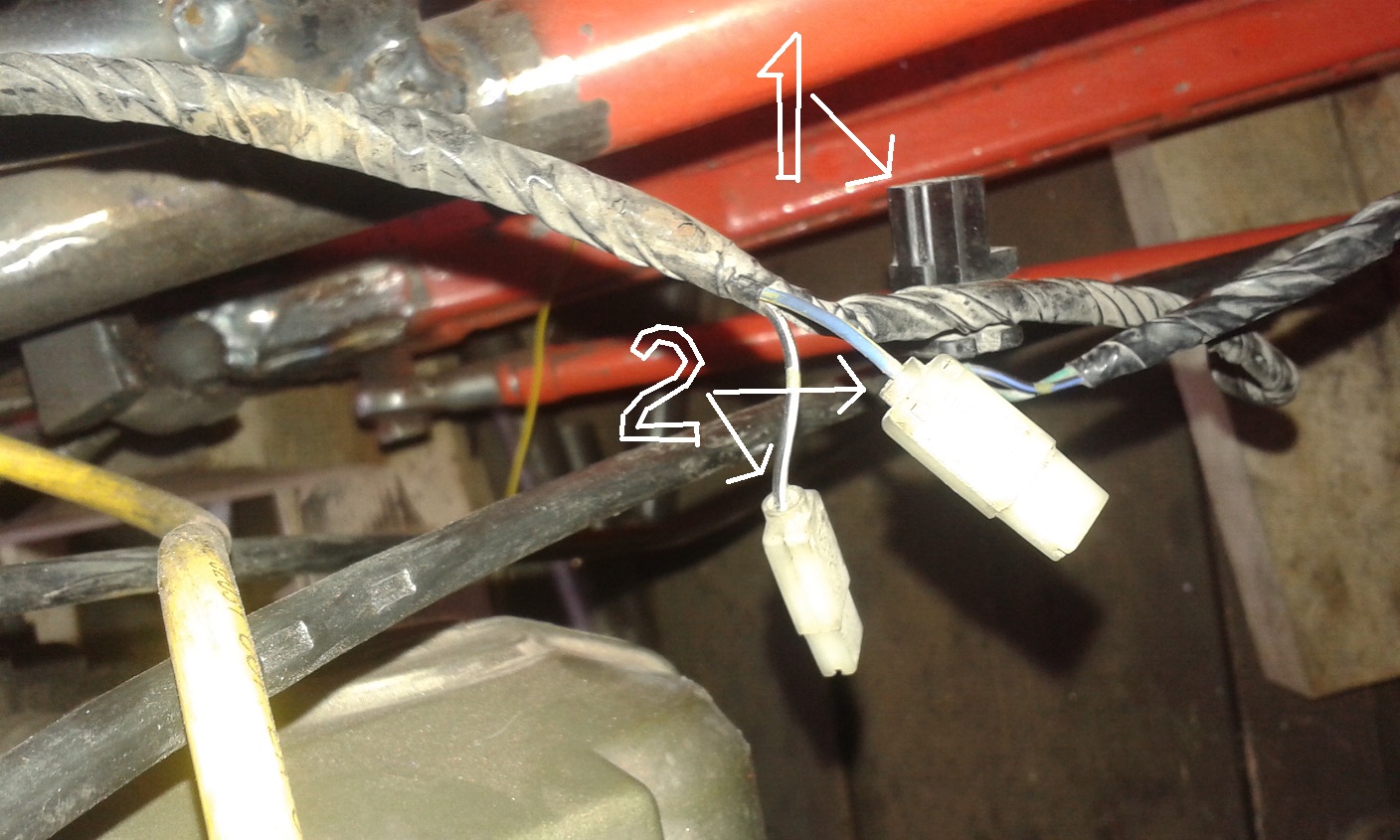

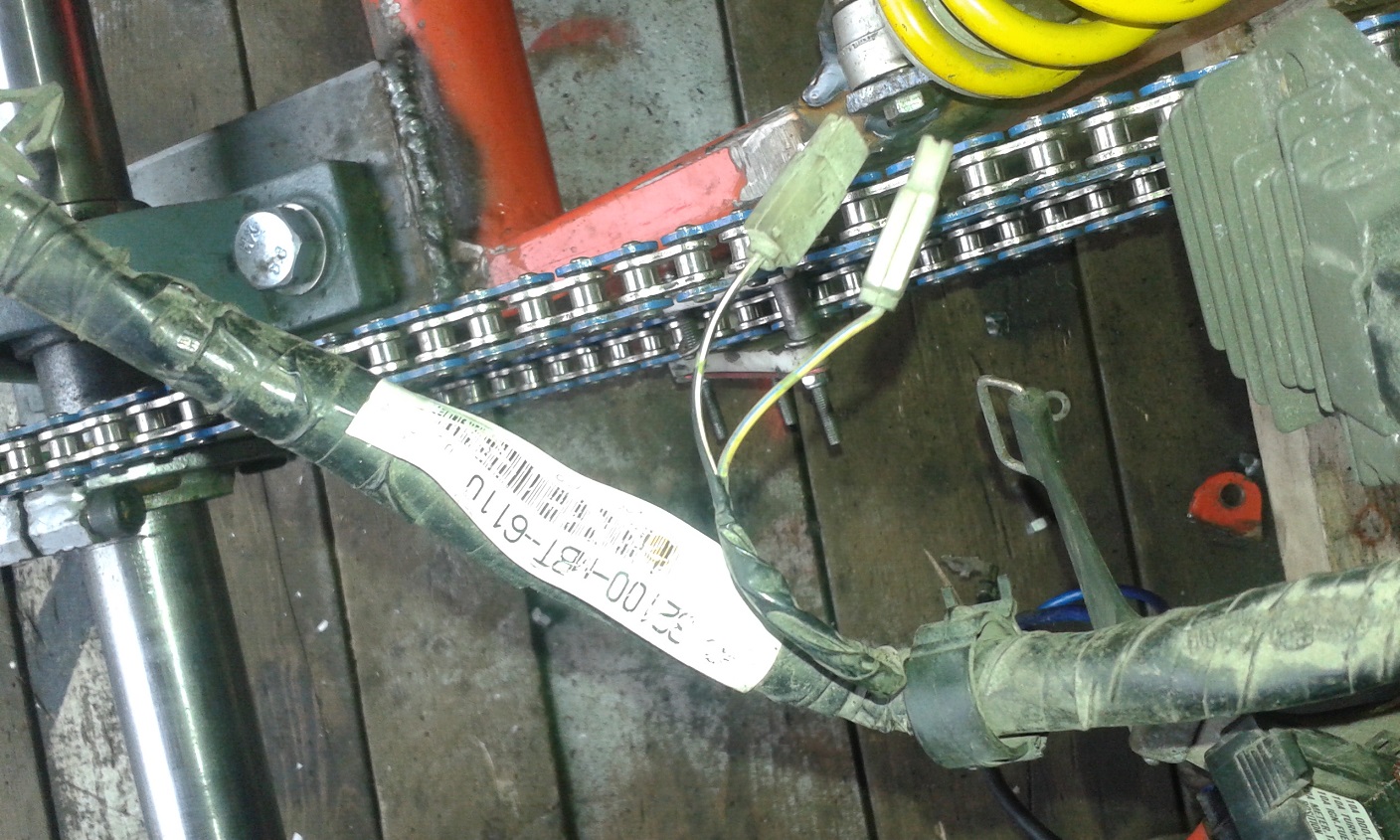

Cadbury64 - here are two more oictures as i asked about. 1st on is located rear of the bike, about 45-50cm from the CDI /Picture without numbers on it

2nd is just ahead of the front coil wires
Attached Thumbnails greetings from Sweden please, i need some help-20170420_170202.jpg   greetings from Sweden please, i need some help-20170420_170300.jpg
KristiaŽn Hesselmark is offline
Old 04-20-2017, 12:20 PM
  #9
VTR virgin
Superstock

Cadbury64's Avatar

Join Date: Mar 2015
Location: Auckland, New Zealand
Posts: 408
Cadbury64 is on a distinguished road
It's hard to tell from the photos but at a guess the rear one may be the brake light switch, and the other could be the fan motor connector.

It would be easier if you tell me how many pins in a connector, and the colour (main/stripe) of the wires.

Also please clarify, is the starter turning over but the engine is not sparking, or the starter is not working?
Cadbury64 is offline
Old 04-20-2017, 12:51 PM
  #10
Junior Member
Squid
Thread Starter

Join Date: Apr 2017
Location: sweden
Posts: 15
KristiaŽn Hesselmark is on a distinguished road
i just found out that the wireharnessess are not idetical on the Varadero / VTR - need to do som more checking / Pictures


as the Engines are the same i just thought the wires would be the same aswell.
KristiaŽn Hesselmark is offline
Old 04-20-2017, 08:13 PM
  #11
Banned
MotoGP

Join Date: Aug 2007
Location: Lake View Terrace, CA
Posts: 5,942
8541Hawk will become famous soon enough
Also if you have a HISS system we really are not going to be much help as US bikes never equipped with it.
8541Hawk is offline
Old 04-21-2017, 09:40 AM
  #12
Junior Member
Squid
Thread Starter

Join Date: Apr 2017
Location: sweden
Posts: 15
KristiaŽn Hesselmark is on a distinguished road
up and running :-) still need hep though with what wires are not in use.
KristiaŽn Hesselmark is offline
Old 04-22-2017, 02:11 PM
  #13
Junior Member
Squid
Thread Starter

Join Date: Apr 2017
Location: sweden
Posts: 15
KristiaŽn Hesselmark is on a distinguished road
Cadbury64: here are a few more questions :-)


I still need to locate on the harness which wireconnector is which . . .


1# Fan-motor wires
2# Fan-switch
3# Fuel level sender
4# Neutral switch / oil pressure switch (same connector ?)
5# Clutch switch
6# fuel cut-off relay
7# Fuelpump wires.. 2 or 3 wires ?


is the fuel cut-off relay necessary on a 4-wheel buggy ? does it act like an tip-sensor ?


:-) / Kristian


-------------


Headlight relayŽs.. 2 pcs. with each a 4-pin connector ? located just by the headlight bulb connectors ?
KristiaŽn Hesselmark is offline
Old 04-22-2017, 07:57 PM
  #14
VTR virgin
Superstock

Cadbury64's Avatar

Join Date: Mar 2015
Location: Auckland, New Zealand
Posts: 408
Cadbury64 is on a distinguished road
Originally Posted by KristiaŽn Hesselmark View Post
Cadbury64: here are a few more questions :-)


I still need to locate on the harness which wireconnector is which . . .


1# Fan-motor wires
2# Fan-switch: 1&2 are together, black 2P connector, black/blue and green wires. Black/blue is live to fan motor then to switch on radiator which completes ground circuit when hot.
3# Fuel level sender: low level sender is a 2p clear connector, brown/black and green/black wires.
4# Neutral switch / oil pressure switch (same connector ?)
5# Clutch switch: Black wires with right-angle boot/spade terminals on end, connect to both red and green connectors which also service the left switch pod (lights/horn/indicators)
6# fuel cut-off relay: Not on the VTR
7# Fuelpump wires.. 2 or 3 wires ? Not on the VTR; gravity feed only, no pump.


is the fuel cut-off relay necessary on a 4-wheel buggy ? does it act like an tip-sensor ?

Bikes with fuel pumps use the relay to stop or start the pump. They also have a bank angle sensor to kill the engine in a fall.


:-) / Kristian


-------------


Headlight relayŽs.. 2 pcs. with each a 4-pin connector ? located just by the headlight bulb connectors ?
VTR's don't have headlight relays. I think you must have the Varadero harness.
Cadbury64 is offline
Old 04-22-2017, 08:11 PM
  #15
VTR virgin
Superstock

Cadbury64's Avatar

Join Date: Mar 2015
Location: Auckland, New Zealand
Posts: 408
Cadbury64 is on a distinguished road
Originally Posted by KristiaŽn Hesselmark View Post
Cadbury64: here are a few more questions :-)


I still need to locate on the harness which wireconnector is which . . .


1# Fan-motor wires
2# Fan-switch
3# Fuel level sender
4# Neutral switch / oil pressure switch (same connector ?)
5# Clutch switch
6# fuel cut-off relay
7# Fuelpump wires.. 2 or 3 wires ?


is the fuel cut-off relay necessary on a 4-wheel buggy ? does it act like an tip-sensor ?


:-) / Kristian


-------------


Headlight relayŽs.. 2 pcs. with each a 4-pin connector ? located just by the headlight bulb connectors ?
Go here to download a service manual for the Varadero. The wiring diagram is on page 20-3.

http://http://service.tanga-moteurs.ro/data/Honda_Xl1000V_Varadero_Service_Manual_En.pdf
Cadbury64 is offline
Old 04-24-2017, 06:55 AM
  #16
Junior Member
Squid
Thread Starter

Join Date: Apr 2017
Location: sweden
Posts: 15
KristiaŽn Hesselmark is on a distinguished road
many thanxs for the great reply.


yess. i do have the Varadero 1000 wireharness. which i noticed is similar but no more than that to the VTRŽs.


The Varadero has a fuelpump, fuelpump cut-off relay etc.. i just need to find the suitable wires yto make a new low preassure fuelpump. get giong as the Engine cranks.
KristiaŽn Hesselmark is offline
Old 04-25-2017, 12:35 PM
  #17
VTR virgin
Superstock

Cadbury64's Avatar

Join Date: Mar 2015
Location: Auckland, New Zealand
Posts: 408
Cadbury64 is on a distinguished road
Assuming your engine has carbs (some Varaderos use FI) then you only need a fuel pump if the fuel tank is lower than the carbs. The VTR does just fine with gravity feed.
Cadbury64 is offline
Old 04-25-2017, 06:28 PM
  #18
Senior Member
SuperBike

xeris's Avatar

Join Date: Sep 2010
Location: Bisbee, AZ
Posts: 1,459
xeris is on a distinguished road
I thought all Varaderos had FI?
xeris is offline
Old 04-25-2017, 09:03 PM
  #19
VTR virgin
Superstock

Cadbury64's Avatar

Join Date: Mar 2015
Location: Auckland, New Zealand
Posts: 408
Cadbury64 is on a distinguished road
The service manual I downloaded (XL1000V) shows 42mm CV carbs. But you are correct that some later Varaderos use FI.
Cadbury64 is offline
Old 04-27-2017, 06:01 PM
  #20
Junior Member
Squid
Thread Starter

Join Date: Apr 2017
Location: sweden
Posts: 15
KristiaŽn Hesselmark is on a distinguished road
Originally Posted by xeris View Post
I thought all Varaderos had FI?

I have the wireharness from an -99 swedishreg carbŽd Varadero, but the Engine off an 1998 VTR with carbs.
KristiaŽn Hesselmark is offline
Old 04-27-2017, 06:06 PM
  #21
Junior Member
Squid
Thread Starter

Join Date: Apr 2017
Location: sweden
Posts: 15
KristiaŽn Hesselmark is on a distinguished road

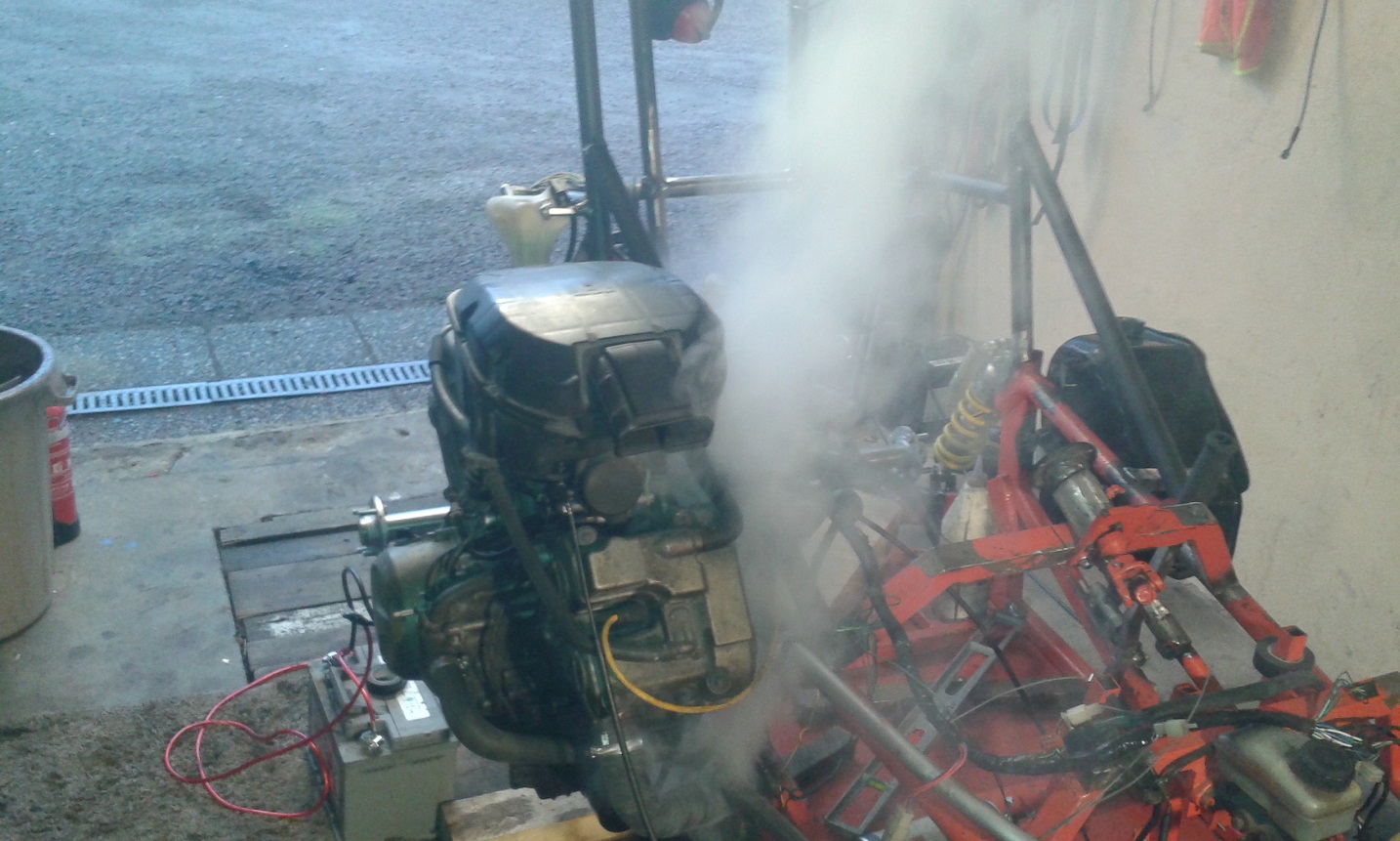

So i have had the Engine running without the thermostat fitted to allow maximum waterflow to check for possible leaks . Im using an FZr1000 -89 radiator up front, which seems to work well. will fit an BMW kl1200 fan also, but will make the fan start with the fuelpump.


also done the entire exhaust-system & fitted exhaustwrap.


ItŽs LOUD :-)

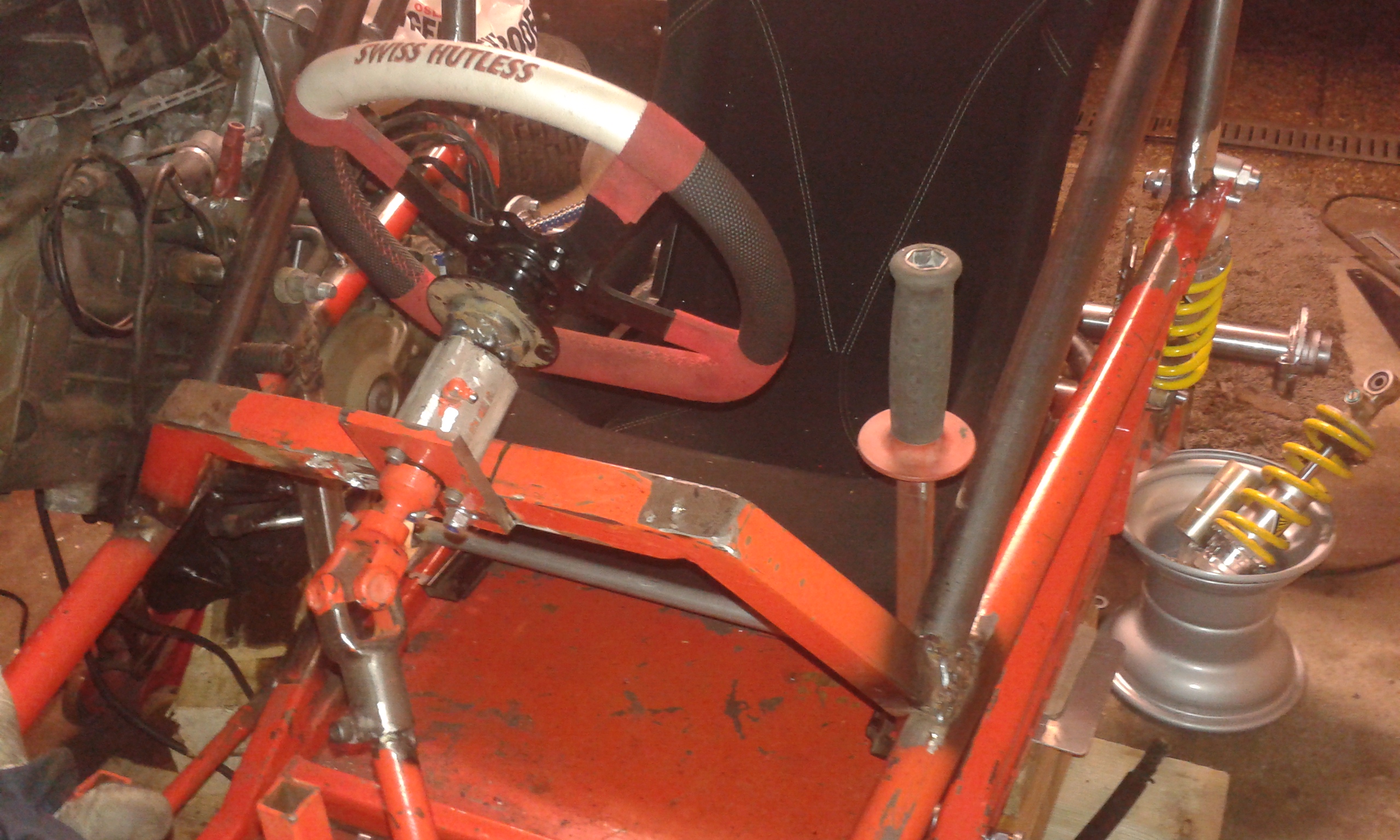

Attached Thumbnails greetings from Sweden please, i need some help-20170427_195351.jpg
KristiaŽn Hesselmark is offline
Old 04-27-2017, 06:15 PM
  #22
Junior Member
Squid
Thread Starter

Join Date: Apr 2017
Location: sweden
Posts: 15
KristiaŽn Hesselmark is on a distinguished road
SpecŽs


1992 Swedishmade crosskart-chassie, brand new
Honda VTR V2 1000cc 130hp engine
520 o-ringchain
Honda Varadero wireharness
Yamaha FZR600 tfuelank
Aftermarket lowpressure fuelpump
Gocart-steeringwheel
Sparco raceseat
3" 4-point raceharness
Suzuki GSXR600 rear brakedisc
Twin ZX9-R 6-pots rear - one for handbrake, one for footbrake
Honda CBR1000 rear master cylnder for handbrake
Audi50/front brake discs, machined 20mm
Yamaha R1 -13 6-pots front
FZR1000 -89 radiator
Yamaha TZR125 expansiontank for rrdiator
tires front: 130/70-12 semi-offroad style
tires rer:ar20x10x8 or: 28x12x8
aftermarket rear brakelight LED
LED lightbar on rollcage
KristiaŽn Hesselmark is offline
Old 04-28-2017, 06:36 AM
  #23
Senior Member
SuperBike

xeris's Avatar

Join Date: Sep 2010
Location: Bisbee, AZ
Posts: 1,459
xeris is on a distinguished road
You might want to rethink the no thermostat.
xeris is offline
Old 04-28-2017, 11:49 AM
  #24
Junior Member
Squid
Thread Starter

Join Date: Apr 2017
Location: sweden
Posts: 15
KristiaŽn Hesselmark is on a distinguished road
Originally Posted by xeris View Post
You might want to rethink the no thermostat.


i run all my Three bikes without.. but on the buggy its only atm for checking for leaks.


is the VTR sensitive for that running without the themostat ?
KristiaŽn Hesselmark is offline
Old 04-28-2017, 03:26 PM
  #25
VTR virgin
Superstock

Cadbury64's Avatar

Join Date: Mar 2015
Location: Auckland, New Zealand
Posts: 408
Cadbury64 is on a distinguished road
If you have no thermostat then the engine will be slower to come to operating temperature (about 80C), and may never get that warm if you are running steadily in cold air. On a buggy at low speed and in short bursts, that may not matter, but you would run the risk of moisture accumulating in the oil as it was not getting hot enough to evaporate.
Cadbury64 is offline
Old 05-04-2017, 03:04 PM
  #26
Junior Member
Squid
Thread Starter

Join Date: Apr 2017
Location: sweden
Posts: 15
KristiaŽn Hesselmark is on a distinguished road

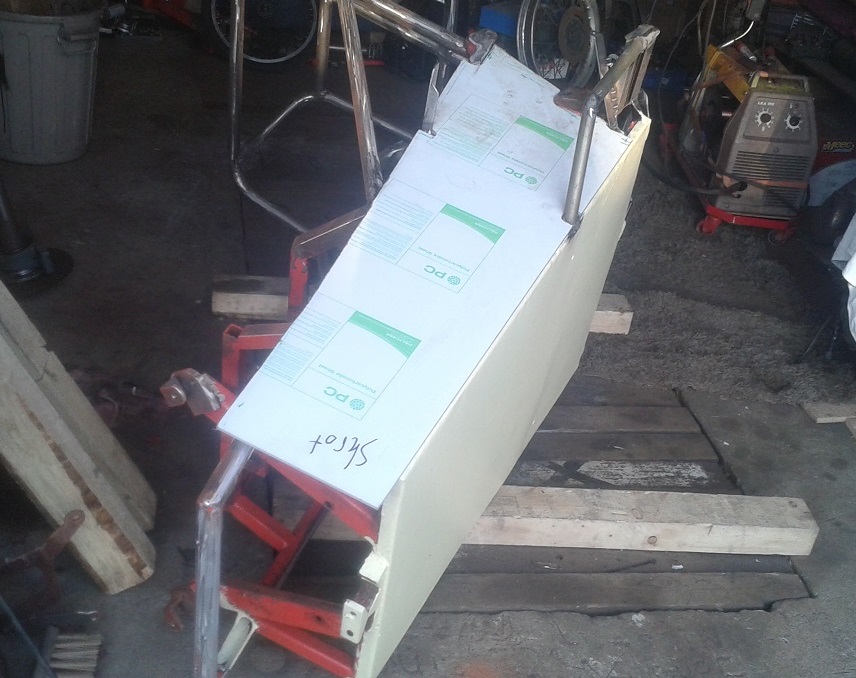

just wanted to show that the chassie is stripped & sanded down for paint now.


also started to make some bodypanels from 3mm lexan
Attached Thumbnails greetings from Sweden please, i need some help-20170504_201133.jpg
KristiaŽn Hesselmark is offline
Old 05-06-2017, 02:12 PM
  #27
Junior Member
Squid
Thread Starter

Join Date: Apr 2017
Location: sweden
Posts: 15
KristiaŽn Hesselmark is on a distinguished road

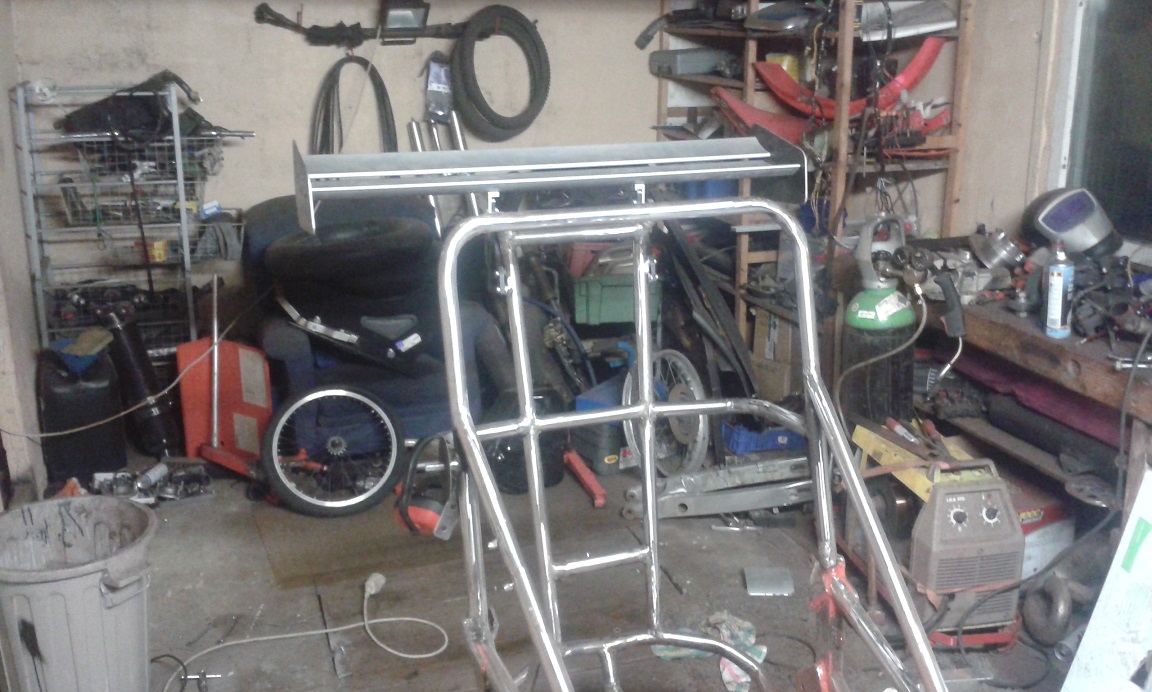

you cant go fast without a wing
Attached Thumbnails greetings from Sweden please, i need some help-20170505_220300.jpg
KristiaŽn Hesselmark is offline
Old 06-26-2017, 04:30 AM
  #28
Junior Member
Squid
Thread Starter

Join Date: Apr 2017
Location: sweden
Posts: 15
KristiaŽn Hesselmark is on a distinguished road
Testvideo :-)
KristiaŽn Hesselmark is offline
Old 06-26-2017, 07:35 AM
  #29
Retired- but not tired!
SuperBike

CrankenFine's Avatar

Join Date: Aug 2010
Location: Pittsburgh
Posts: 1,431
CrankenFine is on a distinguished road
Technically possible is not the equivalent of good idea.
CrankenFine is offline
Related Topics
Thread
Thread Starter
Forum
Replies
Last Post
Billzilla15
Technical Discussion
23
07-11-2011 04:25 AM
finepooch
Everything Else
9
12-16-2009 05:28 PM
jbrobinson08
General Discussion
3
05-20-2009 10:24 PM
99Hawkboy
Technical Discussion
5
07-18-2005 01:42 PM
VTRjonte
Members Rides
10
03-06-2005 12:38 PM


Thread Tools
Search this Thread
Quick Reply: greetings from Sweden please, i need some help


Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

© 2019 MH Sub I, LLC dba Internet Brands

We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.

All times are GMT -7. The time now is 03:47 AM.


© 2019 MH Sub I, LLC dba Internet Brands
