Exhaust question ...

Pardon my ignorance, but will a slip-on system that was originally intended for use on a RC51 work with the VTR1000?
TwinSpeedJunkie is offline
Old 08-23-2007, 09:24 PM
  #2
Sprung
World Champion

Hawkrider's Avatar

Join Date: Dec 2004
Location: Fulton, MO
Posts: 105,285
Hawkrider will become famous soon enoughHawkrider will become famous soon enough
Nope.
Hawkrider is offline
Old 08-24-2007, 03:55 AM
  #3
evil man of nothing
MotoGP

captainchaos's Avatar

Join Date: Jan 2006
Location: Boynton Beach, FL
Posts: 4,216
captainchaos is on a distinguished road
If you were to put the aftermarket midpipes side by side for both bikes the right side is about identical, but the angle of bend into the header is noticeably different on the left side. I haven't actually tried to fit them up but I've read the diameter where they slip on to the header may also be different.
captainchaos is offline
Old 08-24-2007, 05:19 AM
  #4
Moderate-whore
MotoGP

Randman's Avatar

Join Date: Nov 2005
Location: Leander TX!!
Posts: 9,045
Randman is on a distinguished road
Originally Posted by Hawkrider View Post
Nope.
+1
Randman is offline
Old 08-24-2007, 05:26 AM
  #5
Junior Member
Squid
Thread Starter

Join Date: Jul 2007
Posts: 23
TwinSpeedJunkie is on a distinguished road
Thanks guys.
TwinSpeedJunkie is offline
Old 08-24-2007, 05:40 PM
  #6
Sprung
World Champion

Hawkrider's Avatar

Join Date: Dec 2004
Location: Fulton, MO
Posts: 105,285
Hawkrider will become famous soon enoughHawkrider will become famous soon enough
Diameter is different.
Hawkrider is offline
Old 08-24-2007, 10:22 PM
  #7
Senior Member
SuperSport

swordfish's Avatar

Join Date: May 2005
Location: North Wales, PA
Posts: 809
swordfish is an unknown quantity at this point
it can be done depending on what pipes they are. I have hindle highmount titaniums for an rc. didn't know for sure that they were for the rc instead of the hawk for a long time. I just thought I was missing some connecting parts. anyway, it can be done but it will be a battle. I finally got mine to work but only after I resorted to using car exhaust clamps, as well as a car exhaust extension piece. (cause one side is longer than the other) and lots of synthetic heat resistant gasket goo(can't remember the name at the moment). its really more trouble than its worth. the only reason I persisted was because I got them off ebay and I couldn't afford to get another pair after I bought these. but now they work great and sound even better. but they still don't sit exactly even on both sides.
swordfish is offline
Old 08-25-2007, 08:07 AM
  #8
Moderator
MotoGP

superbling's Avatar

Join Date: Dec 2004
Location: South Texas
Posts: 2,553
superbling is on a distinguished road
The diameter and mounting points are different but I've done it two different ways.

First, I modded stock rc cans to fit (see avatar) and later I added RC mufflers to aftermarket superhawk mid-pipes (both high and low versions).
superbling is offline
Old 08-25-2007, 11:26 PM
  #9
Senior Member
SuperSport

swordfish's Avatar

Join Date: May 2005
Location: North Wales, PA
Posts: 809
swordfish is an unknown quantity at this point

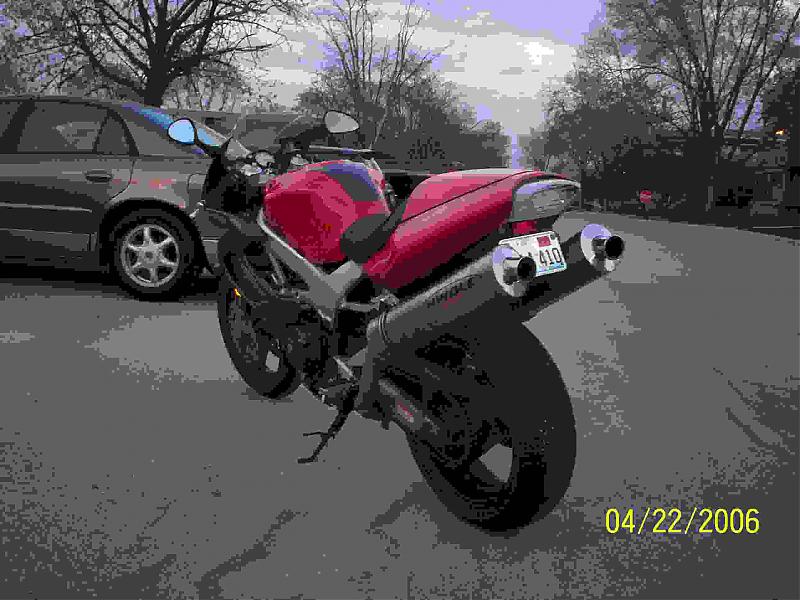

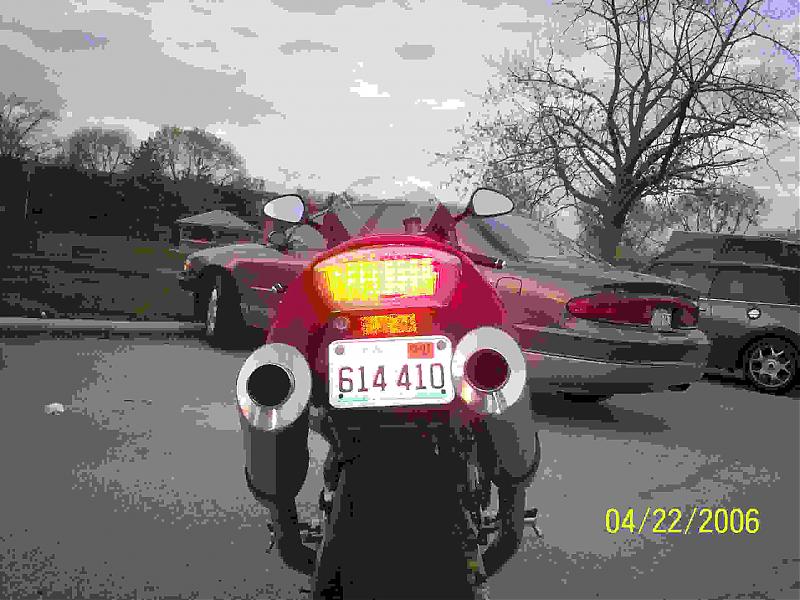

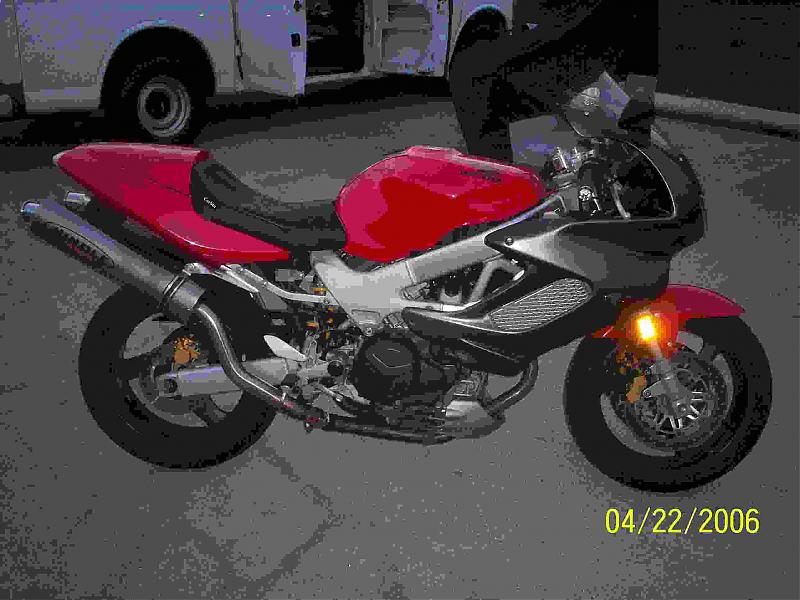

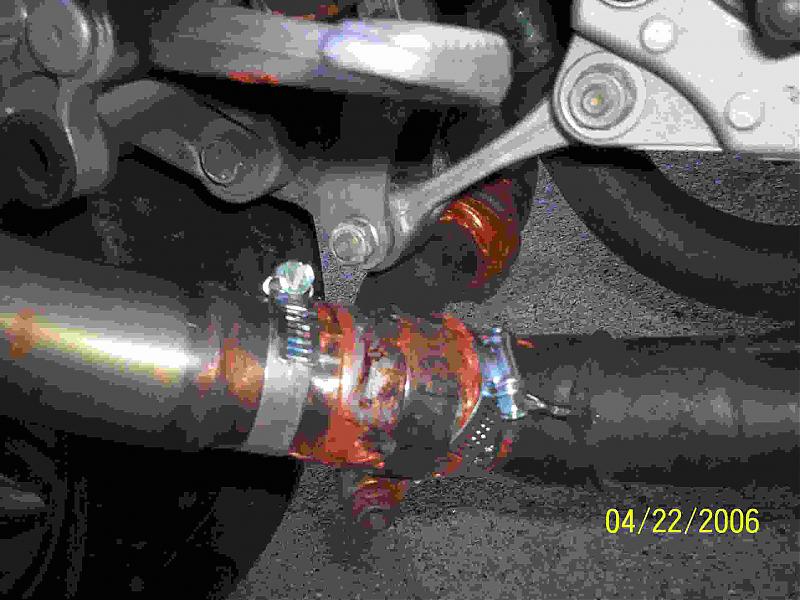

I don't know if you'll be able to see or not but there are marks on the cans from where the clamps held the pipes on whatever bike had them before mine and as you can see, its not the same. the connection pic looks uglier than it does now. instead of the 3 clamps you see, now there is only one car clamp. the stock clamp was way too weak to lock down the pipes. it might look like a mess but trust me its solid. you can see the car exhaust extension between the midpipe and the header. as for the tail I got the cans pretty even but not perfect. and it is not getting any better than this. I've tried everything and if they aren't uneven like that, they won't hook up underneath. after alot of fiddling, they don't leak, and now the bike is jetted for them so it runs great. they sound good too even if they weren't meant for this bike. but like I said. it was a long long battle sorting out all the little issues.
Attached Thumbnails Exhaust question ...-picture_74.jpg   Exhaust question ...-picture_80.jpg   Exhaust question ...-picture_84.jpg   Exhaust question ...-picture_85.jpg

Last edited by swordfish; 08-25-2007 at 11:36 PM.
swordfish is offline
