So I guess I will be the Guinea pig
Senior Member
SuperBike
Joined: Mar 2012
Posts: 1,544
From: New South Wales Australia
Relieved to hear that all is well.
I have almost got everything I need to do my braced swinger and was getting worried that I had wasted my money on the Dans.
Pics would be a great help.
Wish I knew how to post pics!!!
I have almost got everything I need to do my braced swinger and was getting worried that I had wasted my money on the Dans.
Pics would be a great help.
Wish I knew how to post pics!!!
Thread Starter
Senior Member
SuperSport
Joined: Oct 2012
Posts: 501
From: Orlando, FL
Yes, everything with them does seem good besides the stuff I mentioned before, I am posting pics of them on the bike, and i will be installing the pedal return spring today as well, so I will take a few more showing the adjustments i have made.
Thread Starter
Senior Member
SuperSport
Joined: Oct 2012
Posts: 501
From: Orlando, FL
The black bolt is the one I drilled out and used a larger bolt.

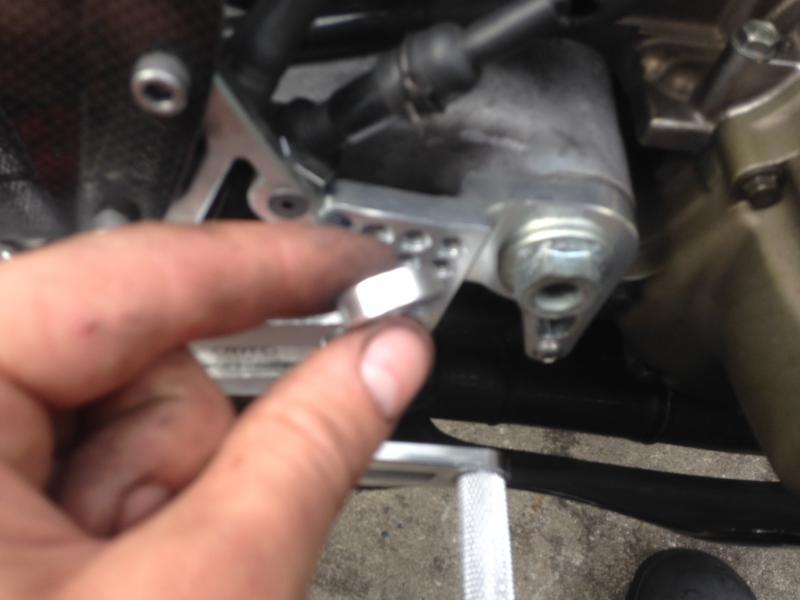

This is the 6mm spacer that Danmoto forgot in my kit (should have 4 in kit, and also 4 longer mounting bolts)

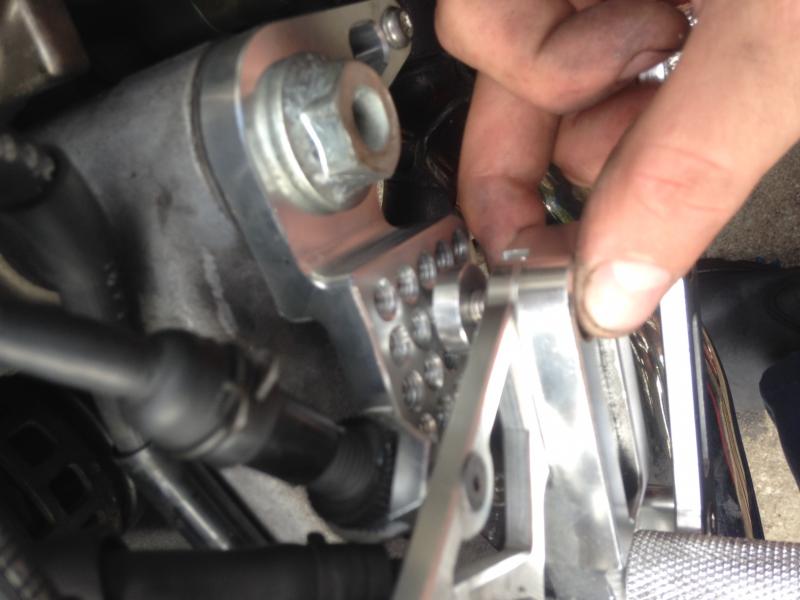

That is the how the mounting bolt and spacer are put on the set to space it away from adjusting bracket.

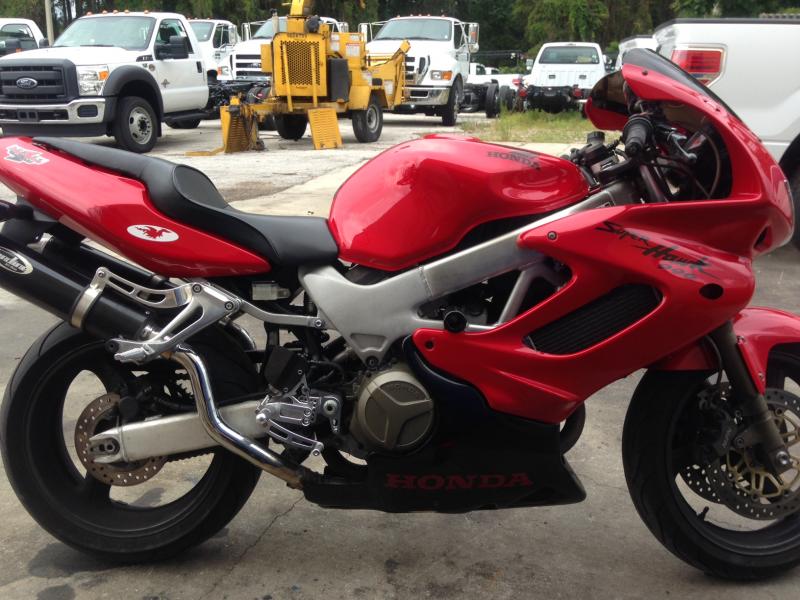

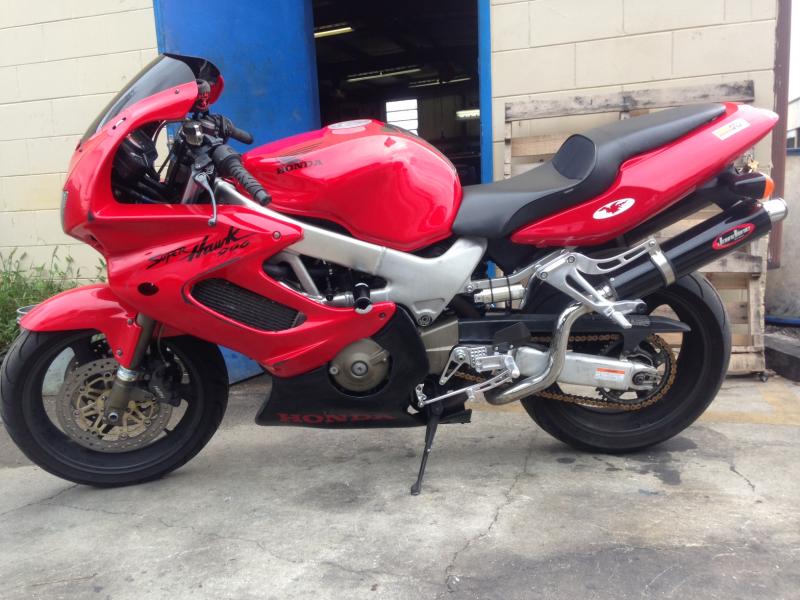

That is the finished product
This is the 6mm spacer that Danmoto forgot in my kit (should have 4 in kit, and also 4 longer mounting bolts)
That is the how the mounting bolt and spacer are put on the set to space it away from adjusting bracket.
That is the finished product
Last edited by sailorjerry; Oct 7, 2013 at 02:57 PM.
Thread Starter
Senior Member
SuperSport
Joined: Oct 2012
Posts: 501
From: Orlando, FL
Deffinately, customer service was great at handling my issues, and quick for being on the other side of the world.
I do feel that some of the issues I shouldn't have had, but also you get what you pay for.

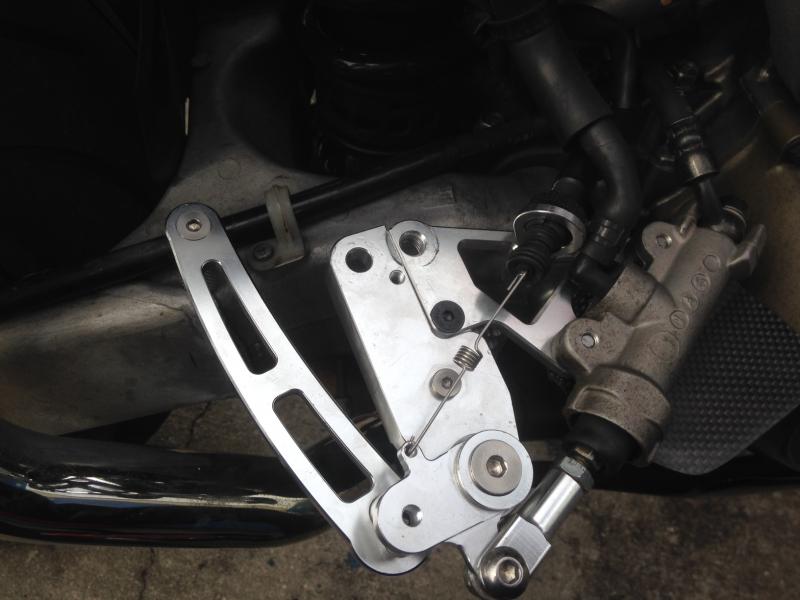

The only real thing I don't like about them, is the lack of a brake pedal return spring, which I am in the process of fabricating with an eyelet and a throttle return spring from a carb. Once I get that sorted I will post more pictures and how to install it.
Senior Member
SuperBike
Joined: Mar 2012
Posts: 1,544
From: New South Wales Australia
Great work,
That's what these forums are all about.
People taking the time to help out other like minded people with the benefit of their experiences.
I will check mine tonight to make sure that I have all necessary bits.
If not I will be onto Dan like a fly on a rotten prawn on the BBQ!!!!!!!!
Looking forward to seeing how you fit the spring.
That's what these forums are all about.
People taking the time to help out other like minded people with the benefit of their experiences.
I will check mine tonight to make sure that I have all necessary bits.
If not I will be onto Dan like a fly on a rotten prawn on the BBQ!!!!!!!!
Looking forward to seeing how you fit the spring.
Thread Starter
Senior Member
SuperSport
Joined: Oct 2012
Posts: 501
From: Orlando, FL
Came in a little quicker than intended and slid the rear till it caught traction and the bike high sided, Danmoto rear sets seemingly held up pretty well to it between it and the slider they took all of the impact, nothing broken, little scrape on the brake lever and it looks like the foot peg bolt might be tweaked just a little bit, but from what I can tell that seems to be it.
I guess we will call this part of the testing the strength test
I guess we will call this part of the testing the strength test
Junior Member
Squid
Joined: Aug 2013
Posts: 4
Thanks for the pictures and advice. Just checked my kit and there are no spacers so an email has been sent off to Dan Moto.
Hope you did not hurt yourself in the highside. I did the same thing on my 250VTR 6 weeks ago, broke 5 ribs and detached the main ligament in my shoulder, still not healed.
Hope you did not hurt yourself in the highside. I did the same thing on my 250VTR 6 weeks ago, broke 5 ribs and detached the main ligament in my shoulder, still not healed.
Thread Starter
Senior Member
SuperSport
Joined: Oct 2012
Posts: 501
From: Orlando, FL
Well learned something new about them on Saturday.
This being since they don't have the feelers, they are higher up and further back, and at the same time I installed all reworked by DMr suspension components. After finally getting everything dialed in on the suspension side the way it should be, I decided I needed to push the bike a bit and see what she would do in with a knee on the ground.
Well with the higher lean angle and different ground clearance, I found that if you are not careful, you can drag more than your knee.
I came into a corner running about 75mph, leaned in and with about an inch till my knee hit the ground I heard a hard scrape, and pulled up just a bit, got to where I could stop and found I had scraped my belly fairing and my clutch cover. Moral of the story, with no feelers on the pegs and different riding postion, remember where your hard parts are and how far away from the ground they are and get that knee out a little further.
It was fun though!!!! Even with the now melted belly fairing and scraped clutch cover!
This being since they don't have the feelers, they are higher up and further back, and at the same time I installed all reworked by DMr suspension components. After finally getting everything dialed in on the suspension side the way it should be, I decided I needed to push the bike a bit and see what she would do in with a knee on the ground.
Well with the higher lean angle and different ground clearance, I found that if you are not careful, you can drag more than your knee.
I came into a corner running about 75mph, leaned in and with about an inch till my knee hit the ground I heard a hard scrape, and pulled up just a bit, got to where I could stop and found I had scraped my belly fairing and my clutch cover. Moral of the story, with no feelers on the pegs and different riding postion, remember where your hard parts are and how far away from the ground they are and get that knee out a little further.
It was fun though!!!! Even with the now melted belly fairing and scraped clutch cover!
Senior Member
Superstock
Joined: Jul 2013
Posts: 458
From: Rome, GA
Thanks for the review, and sorry about your highside
Senior Member
MotoGP
Joined: Jul 2007
Posts: 5,066
From: NYC
That is always a good feeling when you scrape stuff. You just dont care what the slight damage was, you are just happy to have done it.
I still have the raingear I was wearing the first time I slid my knee in the pouring rain and wore holes in both knees. I just bought the gear but was happy to wear it out like that.
I still have the raingear I was wearing the first time I slid my knee in the pouring rain and wore holes in both knees. I just bought the gear but was happy to wear it out like that.
not a
Back Marker
Joined: Aug 2012
Posts: 102
From: Anaheim, CA
Thread Starter
Senior Member
SuperSport
Joined: Oct 2012
Posts: 501
From: Orlando, FL
They are just Jardine RT one's. All the standard high rise pipes fit the same.
Smokinjoe, it always makes me happy when something gets scraped on the ground, while both wheels are on the ground that is.
Senior Member
Superstock
Joined: Sep 2013
Posts: 460
From: Costa Mesa, CA
Thanks Guinea Pig
I ordered some silver Danmoto rearsets on 12/5 and received them 12/13!
Not bad for coming from China. Easy install and VERY adjustable. All the needed spacers and bolts were included. The way I set mine up provided crisper shifting maybe due to altered leverage ratios. The only downside is that the master cylinder mount is kind of flimsy making the rear brake feel a little spongy. It looks good, but, if they hadn't CNC'd the bracket so much it may have been a little more rigid. The only other defect was the locator bolt holes below the swing arm pivot bolt are a few mm off causing one peg to be different height from the other. Easily remedied by mounting one side one adjustment hole up or down.
But, for $168.00 including freight, I can live with them. The pluses out weigh the few defects.
Not bad for coming from China. Easy install and VERY adjustable. All the needed spacers and bolts were included. The way I set mine up provided crisper shifting maybe due to altered leverage ratios. The only downside is that the master cylinder mount is kind of flimsy making the rear brake feel a little spongy. It looks good, but, if they hadn't CNC'd the bracket so much it may have been a little more rigid. The only other defect was the locator bolt holes below the swing arm pivot bolt are a few mm off causing one peg to be different height from the other. Easily remedied by mounting one side one adjustment hole up or down.
But, for $168.00 including freight, I can live with them. The pluses out weigh the few defects.
Senior Member
SuperSport
Joined: Apr 2013
Posts: 834
From: Thousand Oaks, CA
I ordered some silver Danmoto rearsets on 12/5 and received them 12/13!
Not bad for coming from China. Easy install and VERY adjustable. All the needed spacers and bolts were included. The way I set mine up provided crisper shifting maybe due to altered leverage ratios. The only downside is that the master cylinder mount is kind of flimsy making the rear brake feel a little spongy. It looks good, but, if they hadn't CNC'd the bracket so much it may have been a little more rigid. The only other defect was the locator bolt holes below the swing arm pivot bolt are a few mm off causing one peg to be different height from the other. Easily remedied by mounting one side one adjustment hole up or down.
But, for $168.00 including freight, I can live with them. The pluses out weigh the few defects.
Not bad for coming from China. Easy install and VERY adjustable. All the needed spacers and bolts were included. The way I set mine up provided crisper shifting maybe due to altered leverage ratios. The only downside is that the master cylinder mount is kind of flimsy making the rear brake feel a little spongy. It looks good, but, if they hadn't CNC'd the bracket so much it may have been a little more rigid. The only other defect was the locator bolt holes below the swing arm pivot bolt are a few mm off causing one peg to be different height from the other. Easily remedied by mounting one side one adjustment hole up or down.
But, for $168.00 including freight, I can live with them. The pluses out weigh the few defects.
Senior Member
Superstock
Joined: Sep 2013
Posts: 460
From: Costa Mesa, CA
Not gonna' happen
The Danmotos won't go lower than stock. But, there are some adjustable replacements that will. They work with the stock brake and shifter levers. They are shorter than stock so dragging wasn't an issue. I did some knee damage and went that route. In fact I've been forced to go back to stock with different pegs (no rubber) after healing as a result. So now I have a set of Dan motos and those just setting in my shop.
