Mono Shock Front Suspension VTR!

Old 01-03-2009, 06:27 PM
  #1
Senior Member
Superstock
Thread Starter

t-dogg's Avatar

Join Date: Nov 2008
Location: Florida panhandle
Posts: 360
t-dogg is on a distinguished road
Mono Shock Front Suspension VTR!

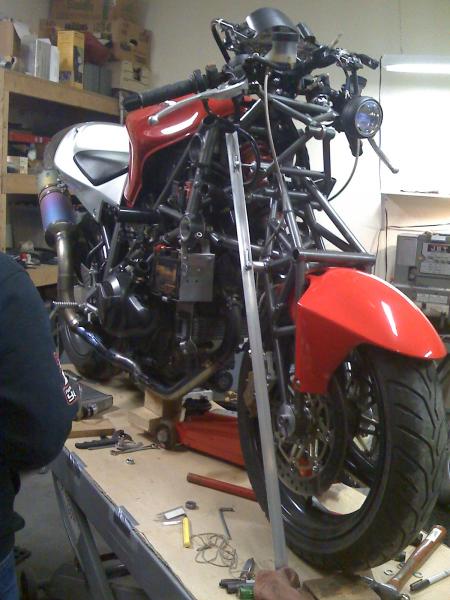

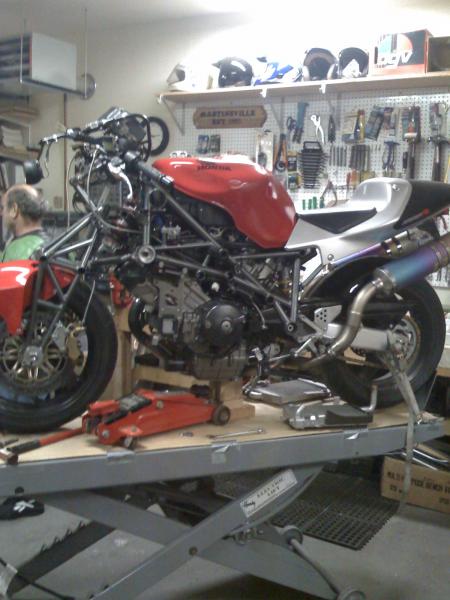

Check out this awesome front suspension setup on my friends hawk up in Michigan. The frame is completely handmade out of cromolly tubing and the front suspension is braced with a single Koni shock up front. Just goes to show you what you can do with some tools in a barn!
Attached Thumbnails Mono Shock Front Suspension VTR!-004.jpg   Mono Shock Front Suspension VTR!-003.jpg   Mono Shock Front Suspension VTR!-002.jpg
t-dogg is offline
Old 01-03-2009, 07:07 PM
  #2
Senior Member
MotoGP

mikstr's Avatar

Join Date: Apr 2005
Location: Montreal
Posts: 5,560
mikstr is on a distinguished road
Looks pretty wild. He re-did the entire frame too
mikstr is offline
Old 01-03-2009, 07:27 PM
  #3
Sprung
World Champion

Hawkrider's Avatar

Join Date: Dec 2004
Location: Fulton, MO
Posts: 105,285
Hawkrider will become famous soon enoughHawkrider will become famous soon enough
Your friend's name wouldn't happen to be James Parker, would it? Looks like some of his work.
Hawkrider is offline
Old 01-04-2009, 02:04 AM
  #4
Senior Member
MotoGP

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 4,923
smokinjoe73 is on a distinguished road
Or maybe Frankenstein?
smokinjoe73 is offline
Old 01-04-2009, 08:29 AM
  #5
Senior Member
Superstock
Thread Starter

t-dogg's Avatar

Join Date: Nov 2008
Location: Florida panhandle
Posts: 360
t-dogg is on a distinguished road

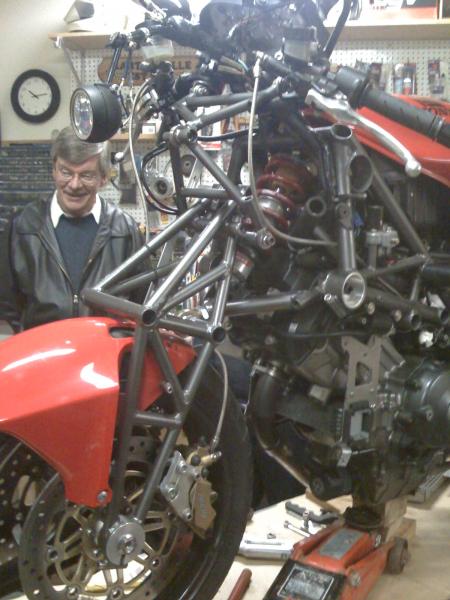

Nope his name is Martin. You can see him in the second pic. Def. one of the smartest people I have ever met. The motor is completely stock for now but he is in the process of building a beast of a motor for this thing including these custom made camshafts he made. The focus of the project is the frame and suspension though. He was making the upper control arm when I was there and setting the rake and travel. I just stared at this thing forever trying to take it all in
t-dogg is offline
Old 01-04-2009, 08:32 AM
  #6
Senior Member
SuperBike

JamieDaugherty's Avatar

Join Date: Aug 2005
Location: Fort Wayne, IN
Posts: 1,835
JamieDaugherty is an unknown quantity at this point
Man that is sweet, and ultra nice work too I might add. I have to ask the obivous question though - WHY?
JamieDaugherty is offline
Old 01-04-2009, 09:24 AM
  #7
Senior Member
SuperBike

Gregw's Avatar

Join Date: Jun 2007
Location: Los Angeles ish
Posts: 1,031
Gregw is on a distinguished road
Just a guess, but it look's like he's added a lot of unsprung weight.
Gregw is offline
Old 01-04-2009, 04:17 PM
  #8
Senior Member
MotoGP

lazn's Avatar

Join Date: Mar 2007
Location: Phoenix, AZ
Posts: 3,132
lazn is on a distinguished road
looks a lot like this one: https://www.superhawkforum.com/forum...ad.php?t=16235

Wait, it is that one
lazn is offline
Old 01-04-2009, 05:24 PM
  #9
Senior Member
Superstock
Thread Starter

t-dogg's Avatar

Join Date: Nov 2008
Location: Florida panhandle
Posts: 360
t-dogg is on a distinguished road
Yup thats the same one. I knew there where pics of it somewhere on here. He carries those same pictures in his pocket everywhere he goes
t-dogg is offline
Old 01-06-2009, 07:30 PM
  #10
JAMES
Superstock

Pimpsterbim1's Avatar

Join Date: Mar 2008
Location: Toledo, OHIO
Posts: 274
Pimpsterbim1 is on a distinguished road
I read the title and knew it was going to be the same one I saw in Stockbridge... That thing is soo crazy up close!.. I never got a chance to talk to him, but hope to see him next year there..
Pimpsterbim1 is offline
Old 01-07-2009, 09:25 AM
  #11
Senior Member
MotoGP

lazn's Avatar

Join Date: Mar 2007
Location: Phoenix, AZ
Posts: 3,132
lazn is on a distinguished road
There is always the Lazareth Dokujya for a monoshock VTR but I think it might be a RC51 not a 1000F http://www.motorcyclespecs.co.za/mod...000%20%201.htm
lazn is offline
Old 01-08-2009, 09:52 AM
  #12
Senior Member
SuperBike

JamieDaugherty's Avatar

Join Date: Aug 2005
Location: Fort Wayne, IN
Posts: 1,835
JamieDaugherty is an unknown quantity at this point
Originally Posted by lazn View Post
There is always the Lazareth Dokujya for a monoshock VTR but I think it might be a RC51 not a 1000F http://www.motorcyclespecs.co.za/mod...000%20%201.htm

That's a chicken motor. You can tell by the rotor/stator cover, the RC51 has some extra protrusions. It's hard to explain, once you see it you'll know what I mean.

That bike is sweet. I love to sit back and marvel at good work like that.
JamieDaugherty is offline
Old 03-10-2009, 11:15 PM
  #13
Member
Squid

Kieran's Avatar

Join Date: Aug 2008
Location: Dunedin, New Zealand
Posts: 52
Kieran is on a distinguished road
I've dreamed of building one with a CroMoly front swinger AKA Vyrus, Tryphonos or Tesi

Just a guess, but it look's like he's added a lot of unsprung weight.
Have you ever picked up a set of forks?
The ones off my NSR250 SP weighed 9.5KG with triple clamps, no axle, and the ones off a VTR are heavier than that...
Whereas a construction like that is (fairly thin wall) tube. Triangular bracing is VERY strong (Hence Ducati using it in their trellis chassis)
And only one shock to spring it with. My estimation (as an engineer) is that it saves quite a lot of weight...
And it looks REALLY cool...

Hmmmm... With a custom ChroMoly chassis, I could build it to use a shorter rear shock... Like the very good OEM units on the late R1 etc, including their linkages and architecture

Last edited by Kieran; 03-10-2009 at 11:37 PM.
Kieran is offline
Old 03-11-2009, 01:29 AM
  #14
Member
Squid

Kieran's Avatar

Join Date: Aug 2008
Location: Dunedin, New Zealand
Posts: 52
Kieran is on a distinguished road
His one uses an SP1 shock, and the bikes dry weight is quoted as 410lb's, or about 186kg...
