Another suspension swap

So it's finally time for me to do my suspension upgrade so the bike started the day yesterday looking like this:

Another suspension swap-002.jpg

And ended the day like this:

Another suspension swap-055.jpg

Now to make this pile of front end goodness fit...... Sp2 forks with Ohlins internals set up by Dan Kyle, 954 lower triple, Sp1 upper, Swatt Clip ons:

Another suspension swap-019.jpg

Now you can't do the front without addressing the rear ( I do have more pics of this step, hell I have a ton of pics and will post more as time allows)

Another suspension swap-032.jpg

and of course the gratuitous wheel shot.....lol

Another suspension swap-011.jpg

This also means I will have a pile of parts coming up for sale in the next few days as I get stuff sorted but I will have a complete Front and rear suspension set up by Jim Lindemann http://www.le-suspension.com/ along with all the assorted front end bits I will no longer need and a set of wheels with brakes.

Time to go finish modifying the lower triple and i will post more as i have a chance.....
8541Hawk is offline
Old 02-18-2010, 11:23 AM
  #2
Senior Member
MotoGP

mikstr's Avatar

Join Date: Apr 2005
Location: Montreal
Posts: 5,559
mikstr is on a distinguished road
woohoo!!! Modding time!!!!
mikstr is offline
Old 02-18-2010, 11:29 AM
  #3
Senior Member
MotoGP

lazn's Avatar

Join Date: Mar 2007
Location: Phoenix, AZ
Posts: 3,132
lazn is on a distinguished road
looking good
lazn is offline
Old 02-18-2010, 11:30 AM
  #4
Out of my mind, back in 5
MotoGP

Tweety's Avatar

Join Date: Nov 2006
Location: Skurup, Sweden
Posts: 6,109
Tweety is on a distinguished road
Tweety is offline
Old 02-18-2010, 12:42 PM
  #5
COBB Member
Superstock

stebbdt's Avatar

Join Date: Jul 2009
Location: NorthEast Connecticut
Posts: 292
stebbdt is on a distinguished road
I'm doing the same swap, looks like you're a bit further along than me. I'm planning to use the same lower, and I see it looks as though you had to remove some material on the leading/inner edge of the stops, was this to enable lock to lock? I just ordered the all ***** tapered stem bearing set, $33.89 + $5.00 shipping, fits the VTR as well as the 954/929.
I'm planning to try the superbike bars with the RC51 upper, looks like a great start.
stebbdt is offline
Old 02-18-2010, 12:55 PM
  #6
Senior Member
MotoGP

lazn's Avatar

Join Date: Mar 2007
Location: Phoenix, AZ
Posts: 3,132
lazn is on a distinguished road
Originally Posted by stebbdt View Post
I see it looks as though you had to remove some material on the leading/inner edge of the stops, was this to enable lock to lock?
Yes, you need to remove some material from the stops to improve parking lot turning radius.. Also once you do this the forks start to hit the radiator cross over hose. So you can either move the radiators back, or you can just live with it. (I am just living with it)
lazn is offline
Old 02-18-2010, 05:39 PM
  #7
Banned
MotoGP
Thread Starter

Join Date: Aug 2007
Location: Lake View Terrace, CA
Posts: 5,942
8541Hawk will become famous soon enough
That's what's great about this swap, no need to answer any questions......lol
So not much work got done today but with good reason. I logged into my local board this morning and had a message from a friend of mine who lives about 95mi away.

After reading the thread I started there about my ongoing swap he wanted me to come down to his shop as he had a couple of parts for me. At this point in the project most people would be told to wait but this is the same guy i got the forks from. When you go to his glass shop, the whole back third of the shop is motorbike heaven with 4 bike lifts and all kinds of interesting projects going on.

Well enough blah,blah,blah I let you guys decide, was the trip worth it.....

I don't think I need to add much here.

Another suspension swap-004.jpg

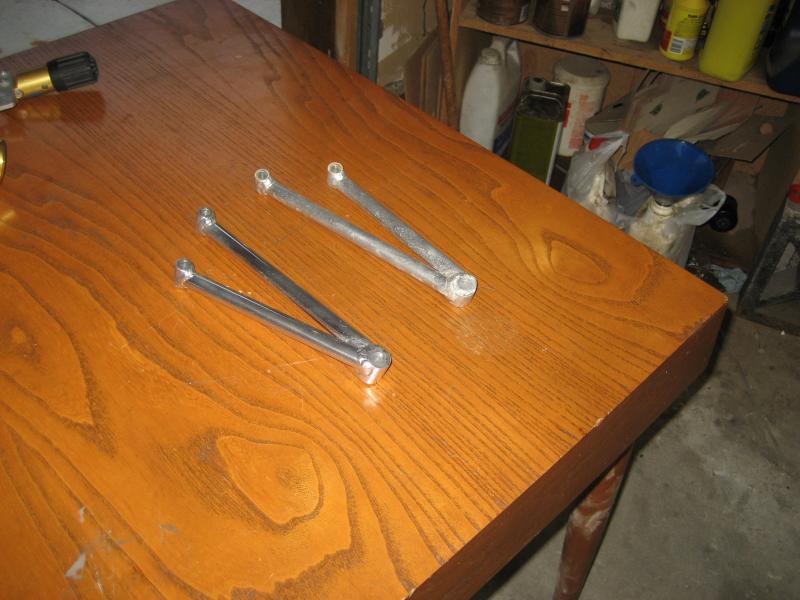

and a set of Two Brothers rear peg eliminators. I did a quick clean up on one while we were BSing but it shows how long this stuff has been sitting....

Another suspension swap-006.jpg

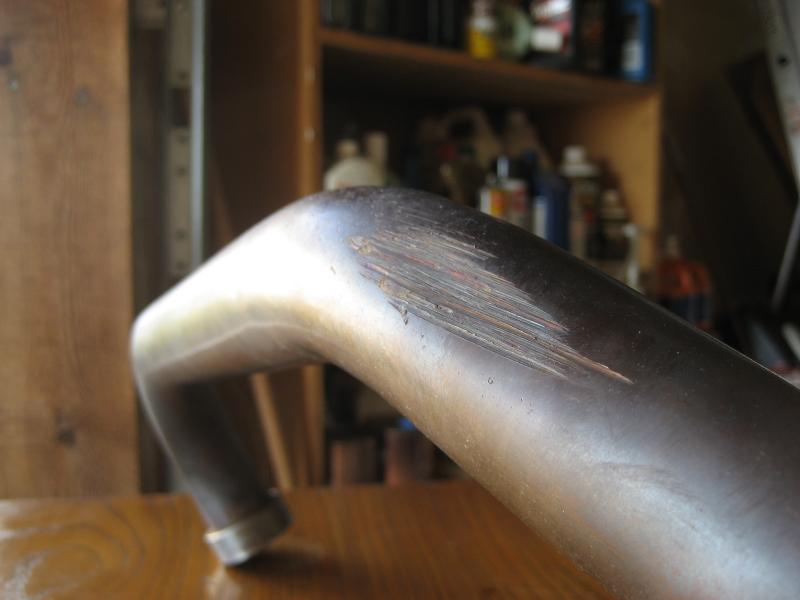

Of course now i have to figure out how I'm going to set the bike up. I was going to run a Penske in the rear so I could get ride height adjustment. The reason for this is my old set up was running the forks up 10mm in the triple and a 1\4 (or 6.xx mm) ride height spacer. While I like how the bike handles like this, when pushed a little hard the header drags in right hand turns.

Another suspension swap-026.jpg

So to get a little more ground clearance I was going to run the new forks all the way down in the triple and get the geometry back by raising the rear. Well the Ohlins doesn't have ride height adjustment, which means i can either get the upper mount modified (which means I have to do the damn math...... ) or I can just run it with the old spacer and leave the forks pulled all the way down and see how things work.

Stay tuned for more fun to come......
8541Hawk is offline
Old 02-18-2010, 05:51 PM
  #8
Honducati
SuperSport

jbaxx's Avatar

Join Date: Oct 2006
Location: Anaheim, CA
Posts: 809
jbaxx is on a distinguished road
Looks like fun! I'll be watching this one!
jbaxx is offline
Old 02-18-2010, 06:16 PM
  #9
Senior Member
SuperBike

cliby's Avatar

Join Date: Jul 2005
Location: MN
Posts: 1,547
cliby is on a distinguished road
hey Mike, you have made huge progress. Very cool. I like the powder coated wheels too and nice job on the braced set up. Looking forward to seeing the results and hear how it all works.

bill
cliby is offline
Old 02-18-2010, 07:23 PM
  #10
Squid Poacher
Back Marker

scatterbrained's Avatar

Join Date: Oct 2009
Location: Orange Park, Fl.
Posts: 116
scatterbrained is on a distinguished road
Looking good. Makes it harder and harder for me to hold on to my money when I see a thread like this.
scatterbrained is offline
Old 02-18-2010, 07:30 PM
  #11
Senior Member
Back Marker

toy4xchris's Avatar

Join Date: Nov 2009
Location: Oxnard, Ca
Posts: 233
toy4xchris is on a distinguished road
Looking nice got a nice bunch of parts and some sweet plans for it all. Looking forward to seeing it all setup.
toy4xchris is offline
Old 02-18-2010, 08:08 PM
  #12
Just Ride
Squid

JoedresVTR's Avatar

Join Date: Dec 2009
Posts: 28
JoedresVTR is on a distinguished road
all that work and $$... i'd like to ride one before i invest. i have my front forks professionally re-valved and adjusted and feel they work excellent. rear is stock and i wish it was much smoother. looks like a sweet mod. your rims look great.
JoedresVTR is offline
Old 02-19-2010, 01:21 PM
  #13
Senior Member
Superstock

salmanilla2000's Avatar

Join Date: Jul 2008
Posts: 344
salmanilla2000 is on a distinguished road
How much did the Ohlins rear shock set you back?
salmanilla2000 is offline
Old 02-19-2010, 03:00 PM
  #14
Banned
MotoGP
Thread Starter

Join Date: Aug 2007
Location: Lake View Terrace, CA
Posts: 5,942
8541Hawk will become famous soon enough
Originally Posted by cliby View Post
hey Mike, you have made huge progress. Very cool. I like the powder coated wheels too and nice job on the braced set up. Looking forward to seeing the results and hear how it all works.

bill
Thanks Bill..... and thanks again for parting with the rear wheel and swingarm.
8541Hawk is offline
Old 02-19-2010, 03:02 PM
  #15
Banned
MotoGP
Thread Starter

Join Date: Aug 2007
Location: Lake View Terrace, CA
Posts: 5,942
8541Hawk will become famous soon enough
Originally Posted by salmanilla2000 View Post
How much did the Ohlins rear shock set you back?
Well I do have to put a spring on it but so far $0
It's one of those pay me sometime things....... now to talk him out of the Mori cams that he has......
8541Hawk is offline
Old 02-19-2010, 03:08 PM
  #16
Banned
MotoGP
Thread Starter

Join Date: Aug 2007
Location: Lake View Terrace, CA
Posts: 5,942
8541Hawk will become famous soon enough
So today was finishing the lower triple. This is the weak point on the stock set up IMHO. Here is a shot of the difference.

Another suspension swap-002.jpg

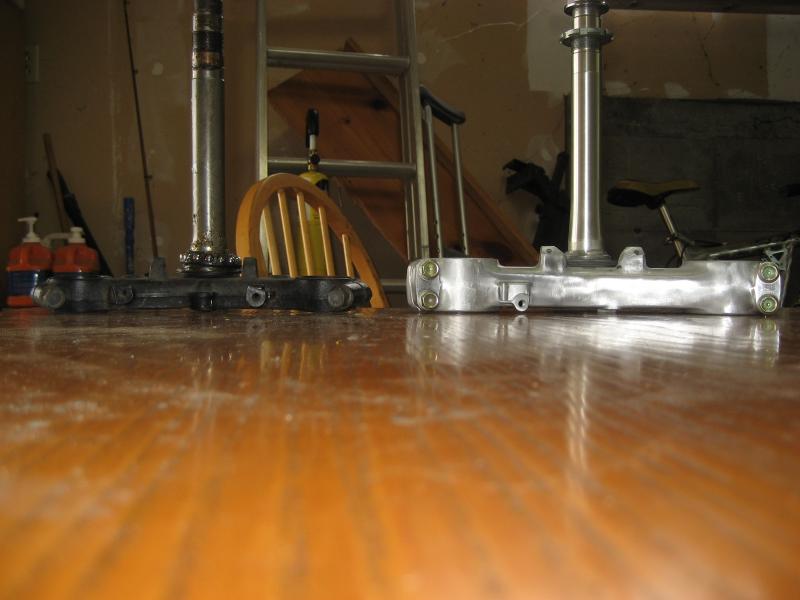

There are two things needed to make the 954 triple fit on the SH first is to relieve a bit off the side of the steering stop. Here the left is stock and I have just started on the right

Another suspension swap-003.jpg

and this is what you end up with when you are finished

Another suspension swap-011.jpg

Also as i am not moving the rads at this time I have to drill and tap the steering stops to extend them out a bit

Another suspension swap-012.jpg
8541Hawk is offline
Old 02-19-2010, 03:12 PM
  #17
Banned
MotoGP
Thread Starter

Join Date: Aug 2007
Location: Lake View Terrace, CA
Posts: 5,942
8541Hawk will become famous soon enough

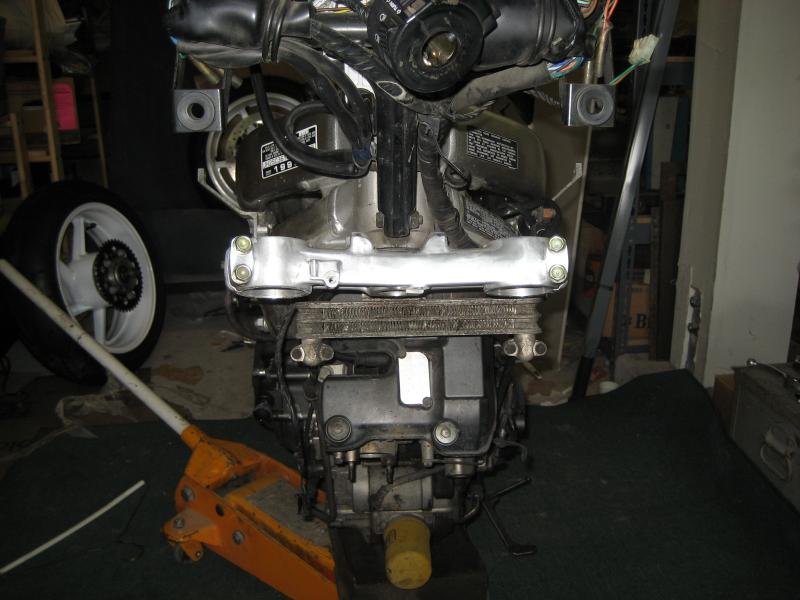

So after modifying, time to test fit the lower clamp

Another suspension swap-005.jpg

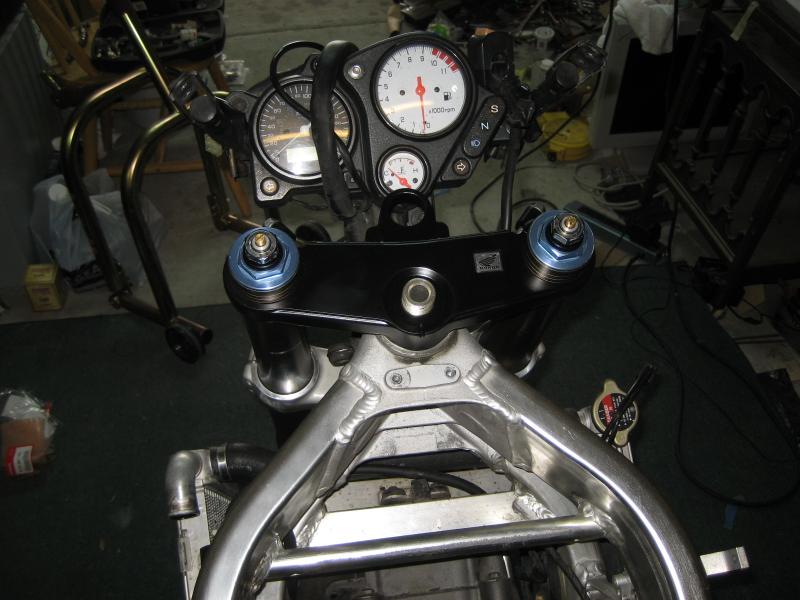

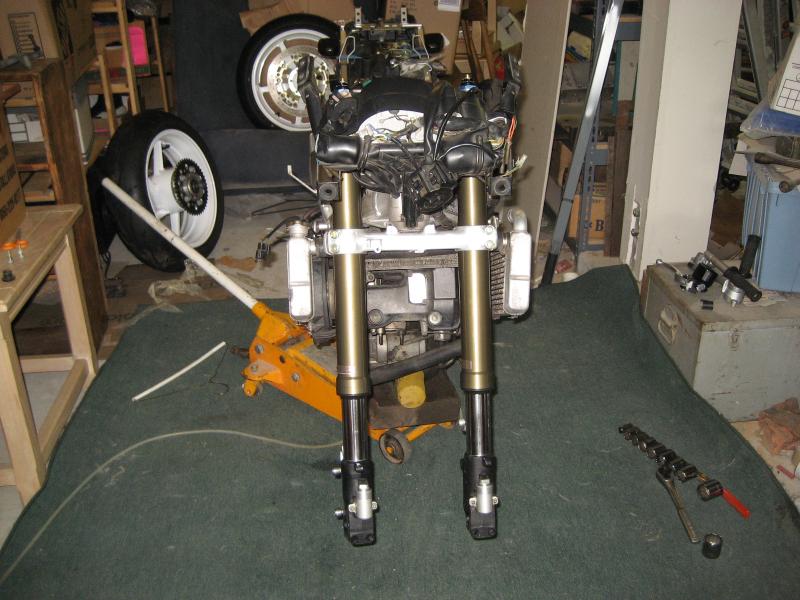

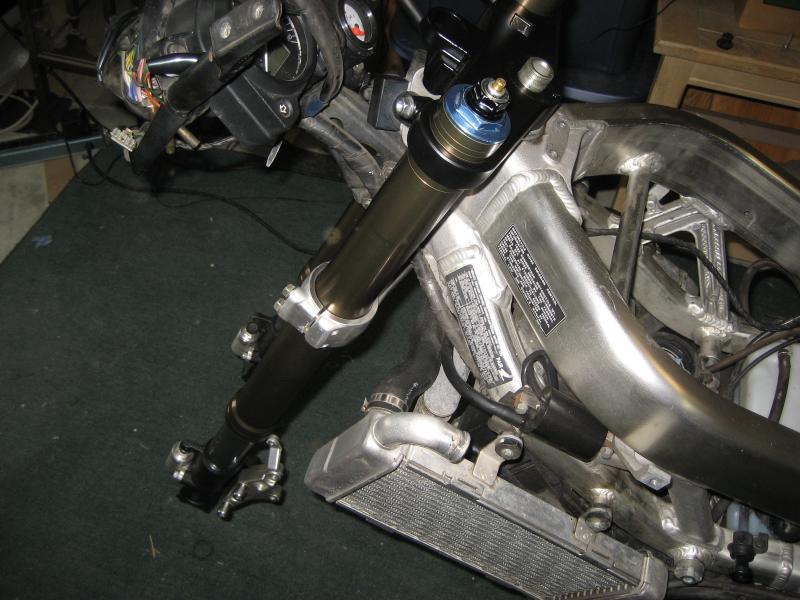

And the rest of the test fitting before disassembling everything to paint the lower clamp and then tomorrow it will be time to start bolting the front together

Another suspension swap-006.jpg

Another suspension swap-008.jpg

Another suspension swap-009.jpg
8541Hawk is offline
Old 02-19-2010, 03:54 PM
  #18
COBB Member
Superstock

stebbdt's Avatar

Join Date: Jul 2009
Location: NorthEast Connecticut
Posts: 292
stebbdt is on a distinguished road
Great write up Mike, very in depth, I see by your excellent pic's the reason for relieving the stops, needed to clear the fairing stay, Man you're going to make my swap too easy, just got my bushings, seals and oil installed today, now I can eliminate one trial fit and go right to drilling and tapping for the lock stop bolts and initial trimming on the fronts. I was not able to procure an RC51 front wheel, so I'm going with a cbr1000 wheel, just need to source conversion bearings, prob. all *****. Well keep it comeing, looks fantastic.
Dave

Last edited by stebbdt; 02-19-2010 at 04:53 PM.
stebbdt is offline
Old 02-19-2010, 04:01 PM
  #19
Senior Member
SuperBike

RCVTR's Avatar

Join Date: Dec 2005
Location: South Lake Tahoe, CA, USA
Posts: 1,689
RCVTR is an unknown quantity at this point
Super cool!

I like the steering stops - just right.

I'm surprised the shock does not have a ride height adjuster. Mine does.
I'll bet the adjustable clevis is available from Ohlins.
Check with Kyle Racing, or Pettersen Pro Suspension (PPS).
RCVTR is offline
Old 02-19-2010, 04:25 PM
  #20
Senior Member
Back Marker

Join Date: Jul 2006
Location: Las Vegas, NV
Posts: 223
KC-10ENG is on a distinguished road
If anyone wants I have a complete Spiegler bar riser kit for an SP1 that I need to get rid of.

Dennis
KC-10ENG is offline
Old 02-19-2010, 04:48 PM
  #21
Banned
MotoGP
Thread Starter

Join Date: Aug 2007
Location: Lake View Terrace, CA
Posts: 5,942
8541Hawk will become famous soon enough
Originally Posted by RCVTR View Post
Super cool!

I like the steering stops - just right.

I'm surprised the shock does not have a ride height adjuster. Mine does.
I'll bet the adjustable clevis is available from Ohlins.
Check with Kyle Racing, or Pettersen Pro Suspension (PPS).
I do have to go see Dan to swap the spring so I'll ask him then.
8541Hawk is offline
Old 02-19-2010, 05:32 PM
  #22
evil man of nothing
MotoGP

captainchaos's Avatar

Join Date: Jan 2006
Location: Boynton Beach, FL
Posts: 4,199
captainchaos is on a distinguished road
Lookin' good! Any reason you're using a 5 spoke wheel in front? An sp1 6 spoker is a nice match for a 900rr rear...
captainchaos is offline
Old 02-19-2010, 05:37 PM
  #23
Banned
MotoGP
Thread Starter

Join Date: Aug 2007
Location: Lake View Terrace, CA
Posts: 5,942
8541Hawk will become famous soon enough
Originally Posted by captainchaos View Post
Lookin' good! Any reason you're using a 5 spoke wheel in front? An sp1 6 spoker is a nice match for a 900rr rear...
Well I could have gone either way but the Sp2 wheel is over a pound lighter than the Sp1 wheel so that sealed the deal for me.
8541Hawk is offline
Old 02-19-2010, 05:56 PM
  #24
evil man of nothing
MotoGP

captainchaos's Avatar

Join Date: Jan 2006
Location: Boynton Beach, FL
Posts: 4,199
captainchaos is on a distinguished road
Originally Posted by 8541Hawk View Post
Well I could have gone either way but the Sp2 wheel is over a pound lighter than the Sp1 wheel so that sealed the deal for me.
well there you go
captainchaos is offline
Old 02-20-2010, 05:44 AM
  #25
Senior Member
Superstock

hondavtr1000sp2's Avatar

Join Date: Jul 2009
Location: Melbourne Australia
Posts: 316
hondavtr1000sp2 is on a distinguished road
Originally Posted by KC-10ENG View Post
If anyone wants I have a complete Spiegler bar riser kit for an SP1 that I need to get rid of.

Dennis
Pictures/Prices !?
hondavtr1000sp2 is offline
Old 02-20-2010, 08:41 AM
  #26
Senior Member
Back Marker

Join Date: Jul 2006
Location: Las Vegas, NV
Posts: 223
KC-10ENG is on a distinguished road
Let me get some pics of the whole kit today and I will put it in the for sale section. That way I will not be stepping on anyones toes.

Dennis
KC-10ENG is offline
Old 02-21-2010, 12:04 AM
  #27
Banned
MotoGP
Thread Starter

Join Date: Aug 2007
Location: Lake View Terrace, CA
Posts: 5,942
8541Hawk will become famous soon enough
Well I started out this afternoon with the normal pics of the days work:

Another suspension swap-012.jpg

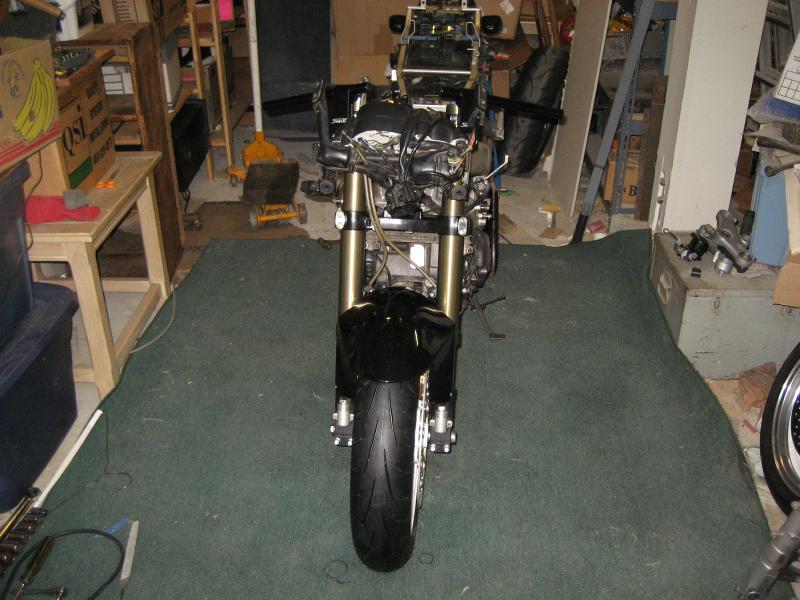

Well then I got the happy call from the ex and well instead of going out a killing something this happened.....

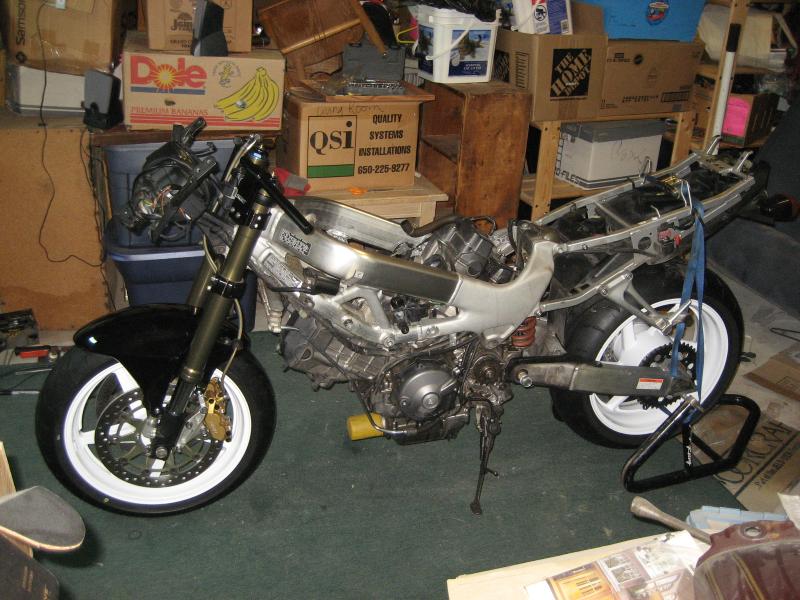

Another suspension swap-014.jpg

Another suspension swap-015.jpg

Another suspension swap-017.jpg

Another suspension swap-021.jpg

So tomorrow I will get the clip ons dialed in and the holes drilled for the controls and should get the swingarm back Mon from the welder, so still waiting on a spring for the rear shock and so odds and ends but it's getting there.
8541Hawk is offline
Old 02-21-2010, 04:43 AM
  #28
Senior Member
MotoGP

mikstr's Avatar

Join Date: Apr 2005
Location: Montreal
Posts: 5,559
mikstr is on a distinguished road
Coming together very nicely

So much for not modding the VTR huh?
mikstr is offline
Old 02-21-2010, 06:24 AM
  #29
COBB Member
Superstock

stebbdt's Avatar

Join Date: Jul 2009
Location: NorthEast Connecticut
Posts: 292
stebbdt is on a distinguished road
Coming together very nicely

+1 I agree mikster, hey Mike, would you mind if I piggyback my swap in your thread?
Seeing as I'm doing pretty much the same mod, just a day or two behind you, I figure a second Rc51 fork swap thread would just be redundant. I wont jack yer thread just post my progress as well, whatcha think?

Dave
stebbdt is offline
Old 02-21-2010, 06:31 AM
  #30
Senior Member
SuperSport

gboezio's Avatar

Join Date: Dec 2006
Location: Victoriaville, Quebec, Canada
Posts: 880
gboezio is on a distinguished road
Can't wait to hear your driving impressions on this, good job !!
gboezio is offline

Thread Tools
Search this Thread
Quick Reply: Another suspension swap


Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

© 2019 MH Sub I, LLC dba Internet Brands

We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.

All times are GMT -7. The time now is 05:38 PM.


© 2019 MH Sub I, LLC dba Internet Brands
