VFR tank mod in progress
04-07-2010, 01:25 AM
#61
Senior Member
Back Marker
Thread Starter
Join Date: May 2005
Location: Seattle, WA
Posts: 216
https://www.superhawkforum.com/forum...ht=hl02&page=2
12-24-2010, 03:19 PM
#62
Junior Member
Squid
Join Date: Nov 2010
Location: Houston Tx.
Posts: 27
To drop it straight on, I'd have to run without the top. I've heard several people say that won't work, but I've yet to hear what happens when you do (minor flat spot, or horribly unrideable, or just no gain?). When the rain goes away, I'll head out with the stock tank sans the airbox cover and see exactly what the story is.
If it runs OK with no top, this is really, really easy. I'm going with the assumption there's a problem if you don't, and will modify the box top (cutting away points of contact with the tank) then put compressable foam insulation on the underside of the tank in those areas so it will seal it back up and become part of the top when its fitted. This will alter the shape of the airbox top a little, but shouldn't be too extreme and I'm guessing the old girl will hardly notice
If it runs OK with no top, this is really, really easy. I'm going with the assumption there's a problem if you don't, and will modify the box top (cutting away points of contact with the tank) then put compressable foam insulation on the underside of the tank in those areas so it will seal it back up and become part of the top when its fitted. This will alter the shape of the airbox top a little, but shouldn't be too extreme and I'm guessing the old girl will hardly notice
12-24-2010, 05:42 PM
#63
Senior Member
Back Marker
Thread Starter
Join Date: May 2005
Location: Seattle, WA
Posts: 216
Still running this setup, and its worked great so far! Words can't describe how much more enjoyable the commute is not stopping every other day, or getting all the way to my parents house from here without worrying about runnning out in BFE nowhere if I miss the only Shell station in the toolies
01-02-2011, 06:38 AM
#64
Member
Squid
Join Date: Dec 2010
Posts: 91
i am going to try this mod. soon. i am looking for a good tank right now that won't brake the bank...
as for the airbox, anyone try covering the bottom of the tank with petroleum jelly and heating the airbox lid with a heat gun and setting the tank down on it till it cools? if it is already close then it should not matter as far are air space in the box.
as for the airbox, anyone try covering the bottom of the tank with petroleum jelly and heating the airbox lid with a heat gun and setting the tank down on it till it cools? if it is already close then it should not matter as far are air space in the box.
09-02-2011, 03:38 PM
#65
Senior Member
SuperSport
Join Date: Oct 2009
Location: In a van down by the river (I wish!)
Posts: 617
I’m resurrecting this thread because I just did the mod. I did two things differently than mdbuehler.
First, I had a shop cut a plate around the old petcock off of a junk VTR tank I had laying around and directly weld it over the VFR’s fuel pump hole. I could have dicked all year with that and it still wouldn’t work.
Then instead of building the air box down from the tank, I built it up from the filter. I just didn’t trust that I’d get the measurements correct.
So now I can go the herculean 160 miles from my home to my job in one tank – I go in one day a month now – but everything isn’t rosy. I do have a weird flat spot down low.
I initially thought this might be due to rust in the tank. I got the VFR tank for $5 then had to cream it and although I think I got everything, you never know. I am running filters right now, of course.
But I’m starting to suspect that either the insulating air box isn’t quite sealing OR I’m getting these weird effects because I installed a lid that didn’t have a snorkel. I had at one time four or five boxes and I didn’t want to trim out one of the good ones for this experiment. But it seems like folks have issues when they take the snorkles out and don't do anything else.
So I’m going to try the snorkel next week and see how it works. If it IS that, this is a silly easy mod costing around $200 from beginning to end, if you don’t mind a shop destroying your VTR tank. I love the bike about 30% more now.
Next is the front-end mod…
CR
First, I had a shop cut a plate around the old petcock off of a junk VTR tank I had laying around and directly weld it over the VFR’s fuel pump hole. I could have dicked all year with that and it still wouldn’t work.
Then instead of building the air box down from the tank, I built it up from the filter. I just didn’t trust that I’d get the measurements correct.
So now I can go the herculean 160 miles from my home to my job in one tank – I go in one day a month now – but everything isn’t rosy. I do have a weird flat spot down low.
I initially thought this might be due to rust in the tank. I got the VFR tank for $5 then had to cream it and although I think I got everything, you never know. I am running filters right now, of course.
But I’m starting to suspect that either the insulating air box isn’t quite sealing OR I’m getting these weird effects because I installed a lid that didn’t have a snorkel. I had at one time four or five boxes and I didn’t want to trim out one of the good ones for this experiment. But it seems like folks have issues when they take the snorkles out and don't do anything else.
So I’m going to try the snorkel next week and see how it works. If it IS that, this is a silly easy mod costing around $200 from beginning to end, if you don’t mind a shop destroying your VTR tank. I love the bike about 30% more now.
Next is the front-end mod…
CR
09-02-2011, 04:17 PM
#66
the boss
SuperBike
Join Date: Mar 2010
Location: largo,fl
Posts: 1,182
I’m resurrecting this thread because I just did the mod. I did two things differently than mdbuehler.
First, I had a shop cut a plate around the old petcock off of a junk VTR tank I had laying around and directly weld it over the VFR’s fuel pump hole. I could have dicked all year with that and it still wouldn’t work.
Then instead of building the air box down from the tank, I built it up from the filter. I just didn’t trust that I’d get the measurements correct.
So now I can go the herculean 160 miles from my home to my job in one tank – I go in one day a month now – but everything isn’t rosy. I do have a weird flat spot down low.
I initially thought this might be due to rust in the tank. I got the VFR tank for $5 then had to cream it and although I think I got everything, you never know. I am running filters right now, of course.
But I’m starting to suspect that either the insulating air box isn’t quite sealing OR I’m getting these weird effects because I installed a lid that didn’t have a snorkel. I had at one time four or five boxes and I didn’t want to trim out one of the good ones for this experiment. But it seems like folks have issues when they take the snorkles out and don't do anything else.
So I’m going to try the snorkel next week and see how it works. If it IS that, this is a silly easy mod costing around $200 from beginning to end, if you don’t mind a shop destroying your VTR tank. I love the bike about 30% more now.
Next is the front-end mod…
CR
First, I had a shop cut a plate around the old petcock off of a junk VTR tank I had laying around and directly weld it over the VFR’s fuel pump hole. I could have dicked all year with that and it still wouldn’t work.
Then instead of building the air box down from the tank, I built it up from the filter. I just didn’t trust that I’d get the measurements correct.
So now I can go the herculean 160 miles from my home to my job in one tank – I go in one day a month now – but everything isn’t rosy. I do have a weird flat spot down low.
I initially thought this might be due to rust in the tank. I got the VFR tank for $5 then had to cream it and although I think I got everything, you never know. I am running filters right now, of course.
But I’m starting to suspect that either the insulating air box isn’t quite sealing OR I’m getting these weird effects because I installed a lid that didn’t have a snorkel. I had at one time four or five boxes and I didn’t want to trim out one of the good ones for this experiment. But it seems like folks have issues when they take the snorkles out and don't do anything else.
So I’m going to try the snorkel next week and see how it works. If it IS that, this is a silly easy mod costing around $200 from beginning to end, if you don’t mind a shop destroying your VTR tank. I love the bike about 30% more now.
Next is the front-end mod…
CR
pics or it didnt happen lol
09-02-2011, 05:02 PM
#67
Senior Member
SuperSport
Join Date: Oct 2009
Location: In a van down by the river (I wish!)
Posts: 617
What a sad, cynical world we live in!
I’ll post tomorrow. It looks AMAZING, especially with the Bagster tank bra.
I didn’t take pictures of the masterpiece of an air box so you’ll have to use your imagination. Or wait until I reinstall the snorkel next week.
I’ll post tomorrow. It looks AMAZING, especially with the Bagster tank bra.
I didn’t take pictures of the masterpiece of an air box so you’ll have to use your imagination. Or wait until I reinstall the snorkel next week.
09-04-2011, 06:51 PM
#68
Senior Member
SuperSport
Join Date: Oct 2009
Location: In a van down by the river (I wish!)
Posts: 617

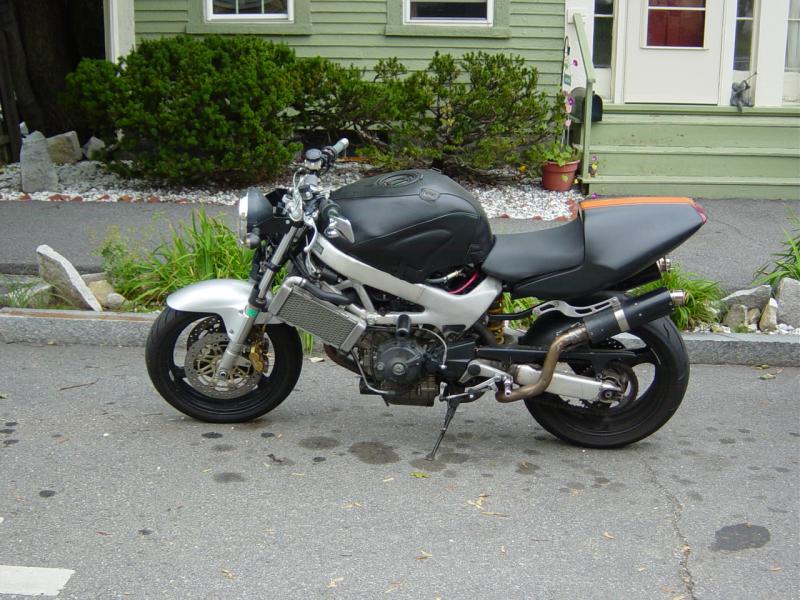

Here are some pictures. The gap between the tank and the seat doesn't bother me at all...
The oil spots aren't mine! Really!
CR
The oil spots aren't mine! Really!
CR
Last edited by Crashrat; 09-05-2011 at 04:50 AM. Reason: Pictures not showing up
09-05-2011, 04:47 AM
#70
Senior Member
SuperSport
Join Date: Oct 2009
Location: In a van down by the river (I wish!)
Posts: 617
Weird. I was hosting on one of my sites at the size I usually post. When I tried to click to the HTML on the editor what I got wasn't good code. I just attached some pictures...
CR
CR
02-13-2013, 02:35 AM
#71
Junior Member
Squid
Join Date: May 2010
Posts: 11
Hi all just looking over this thread , I have a 2001 VFR tank and need to do this great mod however I cant get the photos on this thred !! has anyone got these to re post or send me , I would be greatfull I am a fabricator seem to have done the pet **** so far the airbox photos would be great
Thanks Ste ,
Thanks Ste ,
02-13-2013, 07:19 AM
#72
Senior Member
MotoGP
Join Date: Jul 2010
Location: Phoenix, AZ
Posts: 3,869
Seems some of the pics are no longer available. Try this thread?
https://www.superhawkforum.com/forum...vfr-tank-6983/
https://www.superhawkforum.com/forum...vfr-tank-6983/
02-20-2013, 05:36 AM
#73
Junior Member
Squid
Join Date: May 2010
Posts: 11
Thanks for that just done the petcock if anyone wants me to post pictures of my mod please feel free to ask , I have done the petcock in stainless 5mm looks the dogs , also I have got the vfr fuel guage sensor anyone thought of retro fitting a propper guage ? As i have sorced a white face honda marine clock I thought this would fit nicely in the faring ?? your thoughts
Ste .
Ste .
02-20-2013, 05:46 AM
#74
Senior Member
Back Marker
Join Date: May 2012
Location: Akron, Ohio
Posts: 230
Yeah post the pics as I may be doing this shortly. Is there any reason no one is using the 94-97 carbureted VFR tank and instead going with the fuel injected ones? Seems like gonig with the carbureted tank would save a step or have I missed something?
02-20-2013, 06:04 AM
#75
Out of my mind, back in 5
MotoGP
Join Date: Nov 2006
Location: Skurup, Sweden
Posts: 6,109
Well... The look and shape of the tank perhaps? It's not nearly the shape that fit's the VTR's frame...
