Motor/Frame Locking Nuts Removal Tools

If you've ever tried to find the Honda tools specified in the manual:
07VMA-MBB0100
07VMA-MBB0200

Needed to remove the castle head locking nuts on the frame you probably didn't find them at Ron Ayers or anywhere else, so here's a link to an affordable solution:

http://www.craftsman.com/shc/s/p_101...2_00934299000P

I plan to get a set soon and I report back how well they worked...
FL02SupaHawk996 is offline
Old 05-11-2010, 09:30 AM
  #2
Senior Member
SuperBike

RCVTR's Avatar

Join Date: Dec 2005
Location: South Lake Tahoe, CA, USA
Posts: 1,689
RCVTR is an unknown quantity at this point
I ordered mine from the local dealership. They weren't very expensive.

I don't think those Craftsman drivers will work, unless you can mill out the center section.
RCVTR is offline
Old 05-11-2010, 09:34 AM
  #3
Fastest Color
SuperBike
Thread Starter

FL02SupaHawk996's Avatar

Join Date: Jul 2007
Location: Lithia, FL
Posts: 2,091
FL02SupaHawk996 is on a distinguished road
Originally Posted by RCVTR View Post
I ordered mine from the local dealership. They weren't very expensive.

I don't think those Craftsman drivers will work, unless you can mill out the center section.
You may be right! I'll check with the local dealer too...

Last edited by FL02SupaHawk996; 05-11-2010 at 09:59 AM. Reason: being nice
FL02SupaHawk996 is offline
Old 05-11-2010, 09:59 AM
  #4
Fastest Color
SuperBike
Thread Starter

FL02SupaHawk996's Avatar

Join Date: Jul 2007
Location: Lithia, FL
Posts: 2,091
FL02SupaHawk996 is on a distinguished road
The Local Dealer had to research the part numbers cuz both have been superseded...he didn't give me the new numbers but the prices for the 2 parts are $105.25 & $128.99 each...
FL02SupaHawk996 is offline
Old 05-11-2010, 10:07 AM
  #5
Senior Member
SuperBike

RCVTR's Avatar

Join Date: Dec 2005
Location: South Lake Tahoe, CA, USA
Posts: 1,689
RCVTR is an unknown quantity at this point
OUCH!!

Wanna borrow mine?
RCVTR is offline
Old 05-11-2010, 10:24 AM
  #6
Fastest Color
SuperBike
Thread Starter

FL02SupaHawk996's Avatar

Join Date: Jul 2007
Location: Lithia, FL
Posts: 2,091
FL02SupaHawk996 is on a distinguished road
Originally Posted by RCVTR View Post
OUCH!!

Wanna borrow mine?
Actually, you should rent them out and watch the money roll in like a toll bridge
FL02SupaHawk996 is offline
Old 05-12-2010, 12:00 PM
  #7
Fastest Color
SuperBike
Thread Starter

FL02SupaHawk996's Avatar

Join Date: Jul 2007
Location: Lithia, FL
Posts: 2,091
FL02SupaHawk996 is on a distinguished road
The craftsman slotted drivers wont work

looks like I'll be cutting down a couple of 12pt sockets so I may have to buy a plasma torch!
FL02SupaHawk996 is offline
Old 05-12-2010, 12:04 PM
  #8
Out of my mind, back in 5
MotoGP

Tweety's Avatar

Join Date: Nov 2006
Location: Skurup, Sweden
Posts: 6,109
Tweety is on a distinguished road
Why?

I just used an angle grinder, some patience and a file... Took me 2-3 hours to make a complete set for all the castle nuts on the VTR, including the one for the steering stem...

It took me about 3 years however to get pissed off enough to start doing it... But that's an entirely different matter...
Tweety is offline
Old 05-12-2010, 12:08 PM
  #9
Fastest Color
SuperBike
Thread Starter

FL02SupaHawk996's Avatar

Join Date: Jul 2007
Location: Lithia, FL
Posts: 2,091
FL02SupaHawk996 is on a distinguished road
Originally Posted by Tweety View Post
Why?

I just used an angle grinder, some patience and a file... Took me 2-3 hours to make a complete set for all the castle nuts on the VTR, including the one for the steering stem...

It took me about 3 years however to get pissed off enough to start doing it... But that's an entirely different matter...
Why, cuz I don't have one yet
FL02SupaHawk996 is offline
Old 05-12-2010, 12:11 PM
  #10
Out of my mind, back in 5
MotoGP

Tweety's Avatar

Join Date: Nov 2006
Location: Skurup, Sweden
Posts: 6,109
Tweety is on a distinguished road
Um... OK, that makes sense...

This is the one for the steering stem... No pictures of the others...
Attached Thumbnails Motor/Frame Locking Nuts Removal Tools-021-large-.jpg
Tweety is offline
Old 05-12-2010, 12:14 PM
  #11
Fastest Color
SuperBike
Thread Starter

FL02SupaHawk996's Avatar

Join Date: Jul 2007
Location: Lithia, FL
Posts: 2,091
FL02SupaHawk996 is on a distinguished road
Originally Posted by Tweety View Post
Um... OK, that makes sense...

This is the one for the steering stem... No pictures of the others...
That looks like a job my dentist did on me last week...LOL!
FL02SupaHawk996 is offline
Old 05-12-2010, 12:50 PM
  #12
Boosted
SuperSport

Syclone's Avatar

Join Date: Aug 2007
Location: Sioux Falls, SD
Posts: 642
Syclone is on a distinguished road
Why a special steering stem one? A 12 point 1 11/16" socket works perfectly.
Syclone is offline
Old 05-12-2010, 12:55 PM
  #13
Fastest Color
SuperBike
Thread Starter

FL02SupaHawk996's Avatar

Join Date: Jul 2007
Location: Lithia, FL
Posts: 2,091
FL02SupaHawk996 is on a distinguished road
Originally Posted by Syclone View Post
Why a special steering stem one? A 12 point 1 11/16" socket works perfectly.
+1, that's all I needed too, but I figured they musta put a castle nut on the Firestorms...
FL02SupaHawk996 is offline
Old 05-12-2010, 01:07 PM
  #14
Out of my mind, back in 5
MotoGP

Tweety's Avatar

Join Date: Nov 2006
Location: Skurup, Sweden
Posts: 6,109
Tweety is on a distinguished road
Well on top of the top triple there is a normal one, yes... But underneath that you usually find a nut which is locked with a locking tab... A thin nut, a shim with tabs and a lower nut holding the stem to the headstock... And you can't use a normal socket as the steering stem is a bit to long for that... Now I'm fairly sure they used this setup on the Superhawks as well... At least they did in the pictures in the service manual...

And if you want to torque that to the specified torque when installing a taper bearing, a chisel is a bit imprecise...
Tweety is offline
Old 05-12-2010, 01:10 PM
  #15
Fastest Color
SuperBike
Thread Starter

FL02SupaHawk996's Avatar

Join Date: Jul 2007
Location: Lithia, FL
Posts: 2,091
FL02SupaHawk996 is on a distinguished road
Originally Posted by Tweety View Post
Well on top of the top triple there is a normal one, yes... But underneath that you usually find a nut which is locked with a locking tab... A thin nut, a shim with tabs and a lower nut holding the stem to the headstock... And you can't use a normal socket as the steering stem is a bit to long for that... Now I'm fairly sure they used this setup on the Superhawks as well... At least they did in the pictures in the service manual...

And if you want to torque that to the specified torque when installing a taper bearing, a chisel is a bit imprecise...
Oh yeah, I remember that and I guess mine is imprecise
FL02SupaHawk996 is offline
Old 05-12-2010, 01:17 PM
  #16
Out of my mind, back in 5
MotoGP

Tweety's Avatar

Join Date: Nov 2006
Location: Skurup, Sweden
Posts: 6,109
Tweety is on a distinguished road
Well... I had my taper bearing go crunchy after only two seasons, so I guess I had it either entirely to tight or too loose... So I swapped the bearings again and made that socket to get it right...

Like I said... Small amount of work, and it makes things a whole lot easier, without paying the ridiculous prices Honda wants for the "special" tools...
Tweety is offline
Old 05-12-2010, 02:50 PM
  #17
Boosted
SuperSport

Syclone's Avatar

Join Date: Aug 2007
Location: Sioux Falls, SD
Posts: 642
Syclone is on a distinguished road
The VTR steering stem (or at least the 929 triple on mine) is short enough to torque properly with a 1 11/16" 12pt socket. My VTX, on the otherhand, is too long. I plan on dremeling out my socket so I can use it on the VTX too though. It's got just enough material to still use after dishing it out 1/2" or so.
Syclone is offline
Old 05-12-2010, 03:48 PM
  #18
Out of my mind, back in 5
MotoGP

Tweety's Avatar

Join Date: Nov 2006
Location: Skurup, Sweden
Posts: 6,109
Tweety is on a distinguished road
With an unusually long socket possibly... Mine wasn't long enough by far... But I just cut up one socket to get the bottom part and welded it to another one for the top part... Like I said, easy...
Tweety is offline
Old 05-12-2010, 04:06 PM
  #19
Senior Member
SuperSport

residentg's Avatar

Join Date: Feb 2010
Location: NY State
Posts: 667
residentg is on a distinguished road
Originally Posted by FL02SupaHawk996 View Post
The Local Dealer had to research the part numbers cuz both have been superseded...he didn't give me the new numbers but the prices for the 2 parts are $105.25 & $128.99 each...
Servicehonda wants $76 for the first one (0100), but no listing for the second (0200). Castle nuts are common on gokarts, I may look to see if I can find one there. The first one is 20mm, do you know the spec for the second? Thank you. JB
residentg is offline
Old 05-12-2010, 06:18 PM
  #20
Senior Member
SuperSport

Join Date: Nov 2007
Location: Hamilton, Ontario, Canada
Posts: 807
comedo is on a distinguished road
The part no. on my "special tool" is 07HMA-MR70200. It's double headed so it can be used on two sizes of castle nuts. I checked the picture in the shop manual which shows the tool being used to remove the lock nut on the rearmost hanger bolt. The smaller diameter is the one being used. Its OD is 32 mm., its ID is 24 mm. and each of the 4 pegs on it is 6 mm. wide. The OD of the tool should match the OD of the lock nut. Please check before you buy.
comedo is offline
Old 05-12-2010, 06:48 PM
  #21
Senior Member
SuperSport

residentg's Avatar

Join Date: Feb 2010
Location: NY State
Posts: 667
residentg is on a distinguished road
Part Number.........Description.......................List Price....Your Price!
07VMA-MBB0100.....WRENCH LOCK NUT 20MM...$71.67.........$73.64
07HMA-MR70200.....LOCK NUT WRENCH............$101.1.........$83.10

This is from servicehonda.com

Last edited by residentg; 05-12-2010 at 06:51 PM.
residentg is offline
Old 05-13-2010, 08:06 PM
  #22
Mid-level Member
Superstock

fred's Avatar

Join Date: Dec 2004
Location: Chicago
Posts: 268
fred
Originally Posted by Tweety View Post
Um... OK, that makes sense...

This is the one for the steering stem... No pictures of the others...
i didn't fare so well with that fork-slider nut, but hey. i'm really proud of my home-made streering stem socket. and that hard-to-find molybdenum disulfide grease... complements of you friendly neighborhood gunshop.

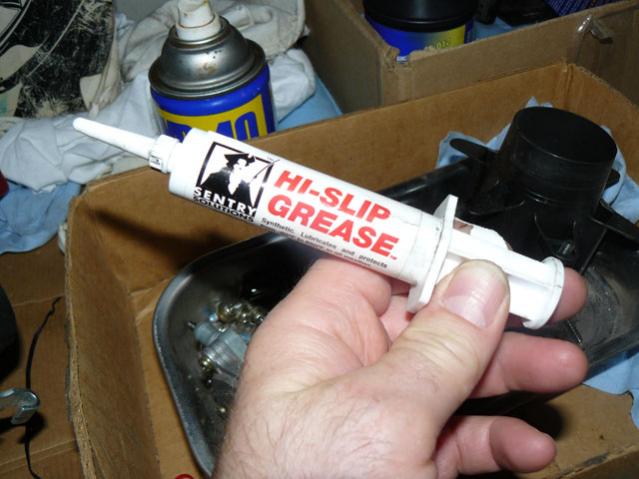

Attached Thumbnails Motor/Frame Locking Nuts Removal Tools-socket.jpg   Motor/Frame Locking Nuts Removal Tools-mds.jpg
fred is offline
Old 05-17-2010, 08:24 AM
  #23
Fastest Color
SuperBike
Thread Starter

FL02SupaHawk996's Avatar

Join Date: Jul 2007
Location: Lithia, FL
Posts: 2,091
FL02SupaHawk996 is on a distinguished road
Made my own caster nut/frame tools since paying over $70 each for them boarders on insanity!

Using a 4" grinder it was actually easy and took less than an hour to make both. For the 22mm I used an old 12-pt 7/8" socket and for the 20mm I used a 12-pt 3/4" socket.
Attached Thumbnails Motor/Frame Locking Nuts Removal Tools-20mm-caster-tool.jpg   Motor/Frame Locking Nuts Removal Tools-22mm-caster-tool2.jpg   Motor/Frame Locking Nuts Removal Tools-22mm-caster-tool3.jpg   Motor/Frame Locking Nuts Removal Tools-22mm-caster-tool.jpg
FL02SupaHawk996 is offline
Old 05-21-2010, 12:28 PM
  #24
Senior Member
SuperSport

residentg's Avatar

Join Date: Feb 2010
Location: NY State
Posts: 667
residentg is on a distinguished road
the tool that is used to remove the clutch nut on an XR200R fits the frame lock nut. I will look it up, I think I got mine from motion pro cheap.

Motionpro 20mm $9.23:
http://www.motionpro.com/motorcycle/partno/08-0385/





Honda 07716-0020100 combo 20mm / 24mm combo $30.62 at servicehonda


Last edited by residentg; 05-21-2010 at 12:43 PM.
residentg is offline
Old 01-13-2013, 11:02 AM
  #25
Junior Member
Squid

Longmont's Avatar

Join Date: Nov 2010
Location: CO and CA
Posts: 6
Longmont is on a distinguished road
Originally Posted by RCVTR View Post
OUCH!!

Wanna borrow mine?
San Diego needs this tool - do you still have it?
07vma-mbb0100

Thanks -
Longmont is offline
Old 01-13-2013, 08:55 PM
  #26
Senior Member
MotoGP

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 4,934
smokinjoe73 is on a distinguished road
Wow, most informative thread in while. I borrowed the tools for my motor swap but will have to make or buy some eventually. Thanks guys.
smokinjoe73 is offline
