Re: The new guy and his VTR
You have a great looking standard/naked/streetfighter.
Obviously I have to agree on the side mounted radiators but I have to ask how you found room for the front mounted radiator.
I had looked at a 599 ( Hornet ) radiator which is the smallest Honda radiator I could find that would have enough volume to deal with the heat. I could not get it into a place where it would clear the upside down forks lock to lock and still allow a fan for stop and go traffic.

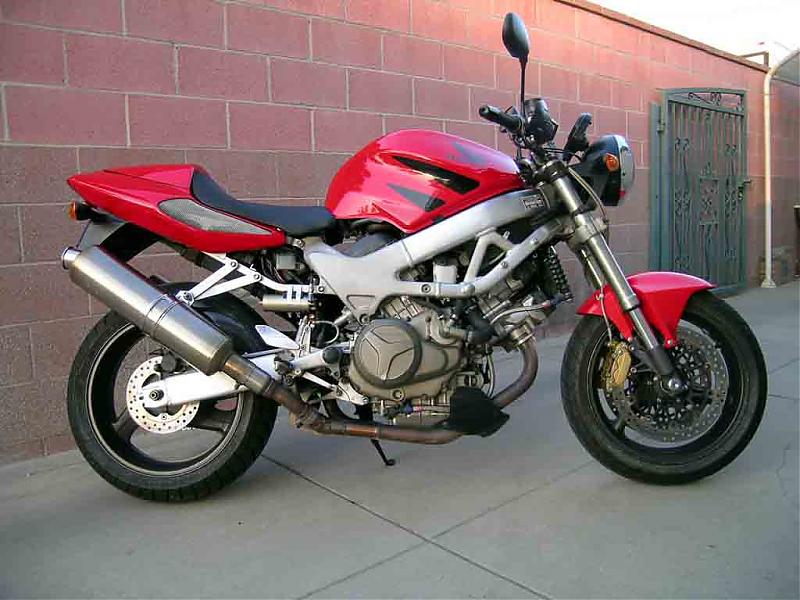

Here is also another pic of mine with a simple graphic added to the tank to visually reduce it's size.
I was able to go 180 miles on one tank and it took 5.3 gallons which left a theoretical .2 gallons. nothing like cutting it close.
Kai Ju
Obviously I have to agree on the side mounted radiators but I have to ask how you found room for the front mounted radiator.
I had looked at a 599 ( Hornet ) radiator which is the smallest Honda radiator I could find that would have enough volume to deal with the heat. I could not get it into a place where it would clear the upside down forks lock to lock and still allow a fan for stop and go traffic.
Here is also another pic of mine with a simple graphic added to the tank to visually reduce it's size.
I was able to go 180 miles on one tank and it took 5.3 gallons which left a theoretical .2 gallons. nothing like cutting it close.
Kai Ju
Last edited by kai ju; 06-23-2008 at 12:23 PM.
11-22-2005, 01:09 PM
#62
Guest
Posts: n/a
Re: The new guy and his VTR
I'm actually running a standard left side VTR radiator that has been modified to include a filler and entry/exit pipe.
To keep the size down I had to lose the fan which means I have to aviod stop/start riding during the summer months.
It seems to work fine so long as I'm moving, even in 30c temperatures which are about as hot as it gets in England.
I looked seriously at the underseat radiator route when I was running the sigle side exhaust (see picture) but now I have under seat exhausts there is no room to go down that route.
Daz
To keep the size down I had to lose the fan which means I have to aviod stop/start riding during the summer months.
It seems to work fine so long as I'm moving, even in 30c temperatures which are about as hot as it gets in England.
I looked seriously at the underseat radiator route when I was running the sigle side exhaust (see picture) but now I have under seat exhausts there is no room to go down that route.
Daz
09-02-2006, 07:17 PM
#67
Senior Member
SuperSport
Thread Starter
Join Date: Jun 2005
Posts: 524
The not so new guy and his VTR
Hi everybody,
Talk about surprised when I saw that thread up just now.
Since it's up I'll provide a bit of an update.
No I'm not ready to sell it yet but as we all know.....money talks........
I've ridden the bike in it's naked guise now for over a year and half and is has not given me a lick of trouble...almost.
Going to Laguna Seca last year it came close to overheating which is why it now has two fans and on this years trip it actually ran cooler than the VFR800's I was riding with.
One fan is actuated by the fan switch while the second fan is operated by a rather more complex computer system that determines when to turn the fan on based on ambient temp/speed/coolant temperature.
I also got 203 miles on a tank and had about another 20 miles worth of fuel left when I filled up. Gotta love that VFR tank.
Kai Ju
Talk about surprised when I saw that thread up just now.
Since it's up I'll provide a bit of an update.
No I'm not ready to sell it yet but as we all know.....money talks........
I've ridden the bike in it's naked guise now for over a year and half and is has not given me a lick of trouble...almost.
Going to Laguna Seca last year it came close to overheating which is why it now has two fans and on this years trip it actually ran cooler than the VFR800's I was riding with.
One fan is actuated by the fan switch while the second fan is operated by a rather more complex computer system that determines when to turn the fan on based on ambient temp/speed/coolant temperature.
I also got 203 miles on a tank and had about another 20 miles worth of fuel left when I filled up. Gotta love that VFR tank.
Kai Ju
09-03-2006, 12:35 AM
#69
Senior Member
SuperSport
Thread Starter
Join Date: Jun 2005
Posts: 524
The risers are from a latemodel CB750 (2001-2005) which bolt to a stock CBR929 upper tripleclamp through home made spacers.
The spacers sandwich the upper tripleclamp and are bolted to each other for strength.
Kai Ju
The spacers sandwich the upper tripleclamp and are bolted to each other for strength.
Kai Ju
09-07-2006, 01:34 PM
#70
Senior Member
SuperBike
Join Date: Aug 2004
Location: Atlanta, GA
Posts: 1,802
Did you just make the spacers by trial and error? I'm about to put a 954 front end on my Hawk and this is the perfect solution to the handlebar problem, although I'll probably go with a flat bar in order to keep the cables and lines stock and avoid fairing clearance problems.
The other easy solution I have seen is to go with risers made by freestyle ingenuity, but they aren't nearly as clean looking as the ones you made.
The other easy solution I have seen is to go with risers made by freestyle ingenuity, but they aren't nearly as clean looking as the ones you made.
09-07-2006, 07:11 PM
#71
Senior Member
SuperSport
Thread Starter
Join Date: Jun 2005
Posts: 524
Eyeball Engineering as opposed to trial and error.
I only made one set and they're on the bike. I had a good idea as to where I wanted them to end up and just started hacksawing and filing on some round barstock. The hard part was matching the contour of the tripleclamp on the riser, both on the top and the underside.
Once I had them matched up I drilled a pilot hole through both sides, laid them out symmetrically on the tripleclamp, marked and drilled the hole.
Once that was done I enlarged the pilot hole to match the clamp studs, installed those and then drilled and tapped two holes on each side through the risers so that they would be securely attached to the tripleclamp.
I've included a drawing that hopefully will make it a little more clear as to what I'm actually talking about.
Kai Ju
I only made one set and they're on the bike. I had a good idea as to where I wanted them to end up and just started hacksawing and filing on some round barstock. The hard part was matching the contour of the tripleclamp on the riser, both on the top and the underside.
Once I had them matched up I drilled a pilot hole through both sides, laid them out symmetrically on the tripleclamp, marked and drilled the hole.
Once that was done I enlarged the pilot hole to match the clamp studs, installed those and then drilled and tapped two holes on each side through the risers so that they would be securely attached to the tripleclamp.
I've included a drawing that hopefully will make it a little more clear as to what I'm actually talking about.
Kai Ju
Last edited by kai ju; 06-01-2008 at 10:02 PM.
05-29-2008, 06:38 AM
#73
Senior Member
Back Marker
Join Date: Jan 2007
Location: Winter Haven, Florida
Posts: 160
It would appear that all the pictures for this thread got lost in the big disaster last year,
Is there any chance of getting them restored or posted to the galleries?
Worth 1000 words, etc!!!
TIA
Tom
Is there any chance of getting them restored or posted to the galleries?
Worth 1000 words, etc!!!
TIA
Tom
05-29-2008, 09:12 PM
#76
Senior Member
SuperSport
Thread Starter
Join Date: Jun 2005
Posts: 524
05-31-2008, 09:41 PM
#79
Senior Member
SuperSport
Thread Starter
Join Date: Jun 2005
Posts: 524
I've made several attempts at attaching pics, but a lot of them are bigger than the 97 kb limit.
For the life of me I cannot figure out how to reduce them properly.
Bringing them down to 800x600 doesn't change the pixel count.
Help.
Kai Ju
For the life of me I cannot figure out how to reduce them properly.
Bringing them down to 800x600 doesn't change the pixel count.
Help.
Kai Ju
06-01-2008, 10:13 PM
#81
Senior Member
SuperSport
Thread Starter
Join Date: Jun 2005
Posts: 524
Thank you Hawkrider
Thanks alot for your help today.
I've attached all the pertinent pics, if anybody wants more let me know.

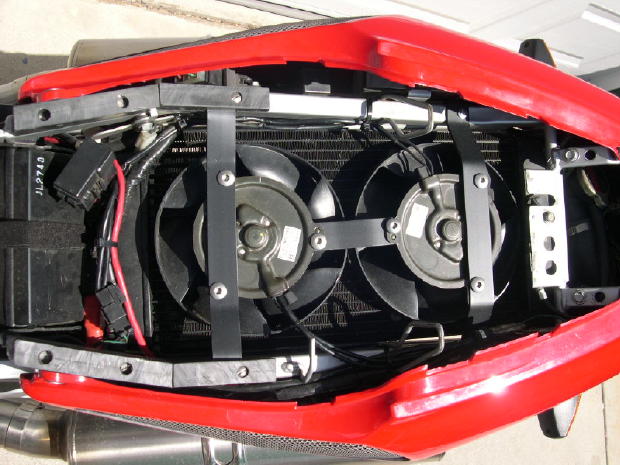

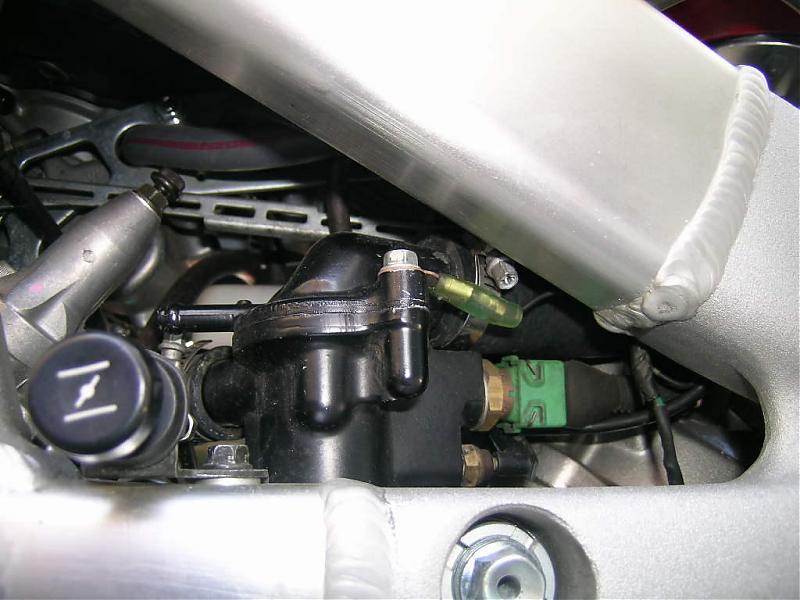

I've included pics to show the current state with double fans.

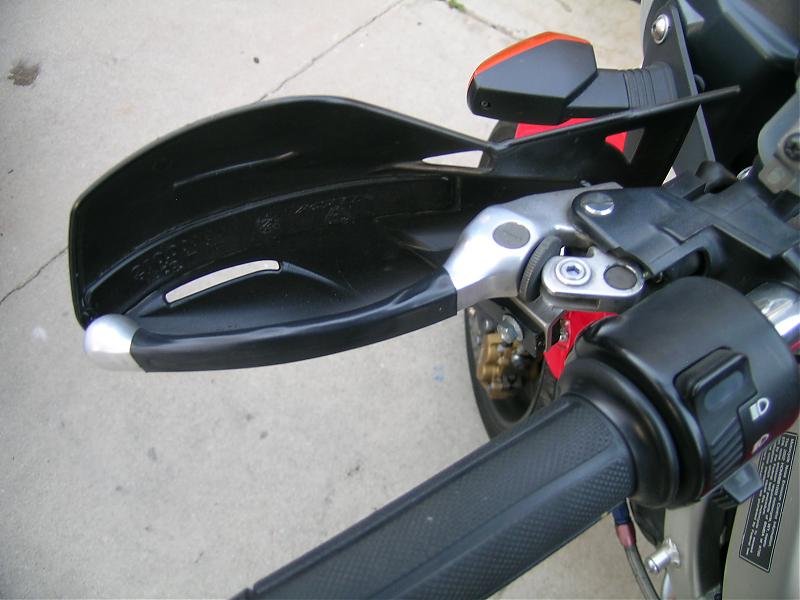

Not to mention the handguards that I installed over a years ago, sorry.
