Swing Arm Pivot Bolt CC "Tunnel" Greasing

Old 01-02-2014, 01:30 PM
  #1
Senior Member
SuperBike
Thread Starter

skokievtr's Avatar

Join Date: Jan 2007
Posts: 1,933
skokievtr is on a distinguished road
Swing Arm Pivot Bolt CC "Tunnel" Greasing

Has anyone done so or know any reason it should not be done?

When I removed the swing arm I discovered corrosion on the pivot bolt and am strongly considering filling AMAP the "tunnel" the bolt passes through in the rear of the crankcase. The tunnel is sealed off from the transmission "bay" and water and debris appears passes by the plastic bushings on each side of the crankcase tunnel. You'd think filling this cavity with waterproof grease would encapsulate and minimize corrosion development on the bolt.

I do not want to remove the plastic bushings for fear of cracking them but they inhibit access and dirt egress into / from the tunnel.

Has anyone removed them and then successfully reinstalled a "used" set" of these bushing, and if so how?
skokievtr is offline
Old 01-02-2014, 01:36 PM
  #2
Senior Member
SuperBike

Wicky's Avatar

Join Date: Sep 2008
Location: Essex, UK
Posts: 1,632
Wicky is on a distinguished road
It's a good idea to check and grease swing arm and linkage check bearings esp if used all year around.

www.vtr1000.org • View topic - *** IMPORTANT*** Swingarm and linkage bearings servicing***
Wicky is offline
Old 01-02-2014, 02:09 PM
  #3
Senior Member
SuperBike
Thread Starter

skokievtr's Avatar

Join Date: Jan 2007
Posts: 1,933
skokievtr is on a distinguished road
That goes without saying along with the shock eye bearings (my Penske 8981 is at TS&E for a major rebuild & update); a new chain and sprockets will round out the rear drive and suspension refresh.

I'm talking about where the SA pivot bolt passes through the rear of the CC !

Originally Posted by Wicky View Post
It's a good idea to check and grease swing arm and linkage check bearings esp if used all year around.

www.vtr1000.org • View topic - *** IMPORTANT*** Swingarm and linkage bearings servicing***

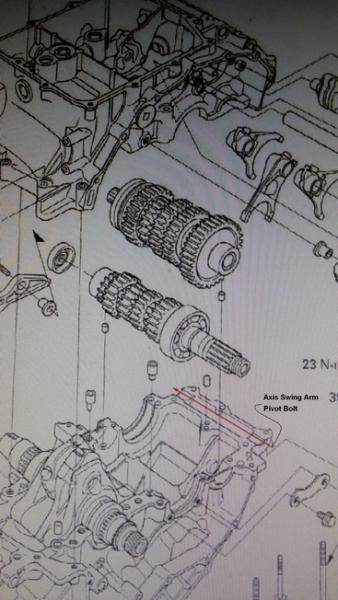

Attached Thumbnails Swing Arm Pivot Bolt CC "Tunnel" Greasing-vtr-rr-cc-sa-pivot-bolt-tunnel-tc.jpg
