Rear Shock Swap...

Ok, I'm scratchin my head; how can I life the bike just enough to take the pressure off the swingarm and allow me to work on getting the bolts and everything out?
98ILVTR is offline
Old 06-30-2010, 07:25 PM
  #2
Moderator
MotoGP

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 4,217
E.Marquez is on a distinguished road
I use an A frame I built.. But before that.. I dragged my HYD press over, raised the table all the way up.. and used two cam loc straps to support the bike at the subframe.

Others have hung the bike from the ceiling.

Last edited by E.Marquez; 06-30-2010 at 07:39 PM.
E.Marquez is offline
Old 06-30-2010, 07:27 PM
  #3
Banned
MotoGP

Join Date: Aug 2007
Location: Lake View Terrace, CA
Posts: 5,942
8541Hawk will become famous soon enough
Originally Posted by 98ILVTR View Post
Ok, I'm scratchin my head; how can I life the bike just enough to take the pressure off the swingarm and allow me to work on getting the bolts and everything out?

Well I've been given a hard time for my getto method in the past but you can always put a piece of 2X4 between the swingarm and sub frame (up towards the front where they are close to parallel to each other) to hold the rear of the bike up while you do the shock swap.
8541Hawk is offline
Old 06-30-2010, 07:54 PM
  #4
Senior Member
Back Marker
Thread Starter

Join Date: Aug 2006
Location: IL
Posts: 227
98ILVTR is on a distinguished road
I should say, I have no hoist, nothing above the bike in order to lift it. I am trying to picture Mike's idea, but its escaping me right now!
98ILVTR is offline
Old 07-06-2010, 09:03 PM
  #5
Senior Member
SuperBike

JamieDaugherty's Avatar

Join Date: Aug 2005
Location: Fort Wayne, IN
Posts: 1,833
JamieDaugherty is an unknown quantity at this point
You can also wedge something between the top of the rear tire and the inner fender. In order for this to work it must be exactly the correct length, but it can be done.

Personally I suspend my bikes from the rafters of my building, but not everyone has that luxury.
JamieDaugherty is offline
Old 07-06-2010, 10:13 PM
  #6
Senior Member
MotoGP

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 4,915
smokinjoe73 is on a distinguished road

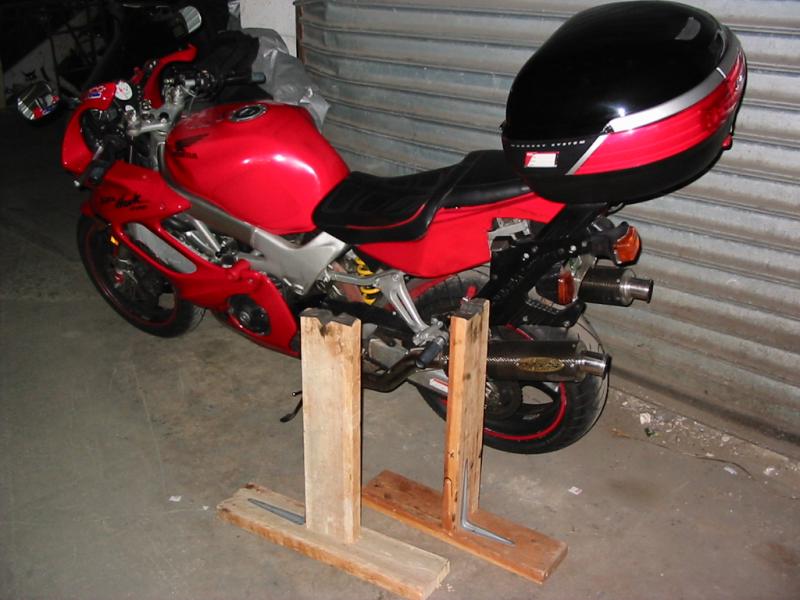

Build yourself 2 of these stands from lumber you "borrow" from your brother in law. It costs nothing since he had some 3" sheetrock screws & L-brackets too. Use that old benchpress bar that you never use & put it through in front of the passenger pegs with some foam pipe insulation as paddng & you got a rock solid stand. I promise you WILL need it again. I know I post this pic alot but since I didnt invent the intermittent wiper I gotta harp on this..
Attached Thumbnails Rear Shock Swap...-6.07picomp-021.jpg
smokinjoe73 is offline
Old 07-06-2010, 10:41 PM
  #7
Pew Pew...lasers
Superstock

taskmasta's Avatar

Join Date: Jun 2007
Location: Alexandria, Va.
Posts: 311
taskmasta is on a distinguished road
this is what i use. i think it was 100 bucks. yeah...i know...probably not the option you were looking for...but to me it was totally worth it. i use it all the time.

taskmasta is offline
Old 07-06-2010, 11:50 PM
  #8
Out of my mind, back in 5
MotoGP

Tweety's Avatar

Join Date: Nov 2006
Location: Skurup, Sweden
Posts: 6,109
Tweety is on a distinguished road
Tweety is offline
Old 07-07-2010, 01:11 AM
  #9
Senior Member
SuperSport

residentg's Avatar

Join Date: Feb 2010
Location: NY State
Posts: 667
residentg is on a distinguished road
Originally Posted by taskmasta View Post
this is what i use. i think it was 100 bucks. yeah...i know...probably not the option you were looking for...but to me it was totally worth it. i use it all the time.
That is what I use, but mine does not look that nice anymore.
residentg is offline
Old 07-07-2010, 01:53 AM
  #10
Senior Member
Superstock

102dals's Avatar

Join Date: Jul 2004
Location: Little Rock, AR
Posts: 405
102dals is an unknown quantity at this point
task' & resident',
where on our Shawk do you place the "rails"?
102dals is offline
Old 07-07-2010, 02:41 AM
  #11
Senior Member
SuperBike

Wicky's Avatar

Join Date: Sep 2008
Location: Essex, UK
Posts: 1,632
Wicky is on a distinguished road
Wicky is offline
Old 07-07-2010, 03:13 AM
  #12
Senior Member
SuperSport

residentg's Avatar

Join Date: Feb 2010
Location: NY State
Posts: 667
residentg is on a distinguished road
Originally Posted by 102dals View Post
task' & resident',
where on our Shawk do you place the "rails"?
I put a 2x6 piece of wood across the rails, the bottom of the engine rests on the wood. I also use a rear stand to help stabliize the bike. Works great.
residentg is offline
Old 07-07-2010, 05:25 AM
  #13
Senior Member
SuperBike

JamieDaugherty's Avatar

Join Date: Aug 2005
Location: Fort Wayne, IN
Posts: 1,833
JamieDaugherty is an unknown quantity at this point
Originally Posted by smokinjoe73 View Post
Build yourself 2 of these stands from lumber you "borrow" from your brother in law. It costs nothing since he had some 3" sheetrock screws & L-brackets too. Use that old benchpress bar that you never use & put it through in front of the passenger pegs with some foam pipe insulation as paddng & you got a rock solid stand. I promise you WILL need it again. I know I post this pic alot but since I didnt invent the intermittent wiper I gotta harp on this..

Is there a reason one upright is 90 from the other?
JamieDaugherty is offline
Old 07-07-2010, 05:38 AM
  #14
Pew Pew...lasers
Superstock

taskmasta's Avatar

Join Date: Jun 2007
Location: Alexandria, Va.
Posts: 311
taskmasta is on a distinguished road
Originally Posted by 102dals View Post
task' & resident',
where on our Shawk do you place the "rails"?
same as resident, but i don't use wood. the rails have soft rubber on them. and i'll use the front or rear stand depending what part of the bike i'm working on.
taskmasta is offline
Old 07-07-2010, 09:30 AM
  #15
Senior Member
MotoGP

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 4,915
smokinjoe73 is on a distinguished road
Hey wicky, that is a real cry for help. Its like one of those commercials with injured puppies. It looks like the SH is caught in a bear trap. I have to look away.
smokinjoe73 is offline
Old 07-07-2010, 10:53 AM
  #16
Sprung
World Champion

Hawkrider's Avatar

Join Date: Dec 2004
Location: Fulton, MO
Posts: 105,285
Hawkrider will become famous soon enoughHawkrider will become famous soon enough
Trees are free. You must have a tree with a branch you can suspend two tie-downs from. The whole ordeal only takes about 20 minutes.
