Pilot screw messing me up?

After the carb rebuild ive been getting some odd cruising behavior.
At 60mph in 4th the bike surges causing the chain to slack and slowly buck at times.
Idles great and when im WOT it pulls without a studder.
When I did the rebuild I put 48 jets in and set the Pilot screw to 2.5 turns out. I dont have a way of doing an idle drop adjustment with the current setup, although JackFlash has those nice screws.
Could this adjustment at 2.5 turns be giving me this sort of behavior?
Floyd is offline   Reply With Quote
Old 02-11-2018, 01:44 PM   #2
Senior Member
MotoGP

8541Hawk's Avatar

Join Date: Aug 2007
Location: Lake View Terrace, CA
Posts: 5,930
8541Hawk will become famous soon enough
Sounds like a lean surge. What RPM does it happen at?
You might try raising the needles .5mm
8541Hawk is offline   Reply With Quote
Old 02-11-2018, 02:04 PM   #3
Senior Member
Back Marker
Thread Starter

Floyd's Avatar

Join Date: Sep 2017
Location: FL
Posts: 141
Floyd is on a distinguished road
I believe it was 4k in 4th at 60mph.
5th and 6th I really never use because they lug real bad unless the bike is WOT.
Are you talking about the main needle raising it up? I think the main needles were aftermarket but set at stock settings if I remember right. I can toss a washer in there. That should be about .5mm
Floyd is offline   Reply With Quote
Old 02-14-2018, 05:08 PM   #4
Senior Member
Back Marker
Thread Starter

Floyd's Avatar

Join Date: Sep 2017
Location: FL
Posts: 141
Floyd is on a distinguished road
Going to try going to the 5th notch instead of 4 and a washer.
idle is great, WOT is great. Just cruising that surges and its driving me nuts.
Floyd is offline   Reply With Quote
Old 02-15-2018, 11:04 AM   #5
Senior Member
MotoGP

8541Hawk's Avatar

Join Date: Aug 2007
Location: Lake View Terrace, CA
Posts: 5,930
8541Hawk will become famous soon enough
Quote:
Originally Posted by Floyd View Post
Going to try going to the 5th notch instead of 4 and a washer.
idle is great, WOT is great. Just cruising that surges and its driving me nuts.
Well it sounds like the mains and pilots are close if not correct.
To get rid of the surge (lean spot) would then be either open the pilots more (try a 1\4 turn open and see what happens) or like I stated earlier, raise the needles a little bit.

I doubt you will need to go too far from where you are at now. Just make 1 change at a time and keep the adjustments small and you should get it dialed in soon.
8541Hawk is offline   Reply With Quote
Old 02-15-2018, 10:37 PM   #6
Senior Member
Back Marker

CaryDG's Avatar

Join Date: Sep 2013
Location: Costa Mesa, CA
Posts: 162
CaryDG is on a distinguished road
I had a similar surging at low to mid throttle opening at 2-3500rpm in upper gears when I bought my '98 Firestorm(Superhawk) 5 years ago. Before i even started straightening out the jetting, I set the TPS [email protected] 500ohms, because that's what this forum suggested and curiously the surge was gone.
CaryDG is offline   Reply With Quote
Old 02-16-2018, 12:55 PM   #7
Senior Member
Back Marker
Thread Starter

Floyd's Avatar

Join Date: Sep 2017
Location: FL
Posts: 141
Floyd is on a distinguished road
I also just adjusted the TPS to 500 recently and some of the surge went but not enough for the bike to be fun to ride yet.
Its terrifying having the bike lunging when at 45mph in traffic.
Floyd is offline   Reply With Quote
Old 02-16-2018, 04:51 PM   #8
Senior Member
Back Marker
Thread Starter

Floyd's Avatar

Join Date: Sep 2017
Location: FL
Posts: 141
Floyd is on a distinguished road
Im going to try just moving the needle from #4 to #5. washers in the same place. Its about .8mm of an adjustment.
Also checked the pilot screws again and they are in fact 2.5 turns out.
Floyd is offline   Reply With Quote
Old 02-16-2018, 05:48 PM   #9
Senior Member
Back Marker
Thread Starter

Floyd's Avatar

Join Date: Sep 2017
Location: FL
Posts: 141
Floyd is on a distinguished road
No change.
Would a loose cush drive do this?
Mine is fairly loose. Im going to try to shim it and if that works ill order a new one.
Floyd is offline   Reply With Quote
Old 02-16-2018, 08:10 PM   #10
Senior Member
SuperBike

NHSH's Avatar

Join Date: Jul 2011
Location: South of Live Free or Die & North of Family Guy
Posts: 1,295
NHSH is on a distinguished road
No, loose cush drive would give you a bit of a knock feel on acceleration or deceleration, as if the chain is loose.
NHSH is offline   Reply With Quote
Old 02-16-2018, 10:59 PM   #11
Senior Member
SuperBike

kenmoore's Avatar

Join Date: Mar 2012
Location: New South Wales Australia
Posts: 1,465
kenmoore is on a distinguished road
Just a thought,

Has the air box been messed with, is the Snorkle in place ?
kenmoore is offline   Reply With Quote
Old 02-17-2018, 06:29 AM   #12
Senior Member
Back Marker
Thread Starter

Floyd's Avatar

Join Date: Sep 2017
Location: FL
Posts: 141
Floyd is on a distinguished road
The rubber bit at the front of the box is there yea. I replaced the screws to the box because there were only 4 of 8 on there.
Looks like there is supposed to be some plastic "skins" in the front of the frame but I have nothing there. Maybe too much air is coming in the front end?

Also noticed that the slides had 3 lift holes. Should I cover over the one that was drilled for the dynojet kit?
Floyd is offline   Reply With Quote
Old 02-17-2018, 06:34 AM   #13
Senior Member
Back Marker
Thread Starter

Floyd's Avatar

Join Date: Sep 2017
Location: FL
Posts: 141
Floyd is on a distinguished road

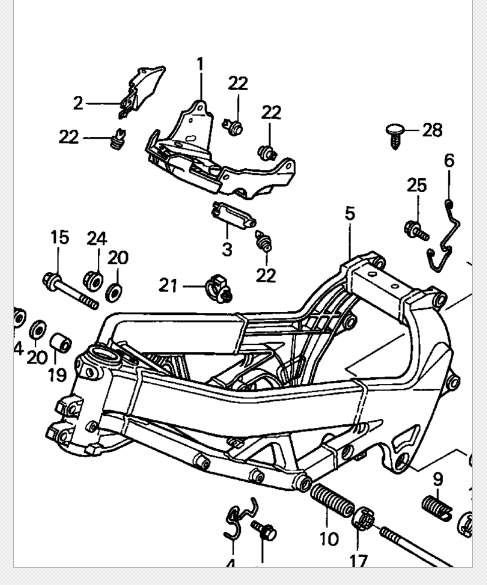

I have #2 but not #1 or #3
I doubt this is the issue but just tossing it out there. There is so much messed up on this bike its unreal
Attached Thumbnails
Pilot screw messing me up?-capture.png
Floyd is offline   Reply With Quote
Old 02-17-2018, 07:44 AM   #14
Senior Member
Back Marker
Thread Starter

Floyd's Avatar

Join Date: Sep 2017
Location: FL
Posts: 141
Floyd is on a distinguished road
After reading the huge carb thread sticky I think I should be looking for stock needles and springs and doing the slide mod.
Anything to get the bike running good.

Anyone have stock needles and springs laying around?
Floyd is offline   Reply With Quote
Old 02-17-2018, 08:03 AM   #15
Senior Member
MotoGP

8541Hawk's Avatar

Join Date: Aug 2007
Location: Lake View Terrace, CA
Posts: 5,930
8541Hawk will become famous soon enough
If the #1 plastic shield is missing that could cause the issue that you are having.
It is another one of those parts that actually needed to be there =)
8541Hawk is offline   Reply With Quote
Old 02-17-2018, 08:19 AM   #16
Senior Member
Back Marker
Thread Starter

Floyd's Avatar

Join Date: Sep 2017
Location: FL
Posts: 141
Floyd is on a distinguished road
Holy cow that almost 50 bucks for that plastic part!
Ill start with the stock needles and springs and go from there.
Floyd is offline   Reply With Quote
Old 02-17-2018, 09:22 AM   #17
Senior Member
SuperBike

kenmoore's Avatar

Join Date: Mar 2012
Location: New South Wales Australia
Posts: 1,465
kenmoore is on a distinguished road
Floyd,

Buy and instal #1 and # 3 ( Not sure what #3 is ) before you do anything else. That part is there for a reason, not sure what but it serves a purpose.

Early on in the piece I removed that part when I first started mucking around with the VTR.

I can't remember the symptoms however I know my bike didn't run properly.

I refitted it and problem solved as bike ran much better. You will have to remove the carbs and there are a couple of clips that hold it in place.

I have seen these parts on fleabay for about $20 bucks.

Also, when I did my DJ kit I drilled the slides only to experience a change for the worse. I refitted standard slides and the bike went a lot better.

A pain I know but get it right and you will be happy.


Last edited by kenmoore; 02-17-2018 at 09:25 AM.
kenmoore is offline   Reply With Quote
Old 02-17-2018, 09:49 AM   #18
Senior Member
Back Marker
Thread Starter

Floyd's Avatar

Join Date: Sep 2017
Location: FL
Posts: 141
Floyd is on a distinguished road
Im going to fill the holes in the slides so ill have one lift hole in the front and two in the rear per the carb sticky.
I wonder if that will work with the current DJ needles and springs though.
Floyd is offline   Reply With Quote
Old 02-17-2018, 12:24 PM   #19
Senior Member
MotoGP

8541Hawk's Avatar

Join Date: Aug 2007
Location: Lake View Terrace, CA
Posts: 5,930
8541Hawk will become famous soon enough
Quote:
Originally Posted by Floyd View Post
Im going to fill the holes in the slides so ill have one lift hole in the front and two in the rear per the carb sticky.
I wonder if that will work with the current DJ needles and springs though.
Just a FYI I have run DJ needles with stock springs and stock lift hole configuration and stock jets with good results.
So first find the plastic bit on e-bay as it will never work right without it.

Then you can mess with the carbs.
thetophatflash and kenmoore like this.
8541Hawk is offline   Reply With Quote
Old 02-18-2018, 01:45 PM   #20
Senior Member
Back Marker
Thread Starter

Floyd's Avatar

Join Date: Sep 2017
Location: FL
Posts: 141
Floyd is on a distinguished road
Also found that the plugs are junk and the pair delete was not done right...
The list goes on and on.
At times it feels like I might benefit from just dropping the engine and starting from the ground up.
Floyd is offline   Reply With Quote
Old 03-13-2018, 10:46 AM   #21
Junior Member
Squid

Join Date: Jul 2012
Location: New Braunfels, TX
Posts: 24
Manny is on a distinguished road
I would suggest you turn it 1/4 to 1/2 out. I had the same issue when I replaced the screw /o ring. It fixed the issue and now runs great!
Manny is offline   Reply With Quote
Old 03-13-2018, 10:55 AM   #22
Senior Member
Back Marker
Thread Starter

Floyd's Avatar

Join Date: Sep 2017
Location: FL
Posts: 141
Floyd is on a distinguished road
Ive installed all stock needles and springs and its working great but now I fear I might be a little rich.
The bike starts idles and runs smooth as butter now but im down on power. Its almost bogging when I go WOT.
Im thinking about dropping in the stock 45 pilot jets instead of the 48s that I put in there and seeing what that does for me.
I just HATE that I have to pull the tank and all to adjust the carbs in any way. Oh well, once its right im never touching it again!
Floyd is offline   Reply With Quote
