Motor connections question

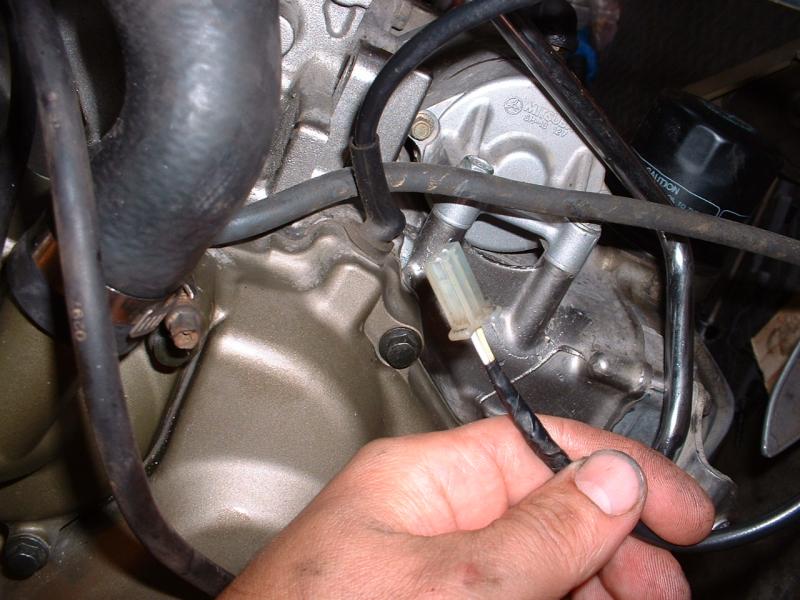

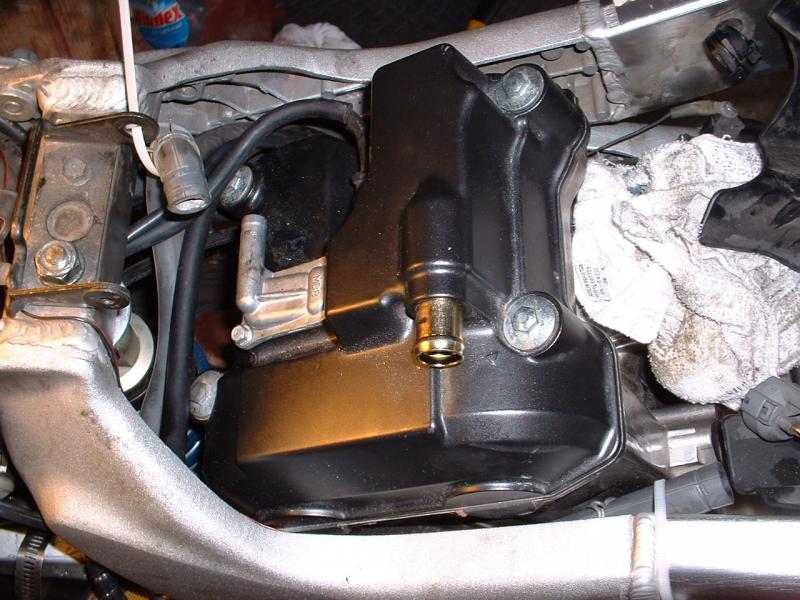

OK so the motor is nearly swapped but what are the large nipples on the top of the cylinder heads? Pair system? I blocked off the pair valves so can these be covered? Also where does this small connector from the front of the motor go? I think its the pulse generator but cant find the connection
Attached Thumbnails Motor connections question-pair-001.jpg   Motor connections question-pair-002.jpg
smokinjoe73 is offline
Old 08-15-2011, 02:00 PM
  #2
Senior Member
SuperSport

zmaniv's Avatar

Join Date: Jun 2008
Location: San Diego
Posts: 916
zmaniv is on a distinguished road
Those large nipples are for the vent lines to the air box. Not sure about connector
zmaniv is offline
Old 08-15-2011, 02:23 PM
  #3
Senior Member
SuperBike

Wicky's Avatar

Join Date: Sep 2008
Location: Essex, UK
Posts: 1,632
Wicky is on a distinguished road
speedo sensor connector? Does it come from the back of the engine nr the CCT?
Wicky is offline
Old 08-15-2011, 02:35 PM
  #4
Senior Member
MotoGP
Thread Starter

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 4,911
smokinjoe73 is on a distinguished road

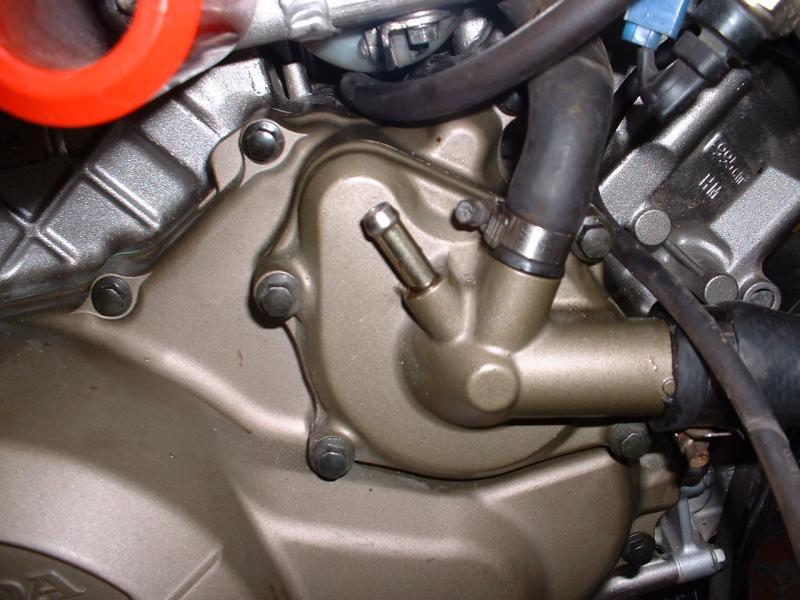

OK so nevermind those 2; I got em,, where does this blank nipple off the right motor go?
Attached Thumbnails Motor connections question-pair.jpg
smokinjoe73 is offline
Old 08-15-2011, 02:45 PM
  #5
Junior Member
Squid

darkember's Avatar

Join Date: Aug 2011
Posts: 25
darkember is on a distinguished road
Originally Posted by smokinjoe73 View Post
OK so nevermind those 2; I got em,, where does this blank nipple off the right motor go?
That looks like the return cooling circulation pipe from the carbs. Refer to page 115 in the official VTR service manual.
darkember is offline
Old 08-15-2011, 03:58 PM
  #6
Senior Member
MotoGP

7moore7's Avatar

Join Date: Jul 2010
Location: Phoenix, AZ
Posts: 3,867
7moore7 is on a distinguished road
Originally Posted by Wicky View Post
speedo sensor connector? Does it come from the back of the engine nr the CCT?
+1 Show us where it comes from.

And the other connector does go to the one of the bottom nipples on your front carb.
7moore7 is offline
Old 08-15-2011, 04:30 PM
  #7
Senior Member
MotoGP
Thread Starter

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 4,911
smokinjoe73 is on a distinguished road

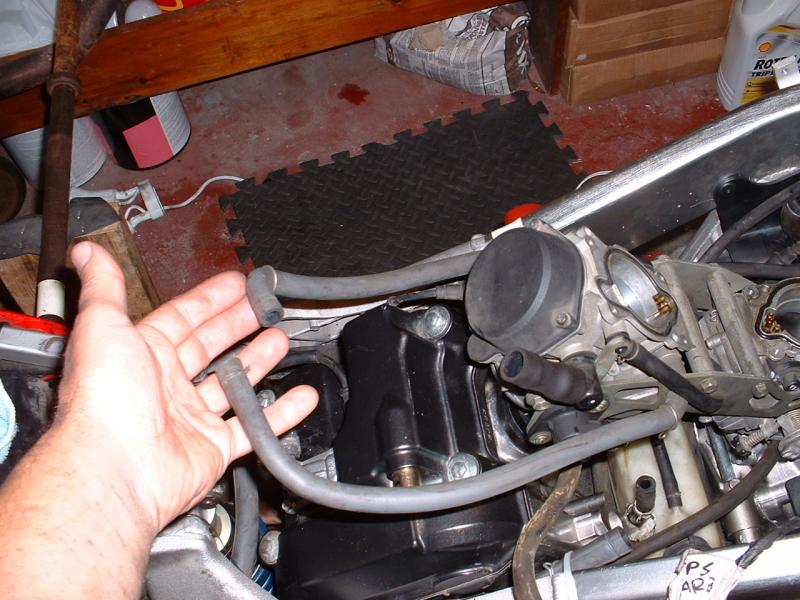

OK found that out when I went to reinstall the carbs. Now what are these hoses off the carbs?
Attached Thumbnails Motor connections question-pair-003.jpg
smokinjoe73 is offline
Old 08-15-2011, 04:40 PM
  #8
the boss
SuperBike

saige's Avatar

Join Date: Mar 2010
Location: largo,fl
Posts: 1,182
saige is on a distinguished road
gas lines going to petcock on gas tank.
saige is offline
Old 08-15-2011, 04:44 PM
  #9
Senior Member
MotoGP
Thread Starter

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 4,911
smokinjoe73 is on a distinguished road
DOH!!!!!!!!!! THANKS SAIGE! I am doing so much connecting, wrenching etc I am getting loopy. Should be running by tomorrow.
smokinjoe73 is offline
Old 08-15-2011, 05:07 PM
  #10
the boss
SuperBike

saige's Avatar

Join Date: Mar 2010
Location: largo,fl
Posts: 1,182
saige is on a distinguished road
lol,yea thats understandable,after awhile it all looks the same.
saige is offline
Old 08-15-2011, 05:28 PM
  #11
Senior Member
MotoGP

7moore7's Avatar

Join Date: Jul 2010
Location: Phoenix, AZ
Posts: 3,867
7moore7 is on a distinguished road
Don't forget to put the gas tank back on!
7moore7 is offline
Old 08-15-2011, 06:55 PM
  #12
Senior Member
MotoGP
Thread Starter

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 4,911
smokinjoe73 is on a distinguished road
One curveball is that some of the hoses were still on the new motor so there were some doubles. Plus I have several other excuses if you're not buying that one.....
smokinjoe73 is offline
Old 08-15-2011, 07:07 PM
  #13
the boss
SuperBike

saige's Avatar

Join Date: Mar 2010
Location: largo,fl
Posts: 1,182
saige is on a distinguished road
Originally Posted by smokinjoe73 View Post
One curveball is that some of the hoses were still on the new motor so there were some doubles. Plus I have several other excuses if you're not buying that one.....
so how many drinks are you in on this lol
saige is offline
Old 08-15-2011, 07:38 PM
  #14
Senior Member
MotoGP

7moore7's Avatar

Join Date: Jul 2010
Location: Phoenix, AZ
Posts: 3,867
7moore7 is on a distinguished road
Keep 'em coming! I forgot to actually hook up the fuel hoses when I took the carbs out a few weeks ago. But, I did remember to hook up the petcock vacuum line and hit the starter. End result: spewed gas all over my rear cylinder... that was a good one!
