Help! It wont shift!

Okay, 1st thanks to all who have been there for me helping along the way to get this Stage1 motor up and running.

The only problem I have now is it wont shift and I fear it's not going to be a small problem

I've run it some in 2nd or 3rd cuz that's where it started out at to try and bed the bearings & rings some, but now it's in 1st gear and with a lot of fiddling I can get it to neutral and back to 1st but not back to 2nd or 3rd

Any ideas what I did wrong when I put it back together?

Thanks,
RC
FL02SupaHawk996 is offline
Old 08-02-2010, 07:51 AM
  #2
Senior Member
SuperBike

RCVTR's Avatar

Join Date: Dec 2005
Location: South Lake Tahoe, CA, USA
Posts: 1,689
RCVTR is an unknown quantity at this point
It sounds like you may not have the shift drum oriented properly.

to shift the drum has the 3rd-4th and 5th-6th forks between gears and shifts the 1st-2nd gears. It then puts the 1st-2nd fork in neutral and engages the 3rd-4th fork and so on. You may also have shift forks in the wrong location.

Do you have neutral, between 1st and 2nd? I would try having the rear tire off the ground and shift the gearbox by manually rotating the rear tire, with the engine off, to figure out what works and what doesn't. The next step would be to drop the oil pan and visually inspect.

Stay cool and go step by step. I'll check back in a bit...
RCVTR is offline
Old 08-02-2010, 07:58 AM
  #3
Fastest Color
SuperBike
Thread Starter

FL02SupaHawk996's Avatar

Join Date: Jul 2007
Location: Lithia, FL
Posts: 2,091
FL02SupaHawk996 is on a distinguished road
Originally Posted by RCVTR View Post
It sounds like you may not have the shift drum oriented properly.

to shift the drum has the 3rd-4th and 5th-6th forks between gears and shifts the 1st-2nd gears. It then puts the 1st-2nd fork in neutral and engages the 3rd-4th fork and so on. You may also have shift forks in the wrong location.

Do you have neutral, between 1st and 2nd? I would try having the rear tire off the ground and shift the gearbox by manually rotating the rear tire, with the engine off, to figure out what works and what doesn't. The next step would be to drop the oil pan and visually inspect.

Stay cool and go step by step. I'll check back in a bit...
It goes into neutral, but it's not real positive and only after I fiddle with the shifter for a while. It's probably the shift forks cuz I'm not sure how I put them in there now it's been a while ago...

I'll let you know what it looks like as soon as I pull the oil pan.

If needed can I split the case while the motor is in the frame?
FL02SupaHawk996 is offline
Old 08-02-2010, 08:44 AM
  #4
Senior Member
SuperBike

RCVTR's Avatar

Join Date: Dec 2005
Location: South Lake Tahoe, CA, USA
Posts: 1,689
RCVTR is an unknown quantity at this point
I misstated the shift operation.

The right fork engages 1st, then shifts to neutral. The left fork engages 2nd, then 3rd, then back to neutral. The right fork then shifts from neutral, to 4th, then back to neutral. The middle fork then engages 5th and 6th.

At least that is my best interpretation from the assembly drawing and recollection. I have a spare transmission at home, if you need more help with the operation.

You'll probably have to drop the engine, but the heads can stay on.
RCVTR is offline
Old 08-02-2010, 08:48 AM
  #5
Fastest Color
SuperBike
Thread Starter

FL02SupaHawk996's Avatar

Join Date: Jul 2007
Location: Lithia, FL
Posts: 2,091
FL02SupaHawk996 is on a distinguished road
Originally Posted by RCVTR View Post
I misstated the shift operation.

The right fork engages 1st, then shifts to neutral. The left fork engages 2nd, then 3rd, then back to neutral. The right fork then shifts from neutral, to 4th, then back to neutral. The middle fork then engages 5th and 6th.

At least that is my best interpretation from the assembly drawing and recollection. I have a spare transmission at home, if you need more help with the operation.

You'll probably have to drop the engine, but the heads can stay on.
Oh well at least she runs good even though I can't go anywhere
FL02SupaHawk996 is offline
Old 08-02-2010, 09:36 AM
  #6
Senior Member
SuperBike

RCVTR's Avatar

Join Date: Dec 2005
Location: South Lake Tahoe, CA, USA
Posts: 1,689
RCVTR is an unknown quantity at this point
Try and do as much troubleshooting as you can and understand the cause before you start tearing it down.

You can remove the shift fork shaft and shift drum without splitting the case, but it may be a can of worms. If it is a matter of shift drum orientation, you may be able to fix it that way.

I'd start by removing the clutch basket and shift detent mechanism and rotate the shift drum by hand to see what is being held up. Rotate the back wheel to make it shift. Figure out a way to see the shift fork actuation, while doing so (mirror on the floor and a light??).

good luck. Remember, it's just an inconvenience. Take your time.
RCVTR is offline
Old 08-02-2010, 09:40 AM
  #7
Fastest Color
SuperBike
Thread Starter

FL02SupaHawk996's Avatar

Join Date: Jul 2007
Location: Lithia, FL
Posts: 2,091
FL02SupaHawk996 is on a distinguished road
Originally Posted by RCVTR View Post
Try and do as much troubleshooting as you can and understand the cause before you start tearing it down.

You can remove the shift fork shaft and shift drum without splitting the case, but it may be a can of worms. If it is a matter of shift drum orientation, you may be able to fix it that way.

I'd start by removing the clutch basket and shift detent mechanism and rotate the shift drum by hand to see what is being held up. Rotate the back wheel to make it shift. Figure out a way to see the shift fork actuation, while doing so (mirror on the floor and a light??).

good luck. Remember, it's just an inconvenience. Take your time.
Will do & thanks again for all your help! I'll never seal up a case again w/o going through the gears...
FL02SupaHawk996 is offline
Old 08-02-2010, 10:47 AM
  #8
Senior Member
SuperBike

RCVTR's Avatar

Join Date: Dec 2005
Location: South Lake Tahoe, CA, USA
Posts: 1,689
RCVTR is an unknown quantity at this point
1st check:

Are all 3 shift forks in the grooves on the gears? The center one pretty much has to be.
What about the right and left ones?

Shine a light in there and look. Let me know.
RCVTR is offline
Old 08-02-2010, 10:52 AM
  #9
Fastest Color
SuperBike
Thread Starter

FL02SupaHawk996's Avatar

Join Date: Jul 2007
Location: Lithia, FL
Posts: 2,091
FL02SupaHawk996 is on a distinguished road
Originally Posted by RCVTR View Post
1st check:

Are all 3 shift forks in the grooves on the gears? The center one pretty much has to be.
What about the right and left ones?

Shine a light in there and look. Let me know.
I will let you know. I had them all meshed in the grooves when I closed it up and had it in neutral so everything would spin, but neglected to shift it through the gears before I closed it up
FL02SupaHawk996 is offline
Old 08-02-2010, 11:16 AM
  #10
Senior Member
SuperBike

RCVTR's Avatar

Join Date: Dec 2005
Location: South Lake Tahoe, CA, USA
Posts: 1,689
RCVTR is an unknown quantity at this point
Ok.

When the shift drum is all the way clockwise, the right shift fork should move right. The other two should be in the center position. One click counterclockwise puts all 3 forks in the center position. This is neutral. The next click moves the left fork to the left.
RCVTR is offline
Old 08-02-2010, 11:20 AM
  #11
Fastest Color
SuperBike
Thread Starter

FL02SupaHawk996's Avatar

Join Date: Jul 2007
Location: Lithia, FL
Posts: 2,091
FL02SupaHawk996 is on a distinguished road
Originally Posted by RCVTR View Post
Ok.

When the shift drum is all the way clockwise, the right shift fork should move right. The other two should be in the center position. One click counterclockwise puts all 3 forks in the center position. This is neutral. The next click moves the left fork to the left.
Good info! Sometimes I just have to learn it the hard way
FL02SupaHawk996 is offline
Old 08-02-2010, 11:23 AM
  #12
Banned
MotoGP

Join Date: Aug 2007
Location: Lake View Terrace, CA
Posts: 5,942
8541Hawk will become famous soon enough
Not much to add at this point as it does sound like a shift drum issue. Did to disassemble anything in the trans while you had it apart?
8541Hawk is offline
Old 08-02-2010, 11:36 AM
  #13
Fastest Color
SuperBike
Thread Starter

FL02SupaHawk996's Avatar

Join Date: Jul 2007
Location: Lithia, FL
Posts: 2,091
FL02SupaHawk996 is on a distinguished road
Originally Posted by 8541Hawk View Post
Not much to add at this point as it does sound like a shift drum issue. Did to disassemble anything in the trans while you had it apart?
Nope, I didn't take the tranny apart. I tried hard to keep it all together so I wouldn't have this type of issue. I did have a gear slid off the end of the counter shaft or maybe it was the main shaft, but I quickly put it back...

I didn't setup the shift drum as Rand described cuz I didn't know it would go back together more then one way. I should have asked
FL02SupaHawk996 is offline
Old 08-02-2010, 11:50 AM
  #14
Banned
MotoGP

Join Date: Aug 2007
Location: Lake View Terrace, CA
Posts: 5,942
8541Hawk will become famous soon enough
Originally Posted by FL02SupaHawk996 View Post
Nope, I didn't take the tranny apart. I tried hard to keep it all together so I wouldn't have this type of issue. I did have a gear slid off the end of the counter shaft or maybe it was the main shaft, but I quickly put it back...

I didn't setup the shift drum as Rand described cuz I didn't know it would go back together more then one way. I should have asked
Well it's not like we all haven't done something similar at one time or another.
The good part is that it pretty much has to be the shift drum then.
8541Hawk is offline
Old 08-02-2010, 12:53 PM
  #15
Senior Member
SuperBike

RCVTR's Avatar

Join Date: Dec 2005
Location: South Lake Tahoe, CA, USA
Posts: 1,689
RCVTR is an unknown quantity at this point
If the forks are all in their grooves, you may be in luck.

The shift fork shaft has only the forks on it. You can pull it out without losing any small bits. By doing that, you can probably disengage the fork dogs from the shift drum and rotate the drum to the proper orientation.

Put all of the forks in the center position and rotate the drum clockwise until the grooves line up with the dogs. You will see the jog on the right groove of the drum which would move the right fork right. that is the fully clockwise position of the drum and corresponds to 1st gear. Rotate a few degrees counterclockwise from there.

It may take some patience and very small people to get the forks lined back up to the shaft, but that'll just make the beer taste better, when you are done.

Last edited by RCVTR; 08-02-2010 at 01:00 PM.
RCVTR is offline
Old 08-02-2010, 12:56 PM
  #16
Fastest Color
SuperBike
Thread Starter

FL02SupaHawk996's Avatar

Join Date: Jul 2007
Location: Lithia, FL
Posts: 2,091
FL02SupaHawk996 is on a distinguished road
Originally Posted by RCVTR View Post
If the forks are all in their grooves, you may be in luck.

The shift fork shaft has only the forks on it. You can pull it out without losing any small bits. By doing that, you can probably disengage the fork dogs from the shift drum and rotate the drum to the proper orientation.

It may take some patience and very small people to get the forks lined back up to the shaft, but that'll just make the beer taste better, when you are done.
It's sure worth a try!
FL02SupaHawk996 is offline
Old 08-02-2010, 01:04 PM
  #17
Senior Member
SuperBike

RCVTR's Avatar

Join Date: Dec 2005
Location: South Lake Tahoe, CA, USA
Posts: 1,689
RCVTR is an unknown quantity at this point
I added a bit more commentary to the previous post that may be helpful.
RCVTR is offline
Old 08-02-2010, 01:06 PM
  #18
Fastest Color
SuperBike
Thread Starter

FL02SupaHawk996's Avatar

Join Date: Jul 2007
Location: Lithia, FL
Posts: 2,091
FL02SupaHawk996 is on a distinguished road
Originally Posted by RCVTR View Post
I added a bit more commentary to the previous post that may be helpful.
got it!
FL02SupaHawk996 is offline
Old 08-02-2010, 01:23 PM
  #19
Senior Member
SuperBike

RCVTR's Avatar

Join Date: Dec 2005
Location: South Lake Tahoe, CA, USA
Posts: 1,689
RCVTR is an unknown quantity at this point
One more thing, for a complete description:

Neutral is actually a "half-click" position. One of the lobes on the star wheel has a small detent position on top of it. When the shift drum is in the neutral position, the follower will be sitting on this small detent.
RCVTR is offline
Old 08-02-2010, 05:50 PM
  #20
Fastest Color
SuperBike
Thread Starter

FL02SupaHawk996's Avatar

Join Date: Jul 2007
Location: Lithia, FL
Posts: 2,091
FL02SupaHawk996 is on a distinguished road
Culprit found!

Not sure why but the shift star failed and got cockeyed causing the follower to bind up = no shifts!

put new star in and shifts like a champ through all 6 gears

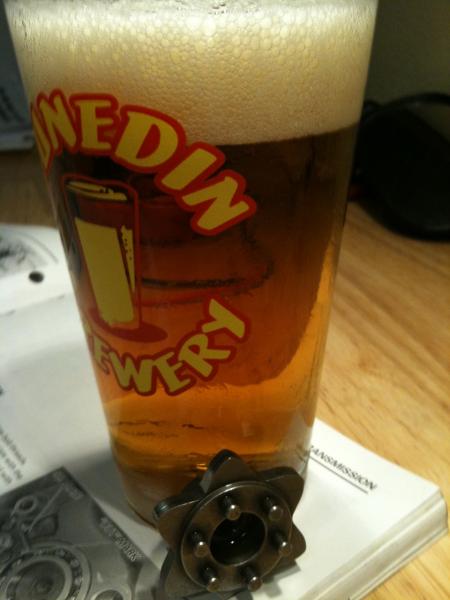

Attached Thumbnails Help! It wont shift!-shiftstar.jpg

Last edited by FL02SupaHawk996; 08-03-2010 at 05:53 AM. Reason: spell
FL02SupaHawk996 is offline
Old 08-03-2010, 09:10 AM
  #21
Senior Member
MotoGP

lazn's Avatar

Join Date: Mar 2007
Location: Phoenix, AZ
Posts: 3,132
lazn is on a distinguished road
Congrats!
lazn is offline
Old 08-03-2010, 09:17 AM
  #22
Moderator
MotoGP

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 4,253
E.Marquez is on a distinguished road
Originally Posted by FL02SupaHawk996 View Post
Not sure why but the shift star failed and got cockeyed causing the follower to bind up = no shifts!

put new star in and shifts like a champ through all 6 gears
Kind of common.. .. seems to happen a lot when folks install a shift kit. or reassemble after rebuild.

It's easy to not get the pin aligned with both index holes,, and then when you tighten down the bolt, if you’re not really looking./././ you won’t see that the part is misaligned.
E.Marquez is offline
Old 08-03-2010, 09:22 AM
  #23
Fastest Color
SuperBike
Thread Starter

FL02SupaHawk996's Avatar

Join Date: Jul 2007
Location: Lithia, FL
Posts: 2,091
FL02SupaHawk996 is on a distinguished road
Originally Posted by E.Marquez View Post
Kind of common.. .. seems to happen a lot when folks install a shift kit. or reassemble after rebuild.

It's easy to not get the pin aligned with both index holes,, and then when you tighten down the bolt, if you’re not really looking./././ you won’t see that the part is misaligned.
This was a weird star that looked warped when installed. I took it out several times and tried to reinstall it correctly and it just wouldn't go in right. Then I took the one off the original motor and it went on correctly 1st try, so my guess is this part was damaged when the donor motor went down before I purchased it...

Here's a vid of the 1st startup:http://www.youtube.com/watch?v=08tYJLnZOu4

Dyno to follow!

Last edited by FL02SupaHawk996; 08-03-2010 at 09:22 AM. Reason: spell
FL02SupaHawk996 is offline
Old 08-03-2010, 09:23 AM
  #24
Fastest Color
SuperBike
Thread Starter

FL02SupaHawk996's Avatar

Join Date: Jul 2007
Location: Lithia, FL
Posts: 2,091
FL02SupaHawk996 is on a distinguished road
Originally Posted by lazn View Post
Congrats!
Thanks for all your help along the way!
FL02SupaHawk996 is offline
Related Topics
Thread
Thread Starter
Forum
Replies
Last Post
Mr.Lojo
Technical Discussion
8
02-07-2015 02:48 PM
hollywood13185
Technical Discussion
12
04-20-2009 09:16 PM
Plague325
Technical Discussion
11
03-28-2008 07:19 PM
Nu2thahawk
Technical Discussion
11
09-18-2007 12:48 PM
MXC
Classifieds
1
06-18-2006 05:16 PM


Thread Tools
Search this Thread
Quick Reply: Help! It wont shift!


Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

© 2019 MH Sub I, LLC dba Internet Brands

We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.
