GSXR 5/8 Master Cylinder Retrofit
08-13-2008, 02:33 PM
#1
Thats Mr Dill hole to you
Superstock
Thread Starter
Join Date: Aug 2007
Location: Sioux Falls, SD Beeeotch
Posts: 389
GSXR 5/8 Master Cylinder Retrofit

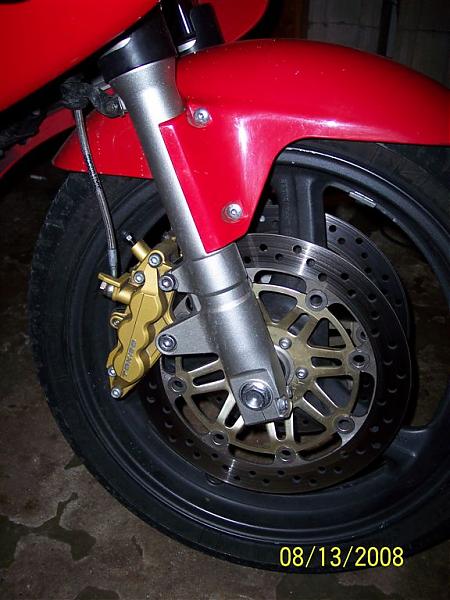

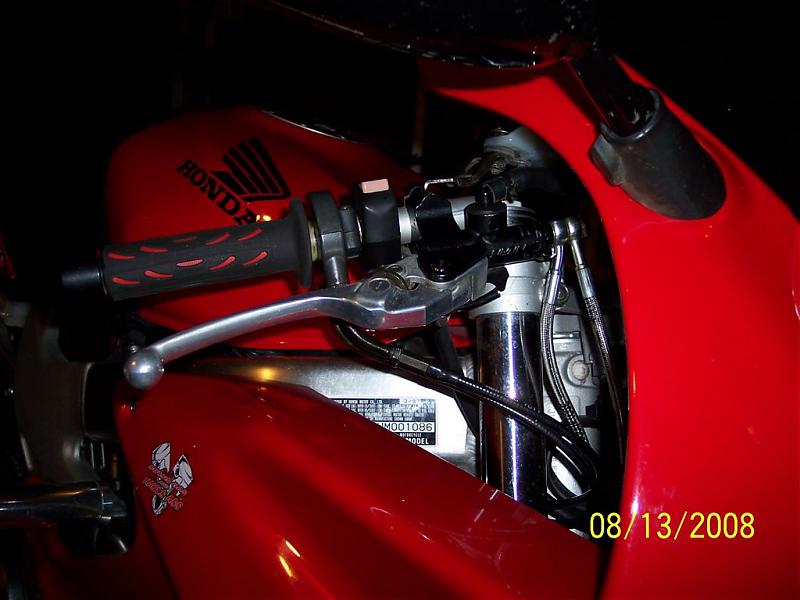

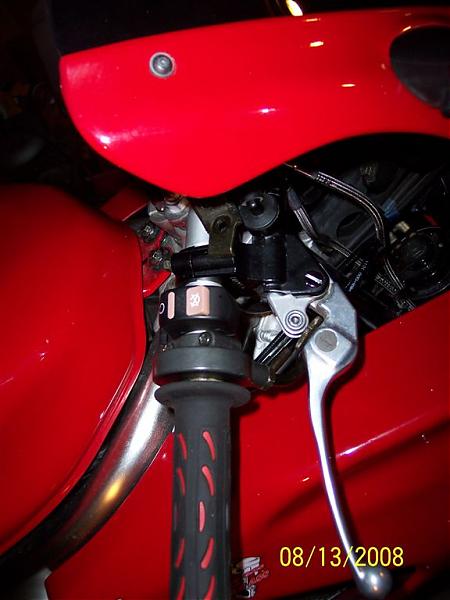

So i decided to put the gixxer M/C on after the 6 pot tok. calipers used the original hawk lever. Had to dremel some off the handle around the brake switch otherwise fits fine.
The lever is super firm now and i guess ill get used to it. But i was gonna drill and tap the
M/C to accept my stock hawk Resivoir (gixxer one looks stupid and is way to big )

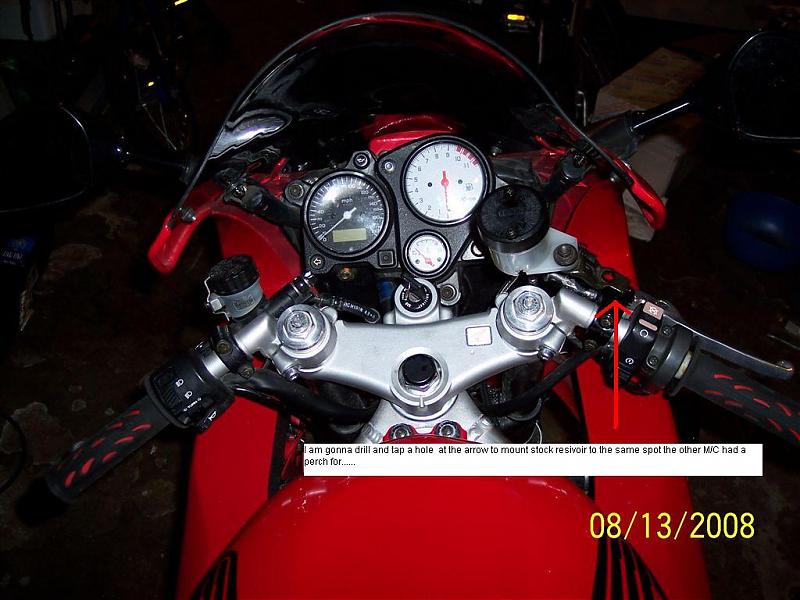

any one have ideas where to mount this b4 i start drilling and tapping . See attached pics

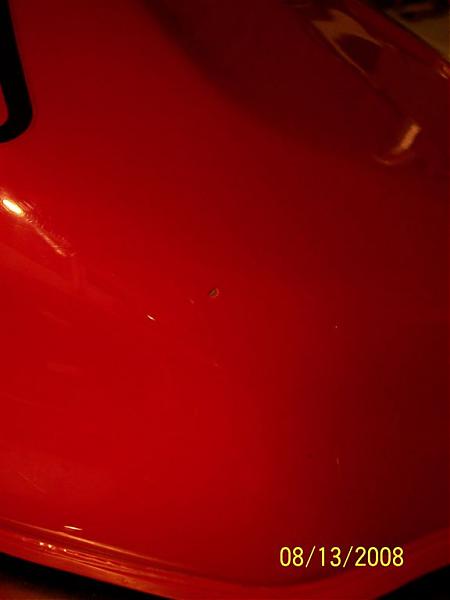

On a Side note im PISSED!!!!!!! i nicked my f'in tank while doing this dropped wrench on the tank...PHack!
Oh well any tips tricks other ideas appriciated Thanks
The lever is super firm now and i guess ill get used to it. But i was gonna drill and tap the
M/C to accept my stock hawk Resivoir (gixxer one looks stupid and is way to big )
any one have ideas where to mount this b4 i start drilling and tapping . See attached pics
On a Side note im PISSED!!!!!!! i nicked my f'in tank while doing this dropped wrench on the tank...PHack!
Oh well any tips tricks other ideas appriciated Thanks
08-13-2008, 08:43 PM
#2
Senior Member
SuperBike
SuperBike
Join Date: Jun 2007
Location: Los Angeles ish
Posts: 1,031
Ack! Sorry about the tank.

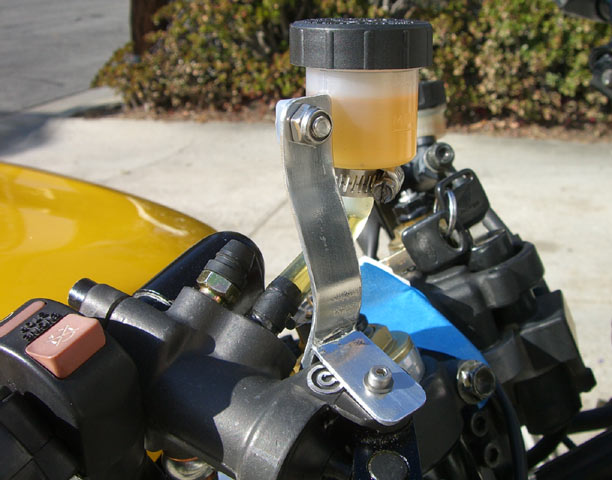

I've a different setup, but here's what I did. The pivot pin for the lever is hollow on my Brembo. I bent up a piece of aluminum and drilled a hole in each end. I tapped the pivot hole a used a really small screw to attach the alum to the MC. The alum piece looks too tall in the photo, but the reservoir is much smaller than the stock Hawk's.
I've a different setup, but here's what I did. The pivot pin for the lever is hollow on my Brembo. I bent up a piece of aluminum and drilled a hole in each end. I tapped the pivot hole a used a really small screw to attach the alum to the MC. The alum piece looks too tall in the photo, but the reservoir is much smaller than the stock Hawk's.
08-13-2008, 09:01 PM
#3
Thats Mr Dill hole to you
Superstock
Thread Starter
Join Date: Aug 2007
Location: Sioux Falls, SD Beeeotch
Posts: 389
Ack! Sorry about the tank.
I've a different setup, but here's what I did. The pivot pin for the lever is hollow on my Brembo. I bent up a piece of aluminum and drilled a hole in each end. I tapped the pivot hole a used a really small screw to attach the alum to the MC. The alum piece looks too tall in the photo, but the reservoir is much smaller than the stock Hawk's.
I've a different setup, but here's what I did. The pivot pin for the lever is hollow on my Brembo. I bent up a piece of aluminum and drilled a hole in each end. I tapped the pivot hole a used a really small screw to attach the alum to the MC. The alum piece looks too tall in the photo, but the reservoir is much smaller than the stock Hawk's.
Its an idea i was wondering would not a zip tie work in place of that Monster hose clamp ?
and i saw the ford key layin there now your in trouble
08-13-2008, 10:12 PM
#4
Senior Member
SuperBike
SuperBike
Join Date: Jun 2007
Location: Los Angeles ish
Posts: 1,031
The clamp is gone now. The spring clamp I originally was using fired off the end of my pliers (found it outside under my truck a few days later).That clear hose came with the MC. After about three days, it started sweating brake fluid on the outside. I've replaced that as well. Moral: what's worth doin', is worth doin' twice.
