Getting No Fuel

I just completed an OEM to APE CCT conversion. That part went well (I think). I started the engine and ran it briefly before buttoning up and heard no scary sounds. Once I got the fuel tank on I was going to warm it up at idle speed to see if I could detect any cam chain slap and then adjust as necessary. It initially started and ran like it was fuel starved and now it won't start. So, I believe that I have created a fuel supply problem. The only possible problems I can think of are:

1) the vacuum hose to the petcock got disconnected at the engine (where does it connect at the engine?) as I was disassembling the bike
2) the petcock, which appears to have a on/off valve that I can't find any info abut in the service manual, is screw up. I turned the petcock valve to what I thought was OFF when I removed the tank and I turned it back on after installing the tank.

What else could be messing up fuel delivery to the carbs--yep, there is fuel in the tank.
YTKinWI is offline
Old 09-17-2010, 11:48 AM
  #2
Banned
MotoGP

Join Date: Aug 2007
Location: Lake View Terrace, CA
Posts: 5,942
8541Hawk will become famous soon enough
The vacuum line from the petcock goes to a fitting in the rear cylinder. It looks just like the one on the front cylinder that you use to sync the carbs.

Also where did you hook up the line on the petcock when you put it all back together?
8541Hawk is offline
Old 09-17-2010, 11:52 AM
  #3
Senior Member
SuperBike

RWhisen's Avatar

Join Date: Sep 2008
Location: Ft. Worth, TX
Posts: 1,605
RWhisen is on a distinguished road
Read this thread for hose locations on the tank:

https://www.superhawkforum.com/forum...ad.php?t=23574
RWhisen is offline
Old 09-17-2010, 01:29 PM
  #4
Out of my mind, back in 5
MotoGP

Tweety's Avatar

Join Date: Nov 2006
Location: Skurup, Sweden
Posts: 6,109
Tweety is on a distinguished road
PVLIR strikes again...
Tweety is offline
Old 09-17-2010, 01:30 PM
  #5
Banned
MotoGP

Join Date: Aug 2007
Location: Lake View Terrace, CA
Posts: 5,942
8541Hawk will become famous soon enough
Originally Posted by Tweety View Post
PVLIR strikes again...
That would be my bet.....
8541Hawk is offline
Old 09-17-2010, 02:07 PM
  #6
Senior Member
SuperBike

RWhisen's Avatar

Join Date: Sep 2008
Location: Ft. Worth, TX
Posts: 1,605
RWhisen is on a distinguished road
Originally Posted by 8541Hawk View Post
That would be my bet.....
Sounds like a sure thing.
RWhisen is offline
Old 09-17-2010, 04:33 PM
  #7
Senior Member
SuperBike

drew_c14's Avatar

Join Date: Mar 2007
Location: Williamsburg, VA
Posts: 2,455
drew_c14 is on a distinguished road

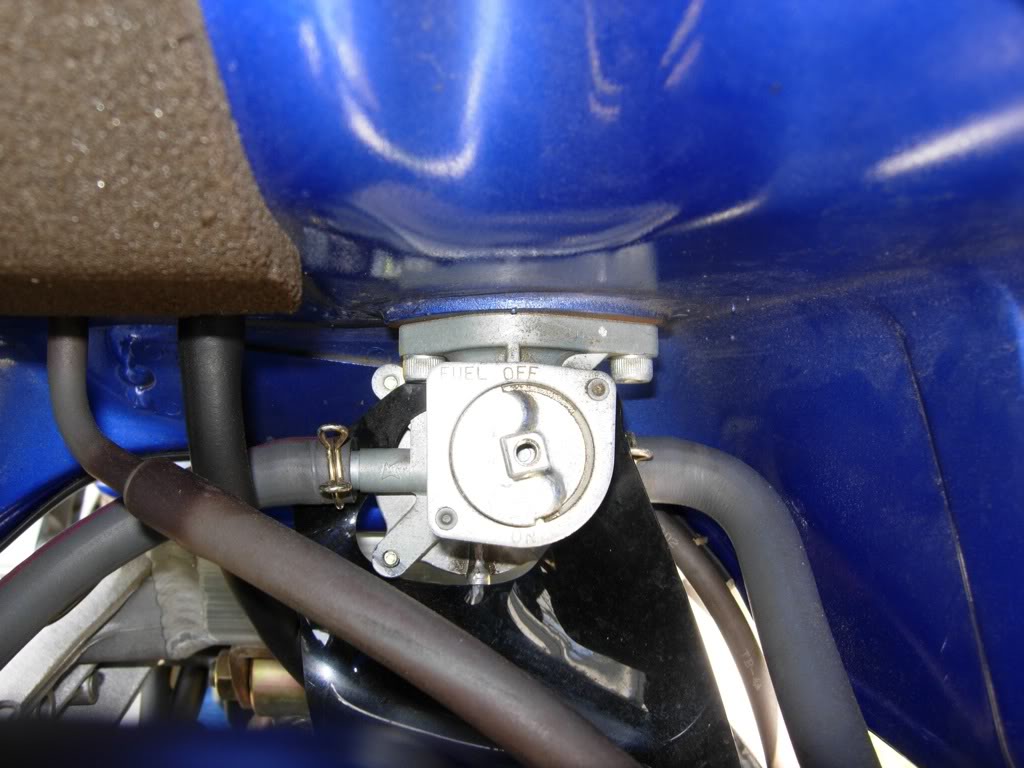

Everything should look like this:
Name:  DSCN0423c.jpg
Views: 127
Size:  92.9 KB

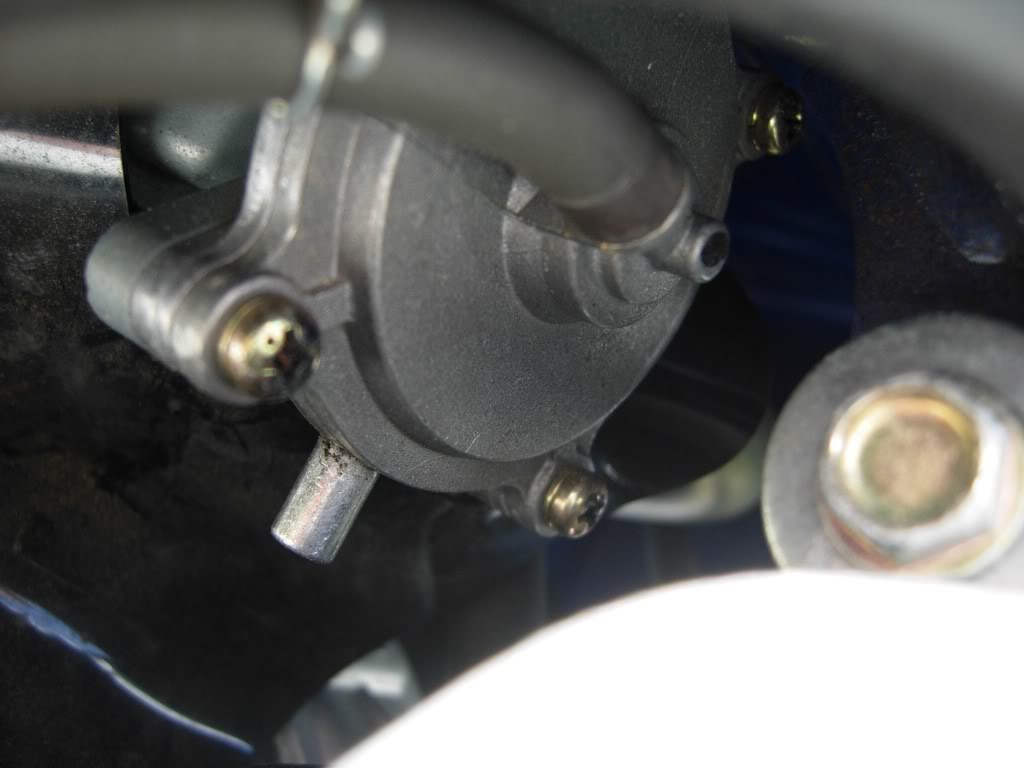

And this from the back:

Name:  DSCN0420c.jpg
Views: 133
Size:  54.4 KB
drew_c14 is offline
Old 09-18-2010, 07:42 AM
  #8
Senior Member
Back Marker
Thread Starter

Join Date: Dec 2008
Posts: 105
YTKinWI is on a distinguished road
Well, I have not figured out what "PVLIR" stands for but I know what it means. It means that I missed connecting the 5th hose to the rear of the petcock. The Drew C14's attached photo helped. As it turns out, I also photo'd the undertank before disconnecting all hoses. My digicam is old and has only a 1.5" display and I missed this hose when reviewing that display. When I downloaded photos to laptop and then zoomed in on the petcock I could also see the 5th hose.

Thanks for the help, "Old Yeller" is running fine. OH, what does PVLIR stand for?
YTKinWI is offline
Old 09-18-2010, 08:29 AM
  #9
Senior Member
SuperBike

RWhisen's Avatar

Join Date: Sep 2008
Location: Ft. Worth, TX
Posts: 1,605
RWhisen is on a distinguished road
P-Petcock
V-Vacuum
L-Line
I-Inadvertant
R-Relocation
RWhisen is offline
Old 11-09-2017, 09:07 PM
  #10
THE LANE CARVER
Superstock

whatthefnck's Avatar

Join Date: Aug 2012
Location: Houston TX
Posts: 271
whatthefnck is on a distinguished road
that rubbery plastic flap, is it necessary? mine is gone. I can only think that its to keep anything from draining out of the petcock to directly below it, perhaps its bad to drip there.
whatthefnck is offline
Old 11-09-2017, 10:45 PM
  #11
Senior Member
SuperBike

Wicky's Avatar

Join Date: Sep 2008
Location: Essex, UK
Posts: 1,638
Wicky is on a distinguished road
It's to stop fuel leaking directly onto the rear cylinder with obvious consequences....
Wicky is offline
Old 11-11-2017, 01:03 PM
  #12
THE LANE CARVER
Superstock

whatthefnck's Avatar

Join Date: Aug 2012
Location: Houston TX
Posts: 271
whatthefnck is on a distinguished road
Originally Posted by Wicky View Post
.'97 FireStorm -Dynojetted - K&N Filter - Moriwaki Ti Zero Cans - Ohlins Rear Shock - Hagon Forks - FlipUp Screen - Heated Grips - Baglux Tank Cover - Mosfet R/R
Tell us about this stuff..
