Fork Removal

I don't have a triple tree stand (only reg front fork stand).

Thinking I can just put a block of something or jackstand under the engine? Looking for idea's or some pictures. Bike will have to stay this way while the forks are being rebuilt ....want it to be secure/stable.
mikenap is offline
Old 11-06-2014, 05:04 AM
  #2
Thread Killer
SuperBike

VTR1000F's Avatar

Join Date: Apr 2013
Location: Geneseo, IL
Posts: 2,017
VTR1000F is on a distinguished road
You can support it from below as you outline, but IMO that's not very stable with this bike. Add some straps and hang it from the rafters for stability.
VTR1000F is offline
Old 11-06-2014, 07:08 AM
  #3
Senior Member
SuperSport

twist's Avatar

Join Date: Jul 2012
Location: Santa Fe, New Mexico
Posts: 582
twist is on a distinguished road
Originally Posted by VTR1000F
You can support it from below as you outline, but IMO that's not very stable with this bike. Add some straps and hang it from the rafters for stability.

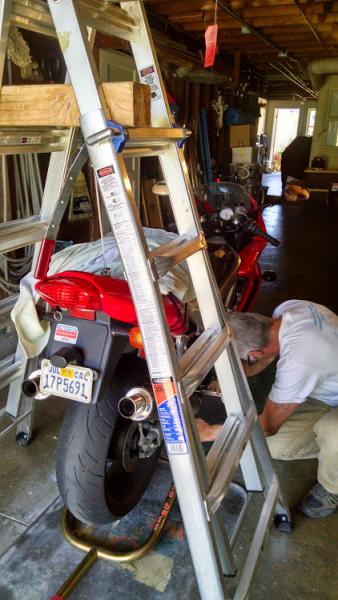

When I installed a new shock, I supported the bike from an A frame ladder, one of the type that is made so it can be straight or pivot and lock at the center. They can hold the bike no problem.

Fork Removal-flying-vtr.jpg
twist is offline
Old 11-06-2014, 10:04 AM
  #4
Senior Member
Back Marker

HawkRider98's Avatar

Join Date: Oct 2007
Location: East TX
Posts: 226
HawkRider98 is on a distinguished road
Yea i did the board and floor jackstand when I replaced my rear shock. Ended up replacing my tank also. It's the coming down part you got to worry about. Just make sure you have someone on both sides of bike on way down.
HawkRider98 is offline
Old 11-06-2014, 12:00 PM
  #5
Moderator
MotoGP

Wolverine's Avatar

Join Date: Jul 2007
Location: Gettysburg, Pa
Posts: 5,072
Wolverine is on a distinguished road
Originally Posted by mikenap
Thinking I can just put a block of something or jackstand under the engine?
Yup. I use a soft piece of pine on my floor jack @ the oil pan, rear being held by a stand. It's a little shakey but you should be fine, just be careful.
Wolverine is offline
Old 11-06-2014, 01:10 PM
  #6
Administrator
MotoGP

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 4,402
E.Marquez is on a distinguished road
If you're looking for a bit of added security.

Rear on a stand, 24x24 or larger piece of 3/4 plywood with two eye bolts at the edges.. place the plywood under the bike, roll the floor jack on top of the plywood use a small piece of wood on the jack pad,, Lift the bike under the motor at the oil pan..Then use two straps from bike to eye bolts in plywood to stabilize the bike
E.Marquez is offline
Old 11-06-2014, 04:49 PM
  #7
Senior Member
MotoGP

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,033
smokinjoe73 is on a distinguished road
get a stand. You can get them for forty something clams on fleabay. If you do the mickey mouse thing and tip the bike you will spend way more than that on parts in damage, not to mention if it lands on you (it will).

It is beyond worth having since you own a bike and you can sell it for what you paid when your done. (I had one 3 yrs and got my money back).
smokinjoe73 is offline
