Elec. Problem - VTR Got Towed

So, Thinking my baby was ready for Spring - I rode down to Philly to see some friends on Thursday -Friday on way back - with a slight hangover. The instrument cluster went out - no tach, speedo, temp., etc.

I knew I was low on gas, so I crossed in NJ (cheaper petrol than Pa - I was on Rt.32 north of New Hope, Pa)

So U know what happens next - VTR doesn't start - (I have a new battery BTW)

So I jump start it and continue the road home - within 10 mins. it starts losing power, stalls as I'm riding & I just jump it again.

Then it starts to backfire & I decide to cut my loses and pulled over & called the AMA towing service.

So, I'm thinking CDI unit? or R/R? (These have both been replaced, but not recently)

CDI unit was replaced July 2010 and the R/R I think in '08 or '09.

I don't have a multimeter - so info from the class would help

Some pics from breakdown area & tow







And if U don't have a tow service - I would join the AMA - U get free towing for all ur vehicles - Yes thats right - cars too and it includes ur family as well. (Free towing up to 35 miles) I was 20 miles from home.
nnjhawk02 is offline
Old 04-12-2014, 07:09 AM
  #2
Moderator
MotoGP

Wolverine's Avatar

Join Date: Jul 2007
Location: Gettysburg, Pa
Posts: 4,489
Wolverine is on a distinguished road

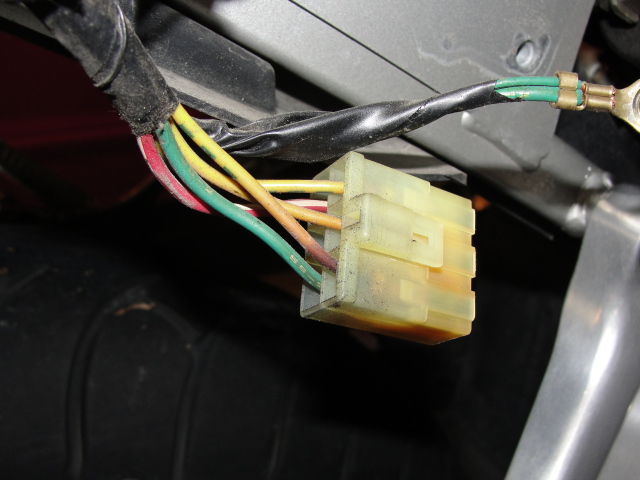

What did you replace the R/R with OE or upgrade? Did you have a look at its wiring harness? Mine was starting to show signs of heat fatigue.
Name:  DSC05562.jpg
Views: 22
Size:  123.0 KB
Wolverine is offline
Old 04-12-2014, 08:02 AM
  #3
Senior Member
SuperSport
Thread Starter

nnjhawk02's Avatar

Join Date: Mar 2006
Location: Pa
Posts: 674
nnjhawk02 is an unknown quantity at this point
Originally Posted by Wolverine View Post
What did you replace the R/R with OE or upgrade? Did you have a look at its wiring harness? Mine was starting to show signs of heat fatigue.
Found my receipt for the R/R - from Ricks OEM style from 5 years ago.

And yes one of the wiring harnesses with I think all yellow wires has heat stress.

Course of action now should be what?

Clip the wires and get a new connectors?

Thanks
nnjhawk02 is offline
Old 04-12-2014, 08:07 AM
  #4
Moderator
MotoGP

Wolverine's Avatar

Join Date: Jul 2007
Location: Gettysburg, Pa
Posts: 4,489
Wolverine is on a distinguished road
Wolverine is offline
Old 04-12-2014, 08:29 AM
  #5
Senior Member
SuperSport
Thread Starter

nnjhawk02's Avatar

Join Date: Mar 2006
Location: Pa
Posts: 674
nnjhawk02 is an unknown quantity at this point
Giddyup

Ordering stuff to commence

FYI - the wiring harness that I looked out that was distressed was under the seat & not the R/R connector. I will check that as well.

Thanks

And would U suggest a R1 type R/R or the Mosfet?
nnjhawk02 is offline
Old 04-12-2014, 08:49 AM
  #6
European Member
Back Marker

RoadManiac's Avatar

Join Date: Mar 2013
Location: Netherlands
Posts: 193
RoadManiac is on a distinguished road
Yes a Mosfet R/R is the best option
you will need one with on it FH ****
Do a search for : wich R/R and you will find anything you need
RoadManiac is offline
Old 04-12-2014, 01:13 PM
  #7
Senior Member
SuperSport
Thread Starter

nnjhawk02's Avatar

Join Date: Mar 2006
Location: Pa
Posts: 674
nnjhawk02 is an unknown quantity at this point
Mas informacion

So started to take apart the VTR

And - I relooked at the alternator connector (located by behind gas tank)

might this be the culprit?

I'm going to change this and see if that was the problem.

Alt. Connector



As the R/R connector doesn't looked burned - thus I'm not sure if the R/R is the problem




Last edited by nnjhawk02; 04-12-2014 at 01:16 PM.
nnjhawk02 is offline
Old 04-12-2014, 03:24 PM
  #8
Senior Member
Back Marker

jefejrs's Avatar

Join Date: Jun 2009
Location: Beaverton, OR
Posts: 103
jefejrs is on a distinguished road
I would change it anyways...Eastern Beaver harness and Mosfet R/R..no worries..
jefejrs is offline
Old 04-12-2014, 06:06 PM
  #9
Member
Squid

Mikael's Avatar

Join Date: Apr 2011
Location: Canada
Posts: 85
Mikael is on a distinguished road
I would get the Eastern Beaver wiring kit, plugs right in nice new connections and wires AND a new MOSFET R/R as you don't know if your old one is bad and no easy way to test.

Plus the MOSFET ones are better than the crappy OEM ones the bike came with.
Read this, explains the difference and a big plus gives you a list of what R/R's are MOSFET

https://www.superhawkforum.com/forum...why-how-25117/
Mikael is offline
Old 04-13-2014, 08:15 AM
  #10
Senior Member
SuperSport
Thread Starter

nnjhawk02's Avatar

Join Date: Mar 2006
Location: Pa
Posts: 674
nnjhawk02 is an unknown quantity at this point
Thanks guys

I will be ordering the MOSFET & new connectors.

1 thing though

Eastern Beavers web site is confusing - do they sell R/R units or just wiring kits?

Last edited by nnjhawk02; 04-13-2014 at 08:58 AM.
nnjhawk02 is offline
Old 04-14-2014, 06:57 AM
  #11
Senior Member
SuperSport
Thread Starter

nnjhawk02's Avatar

Join Date: Mar 2006
Location: Pa
Posts: 674
nnjhawk02 is an unknown quantity at this point
Update & Info Help Others Too

So I learned that Eastern Beaver does not sell R/R - just wiring kits.

Jim from EB emailed me back yesterday & stated as such & told me what wiring kits I needed & to order a FH020 R/R, as that is the latest tech on the MOSFET units.

I went to ebay & or got this

Universal Motorcycle Regulator Upgrade Kit Shindengen MOSFET FH020AA | eBay

And free fast shipping as well.

I hope my failed R/R hasn't screwed up my new battery.
nnjhawk02 is offline
Old 04-14-2014, 10:25 AM
  #12
Junior Member
Squid

Join Date: Apr 2013
Posts: 14
AgDroid is on a distinguished road
I ordered my R/R wiring kit from Shindengen FH020AA Mosfet Regulator/Rectifier I got the R/R on e-bay on it's own, it's a quick and easy install. Solder free if you just want to use the crimp connections.

I'm not sure if it could have permanently damaged the battery, but R/R failures can junk clusters from time to time. Hopefully everything lights up once you get it up and running again.
AgDroid is offline
Old 04-14-2014, 02:29 PM
  #13
Moderator
MotoGP

Wolverine's Avatar

Join Date: Jul 2007
Location: Gettysburg, Pa
Posts: 4,489
Wolverine is on a distinguished road
You won't regret that purchase Rhino. High quality connectors and everything in one makes it convenient. Follow that swap thread and don't forget to slide the boots on before you crimp. Your R/R will no longer be an issue.
Wolverine is offline
Old 04-14-2014, 04:46 PM
  #14
Senior Member
SuperSport
Thread Starter

nnjhawk02's Avatar

Join Date: Mar 2006
Location: Pa
Posts: 674
nnjhawk02 is an unknown quantity at this point
Originally Posted by Wolverine View Post
You won't regret that purchase Rhino. High quality connectors and everything in one makes it convenient. Follow that swap thread and don't forget to slide the boots on before you crimp. Your R/R will no longer be an issue.
10-4

Thanks

Just ordered the EB kits. Hope to be on the road shortly.


I'll have to ride to G-Burg to see the sites
nnjhawk02 is offline
Old 04-15-2014, 09:58 AM
  #15
Senior Member
MotoGP

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 4,934
smokinjoe73 is on a distinguished road
Part of the problem may be that you top case tips the wrong way and causes un-needed instability away from bike center of mass.

Tilt it forward/ closer and the bike will handle and (maybe) run better.
smokinjoe73 is offline
Old 04-15-2014, 01:27 PM
  #16
Senior Member
SuperSport
Thread Starter

nnjhawk02's Avatar

Join Date: Mar 2006
Location: Pa
Posts: 674
nnjhawk02 is an unknown quantity at this point
Originally Posted by smokinjoe73 View Post
Part of the problem may be that you top case tips the wrong way and causes un-needed instability away from bike center of mass.

Tilt it forward/ closer and the bike will handle and (maybe) run better.
U funny round eye
nnjhawk02 is offline
Old 04-27-2014, 01:40 PM
  #17
Senior Member
SuperSport
Thread Starter

nnjhawk02's Avatar

Join Date: Mar 2006
Location: Pa
Posts: 674
nnjhawk02 is an unknown quantity at this point
Help

1st - sorry if I come off dumb here, but help me, if ya would - thanks

OK - I'm finally getting around to installing the new MOSFET R/R. As stated I have a Eastern Beaver wiring kits - EB known as A & B.

EB A is easy into black R/R connector, then to battery.

EB B is where I'm confused. I know where it goes for the R/R (thats easy there's only one more connection left), but I plug into the OEM female Alternator connector, but I've bypassed the OEM male alt. connector.

I'm guessing I don't need it anymore?

This male alt plug

nnjhawk02 is offline
Old 04-27-2014, 01:48 PM
  #18
Senior Member
SuperSport
Thread Starter

nnjhawk02's Avatar

Join Date: Mar 2006
Location: Pa
Posts: 674
nnjhawk02 is an unknown quantity at this point
Help - Part 2

HMmmm

I think I got it.

The OEM Alt male 3 yellow wires went to the OEM connector for the OEM R/R - correct?

And now I don't need them, si?
nnjhawk02 is offline
Old 05-02-2014, 05:04 AM
  #19
Senior Member
SuperSport
Thread Starter

nnjhawk02's Avatar

Join Date: Mar 2006
Location: Pa
Posts: 674
nnjhawk02 is an unknown quantity at this point
Wake the kids & Call the neighbors, I finally got my baby back together & RUNNING!

Was very frustrating, especially the alternator wires (3), tiny & not enough slack after I clipped off the old female connector. So with a MOSFET R/R & a Eastern Beaver wiring kit, its all working now.

I was so happy to have it running that I washed & waxed her too.

I really hate working with things in tight spaces.

Now I just need to change a flat on the Mtn Bike & clear coat the wifes vans hood after I did some body work - I man's job is never done...
