Do your valves look like this?

Thread Tools

Search this Thread

Old 11-19-2009, 10:06 PM
  #1
Senior Member
Back Marker
Thread Starter

avramd's Avatar

Join Date: Oct 2009
Location: Newport, RI
Posts: 143
avramd is on a distinguished road
Do your valves look like this?
Yikes, I was shimming my jet needles today, and I happened to glance down into the intake manifold with a light shined directly into it - this is like the 8th time I've had the carbs half-removed, but just never really looked down there before.

Holy christ, the back-sides of my valves look like crap - all brown-blackish and gunky-crusty. Is this normal? Is it a problem? If so, is there any way to clean them up besides taking the head off and taking them out?

I'd appreciate it if anyone who's had good looks at lots of valves could comment on these pics. Sorry, they're not the best, taken at night.

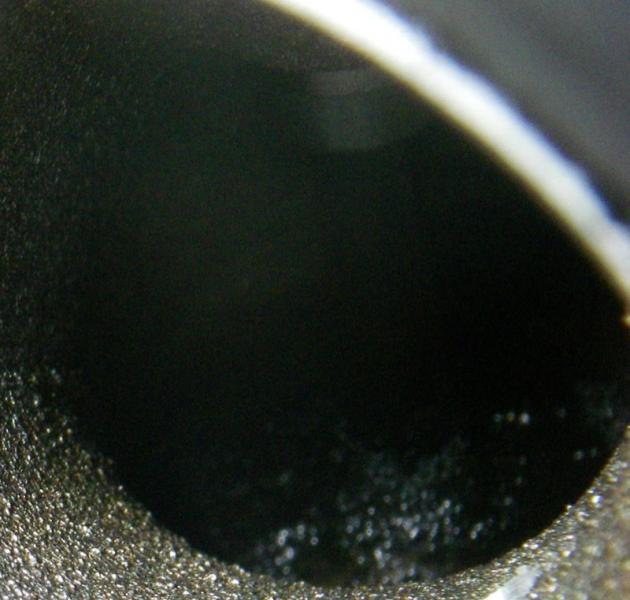

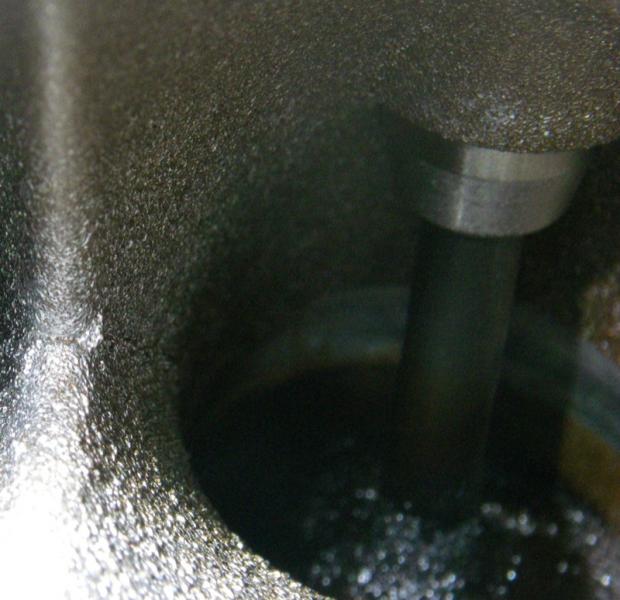

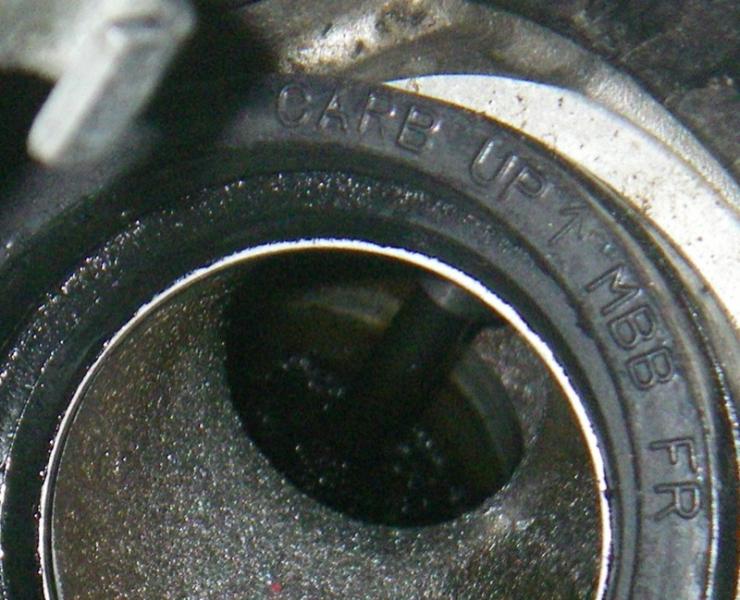

Do your valves look like this?-imgp1052.jpg Do your valves look like this?-imgp1055.jpg Do your valves look like this?-imgp1058.jpg
avramd is offline
Reply
Old 11-19-2009, 10:35 PM
  #2
Honducati
SuperSport

jbaxx's Avatar

Join Date: Oct 2006
Location: Anaheim, CA
Posts: 809
jbaxx is on a distinguished road
Use a good quality fuel like Chevron. Also rev the pee pee out of it occasionally.
jbaxx is offline
Reply
Old 11-19-2009, 10:46 PM
  #3
Who are you?
SuperSport

Just_Nick's Avatar

Join Date: Aug 2009
Location: Las Vegas, NV
Posts: 731
Just_Nick is on a distinguished road
Fuel isn't different, the additives that are dumped in the tanks are the only difference.
Your best bet is to run something like Sea Foam every once in a while. Add 4 oz, or a quarter bottle, into the tank at fill-up and drive the **** out of it.
Just_Nick is offline
Reply
Old 11-20-2009, 01:25 AM
  #4
dave
Squid

yellowstorm's Avatar

Join Date: Aug 2007
Location: sydney australia
Posts: 31
yellowstorm is on a distinguished road
if there is white krusty bubbles on top of the valve you may have a little water mixed with your fuel try some new fuel
yellowstorm is offline
Reply
Old 11-20-2009, 07:25 AM
  #5
Senior Member
Superstock

Jim TT's Avatar

Join Date: May 2005
Posts: 312
Jim TT
That is rather normal but the advice above is good. JIM
Jim TT is offline
Reply
Old 11-20-2009, 07:53 AM
  #6
Senior Member
SuperSport

mboe794's Avatar

Join Date: Jul 2008
Location: Twin Cities
Posts: 505
mboe794 is on a distinguished road
Yeah, intake valves usually have some crud on them. You may be able to reduce it but probably not eliminate it. Mine are a little dirty. I don't worry about it.
mboe794 is offline
Reply
Old 11-20-2009, 09:29 AM
  #7
The Hypno-Toad
Superstock
Superstock

Kendrick's Avatar

Join Date: Jun 2006
Location: Milwaukee, WI
Posts: 467
Kendrick is on a distinguished road
Yeah, thats what mine looked like when I took them out, but at least the exhaust valves were scorched nice and clean!
Kendrick is offline
Reply
Old 11-20-2009, 09:45 AM
  #8
2nd mouse gets the cheese
SuperBike

Little_Horse's Avatar

Join Date: Jan 2008
Location: Beaverton, OR
Posts: 1,697
Little_Horse is on a distinguished road
Doesn't the ethanol leave more deposits too?
Little_Horse is offline
Reply
Old 11-20-2009, 11:07 AM
  #9
Member
Squid

Starbucks Fueled's Avatar

Join Date: Aug 2006
Location: Bloomington, IL
Posts: 74
Starbucks Fueled is on a distinguished road
+1, looks like good ole ethanol deposits to me. Some techron will clean that off.

AJ
Starbucks Fueled is offline
Reply
Old 11-20-2009, 11:18 AM
  #10
Fastest Color
SuperBike

FL02SupaHawk996's Avatar

Join Date: Jul 2007
Location: Lithia, FL
Posts: 2,091
FL02SupaHawk996 is on a distinguished road
Yep, mine were bad too...let me know what you find that works?

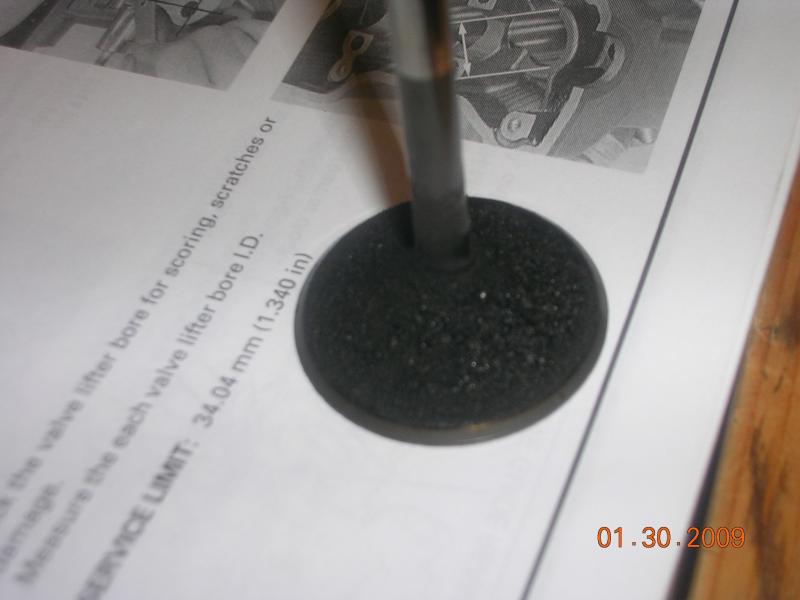

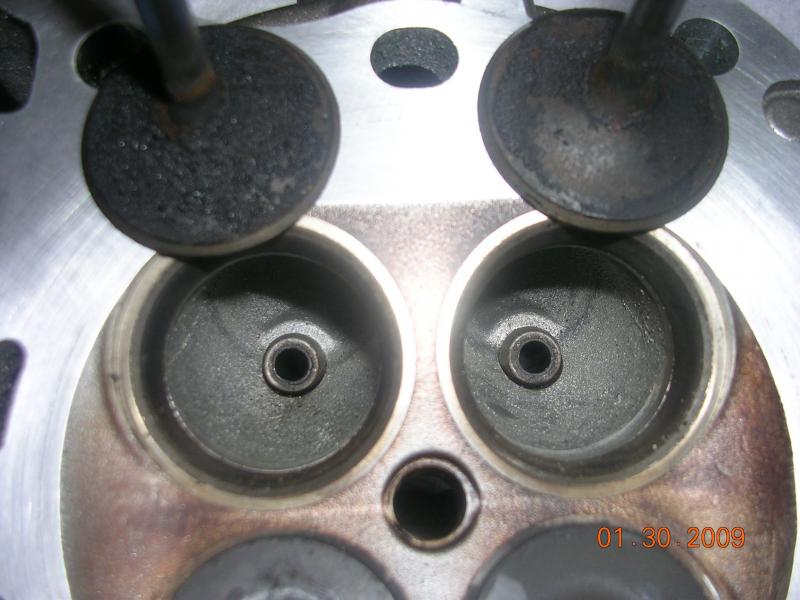

Attached Thumbnails Do your valves look like this?-01-30-09-dirty-int-valve.jpg   Do your valves look like this?-01-30-09-dirty-int-valves-bowls.jpg
FL02SupaHawk996 is offline
Reply
Old 11-20-2009, 06:01 PM
  #11
Senior Member
Back Marker
Thread Starter

avramd's Avatar

Join Date: Oct 2009
Location: Newport, RI
Posts: 143
avramd is on a distinguished road
Originally Posted by Just_Nick
Fuel isn't different, the additives that are dumped in the tanks are the only difference.
Your best bet is to run something like Sea Foam every once in a while. Add 4 oz, or a quarter bottle, into the tank at fill-up and drive the **** out of it.
Is Sta-Bil equivalent to Sea-Foam?
avramd is offline
Reply
Old 11-20-2009, 06:26 PM
  #12
Senior Member
MotoGP

nath981's Avatar

Join Date: Aug 2006
Location: altoona, pa
Posts: 2,934
nath981 is on a distinguished road
Originally Posted by avramd
Is Sta-Bil equivalent to Sea-Foam?
no sta-bil is a fuel stabilizer you put in when you store your bike so the carbs don't get all gunked up. Sea Foam can be purchased at auto zone or other auto store. If I were you, I wouldn't be concerned about those valves.
nath981 is offline
Reply
Old 11-20-2009, 07:21 PM
  #13
Moderator
MotoGP

inderocker's Avatar

Join Date: May 2005
Posts: 2,708
inderocker is an unknown quantity at this point
Mine looked the same way before the top end rebuild (unrelated - bent valves). After that I started to run only quality fuels in the bike, Shell & Chevron, and have noticed that the intake valves are a lot cleaner.
inderocker is offline
Reply
Old 11-20-2009, 07:21 PM
  #14
Who are you?
SuperSport

Just_Nick's Avatar

Join Date: Aug 2009
Location: Las Vegas, NV
Posts: 731
Just_Nick is on a distinguished road
Originally Posted by avramd
Is Sta-Bil equivalent to Sea-Foam?
Negative. Like Nath said, Sta-bil is meant to keep fuel from turning bad and gumming **** up.
Sea foam is meant to clean **** out of your engine.
Just_Nick is offline
Reply
Old 11-23-2009, 07:59 PM
  #15
Senior Member
Back Marker
Thread Starter

avramd's Avatar

Join Date: Oct 2009
Location: Newport, RI
Posts: 143
avramd is on a distinguished road
Actually, I was referring to Sta-Bil Ethanol Treatment, not Sta-Bil Engine Stabilizer, sorry. Their ethanol treatment is meant for everyday use and has an engine cleaner in it.
