Curious About Calipers
I got to lookin' at the front calipers on the CheeperHawk today, thinkin' that they were an upgrade from the stock units. Based on a post by "lazn" from a while back, where he listed a bunch of Honda caliper specs, I pulled them off to measure the piston sizes figurin' that would be helpful if I needed rebuild kits or new pads.
Surprise! The calipers on the bike had 30mm/27mm pistons....same as the OEM SuperHawk units!
I dug out a pair of '02 CBR F4i calipers (bought to eliminate the linked brakes on a VFR I used to have) and checked them out...34mm/32mm, just like "lazn" posted.
CBR caliper install comin' up!!

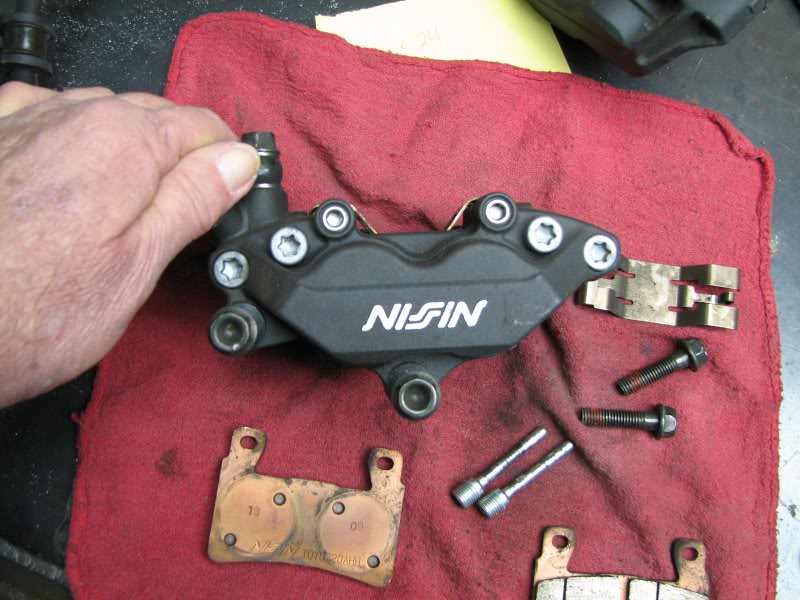

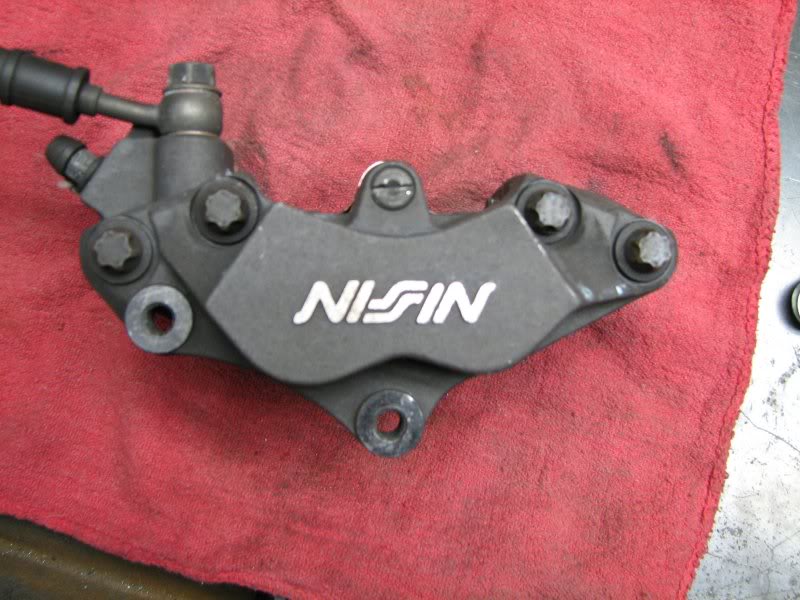

The 1st pic is the "upgrade" caliper that was on the CH, the 2nd is the CBR unit that will be mounted up most ricky-tick.
Rex
Surprise! The calipers on the bike had 30mm/27mm pistons....same as the OEM SuperHawk units!
I dug out a pair of '02 CBR F4i calipers (bought to eliminate the linked brakes on a VFR I used to have) and checked them out...34mm/32mm, just like "lazn" posted.
CBR caliper install comin' up!!
The 1st pic is the "upgrade" caliper that was on the CH, the 2nd is the CBR unit that will be mounted up most ricky-tick.
Rex
12-30-2009, 03:15 PM
#2
Senior Member
MotoGP
Join Date: Mar 2007
Location: Phoenix, AZ
Posts: 3,132
Good catch! F4i calipers are SO much better than stock.
Someone must have painted your OEM ones at some point.
edit: I have my OEM ones still and I think they look different than what you have. hmm.. I will dig them out and double check this weekend, unless someone else has easier access before then.
Someone must have painted your OEM ones at some point.
edit: I have my OEM ones still and I think they look different than what you have. hmm.. I will dig them out and double check this weekend, unless someone else has easier access before then.
12-30-2009, 04:18 PM
#4
Destructive Tester
Superstock
Thread Starter
Join Date: Oct 2009
Location: N.E. oHIo
Posts: 263
They must be later versions, no evidence of being painted.
Master cylinder? Yeah, we got that!
I have a pretty serious aversion to the "urine sample cup" reservoirs, even more serious when they're mounted on standard handlebars.
Rex
12-30-2009, 06:36 PM
#6
Senior Member
SuperBike
Join Date: Aug 2004
Location: Atlanta, GA
Posts: 1,802
12-30-2009, 06:56 PM
#8
Senior Member
MotoGP
Join Date: Sep 2006
Location: Austin, Tx
Posts: 4,138
Is this the equation? You mount the triple that much deeper on the tubes so you can install superbike bars to raise the ride position up? Am I missing something? You're just adding parts to change no geometry. Or am I missing something?
12-30-2009, 07:00 PM
#9
Senior Member
MotoGP
Join Date: Mar 2007
Location: Phoenix, AZ
Posts: 3,132
That looks about right for the stock location to me.. Stock clipons mount above the stock triple..
12-30-2009, 07:21 PM
#10
Destructive Tester
Superstock
Thread Starter
Join Date: Oct 2009
Location: N.E. oHIo
Posts: 263
The hammer I use on the bike is much heavier and made of steel!!

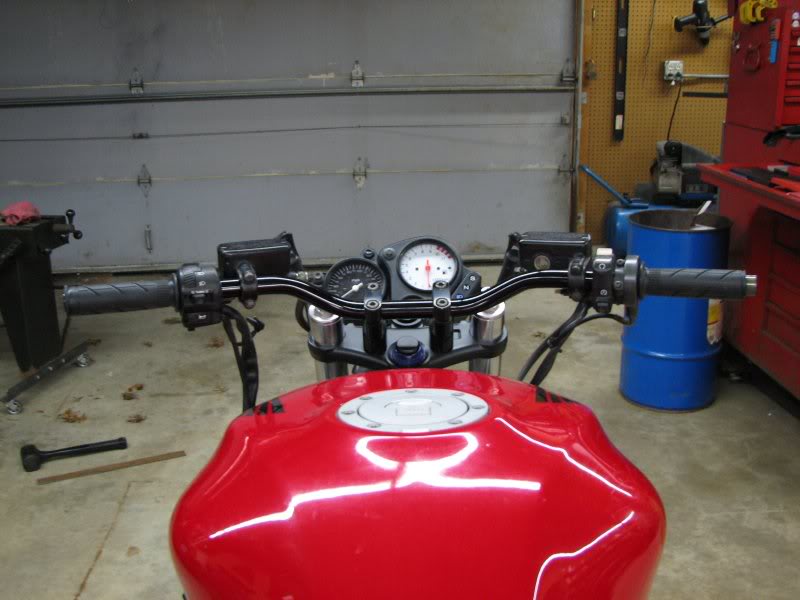

The fork tubes are protruding through the upper clamp as needed to mount the clip-ons. I haven't changed the original geometry at all.
The superbike bars just make the riding position a lot more tolerable for an Ol' Geezer like myself!
Rex
12-30-2009, 09:29 PM
#11
Senior Member
SuperBike
Join Date: Jan 2007
Posts: 2,116
It appears you used the OE top triple clamp but whose bar risers did you use and do they also available for "fat bars"?
12-31-2009, 07:01 AM
#12
Destructive Tester
Superstock
Thread Starter
Join Date: Oct 2009
Location: N.E. oHIo
Posts: 263
Yes, stock upper clamp. The risers are '02 Yamaha FZ1, 50+-mm rise.
I threaded the mount studs about 25mm down and cut off about 25mm of the overall length. On the bottom of the upper clamp I spot faced the casting to allow use of a 6mm spacer, about 30mm in diameter, as a bit of reinforcement.

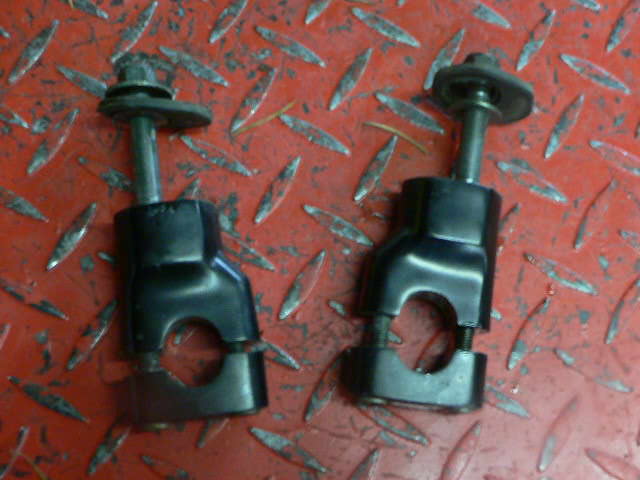

Here's a pic of the risers from the Ebay listing.
Rex
I threaded the mount studs about 25mm down and cut off about 25mm of the overall length. On the bottom of the upper clamp I spot faced the casting to allow use of a 6mm spacer, about 30mm in diameter, as a bit of reinforcement.
Here's a pic of the risers from the Ebay listing.
Rex
12-31-2009, 08:26 AM
#13
Senior Member
SuperBike
Join Date: Aug 2005
Location: Fort Wayne, IN
Posts: 1,858
Hoenstly guys, I didn't notice a single change when going to the 'better' calipers. Maybe it was just me, but the braking power was pretty much the same. FYI - I changed out the master cylinder too. Just thought I'd throw that in for discussion.
12-31-2009, 09:45 AM
#14
Senior Member
MotoGP
Join Date: Mar 2007
Location: Phoenix, AZ
Posts: 3,132
I am surprised.. It was night and day difference for me. Plus the advantage of being able to find a wider range of brake pads for the F4i calipers is an added bonus.
12-31-2009, 12:57 PM
#16
Senior Member
SuperSport
Join Date: Sep 2008
Location: Delmar NY
Posts: 805
+1 - I know repeated high speed track use may be a different story, but for the street, changing to the EBC HH pads was night and day for me. I went from aceptable so so braking to the two finger stuff everyone always mentions. Only change was the pads as I had changed the fluid with DOT 4 a few months earlier.
12-31-2009, 08:13 PM
#17
Senior Member
SuperSport
Join Date: Dec 2005
Location: Sunshine Coast, Australia
Posts: 963
Me too. I persisted with the standard calipers and master cylinder for ages and ages. Mine were rebuilt, nicely painted, and had new pads and bolts etc, so I was reluctant to take them off. I spent heaps of time bleeding them, confident I could get them good enough.
But I just couldn't!!!! F4i calipers and master cylinder swap, and immediately I had two finger braking that gave me great confidence. I have done a lot of mods to my bike, and for me, this is the best mod I have done.
But I just couldn't!!!! F4i calipers and master cylinder swap, and immediately I had two finger braking that gave me great confidence. I have done a lot of mods to my bike, and for me, this is the best mod I have done.
