Coolant leak from engine mount...
#2

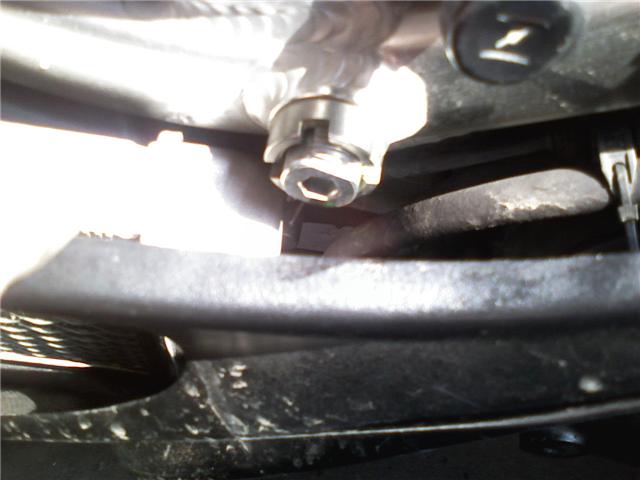

I'd suggest looking at the coolant reservior and the hoses from it... it's located just to the right of that bolt between the heads... and it may be leaking while on the side stand and just running down to that location.
J.
J.
#5
2nd mouse gets the cheese
SuperBike
Thread Starter
Join Date: Jan 2008
Location: Beaverton, OR
Posts: 1,697
so I looked a little closer and it seems the line that is leaking is the one that connects to the front cylinder under the carbs. Its about an inch od. It looks as though the clamp is tight so I am assuming then its time to order a new hose. And to think I knew I smelled coolant for a while, but could never find why. The only pain now is I am going to have to remove the carbs, "son of a..." But thank goodness not a crack or something in the case, which was my initial thought. I guess those ideas are what happen after working on my mazda truck, where hoses last longer than intake manifolds and among other things. Thanks for the help reassurances.
#6
Once you've had the carbs off a few times, it goes pretty quick. You pick up the flow of things and it comes pretty easy. Of course if it had been one of the radiator hoses, it would have been a hell of alot easier.
#8
tim
#9
cornandp, hope you get it back on the road soon. Just for reference, what year is your bike? Good to know for future hose replacement schedule.
Sometimes you get lucky, but sometimes Murphy's Law kicks in and it's the hardest hose to get to that leaks. Some of todays cars are much worse though.
Sometimes you get lucky, but sometimes Murphy's Law kicks in and it's the hardest hose to get to that leaks. Some of todays cars are much worse though.
#10
so I looked a little closer and it seems the line that is leaking is the one that connects to the front cylinder under the carbs. Its about an inch od. It looks as though the clamp is tight so I am assuming then its time to order a new hose. And to think I knew I smelled coolant for a while, but could never find why. The only pain now is I am going to have to remove the carbs, "son of a..." But thank goodness not a crack or something in the case, which was my initial thought. I guess those ideas are what happen after working on my mazda truck, where hoses last longer than intake manifolds and among other things. Thanks for the help reassurances.
since you're in there, i would check and replace the o-ring that seals the metal hose mount to the front cylinder too. i had one go out on me that caused a slow leak. the hose might be okay and it's just the seal that's leaking. the o-ring is cheap and i replaced both of them(one on the front head and one on the rear head)
#18 in the diagram:
http://fiche.ronayers.com/Index.cfm/...oup/WATER_PIPE
Last edited by ff; 04-07-2009 at 11:25 AM.
#11
2nd mouse gets the cheese
SuperBike
Thread Starter
Join Date: Jan 2008
Location: Beaverton, OR
Posts: 1,697
since you're in there, i would check and replace the o-ring that seals the metal hose mount to the front cylinder too. i had one go out on me that caused a slow leak. the hose might be okay and it's just the seal that's leaking. the o-ring is cheap and i replaced both of them(one on the front head and one on the rear head)
#18 in the diagram:
http://fiche.ronayers.com/Index.cfm/...oup/WATER_PIPE
#18 in the diagram:
http://fiche.ronayers.com/Index.cfm/...oup/WATER_PIPE
